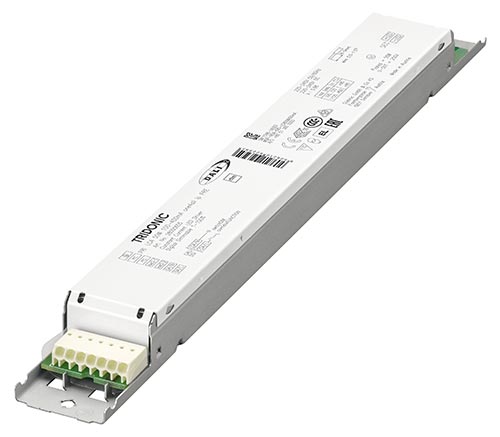

Driver LCA 50W 100–400mA one4all lp PRE
premium series non-SELV
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Dimmable built-in constant current LED Driver
Output current adjustable between 100 – 400 mA
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Max. output power 50 W
Up to 92 % efficiency
Power input on stand-by < 0.15 W
Nominal lifetime up to 100,000 h
5 years guarantee
Housing properties
Low profile metal casing with white cover
Type of protection IP20
Interfaces
one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° push terminals
Functions
Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Constant light output function (CLO)
Power-up fading at AC
Configurable via ready2mains
Switch off the Driver with fade2zero
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
Flexible configuration via companionSUITE
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency
Flexible configuration via DALI, ready2mains and I-SELECT 2
Reliability proven by lifetime up to 100,000 h and 5 years guarantee
Typical applications
For linear/area lighting in office applications

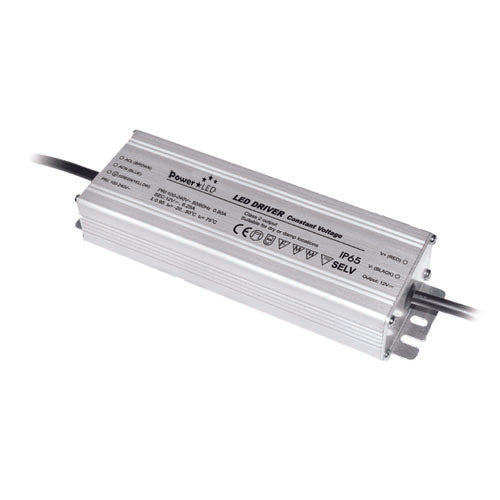

Constant voltage/ PWM Output• Leading & Trailing edge dimmable• AC input: 200-240VAC• Built-in active PFC function• Efficiency up to 87%• Protections: Short circuit/ Over loading/ Over current/ Over temperature• Full protection aluminium housing• Cooling by free air convection• Suitable for LED lighting and moving signs

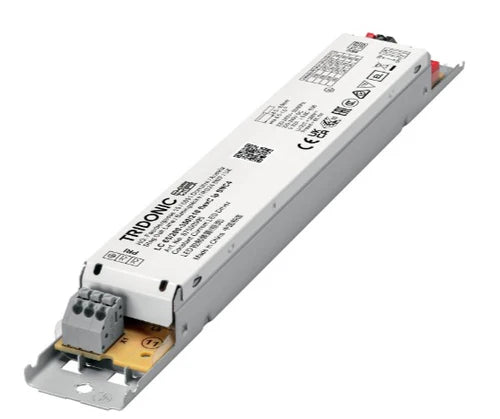

Product description
Fixed output built-in LED Driver
Constant current LED Driver
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
Output current 250, 300 or 350 mA
Max. output power 65 W
Up to 90 % efficiency
Nominal lifetime up to 50,000 h
5 years guarantee
Housing properties
Casing: metal, white
Type of protection IP20
Functions
Overload protection
Short-circuit protection
No-load protection
Burst protection voltage 0.5 kV
Surge protection voltage 1 kV (L to N)
Surge protection voltage 2 kV (L/N to earth)

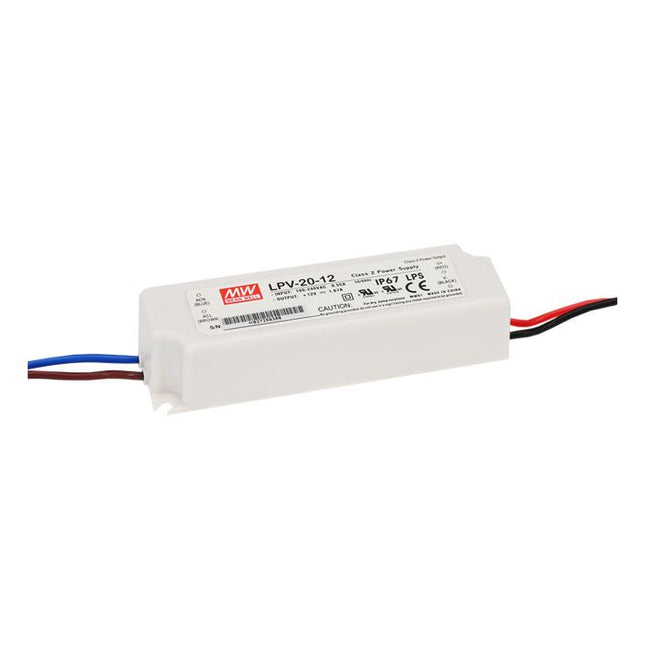

Constant Voltage Fully encapsulated with IP67 level Protections: Short circuit/ Overload/ Over voltage Other features: Universal AC input / Full Range Class 2 power unit Isolation class II, no F.G. Withstand 300VAC surge input for 5 seconds Cooling by free air convection Pass LPS 100% full load burn-in test Low cost, High reliability 2 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 20 Output Voltage 12V Dimmable (Type) No DC Output Adjustment N/A Dimensions 118 x 35 x 26 EMC Standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC Safety Standards UL1310, UL879 approved; Design refer to TUV EN60950-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30°C~+70°C

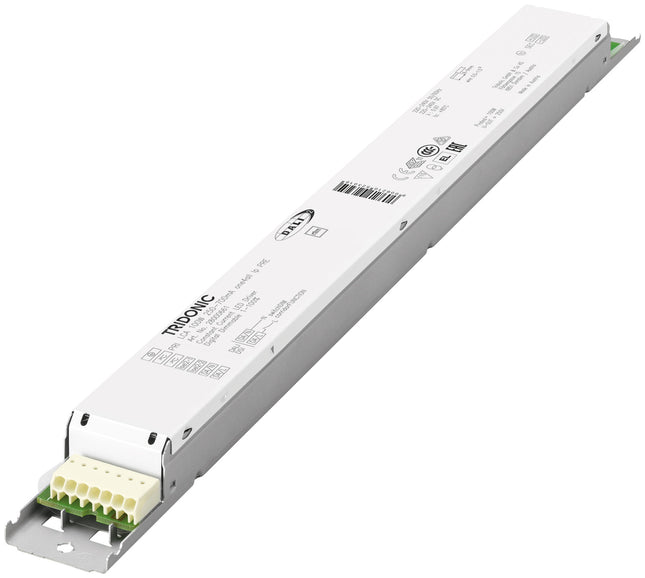

Tridonic LCA 100W 250-700mA one4all lp PRE 28000661
Dimmable built-in constant current LED driver
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Output current adjustable between 250 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
Max. output power 100 W
Up to 93 % efficiency
Power input on stand-by < 0.15 W
Nominal lifetime up to 100,000 h

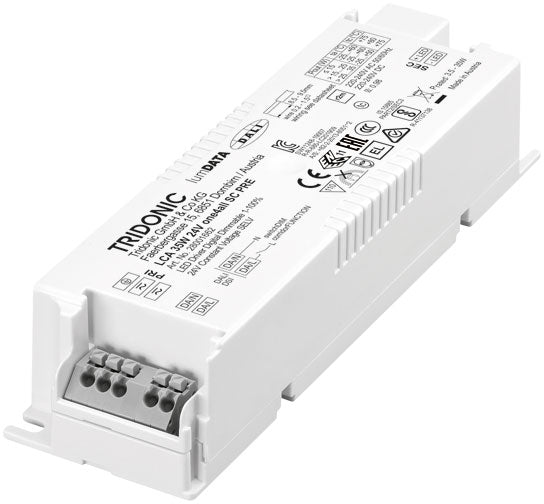

Tridonic LCA 35W 24V one4all SC PRE 28001662
Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
Can be either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
One4all interface and ready2mains enable different dimming options
Dimming range 1 to 100 %
No additional external dimmer is needed
Suitable for emergency escape lighting systems acc. to EN 50172
Nominal lifetime up to 50,000 h
5 years guarantee

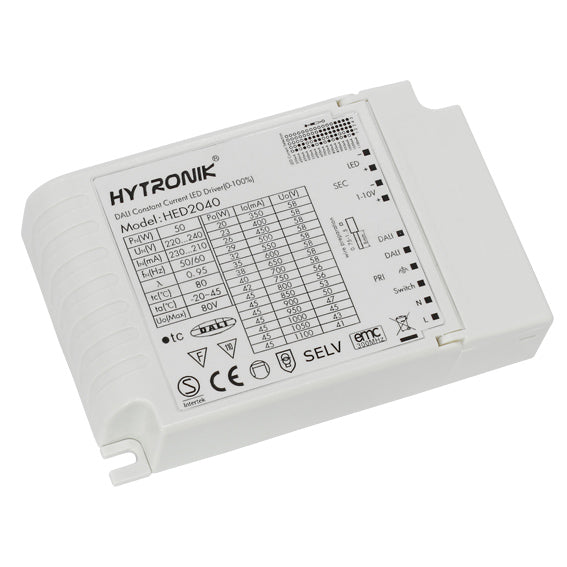

HED2040-A is a constant current & voltage Dali LED driver. It also offer other dimming options like 1-10V dimming and Switch-Dim. It has a built in DIP switch which allows easy multiple LED current and voltage selection options. Some of the product highlights are :
Automatic output reduction 80%–60%–40% against overheat
Failure DALI feedback
Flicker-free dimming from 100%~30%
In compliance with DALI 2 standard
DALI and switch-Dim can be used at the same time
