Perfect alternative to the Harvard CL350S and CL700S    Mackwell LED Drivers utilise quasi-resonant technology, which ensures higher efficiency levels are maintained across a wider voltage range. The switchable models provide the added flexibility to switch between different currents during the installation stage.All drivers are UK designed and manufactured, incorporating premium grade components as standard. The use of these components ensures all drivers maintain a high power factor and low operating temperatures. All our LED Drivers are designed to achieve a minimum operating lifetime of 50,000 hours. All drivers are housed in a robust white plastic case and include 1-7mm cable clamping as standard. KEY FEATURES• Switchable between 350 mA and 500 mA• Up to 88% operating efficiency• 0.95 power factor• 1-7mm secure cable clamping• Double insulation (Class II)• Short circuit protection• Open circuit protection• Over temperature protection• Mains surge protection• Automatic thermal cut-out• UK designed and manufactured Technical DataSPECIFICATION OUTPUTWATTAGE:33 wattsCURRENT: 350mA or 700mAVOLTAGE RANGE: 9 to 48 Volts INPUTEFFICIENCY: 88% at full loadPOWER FACTOR: 0.96 at full loadVOLTAGE: 198 to 265 VacFREQUENCY: 50/60 Hz PROTECTIONS-Mains surge-Over load-Open circuit-Short circuit-Thermal cut-out DIMENSIONS186 mm x 31.7 mm x 32.5 mm WEIGHT120g ENVIRONMENTAL CONDITIONS OPERATING TEMPERATURE: -20°C to +50°CSTORAGE TEMPERATURE-30°C to +70°CRELATIVE HUMIDITY: 95% non-condensingLIFE TIME: 50,000 hours (minimum)IP RATING: 40 ELECTRICAL TESTING STANDARDS EN61347-2-13EN60950EN61547EN62384:2006EN60068-2-1,2,30,78EN55015:2006 + A2:2009EN61000-3-2APPLICATION NOTES -Ensure the mains has been disconnected from the driver for at least 1 minute before connecting to the LEDs.-Do not connect Live and Neutral to the LED output terminals.-Ensure LED QTY usage is within the recommended guidelines of the driver. Mackwell maintains a policy of continuous development and reserves the right to change the details shown on this data sheet without prior notice. The contents are intended forguidance only. SKU: MLD-SCC-33-350/700

Read more less

ELED-60P-C600-2100T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch • Dimming function: Triac/phase cut dimming • Work with leading or trailing edge Triac dimmer • (ON key: leading edge; 1 key: trailing edge) • AC input: 200-240VAC • Built-in active PFC function • Efficiency up to 83% • IP20 design for indoor installation • Full protection plastic housing easy installation • Protections: Short circuit/ Over load • Cooling by free air convection • Suitable for LED lighting and moving sign applications • Strong compatibility, flicker-free dimming ELED-60P-C600-2100T(C600mA) ELED-60P-C600-2100T(C700mA) ELED-60P-C600-2100T(C800mA) ELED-60P-C600-2100T(C900mA) ELED-60P-C600-1200T(C1000mA) ELED-60P-C600-2100T(C1100mA) ELED-60P-C600-2100T(C1200mA) ELED-60P-C600-1200T(C1300mA) ELED-60P-C600-2100T(C1400mA) ELED-60P-C600-2100T(C1500mA) ELED-60P-C600-2100T(C1600mA) ELED-60P-C600-2100T(C1700mA) ELED-60P-C600-2100T(C1800mA) ELED-60P-C600-2100T(C1900mA) ELED-60P-C600-2100T(C2000mA) ELED-60P-C600-2100T(C2100mA) Wattage 39 45.5 52 58.5 60 60 60 60 60 60 60 60 60 60 60 60 Input Voltage 200~240 200~240VAC 200~240VAC 200~240VAC 200~240 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC Output Current 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 Output Voltage 3~65 3~65 3~65 3~65 3~60 3~55 3~50 3~46 3~43 3~40 3~38 3~35 3~33 3~32 3~30 3~39 Dimensions 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm Working Temperature -40~60°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

IP65 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 95%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Optional CQC models availableOutput voltage and C.C level can be adjusted through internal potentiometerMore Information Manufacturer Mean Well Output Wattage (W) 185 Output Voltage 36V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment 33 ~ 40V Dimensions 228*68*38.8mm EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1 Output Voltage Options Single Working Temperature -40~+70°C (refer to output derating curve) PDF Datasheet HLG-185H-spec_1.pdf

Read more less

PLEASE NOTE THIS PRODUCT IS NOW OBSOLETE , PLEASE CONSIDER THE BELOW AS A VIABLE ALTERNATIVE DATASHEET IN DOWNLOADS  ALTERNATIVE Ansell/All Led / Ohmtronic  Ansell constant voltage, non dimmable 75w LED Driver for 12v LED applications Offers thermal, short circuit and overload protection

Read more less

This item is obsolete, you will be sent  Alternative TCI 151376 Harvard CoolLED 33w 700ma 15-48v Open Terminals - Harvard - CL700D2-240-B C-DC 33W LED driver Constant Current mode (CC); Max. output 48Vdc at 0.7A; IP20; Dimming with DALI; Built-In control Specifications Technical data Information Brand Harvard Power Systems Commodity 8504409090 Item number CL700D2-240-B Warranty pack 60 Months Bring-In Series CL RoHS Compliant Description AC-DC 33W LED driver Constant Current mode (CC); Max. output 48Vdc at 0.7A; IP20; Dimming with DALI; Built-In control Packing Quantity 50 Application LED EN 61347 Net weight (gram) 130 Technology AC/DC Constant Current C.C. Format Box Type - Enclosed Output Power (W) 33 Output Voltage (V) 48 Output Current (A) 0.7 Input Voltage (V) 220 - 240 IP Rating IP20 Width (mm) 32 Height (mm) 32 Depth (mm) 150 Dimming Technology DALI

Read more less

Driver LCO 165W 200–1050mA 285V one4all NFC C EXC3 excite NFC outdoor series Product description Dimmable built-in constant current LED driver Dimming range 5 – 100 % (min. 10 mA) For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer Max. output power 165 W Up to 93 % efficiency Lowest power input on stand-by < 0.16 W Nominal lifetime of 100,000 h and 8 years guarantee Interfaces Near field communication (NFC) one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration via mains) U6Me2 (configuration of chronoSTEP 2 via mains) Terminal blocks: 45° / 0° push terminals Functions Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains) Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2, ready2mains) Dimming through mains voltage (inputDIM) Enhanced constant light output function (eCLO) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Configurable external temperature management (ETM) Intelligent Temperature Guard (ITG) Intelligent Voltage Guard Plus (IVG+) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency In-field programming possible after installation with NFC interface and ready2mains High overvoltage protection: up to 10 kV asymmetric (protection class I and II) Typical applications Road, street and industry

Read more less

Product Datasheet   Product family features _ Line frequency: 0 Hz | 50 Hz | 60 Hz _ Versatile DALI window driver up to 75 W due to flexible output characteristic _ Supply voltage: 220…240 V _ Usable as DT6 (2-channel) or DT8 (Tunable White) driver* _ Available with output current range: up to 700 mA _ Constant Lumen Output (CLO) _ Integrated customizable thermal management (Driver Guard) _ Non-isolated drivers

Read more less

OBSOLETE, THE BELOW WILL BE SENT Or  Alternative alternative    Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 200mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year WarrantyMore Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 200mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf

Read more less

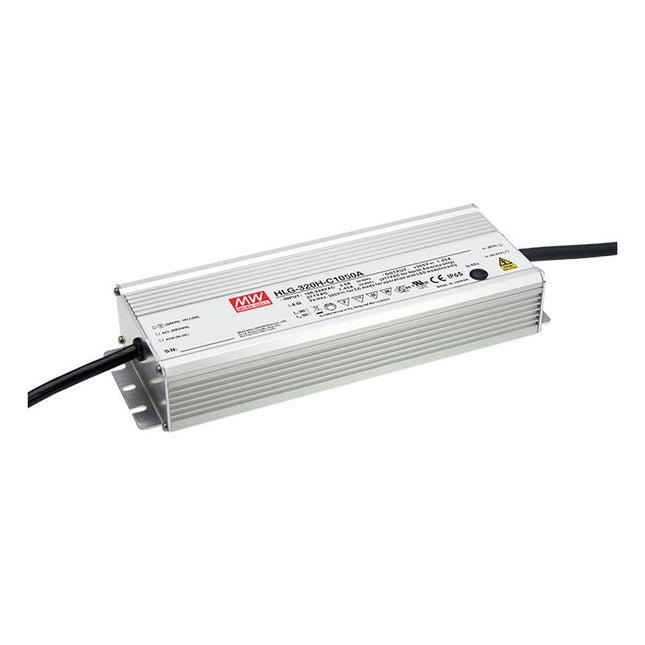

Output voltage and C.C level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 95% Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Built-in active PFC function, PF>0.9 for 60% of load or higher5 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 264 Output Voltage 12V Dimmable (Type) AC phase-cut DC Output Adjustment +/-6% rated output voltage Dimensions 252 x 90 x 43.8 EMC Standards EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-320H-spec_17.pdf

Read more less

EM powerLED PRO DIM SR 45 W Combined emergency lighting LED driver Note: LED driver supplied with duration dip switch (2-way) in 3 hours position. Duration dip switch and I-SELECT 2 PLUG must be set before battery and mains connection. Product description Independent dimmable LED driver Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 20 – 50 V SELV for output voltage < 60 V DC Compact plastic casing with strain relief Properties Output power 6 – 45 W Constant current LED operation 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA Integrated emergency lighting unit 1, 2 or 3 h rated duration Operating time selectable with dip switch (2-way) Automatic shutdown of output if the forward voltage of the LED is out of range Two-colour status display LED Electronic multi-level charge system Pulse current charging for NiMH batteries Polarity reversal protection for battery Power-up fading at AC Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Deep discharge protection Short-circuit-proof battery connection 5 years guarantee Interfaces one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION) Terminal blocks: 45° push terminals Batteries High-temperature cells NiCd or NiMH batteries D, Cs, LA or LAL cells Battery box for independent use 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

Product family benefits Large range of products from 20 W to 250 W Installation in very cold and hot environments Very stable output power High electronical reversible short-circuit, overload, overtemperature protection Smart Power Supply: boosting power to turn on cold LEDs Independent installation possible Dimming range: 1…100 % Areas of application Facades, public squares, cruise ships Signage Suitable for indoor and outdoor installations Data sheet 4052899545908

Read more less

Philips Xitanium/150mA 200MA 250MA 300mA 350mA 400MA 450mA 500mA.
