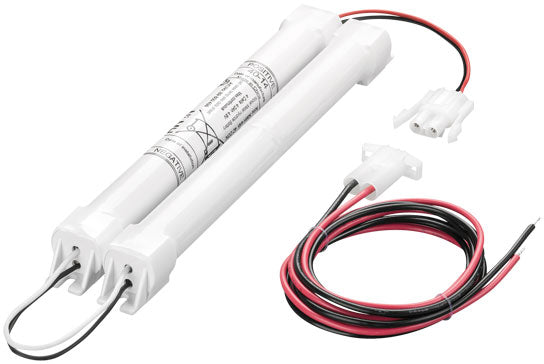

NiMH Accus 4.0 Ah
EM batteries
Product description
High-temperature NiMH cells for use with emergency lighting units
4 year design life
1 year guarantee from delivery date
Accu - NiMH 4Ah 3A CON
Constant high-temperature operation – depending on the emergency lighting unit used (refer to respective emergency control gear data sheet)
Low profile cross-section 21 mm
Good charging properties at high temperature
High energy maintenance of the charged battery
Certified quality manufacturer
In various configurations
Simple connection with plug-in system
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)

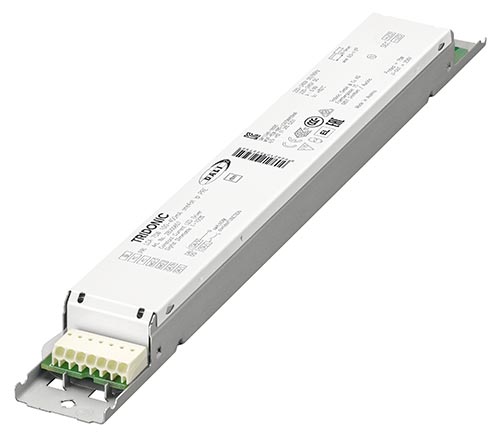

Dimmable built-in constant current LED Driver
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Output current adjustable between 350 – 1,050 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
Max. output power 50 W
Up to 91 % efficiency
Power input on stand-by < 0.15 W
Nominal lifetime up to 100,000 h
5 years guarantee
Housing properties
Low profile metal casing with white cover
Type of protection IP20
Interfaces
one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° push terminals
Functions
Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Constant light output function (CLO)
Power-up fading at AC
Configurable via ready2mains
Switch off the Driver with fade2zero
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
Flexible configuration via companionSUITE
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency
Flexible configuration via DALI, ready2mains and I-SELECT 2
Reliability proven by lifetime up to 100,000 h and 5 years guarantee
Typical applications
For linear/area lighting in office applications
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Dimmable built-in constant current LED Driver
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Output current adjustable between 150 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
Max. output power 35 W
Up to 88 % efficiency
Power input on stand-by < 0.2 W
Nominal lifetime up to 100,000 h
5 years guarantee
Housing properties
Low profile metal casing with white cover
Type of protection IP20
Interfaces
one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° push terminals
Functions
Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Constant light output function (CLO)
Power-up fading at AC
Configurable via ready2mains
Switch off the Driver with fade2zero
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
Flexible configuration via companionSUITE
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency
Flexible configuration via DALI, ready2mains and I-SELECT 2
Reliability proven by lifetime up to 100,000 h and 5 years guarantee
Typical applications
For linear/area lighting in office applications

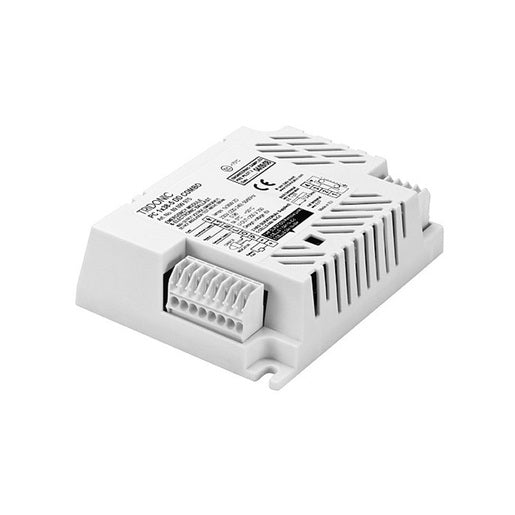

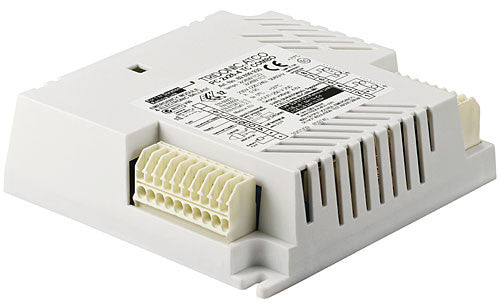

The Tridonic PC 1x28-33 LO DD COMBO is a combination electronic ballast and emergency lighting unit to run 1 x 28w 2D compact fluorescent. They have a 3 hour rated duration and should be used with a 3 cell battery pack. These ballasts come with a 5-year warranty Tridonic article number: 89899957Dimensions: 123 x 79 x 31mm
Driver LCA 60W 900–1750mA one4all SR PRE
premium series
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Independent dimmable constant current LED driver with strain-relief
Dimmable via DALI / DALI-2
Dimming range 1 – 100 % (whole operating window)
Output current adjustable between 900 – 1,750 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
Max. output power 60 W
Up to 90 % efficiency
Power input on stand-by < 0.2 W
Nominal lifetime up to 100,000 h
5 years guarantee
Housing properties
Casing: polycarbonate, white
Type of protection IP20
Strain relief with loop through function
Interfaces
one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° / 45° push terminals (input / output)
Functions
Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Constant light output function (CLO)
Power-up fading at AC
Configurable via ready2mains
Switch off the driver with fade2zero
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Suitable for emergency escape lighting systems acc. to EN 50172
For cable cross-sections up to 2.5 mm²
Benefits
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency
Flexible configuration via DALI, ready2mains and I-SELECT 2
No tools required for installation
Typical applications
For downlight, spotlight and decorative applications

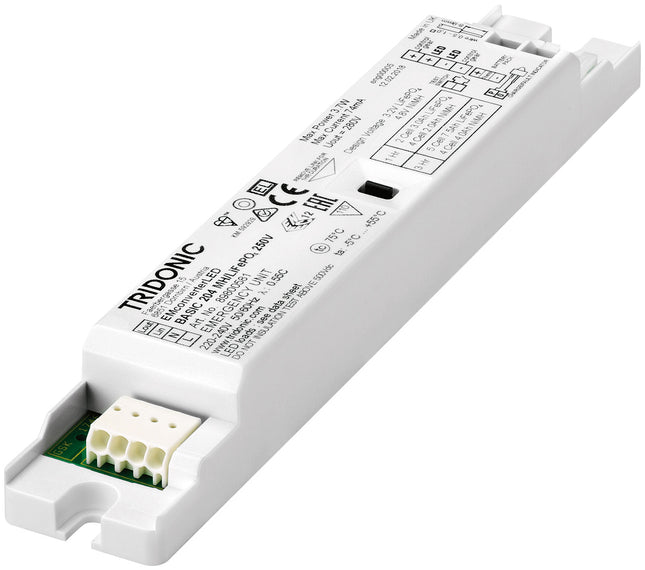

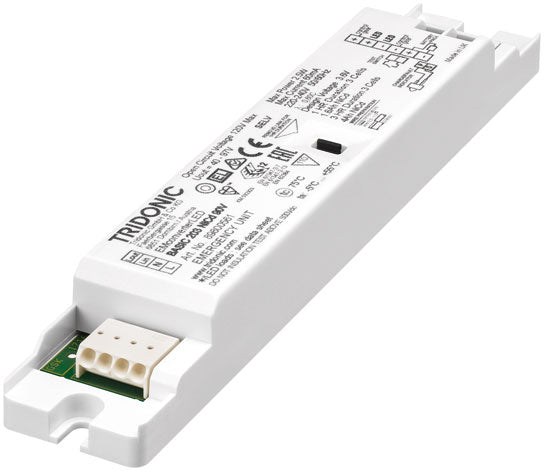

Tridonic EM LED Converter 203 50v - 89800559 - EM ConverterLED BASIC 203 50v
https://www.easy-controlgear.com/products/em-converterled-basic-nicd-nimh-50-v-89800559-89800558-89800560?_pos=1&_sid=515059e64&_ss=r
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)

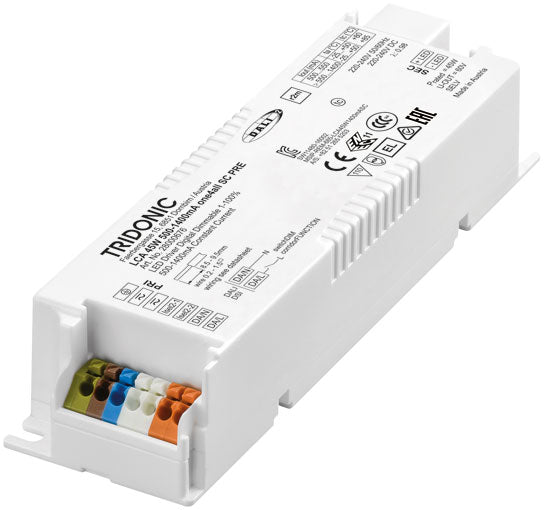

Dimmable built-in constant current LED driver
Can be either used built-in or independent with clip-on strain-relief (see accessory)
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Output current adjustable between 500 – 1,400 mA
Max. output power 45 W
Up to 91 % efficiency
Power input on stand-by < 0.15 W
Nominal lifetime up to 100,000 h
5 years guarantee (conditions at www.tridonic.com)
EM powerLED PRO EZ-3, 1 – 2 W
Combined emergency lighting LED Driver 1 – 4 W
Screw-fix
Clip-fix
Screw-fix
Clip-fix
Product description
Emergency lighting LED Driver with DALI interface and automatic test function
For self-contained emergency lighting
SELV for output voltage < 60 V DC
Low profile casing (21 x 30 mm cross-section)
5 years guarantee
Properties
Mains and emergency operation
DALI interface for controlled testing and monitoring
DALI switchable in mains operation (on/off); the switched phase SL must be switched on
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation

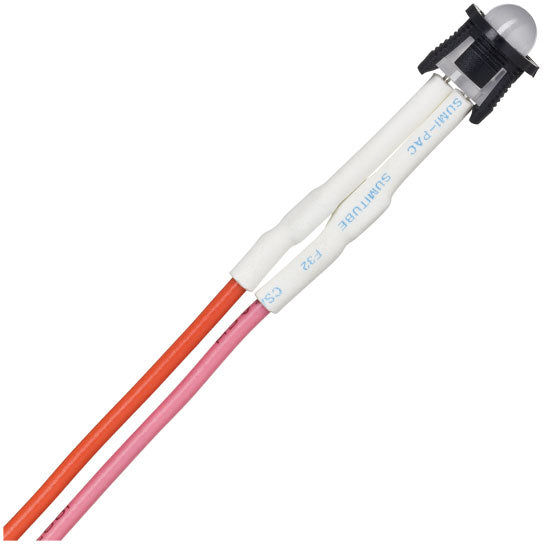

Two-colour status display LED
Automatic restart after LED replacement
Electronic multi-level charge system
SELV classified (outputs powerLED, battery, status LED, test switch)
Polarity reversal protection for battery
Deep discharge protection
Very low energy consumption from the battery after activation of the deep discharge protection
Short-circuit-proof battery connection
Addressing function, patented (“EZ easy addressing”)
Emergency lighting LEDs available
Tests:
Status of the battery
Status of the LED
Charge condition
Function test
Duration test
Batteries
High-temperature cells 2 Ah
NiMH batteries
Cs cells
4 year design life
1 year guarantee
For battery compatibility refer to data sheet
