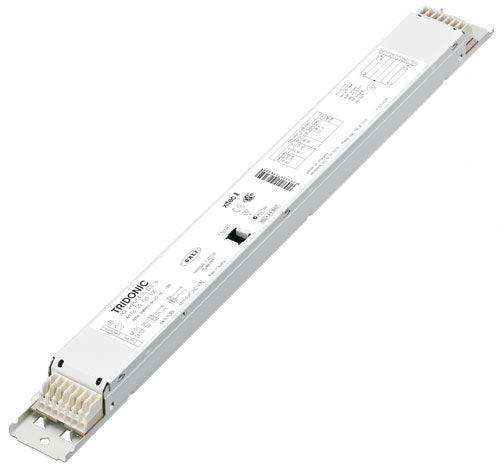

PCA 2x80 T5 ECO lp Y II 22185098
Product description• Processor-controlled ballast with y II inside• Highest possible energy class CELMA EEI = A1 BAT1• Noise-free precise control via DALI orDSI signal, switchDIM or corridorFUNCTION• Nominal life up to 100,000 h (at ta 50 °Cwith a failure rate max. 0.2 % per 1,000 h)• Multi-lamp management• OEM-specific reserved memory areas• 5 years guaranteeInterfaces• DALI• DSI• switchDIM (with memory function + selectable dimming rate)• corridorFUNCTION (3 preprogrammed profiles)• Integrated SMART interface for function withSMART Sensor 5D 19f and corridorFUNCTION plugsFunctions• Intelligent Temperature Guard (overtemperature protection)• Intelligent Voltage Guard (overvoltage indicationand undervoltage shutdown)• Optimum filament heating in any dimmer setting• Disconnection of filament heating from a dimming level of approx.90 % for maximum energy efficiency (SMART-Heating concept)• corridorFUNCTION with ambient light control• Automatically triggered emergency lighting value in DC mode, 15 %• For emergency lighting systems as per EN 50172• Automatic start after replacement of defective lamps• Automatic shutdown if the lamp is faultyÈStandards, page 3Wiring diagrams and installation examples, page 8PCA T5 ECO lp Y II, 14 – 80 WECO T5 T5 TC-L6Ø4,1LD21 4,130side fixing featureTechnical dataMains voltage range 220 – 240 VAC voltage range 198 – 264 VDC voltage range 176 – 280 V (lamp start ≥ 198 V DC)Mains frequency 0 / 50 / 60 HzOvervoltage protection 320 V AC, 1 hTyp. power input on standby < 0.2 WProtective hot restart 0.5 s for AC / 0.2 s for DCDimming range 1 – 100 %Lamp start possible from 1 %Operating frequency ~ 40 – 130 kHzType of protection IP20Ordering dataType Article number Packaging,cartonPackaging,palletWeightper pc.For luminaires with 1 lampPCA 1x14/24 ECO lp Y II 22185094 10 pc(s). 760 pc(s). 0.342 kgPCA 1x21/39 T5 ECO lp Y II 22185101 10 pc(s). 760 pc(s). 0.233 kgPCA 1x28/54 T5 ECO lp Y II 22185099 10 pc(s). 760 pc(s). 0.242 kgPCA 1x35/49/80 T5 ECO lp Y II 22185096 10 pc(s). 760 pc(s). 0.243 kgFor luminaires with 2 lampsPCA 2x14/24 ECO lp Y II 22185095 10 pc(s). 760 pc(s). 0.272 kgPCA 2x21/39 T5 ECO lp Y II 22185102 10 pc(s). 760 pc(s). 0.270 kgPCA 2x28/54 T5 ECO lp Y II 22185100 10 pc(s). 640 pc(s). 0.332 kgPCA 2x35/49 T5 ECO lp Y II 22185097 10 pc(s). 760 pc(s). 0.260 kgPCA 2x80 T5 ECO lp Y II 22185098 10 pc(s). 640 pc(s). 0.343 kgPH

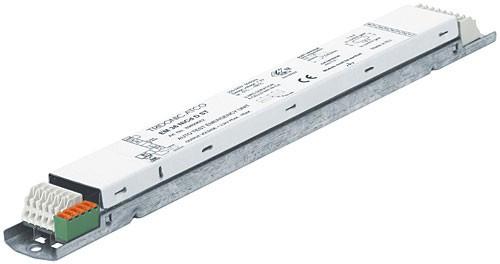

The Tridonic EM 04 Basic lp is one of the latest emergency inverters on the market. Designed to be used with linear and compact fluorescent lamps between 8-36w with a 4 cell NiCad battery. Can be used with non dimmable, dimmable and DALI Dimmable setups. See link for all product features Tridonic EM 04 Basic lp Manufacturer part number 89800202
The most important product properties of the TRIDONIC PC 1x5-16W BASIC sl at a glance: - CELMA energy efficiency class A2 / A3 - Nominal service life up to 50,000 h (at ta 50 °C and a failure rate of ? 0.2% per 1,000 h) - Large temperature range (See table for values) - Automatic restart after lamp replacement - Safety shutdown of defective lamps and at the end of lamp life - Temperature protection in accordance with EN 61347-2-3 C5e

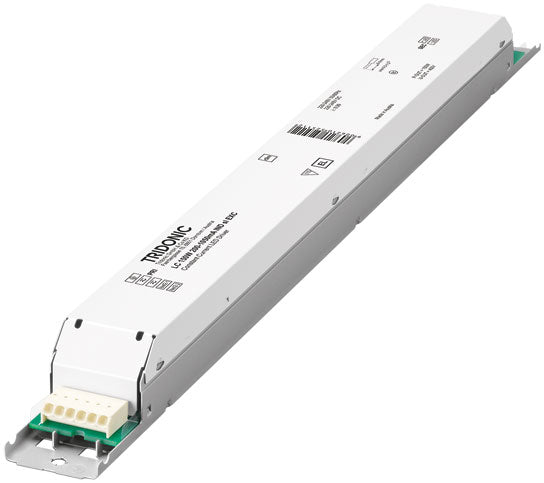

Constant current LED driver
Tested acc. to salt spray test (ISO 9227)
Dimmable via 0 ... 10 V interface (incl. stand-by)
Dimming range 1 to 100 %
Adjustable output current between 200 and 1,400 mA with NFC
Max. output power 150 W
Up to 90 % efficiency
Nominal lifetime up to 50,000 h
Speedy TE-0105 C101..
Tridonic 24034874 Speedy TE-0105 C101 35-105VA Dimmable 12V Transformer
Product description
Compact dimensions 101.5mm L 51mm W 29.5mm H
35-105W
Short-circuit shutdown feature with automatic restart
Overtemperature and overload protection with power regulation
Large connection compartment
Double assignment of the terminal possible
Cage clamp terminals for rigid and flexible wires
Double terminals on the secondary side
Rapid installation of cable clamp and terminal cover, no tool required
Casing: polycarbonate, dark blue/white
Product description

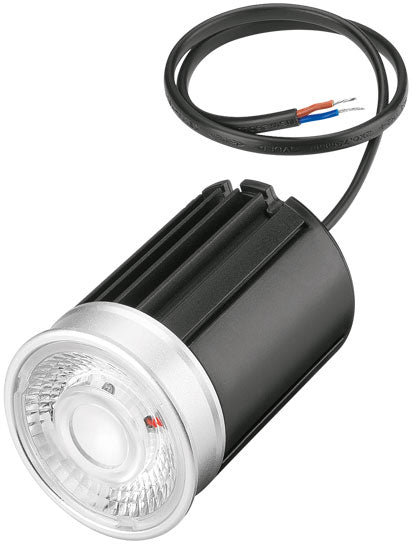

For downlights
Safety glass for 5,000 lm version
Built-in LED module
Cooling required
Flexible operating mode
HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output
Combined emergency LED driver for manual testing
For self-contained emergency lighting
Can be either used build-in or independent with clip-on strain-relief (see accessory)
Max. output power 32 W
Nominal lifetime up to 100,000 h
5 years guarantee
Functions
Adjustable output current between 350 and 700 mA via I-SELECT 2 plugs
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
Suitable for emergency escape lighting systems acc. to EN 50172
1 or 3 h rated duration depending on connected battery
Constant power output in emergency mode
Battery management
Intelligent charge system
Deep discharge protection
Temperature protection
Polarity reversal protection for battery provided by 3-pole connector
Batteries
LiFePO4 batteries with Tridonic LiFeGuard
Temperature-protected
Overcharge-/Overdischarge protection
Ensures safety in use
Up to 8 year design life
3 years guarantee
For battery compatibility refer to datasheet, battery selection
