Electronic ballast with highest possible energy class CELMA EEI A2 BAT. It offers large temperature range, intelligent voltage guard, precise lamp operation using adjustment of lamp parameters, advanced SMART-Heating for minimum 50000 starts without replacement of lamps, constant luminous flux irrespective of fluctuations in mains voltage, designed for THD <10%, for luminaires of protection class I and protection class II. It features automatic start after replacement of defective lamps, safety shutdown of defective lamps and at end of lamp life (EOL 2), insulation displacement connection (IDC) terminal for rapid automatic or manual wiring and for emergency lighting systems as per EN 50172. · Rated lifespan: 100,000 hours · Flicker free warm start · Min/Max ambient working temperature: -25°C to 70°C · Degree of protection: IP20 · Operating voltage: 198-264V (AC), 176-280V (DC)

Read more less

50-70w SON Sodium Impulse Ignitor - ZRM2300C201 - 87500000 - Tridonic

Read more less

Driver LCA 10W 150–400mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Output current adjustable between 150 – 400 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 10 W Up to 82 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation

Read more less

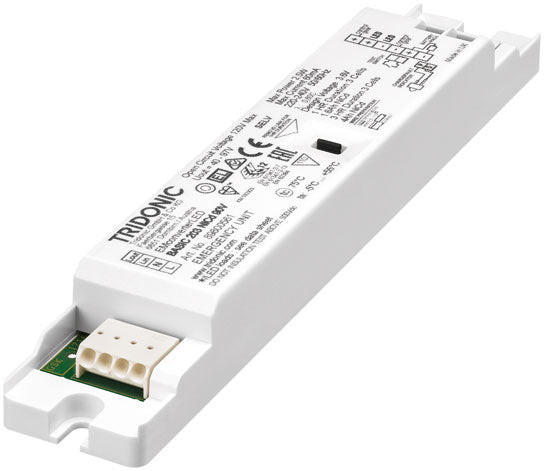

EM converterLED BASIC 202 MH/LiFePO4 50V M converterLED BASIC MH/LiFePO4 50 V BASIC version Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection. Product description Self contained emergency lighting LED driver for manual testing For LED modules with a forward voltage of 10 – 54 V SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm cross-section) For luminaire installation Compatible with Tridonic's LLE FLEX modules (ADV, EXC) Nominal lifetime up to 100,000 h 5 years guarantee Properties Non maintained operation 1 or 3 h rated duration Operating time selectable with plug (duration link) Compatible with all dimmable and non-dimmable constant current LED driver (see data sheet, LED driver compatibility) 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver Automatic shutdown of output if LED load is out of range Constant power output Maximum light output for all LED modules Electronic charge system Deep discharge protection Short-circuit-proof battery connection Polarity reversal protection for battery provided by 3-pole connector Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries) Batteries High-temperature cells NiMH or LiFePO4 batteries LA or 18650 cells 4-year design life for NiMH batteries 1 years guarantee for NiMH batteries 4 – 8 years design life for LiFePO4 batteries 3 years guarantee for LiFePO4 batteries For battery compatibility refer to data sheet, battery selection

Read more less

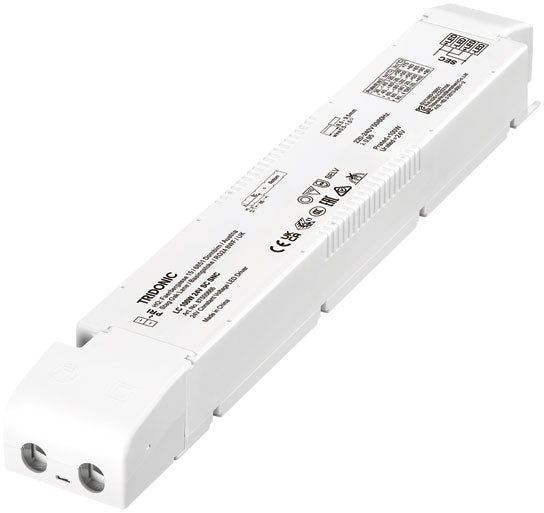

Compact drivers Data sheet Product description Fixed output LED driver Can be either used built-in or independent with clip-on strain-relief (see accessory) Independent LED driver with cable clamps Constant current LED driver For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current 900 or 1,050 mA Max. output power 40 W Nominal lifetime up to 50,000 h 5 years guarantee (conditions at www.tridonic.com)

Read more less

1x 55w T5 T5C Excel One4all Xitec II - Tridonic - 22185132

Read more less

1x18w-3 Cell Combo Ballast

Read more less

Tridonic Electronic HF ballast to run 1 x 16w Compact DD lamps - PC 1/16 DD PRO

Read more less

Data sheet Product description Constant current LED driver Adjustable output current between 150 and 400 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 10 W Up to 81 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee (

Read more less

The Tridonic EM 04 ST G2 (selftest) is one of the latest emergency inverters on the market. Designed to be used with linear and compact fluorescent lamps 16-26w with a 4 cell NiCad battery. Can be used with non dimmable and dimmable setups. See link for all product features Tridonic EM 04 SELFTEST G2 (NiCad) Manufacturer part number 89800201

Read more less

Tridonic PC218T8PRO Electronic Ballast 240/250v 50/60/0Hz to run 2x18w T8 Tubes - PC 2/18 T8 PRO

Read more less

We have very limited stock  left ! 30/8/22 please read below   This combi unit is now obsolete, we would suggest space permitting using the 2 below items as a viable alternative. Emergency Invertor uses a  4 cell battery ( Supplied Separately ) https://www.easy-controlgear.com/products/elp-om458-ep-4cell-tct-t5-2d-emergency-module?_pos=1&_sid=5a063deac&_ss=r 2 X 58W Ballast  https://www.easy-controlgear.com/products/philips-hfp258tldiii-ph-hf-p-2x58-tl-d-iii-220-240v-50-60hz-id?_pos=1&_sid=be327a0ae&_ss=r Tridonic T8 Combo High Frequency Ballast 2 x 58w from Tridonic Model: 89805272 Designed for use with Twin T8 (25mm diameter) Fluorescent Lamps rated at 58 watts this Tridonic Combo HF Ballast features a 3 hour emergency duration and hot lamp restart in normal operation. A combination of electronic ballast and emergency lighting unit this gear manually tests emergency lighting functions and guarantees light output in the event of mains failure. Technical Specifications Control Gear Type Emergency Wattage 58 W Manufacturer Tridonic Dimming? Non-Dimmable No. Of Lamps Twin (2x) Cells 4 (4.8v) Depth 28 mm Lamp 2 x 58w T8 Length 424 mm Type Control Gear Width 42 mm Compatible Lamp Type T8 Manufacturer Part Number 89805270 Control Gear Technology Fluorescent

Read more less
