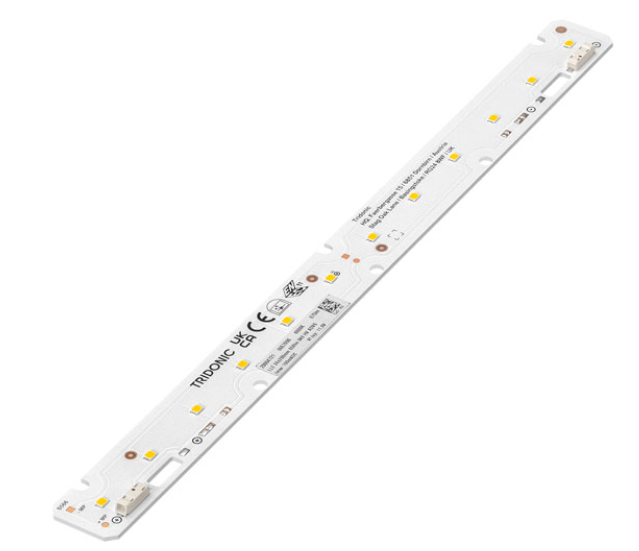

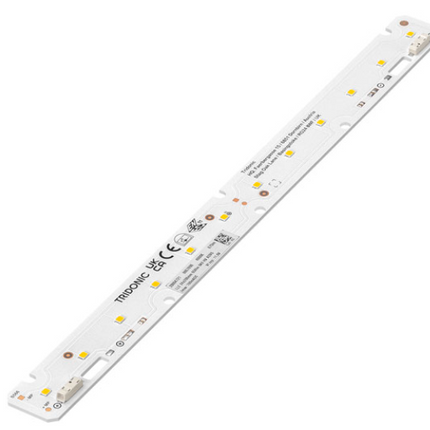

28004718

Description

Product description
_ Ideal for linear and panel lights
_ 2 terminals for serial wiring
_ Perfectly uniform light, even if several LED modules are used
together in a line
_ Push terminals for quick and simple wiring of LED module to LED
module
_ Option backside terminal
_ Broad portfolio from extruded lenses and covers available
_ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output
_ Min. order quantity LLE 24x70mm QTY4: 36 pcs. The LLE
24x70mm QTY4 module contains 4 single 24x70mm modules
which have to be separated
_ Long lifetime up to 102,000 hours
_ 5 years guarantee (conditions at
https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
Optical properties
_ Colour temperatures 2,700, 3,000, 3,500, 4,000, 5,000 and 6,500
K
_ Efficacy of the LED module 205 lm/W at Irated and tp = 25 °C
_ High colour rendering index CRI > 80
_ High colour consistency (MacAdam 3) 1
_ Small luminous flux tolerances
Mechanical properties
_ Module dimension 24 x 70 mm, 24 x 140 mm, 24 x 280 mm and 24
x 560 mm (ZHAGA compliant)
_ Simple installation via clips or screws
System solution
_ Combine Tridonic's LED modules and dimmable drivers to achieve
an outstanding system efficacy (configuration possible via
https://setbuilder.tridonic.com/)

28004718

Product form

SKU: 28004718
Barcode: 28004718

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£6.00 Excl. VAT

(inc. 20% VAT): £7.20

    • Contact us to confirm availability
