1 x TUV36T5HO - TUV60WPLL - TUV55WHO - TUV75WHO - GXO36T6PH Lightwave UV Ballast - EB-1006-02LF (LW20EB65-G01S). This ballast has switch for 120 volt or 220/230 volt.  Operates one germicidal lamp, Max Lamp Wattage: 75 watts, Lamp Voltage Range: 110-179 v, Lamp Current Range: 600-800 mA.  Lamp type - GHO36, GXO36T6PH, TUV 55, 65, 75 W (PLL).   Rapid start. Dimensions - Length (includes mounting tabs) 4.25" ,  Width - 2.25",  Height 1.25".    * No Wires, plug in wire ports, Case Size D.  Model # EB-1006-02LF, Lightwave.

Read more less

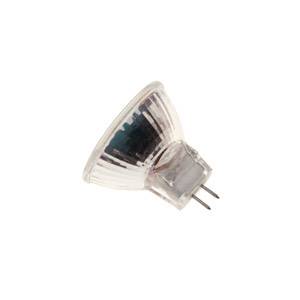

M223 12v 35w Gu4 MR11 Spot Bulb

Read more less

Philips M258L5-92D-LV Order Code: M258L5-92D-LV Stock Level: Delivery in 3-5 Days

Read more less

For alternative please click below  https://www.easy-controlgear.com/products/tridonic-pc12833ddloco-tr-1-x28-33w-3hr-3cell-tc-dd-l-o-combo-hf-b?_pos=1&_sid=12a8bc270&_ss=r   Mackwell 3Cell 28w Emergency Module - Mackwell - D123/80+

Read more less

28w 2D Combined Emergency Ballast

Read more less

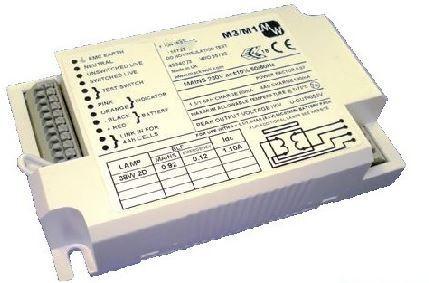

2x 26w PLC 4Cell Emergency Module - Mackwell - DT26

Read more less

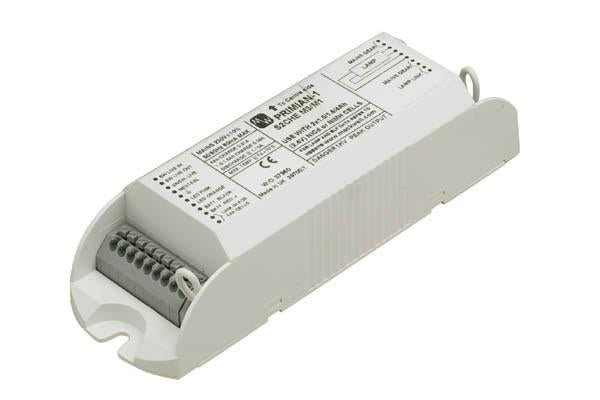

Emergency module  Mackwell 3 Cell - S3CHE Mackwell PRIMIAN-1 S3CHE Inverter Introduction Primian-1™ modules operate a wide range of 4 pin fluorescent lamps and each module is fitted with a lamp optimisation link to ensure the best output and duration across the lamp range. The 5th pole ensures satisfactory re-starting of HF ballasts after emergency lighting test function. The Primian-1™ modules are also fitted with a link to select 3 hour or 1 hour duration, with appropriate batteries. Built with Deep Discharge Protection as standard. Product Features Switch Mode Power Supply runs cooler than traditional iron core transformers Selectable 3 hour or 1 hour duration Use with 4Ah or 1.5Ah cells Use with NiCd or NiMH cells Maintained 5 pole ballast switching Small size enables simple installation 3 year warranty Optimisation link for wide range of lamps Technical Data Switch Mode Power Supply Mackwell patented Switch Mode Power Supply provides total short circuit protection, regulated output and complies with all relevant standards. Ballast Delay Relay All versions are fitted with an additional relay to switch off the power to the ballast during emergency lighting test. Indicator The LED indicator is illuminated when a charge is flowing to the cells. Flexible orange and pink leads connect the indicator to the module. The indicator requires an 8mm hole. Voltage Sensing Circuit The AC power supply is sensed so that switching occurs at between 60% and 85% of the nominal mains. Deep Discharge Protection All modules are fitted with deep discharge protection (DDP) as standard. The rectified output modules may lead to mercury migration. SKU S3CHE LENGTH 150mm WIDTH 44mm HEIGHT 35mm MANUFACTURER Mackwell

Read more less

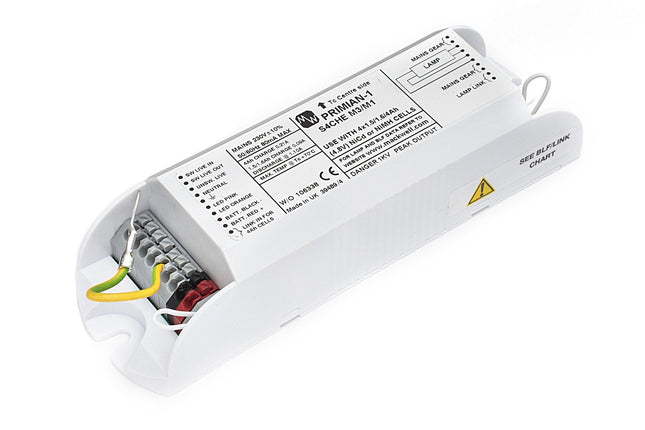

Please consider the below for this now obsolete item   ALTERNATIVE   Mackwell Electronic Emergency Lighting Module - S4CHE Specifications Supply voltage230 V Supply frequency50/60 Hz Supply current (max)80 mA Power factor - 3 cell variant0.42 Power factor - 4 cell variant0.43 Power factor - 5 cell variant0.45 Ambient temperature (ta)0°C to +50°C Max case temperature (tc)+70°C Conductor size0.5 - 1.5mm² Battery charge current (3h - duration link in)200 mA Battery charge current (1h - duration link out)90 mA Battery discharge current (nominal)1.05 A Battery charge voltage - 3 cell variant3.6 to 4.5 V Battery charge voltage - 4 cell variant4.8 to 6.0 V Battery charge voltage - 5 cell variant6.0 to 7.5 V Battery discharge voltage - 3 cell variant2.8 to 4.2 V Battery discharge voltage - 4 cell variant3.2 to 5.6 V Battery discharge voltage - 5 cell variant3.8 to 7.0 V Emergency duration1 or 3 hours Recharge period24 hours Weight of control gear130 g Features Switch Mode Power SupplyMackwell patented Switch Mode Power Supply provides total short circuit protection, regulated output and complies with all relevant standards.Ballast Delay RelayAll versions are fitted with an additional relay to switch off the power to the HF ballast during emergency lighting test.Voltage Sensing CircuitThe AC power supply is sensed so that switching occurs at between 60% and 85% of the nominal mains supply.IndicatorThe LED indicator is illuminated when a charge is flowing to the cells. Flexible 1x0.6mm high temperature orange and pink leads connect the indicator to the module. The indicator requires a 8mm hole.Deep Discharge ProtectionThe inverter module incorporates deep discharge protection (DDP), to prevent damage to the batteries caused by deep discharge and possible subsequent reverse cell polarity. Technology Options StandardFor applications where self-testing is not required or suitable, the non-AutoTest® option provides the same quality and performance expected of Mackwell products, without the AutoTest® feature. Relevant Standards EN 61347-1 EN 61347-2-3 EN 61347-2-7 EN 60598-2-22 BS 5266-1 EN 62034 EN 62386 ICEL 1004 Notes CautionLamp performance can be affected by lead length. Lamp wires should be kept to a bminimum length. Do not insulation test this product. The rectified output of these modules may lead to mercury migration of the lamp. Reversing battery polarity will cause damage.Selecting the correct modulePlease see the BLF Lamp Selection Chart for further information. This can be found in the Knowledge Base

Read more less

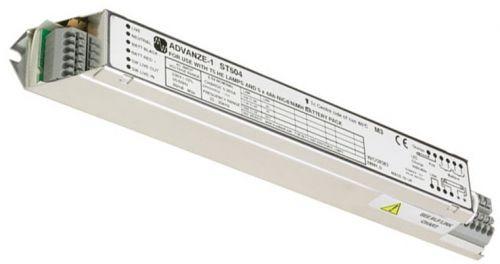

Mackwell Inverter ST504

Read more less

Mackwell 2.2ah 3.6v nimh battery box 9005029

Read more less

· 3 x AA Cell NiMH batteries in line · Cable length: 200mm · Pack Capacity: 2200mAH · Operating temperature: 10°C to 40°C · In accordance with EN 60598-2-22

Read more less

Key Features High-temperature cells rated for continuous use High Energy retention Designed to provide 3 hour duration over a 4 year life Welded connections between cells A variety of simple connection methods Provided with plastic end caps or mounted on metal plate for simple installation Available in various configurations Recyclable construction High quality design complying with IEC EN 61951-1
