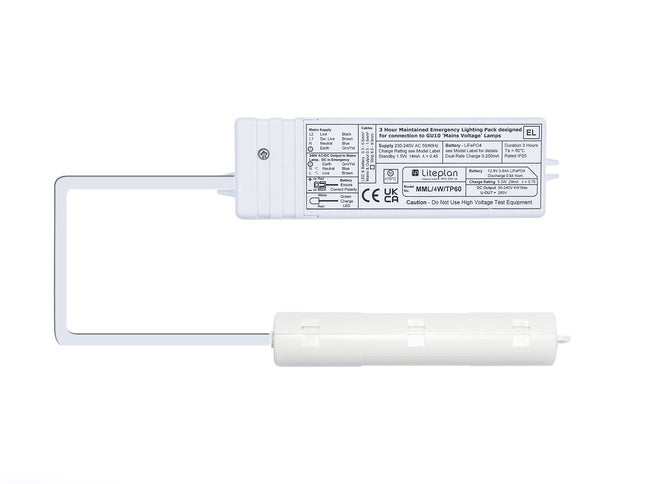

MML/4W – 230V Conversion Kit
A split pack designed to fit through up to a 60mm aperture of a mains voltage downlight. The unit has been designed to provide full output in emergency mode and will power all loads up to 4W, capable of accepting 230Vdc. All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
• Conversion Kit for Mains Voltage Lamps • Deep discharge protection • Split Pack Arrangement for Ceiling Voids • Extra Long Life LiFePO4 Batteries • Converts Loads Up To 4W • Passes Through 60mm Aperture • Features Battery Temperature Protection
Product description
For downlights
Safety glass for 5,000 lm version
Built-in LED module
Cooling required
Flexible operating mode
HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output
Product description
Sensor developed to work with the latest DALI specification
Monitoring of ambient light and motion detection
Remote control interface allowing infrared remote control interaction
Individual adjustment of the parameters with configuration software
Power supply via DALI line
Shutter for preventing movement detection in one direction included
Small dimensions allowing easy and inconspicuous integration in luminaries
Wide range of accessories allowing extended application range
5 years guarantee
Housing properties
Casing: polycarbonat, black or white
Type of protection IP20
Note
Tridonic MSensor G3 family sensors are developed according to DALI Standard EN 62386-101 Ed.2, also known as DALI-2. To be able to use the sensor in such installation, an application controller is necessary.
List of approved application controller can be found on our WEB page in 28002386
MST BMH 2000 L5018-A2-A 380/400/415V 50HZ BALLAST
Part No: MSTBMH2000L5018
MST BMH 2000 L5018-A2-A 380/400/415V 50Hz Ballast
9137 002 75346
Product description
• Basic ballasts for use with high power lamps
• A2 energy efficiency index
• For use in combination with series or semi-parallel ignitors
• Winding temperature Tw = 140°C
• Impregnated electromagnetic ballast
• Screw terminal blocks
• Aluminum windings
Compatible with Osram HQI-TS & HQI-T
Compatible with Radium HRI-TS & HQI-T
ignitors & Capacitors also available.
Product Data Sheet
MSTBMH2000-2.pdf
