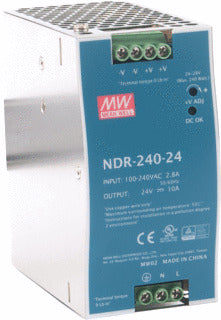

Mean Well NDR-240-24 NDR Universal Power Supply 10A 24V . Manufacture Code: NDR-240-24

Read more less

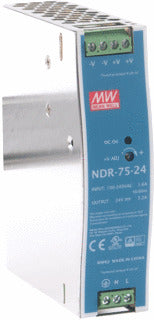

Mean Well NDR-75-24 NDR Universal Power Supply 3.2A 24V . Manufacture Code: NDR-75-24

Read more less

Mean Well RS-75-24 RS DC Power Supply 264VV . Manufacture Code: RS-75-24

Read more less

MEAN WELL XLG-150-12/24-A Constant Voltage LED Driver 150W 12V Features: Wide input range 100-305VAC(Class I) Metal case with IP67 , suitable for outdoor application Other features: Surge protection with 6KV/4KV (10KV/6KV optional) 3in1 dimming function (Dim to off and Isolation design) Protection functions: OVP/SCP/OCP/OTP Life time >50,000hrs. and 5 years warranty Spec Mean Well XLG-150-12-A Wattage 150 Input Voltage 100-305VAC, 142-431VDC Output Current 12.5A Output Voltage Options Single DC output adjustment 8.4-12V Working Temperature -40 - +95C Safety Standards UL8750ENEC EN61347-1, EN61347-2-13 independent, EN62384(typebHLb), UL879,CSA C22.2 No. 250.13-12, GB19510.1 GB19510.14,; EAC TP TC 004;IS15885(Part2/Sec13)(for XLG-150I type only);IP67 approved Dimensions 180 x 63 x 35.5

Read more less

Wide input range 100-305VAC(Class I) Metal case with IP67 , suitable for outdoor application Other features: Surge protection with 6KV/4KV (10KV/6KV optional) 3in1 dimming function (Dim to off and Isolation design) Protection functions: OVP/SCP/OCP/OTP Life time >50,000hrs. and 5 years warranty

Read more less

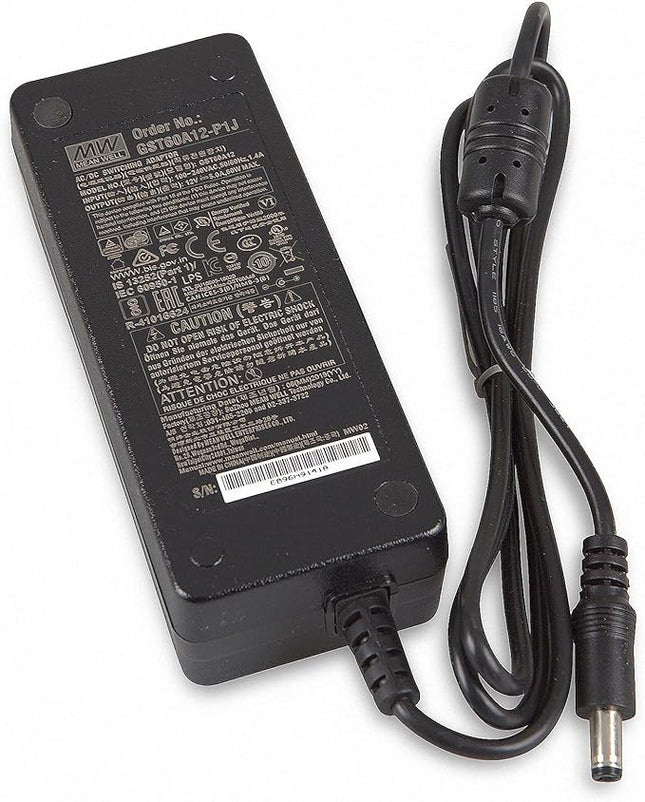

GST60A12-P1J is a highly reliable, desktop style single-output green adaptor. The product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. It is compliant with USA EISA 2007/DoE, Canada NR Can, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. It utilizes the 94V-0 flame retardant plastic case. It is certified for the international safety regulations. Safety standards include UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS 14336-1, CCC GB4943.1, PSE J62368-1, AS/NZS 60950.1, BIS IS13252, KC K60950-1, EAC TP TC 004 approved. Applications include consumer electronic devices, telecommunication devices, office facilities, industrial equipments. Short circuit, overload and over voltage, over temperature protected 3 pole AC inlet IEC320-C14, class I power unit Energy efficiency level VI Fully enclosed plastic case LED indicator for power on Output DC voltage is 12V, output rated current is 5A 60W output rated power, 89.5% typical efficiency 47 to 63Hz input frequency range Working temperature range from -30 to 70°C Dimension (L x W x H) is 125mm x 50mm x 31.5mm

Read more less

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; Dali Built-in active PFC function No load/standby power consumption <0.5W IP67 / IP65 rated design for indoor or outdoor installations Typical lifetime >50000 hours 5 years warranty

Read more less

Meanwell ELG-75-24DA-3Y 75.6W Constant Voltage LED Driver ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V.

Read more less

The MEANWELL XLG-200-24-A is a robust 200W LED power supply delivering a stable 24V output at 8.3A, designed for demanding applications. Its IP67 rating ensures complete protection against dust and water immersion, making it ideal for outdoor or harsh environments. Featuring a corded electric design and a high current rating of 24.0 amps, this power supply offers reliable performance and durability for professional LED lighting installations.

Read more less

12V 14W LED AR111 Driver - Megaman - LD0114 - 141286

Read more less

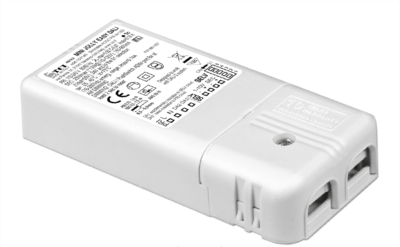

Dimming: DALI-2 (also DALI-1) 1-10V - 0-10V CLO Function DC EMERGENCY Function Additional technical features: RIPPLE FREE ACTIVE PFC (pf>0.9) SELV <> DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm Approvals: ENEC UL (class 2) CCC RCM CE Plastic case: Square IP 20 (Independent Use) Minimum cut-out hole diameter: 55 mm Size: 111 x 22 x 52 mm

Read more less

Perfect alternative to the Harvard CL350S and CL700S    Mackwell LED Drivers utilise quasi-resonant technology, which ensures higher efficiency levels are maintained across a wider voltage range. The switchable models provide the added flexibility to switch between different currents during the installation stage.All drivers are UK designed and manufactured, incorporating premium grade components as standard. The use of these components ensures all drivers maintain a high power factor and low operating temperatures. All our LED Drivers are designed to achieve a minimum operating lifetime of 50,000 hours. All drivers are housed in a robust white plastic case and include 1-7mm cable clamping as standard. KEY FEATURES• Switchable between 350 mA and 500 mA• Up to 88% operating efficiency• 0.95 power factor• 1-7mm secure cable clamping• Double insulation (Class II)• Short circuit protection• Open circuit protection• Over temperature protection• Mains surge protection• Automatic thermal cut-out• UK designed and manufactured Technical DataSPECIFICATION OUTPUTWATTAGE:33 wattsCURRENT: 350mA or 700mAVOLTAGE RANGE: 9 to 48 Volts INPUTEFFICIENCY: 88% at full loadPOWER FACTOR: 0.96 at full loadVOLTAGE: 198 to 265 VacFREQUENCY: 50/60 Hz PROTECTIONS-Mains surge-Over load-Open circuit-Short circuit-Thermal cut-out DIMENSIONS186 mm x 31.7 mm x 32.5 mm WEIGHT120g ENVIRONMENTAL CONDITIONS OPERATING TEMPERATURE: -20°C to +50°CSTORAGE TEMPERATURE-30°C to +70°CRELATIVE HUMIDITY: 95% non-condensingLIFE TIME: 50,000 hours (minimum)IP RATING: 40 ELECTRICAL TESTING STANDARDS EN61347-2-13EN60950EN61547EN62384:2006EN60068-2-1,2,30,78EN55015:2006 + A2:2009EN61000-3-2APPLICATION NOTES -Ensure the mains has been disconnected from the driver for at least 1 minute before connecting to the LEDs.-Do not connect Live and Neutral to the LED output terminals.-Ensure LED QTY usage is within the recommended guidelines of the driver. Mackwell maintains a policy of continuous development and reserves the right to change the details shown on this data sheet without prior notice. The contents are intended forguidance only. SKU: MLD-SCC-33-350/700

Read more less
