ELP 11-42w HE T5 Ballast - ELP - OM535/T5/TI
The OM range of inverter modules which are referred to as 'Total Isolation' or 5-pole control units (featuring full 4pole change-over of the lamp/gear connections plus a timed fifth pole to make & break the ballast live supply).
This inverter is ideal for use with 14W to 35W T5 tubes and 13 to 42W PL-C/T type lamps. A 5 cell battery 4Ah Ni-Cad battery is required for operation of this inverter, as is a status indicator, both these items are not supplied.
The modules fully comply to EN61347 and EN60925.
14 - 35 Watt T5 tubes, 13 - 42 Watt PL-C/T 4 pin lamps
Maintained/Non maintained wiring
Push type IDC terminals
5 D cell 4Ah Ni-Cad battery required
Dims: Height 28mm, W 40mm, D 210mm. Fixing centres 202mm

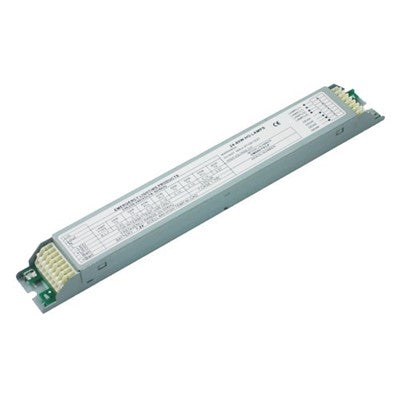

ELP OM/680/LP 35-80W Emergency Module
LOW PROFILE OM/LP MODULES
The OM/LP Modules have been designed to suit all common T5 fluorescent luminaires. the OM680/LP covers all high output lamps from 40 to 80Watts and for specific operation of lamps up to 40Watts there is the OM635/LP. Ballast Lumen Factors and basic performance of the OM680LP module is identical to the standard OM680 module. the compact dimensions provide flexibility for internal component layout and the pushwire terminals simplify manual or robotic assembly. Case temperature (tc) rated at 70°C. the OM635/LP & OM680/LP low profile modules are fully compliant with en61347 and en60925.
Operates with a 6 Cell 7.2V 4Ah battery (sold separately) please link below selecting the 3+3
https://www.easy-controlgear.com/products/laht-ni-mh-4ah?variant=38169883967685

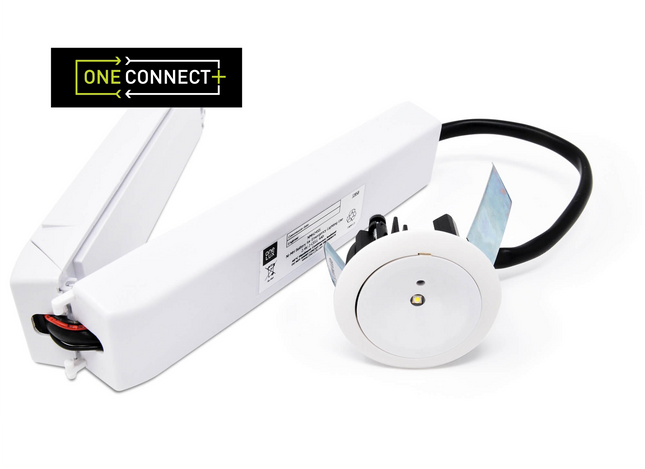

OMNI-LED FLEXITM
ARTICULATED LED REMOTE BOX EMERGENCY CONVERSION SOLUTIONS
Product Overview
Effective solution for emergency conversion of luminaires
Articulated design allows installation through a ceiling cut-out of just 55mm diameter
Removable end covers provide easy wiring access
Ideal for use with LED panels or downlights
Available with pre-wired cable assemblies for ‘plug-and-play’ convenience
Available with DALI Self-Test functionality
3 hour operation using high temperature Nickel Cadmium or Nickel Metal Hydride cells
Designed and manufactured in Great Britain
Technical Data
Input Supply Voltage
230V +/- 10%
Supply Frequency
50/60 Hz
Output Voltage Range
9 – 200 VDC
Battery Type
2.4V NiCd, 3.6V NiCd or 4.8V NiMH
Ambient Temperature Range
5°C – 35°C
Battery Charge Time
24 Hours
Earth Leakage Current
<0.5mA
IP Rating
IP20
Omni-LED FLEXITM is an effective solution for emergencyconversion of luminaires using LED arrays. The compact, robusthousing is supplied containing our Omni-LEDTM emergency driver,re-chargeable battery and connection terminals. Removableend covers provide easy access for wiring and its articulateddesign allows installation through a ceiling cut-out of just55mm diameter. This product offers an emergency solution fora wide range of applications and can be used with a separatemains driver for Maintained applications. It is also availablepre-wired with cable assemblies for simple ‘plug-and-play’convenience.
