irect wire-in thermal photodiode dusk to dawn sensor. Suitable for mounting in appropriate light fittings and suitable enclosures. Ideal for controlling lighting automatically based on the ambient lighting level.
230V AC 50Hz
IP65 rated (once installed)
Max. load: 500W Incandescent / 850VA Inductive / 300W LED
Operating range: On 10-20lux / Off 30-60lux
Time delay: 20-120 seconds
Ambient temperature: -40°C to 70°C
Relative humidity: 99% RH
Pre-wired with 300mm cable
Sensor projection: 21mm
Cut out required: 17mm
Seals and locknuts included
DOWNLOAD
Datasheet
Instruction Manual
Obsolete,please click on the below for the latest variant
Latest Version
Product family benefits
Intelligent power matching thanks to Smart power supply
Slim form factor for mounting on the cove or in linear luminaires
Minimized flicker thanks to high PWM frequency
Suitable for installation in emergency lighting systems according to EN 60598-2-22
Available as Tunable White version (DALI Device Type 8)
DALI message detection "LED Module failure"
IP rating: IP20
Areas of application
Cove lighting, wall washer, corridor, handrail
Suitable for use in luminaires of protection class I and II
Equipment / Accessories
Suitable for 24 V LED modules
The OSRAM constant voltage power supplies with DALI, enable you to maximize any design’s potential and enjoy flicker-free light due to a high PWM frequency, dimmable to between 0.1 and 100 % with TouchDIM. Use from 1 to 4 channels and benefit from DALI message detection of LED module failure. The slender form of these drivers makes them ideal for use when you need to install LED lighting in tight spaces or linear luminaires, for example in coves, corridors and handrails, or for wall washing. They are suitable for 24 V LED modules and for use with luminaires of protection classes I and II.
Product family features
Dimmable via Touch DIM (if supported)
LED driver whose output power can be shared arbitrarily among the 2 or 4 channels
Dimming range: 0…100 %
Line frequency: 0 Hz | 50 Hz | 60 Hz
PRODUCT FEATURES AND BENEFITS

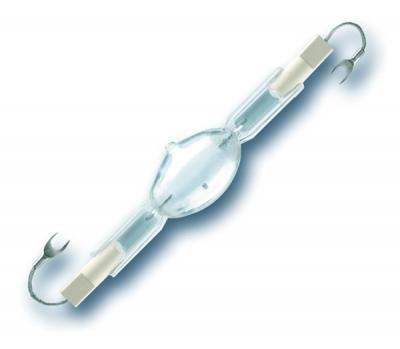

Product benefits
Excellent color rendering
Excellent color stability
Small loss of luminous flux over the life of the lamp
Hot restrike capable
Compact dimensions for small spotlights
Good positioning thanks to K12s base
Areas of application
Sports stadiums and floodlight systems
Sports halls and multi-purpose halls
Airports
Solar simulation, material testing
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

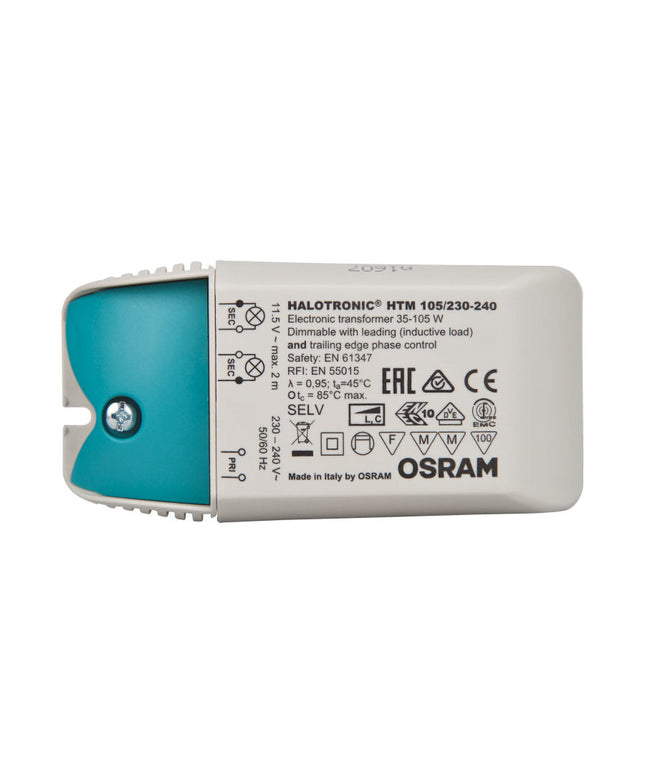

This is an Osram HTM105/230-240 Halotronic Mouse 150va Transformer for use with 12v Halogen lamps. It is dimmable on leading edge (without HTN) and trailing edge dimmers. It comes compleet with a strain relief which is compatible with many cable types.
Product family benefits
Very low power loss thanks to high efficacy
Strain relief suitable for different cable types (HTM)
Suitable for space-critical installation thanks to compact functional design
Extremely compact transformer for highly space-critical installation conditions (HTN)
Protective operation throughout the entire partial-load range for long lamp life
Areas of application
Effect and accent lighting
Living rooms
Object lighting
Conference rooms
Restaurants
Recessed and surface-mounted furniture luminaires
Shop lighting
Event rooms
Data Sheet
Product Data Sheet
This is an Osram HTM70/230-240 Halotronic Mouse 70va Transformer for use with 12v Halogen lamps. It is dimmable on leading-edge (without HTN) and trailing edge dimmers. It comes complete with a strain relief which is compatible with many cable types.
Product family benefits
Very low power loss thanks to high efficacy
Strain relief suitable for different cable types (HTM)
Suitable for space-critical installation thanks to compact functional design
Extremely compact transformer for highly space-critical installation conditions (HTN)
Protective operation throughout the entire partial-load range for long lamp life
Areas of application
Effect and accent lighting
Living rooms
Object lighting
Conference rooms
Restaurants
Recessed and surface-mounted furniture luminaires
Shop lighting
Event rooms
Data Sheet
Product Data Sheet
Please note all of these are no longer manufactured,, we still stock a lot and can source from suppliers but brands may vary
• Good economy and efficiency • Up to 20 % more economical than LUMILUX T5 • Up to 50 % smaller volume than comparable T5 lamps
These items are only available in mainland England, Wales and Scotland. Sadly we cannot ship these into the Highlands or Islands of the UK or abroad.

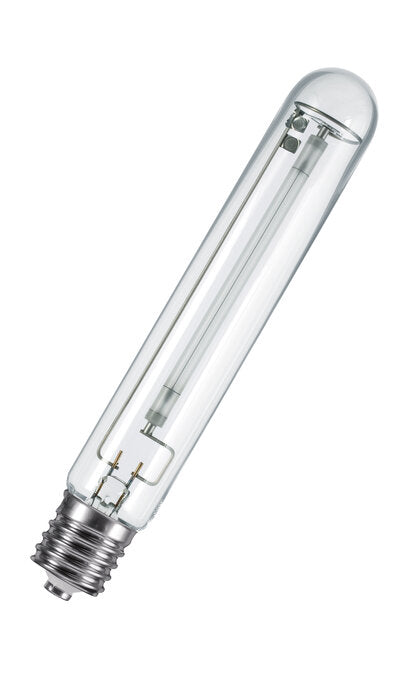

Very high luminous efficacy
Very good luminous flux maintenance throughout the life of the lamp
Energy savings of up to 50 % when replacing mercury vapor lamps (HQL)
Optimum energy efficiency on POWERTRONIC® PTo 3DIM ECGs
Product family benefits
Flexible current setting (DIPswitch – 4 currents)
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
High efficiency
High quality of light thanks to low output ripple current
Fulfil safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
Linear lighting for office, education, industry, storage areas and retail
Suitable for luminaires of protection class I
Data sheet
Technical Data
Electrical data
Nominal input voltage
220…240 V
Mains frequency
0/50/60 Hz
Input voltage AC
198…264 V
Current set
DipSwitch
Input voltage DC
176…276 V
Total harmonic distortion
< 10 %
Power factor λ
0.98
Device power loss
7.0 W
Inrush current
20 A
Max. ECG no. on circuit breaker 10 A (B)
16
Max. ECG no. on circuit breaker 16 A (B)
25
Max. ECG no. on circuit breaker 25 A (B)
-
Surge capability (L/N-Ground)
2 kV
Surge capability (L-N)
1 kV
Nominal output voltage
27…51 V
U-OUT (working voltage)
< 60 V
Nominal output current
800 / 900 / 975 / 1050 mA
Output current tolerance
±7.5 %
Output ripple current (100 Hz)
< 5 %
Output PSTLM
≤1
Output SVM
≤0.4
Nominal output power
21.6…53.6 W
Galvanic isolation
SELV
Dimensions & weight
Mounting hole spacing, length
270.0 mm
Product weight
217.00 g
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Wire preparation length, input side
8.5…9.5 mm
Wire preparation length, output side
8.5…9.5 mm
Length
280.0 mm
Width
30.0 mm
Height
21.0 mm
Colors & materials
Casing material
Metal
Temperatures & operating conditions
Ambient temperature range
-25…+50 °C
Maximum temperature at tc test point
80 °C
Max.housing temperature in case of fault
110 °C
Temperature range at storage
-25…85 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
50000 / 100000 h
Capabilities
Dimmable
No
Overheating protection
Automatic reversible
Overload protection
Non-reversible
Short-circuit protection
Automatic reversible
No-load proof
Yes
Max. cable length to lamp/LED module
2.0 m
Suitable for fixtures with prot. class
I
Type of connection, output side
Push terminal
Number of channels
1
Programming
Programming device
DIPswitch
Certificates & standards
Approval marks – approval
CE / EL / ENEC 05 / EAC / CCC / RCM / BIS
Standards
Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 62384/Acc. to EN 61000-3-2/Acc. to EN 61000-3-3/Acc. to EN 61547
Protection class
I
Type of protection
IP20
Logistical data
Commodity code
850440829000
