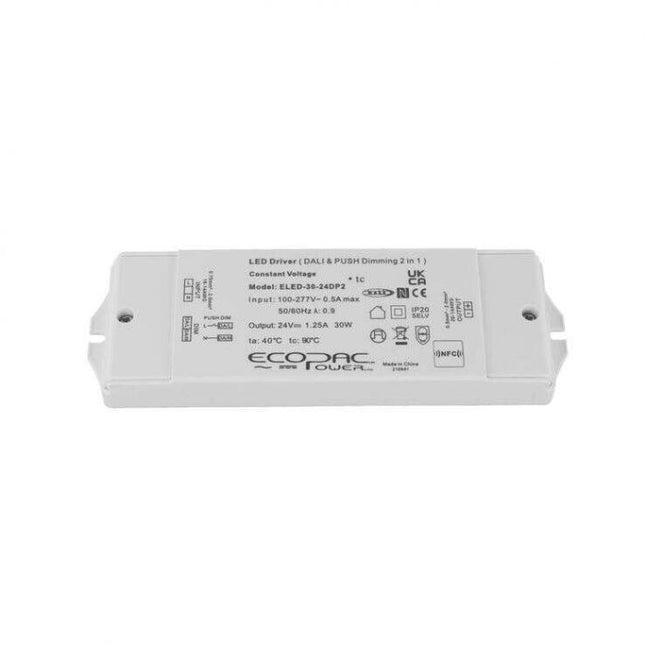

Ecopac ELED-30-24DP2 DALI Dimmable, constant voltage LED driver. Built in short circuit, overload, over current and over temperature protection together with a 3 year warranty make the ELED-30-24DP2 highly reliable.  • Constant voltage/ PWM Output (NFC regulation)• DALI & Push dimming function (0-100%)• AC input: 100-277VAC• Built-in active PFC function• Efficiency up to 83%• Protections: Short circuit/ Over load/Over temperature• Cooling by free air convection• IP20 design for indoor installation.• Suitable for intelligent LED lighting More Information Brand Ecopac Power Output Wattage (W) 30 Output Voltage 24V IP Rating IP20 Non Waterproof Dimmable (Type) DALI, Push Dimming Dimensions 171.5 x 54 x 20 mm EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load) Input Voltage 100~277VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 , UL8750 (US) Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-30-DP2_2022-04-14-094641.pdf

Read more less

ELED-300-DP2 DT8 Series Features: Features: • DT8- warm white and cool white dimming • Constant voltage/ PWM Output (NFC regulation) • DALI & Push dimming function (0-100%) • AC input: 110-277VAC • Built-in active PFC function • Efficiency up to 91% • Protections: Short circuit/ Over load/Over temperature • Cooling by free air convection • IP66 design for indoor and outdoor installation. • Suitable for intelligent LED lighting DALI DT8 (Digital Addressable Lighting Interface DT8) is an enhancement of the standard DALI protocol (Digital Addressable Lighting Interface), a widely adopted communication protocol in the lighting industry for controlling and dimming LED lights and other lighting fixtures. One of the major improvements with the DT8 Series  is the ability to control the colour of LED lights. It introduces colour control channels, allowing users to adjust the colour temperature or choose specific colours of light. This feature is particularly beneficial in applications where dynamic lighting scenes and ambiance are desired, such as in retail spaces, hospitality venues, and architectural lighting.The DT8 Series  supports tuneable white lighting, ranging from warm white to cool white, to suit different tasks, preferences, or time of day. Tuneable white lighting finds extensive use in applications like offices, healthcare facilities, and residential spaces.

Read more less

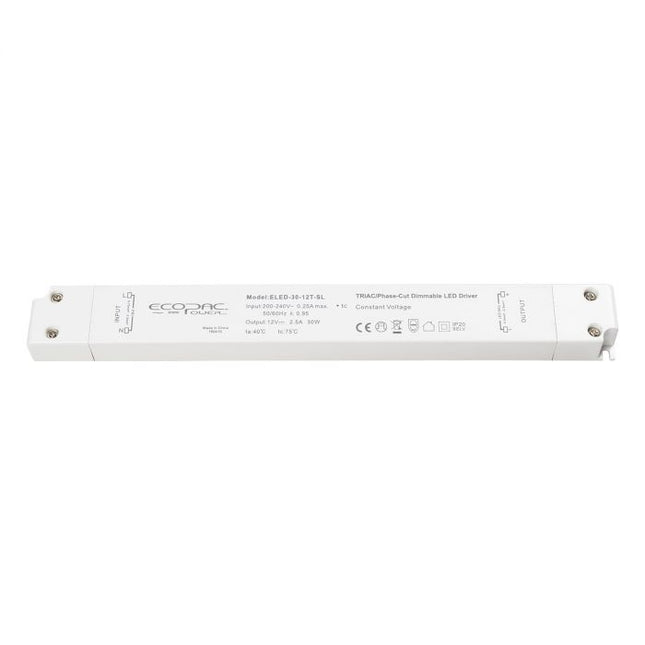

The Ecopac ELED-30P-T-SLS Series slimline triac dimmable LED driver is ideal where space is at a premium. These high quality drivers are flicker free and have an a built in active PFC function.  Features: AC input: 200-240VAC Efficiency up to 79% Dimming range: 0-100%, Load: 10-100% PWM Output Protections: short circuit/ over loading/over temperature Cooling by free air convection IP20 designMore Information Manufacturer Ecopac Power Output Wattage (W) 30 Output Voltage 24 Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 260 x 30 x 18.5 mm EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 200-240VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60C PDF Datasheet ELED-30P-T-SL-1.pdf

Read more less

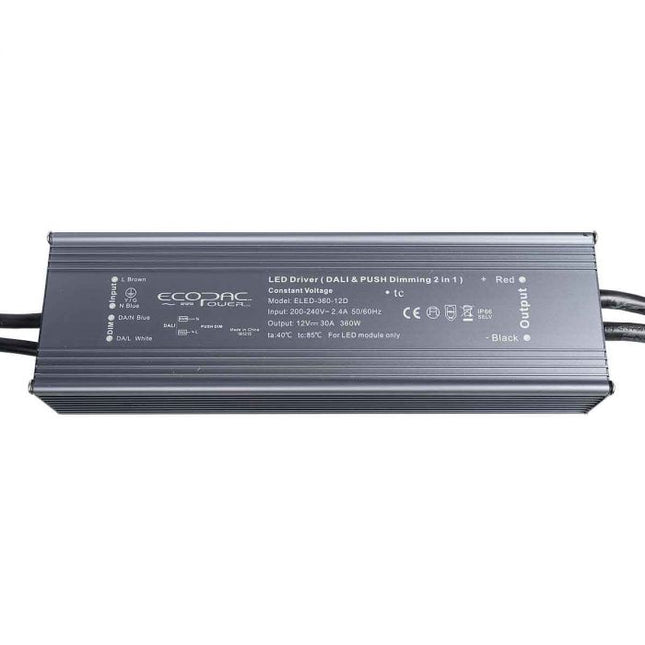

Ecopac ELED-360-D series constant voltage LED driver. DALI and Push dimmable Constant voltage / PWM Output DALI & Push dimming function AC input: 100-265VAC Built-in active PFC function Efficiency up to 91.2% Protections: Short circuit / Over load / Over temperature Cooling by free air convection IP66 design for indoor and outdoor installation Suitable for intelligent LED lightingMore Information Manufacturer Ecopac Power Output Wattage (W) 360 Output Voltage Choose Option Dimmable (Type) DALI, Push Dimming Dimensions 276 x 78 x 47mm EMC Standards Safety According to EN61000-4-2,3,4,5,6,11, EN61547, EN55015, EN61000-3-2, 3 (>60%load) Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13, IP66 Output Voltage Options Single Working Temperature -40 ~ +60°C PDF Datasheet ELED-360-D.pdf

Read more less

ELED-40-C300/1400DP2 Features: 40W DALI 2 and Push Dimming Multiple-Stage Output Current LED Driver Features: • Constant Current mode output with multiple levels selectable by dip switch• DALI 2 dimming function (IEC62386)• AC input: 100-277VAC• Built-in active PFC function• Efficiency up to 86%• Protections: Short circuit/ Over load/Over temperature• Cooling by free air convection• Suitable for intelligent LED lighting ELED-C40-300/1400DP2(1400) ELED-C40-300/1400DP2(1300) ELED-C40-300/1400DP2(1200) ELED-C40-300/1400DP2(1100) ELED-C40-300/1400DP2(1000) ELED-C40-300/1400DP2(900) ELED-C40-300/1400DP2(800) ELED-C40-300/1400DP2(700) ELED-C40-300/1400DP2(650) ELED-C40-300/1400DP2(600) ELED-C40-300/1400DP2(550) ELED-C40-300/1400DP2(500) ELED-C40-300/1400DP2(450) ELED-C40-300/1400DP2(400) ELED-C40-300/1400DP2(350) ELED-C40-300/1400DP2(300) Wattage 40 40 40 40 40 40 40 40 40 39 35.8 32.5 29.3 26 22.8 19.5 Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 300mA Output Current 1400mA 1300mA 1200mA 1100Ma 1000mA 900mA 800mA 700mA 650mA 600mA 550mA 500mA 450mA 400mA 350mA 3~65 Output Voltage 3~29 3~31 3~34 3~37 3~40 3~45 3~50 3~57 3~62 3~65 3~65 3~65 3~65 3~65 3~65 Dimensions 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm Working Temperature -40~80°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

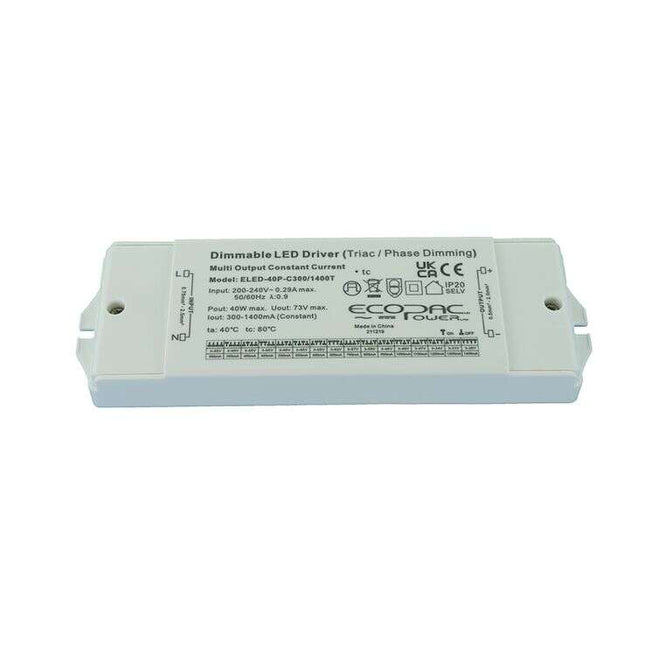

ELED-40P-C300/1400T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch• Dimming function: Triac/phase cut dimming• Work with leading or trailing edge Triac dimmer• (ON key: leading edge; 1 key: trailing edge)• AC input: 200-240VAC• Built-in active PFC function• Efficiency up to 80%• IP20 design for indoor installation• Full protection plastic housing easy installation• Protections: Short circuit/ Over load• Cooling by free air convection• Suitable for LED lighting and moving sign applications• Strong compatibility, flicker-free dimming https://www.ecopacpower.co.uk/assets/pdf/ELED-40P-C300-1400T.pdf

Read more less

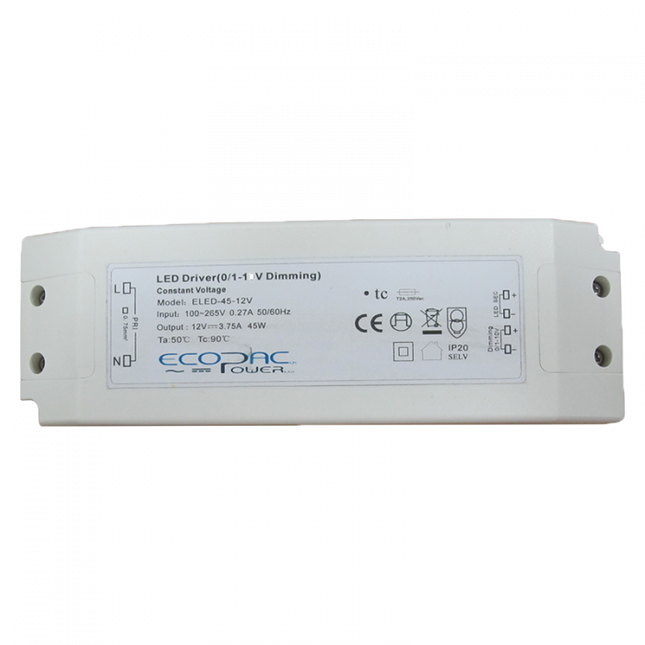

Three in one dimming function (0/1-10Vdc or PWM signal or resistance)Dimming range: 0-100%Universal AC input/full range 100-265VACBuilt-in active PFC function (>0.98)High efficiency up to 83%Protections: Short circuit/Over current/ Over loadingFully isolated plastic case with terminals IP20Compliance to worldwide safety regulations for lightingMore Information Manufacturer Ecopac Power Output Wattage (W) 45 Output Voltage 24V Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 179x 60.4x 35.2mm EMC Standards Compliance to EN55015, EN61000-3-2 (>50%load), Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, A light industry level Input Voltage 100-265Vac Safety Standards EN61347-2-13, IP66 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-45-V_Series_1.pdf

Read more less

The Ecopac Power ELED-50-24D DALI Dimmable LED driver is high quality with a dimming range from 0.1% up to 100%. Short circuit and over loading protection are standard features. This model is a constant current design with a 24 volt output. Ecopac Power LED Drivers are supplied with a 3 year warranty.  Other features: DALI Dimmable Dimming range: 0.1-100% Universal AC input/ Full range 100-265VAC Built-in active PFC function 24V Constant voltage output IP20 Rated 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 50 Output Voltage 24V Dimmable (Type) DALI DC Output Adjustment N/a EMC Standards EN55015, EN61000-3-2, EN61000-4-2,3,4,5,6,11 Input Voltage 100-265VAC Safety Standards EN61347-1,EN61347-2-13 Working Temperature -40~+60°C PDF Datasheet ELED-50-D Series-1.pdf

Read more less

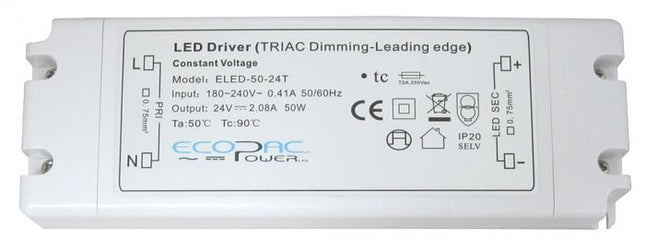

Now a 60W  please click on the below to order current product   For 12V Click here  For 24V Click Here    50W Constant Voltage Type LED Driver. Dimmable. Works with Leading edge and trailing edge TRIAC dimmers. Protections: Short Circuit/ Over Loading/ Over Current Other Features: Universal AC Input: 180-240VAC High efficiency up to 85% Cooling by free air convection Lightweight plastic caseMore Information Manufacturer Ecopac Power Output Wattage (W) 50 Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 174x 61x 24mm EMC Standards EN55015, EN61000-3-2,3 (>50% loading), EN61000-4-2,3,4,5,6,11 (Surge 4KV) Input Voltage 180-240Vac Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40°C - +60°C PDF Datasheet ELED-50-T.pdf

Read more less

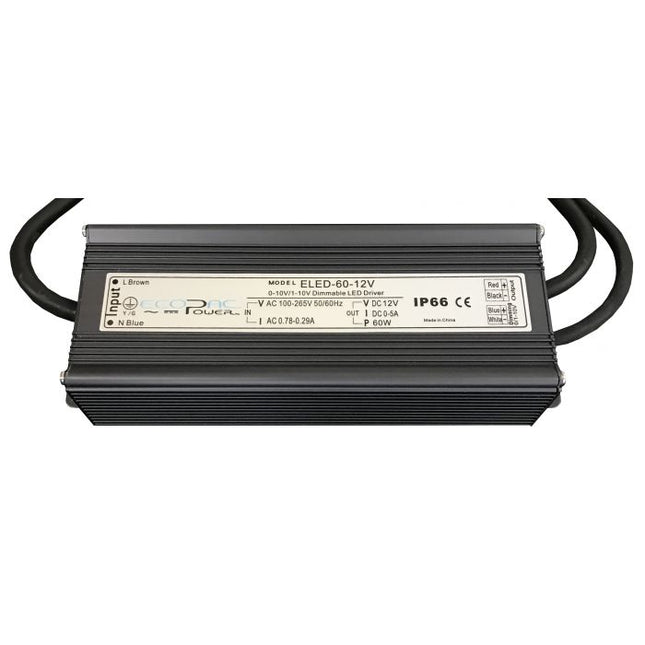

Three in one dimming function (0/1-10Vdc or PWM signal or resistance) IP66 design for indoor or outdoor installation Protections: Short circuit/ Over Current/ Over Temperature / Over Loading Other features: Universal AC input/ Full range 100-265VAC Built-in active PFC function Dimming range: 0-100% 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 60 Output Voltage 12V Dimmable (Type) 0-10V, PCW Signal & Resistance Dimensions 200x 70x 46 EMC Standards Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-60-V.pdf

Read more less

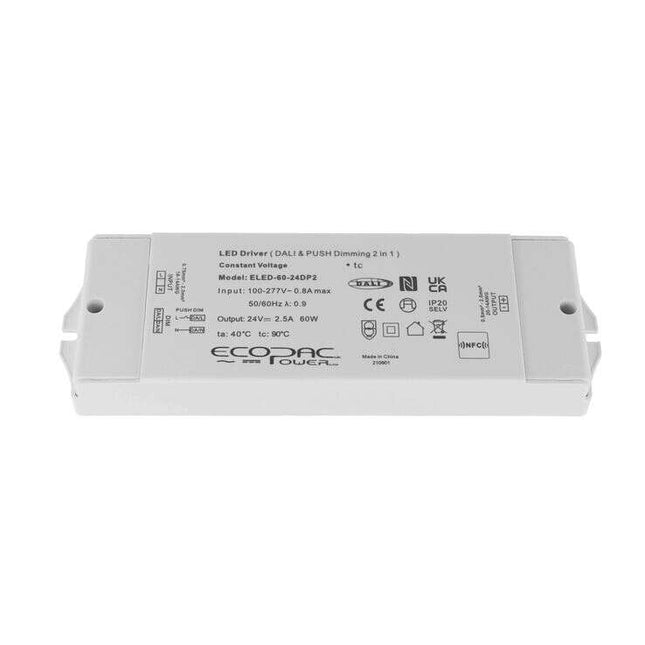

ELED-60-DP2 Series Features: Features: Constant voltage/ PWM Output (NFC regulation) DALI2 & Push dimming function (0-100%) Compatible with DALI and DALI2 dimming system AC input: 100~277VAC Built in active PFC function Efficiency up to 88% Protections: Short circuit/ Over load/Over temperature Cooling by free air convection IP20 design for indoor installation. Suitable for intelligent LED lighting Suitable replacement for the Ansell ADDIM60/24V/DD

Read more less

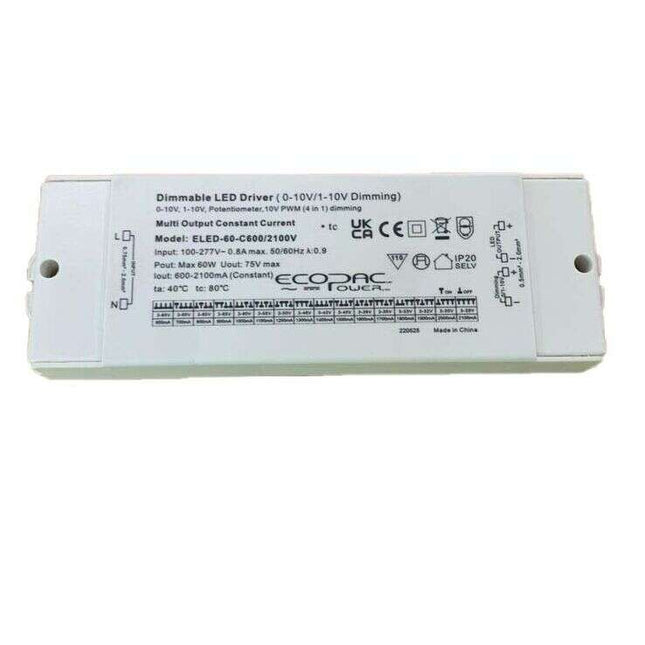

ELED-60-C600/2100V(2100mA) ELED-60-C600/2100V(2000mA) ELED-60-C600/2100V(1900mA) ELED-60-C600/2100V(1800mA) ELED-60-C600/2100V(1700mA) ELED-60-C600/2100V(1600mA) ELED-60-C600/2100V(1500mA) ELED-60-C600/2100V(1400mA) ELED-60-C600/2100V(1300mA) ELED-60-C600/2100V(1200mA) ELED-60-C600/2100V(1100mA) ELED-60-C600/2100V(1000mA) ELED-60-C600/2100V(900mA) ELED-60-C600/2100V(800mA) ELED-60-C600/2100V(700mA) ELED-60-C600/2100V(600mA) Wattage 60 60 60 60 60 60 60 60 60 60 60 60 58.5 52 45.5 39 Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC Output Current 2100mA 2000mA 1900mA 1800mA 1700mA 1600mA 1500 1400mA 1300mA 1200mA 1100mA 1100mA 900mA 800mA 700mA 600mA Output Voltage Options 3~29 3~30 3~32 3~33 3~35 3~38 3~40 3~43 3~46 3~55 3~60 3~65 3~65 3~65 3~65 Dimensions 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm Working Temperature -40~+80°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
