ELED-60-C600/2100V(2100mA) ELED-60-C600/2100V(2000mA) ELED-60-C600/2100V(1900mA) ELED-60-C600/2100V(1800mA) ELED-60-C600/2100V(1700mA) ELED-60-C600/2100V(1600mA) ELED-60-C600/2100V(1500mA) ELED-60-C600/2100V(1400mA) ELED-60-C600/2100V(1300mA) ELED-60-C600/2100V(1200mA) ELED-60-C600/2100V(1100mA) ELED-60-C600/2100V(1000mA) ELED-60-C600/2100V(900mA) ELED-60-C600/2100V(800mA) ELED-60-C600/2100V(700mA) ELED-60-C600/2100V(600mA) Wattage 60 60 60 60 60 60 60 60 60 60 60 60 58.5 52 45.5 39 Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC Output Current 2100mA 2000mA 1900mA 1800mA 1700mA 1600mA 1500 1400mA 1300mA 1200mA 1100mA 1100mA 900mA 800mA 700mA 600mA Output Voltage Options 3~29 3~30 3~32 3~33 3~35 3~38 3~40 3~43 3~46 3~55 3~60 3~65 3~65 3~65 3~65 Dimensions 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm Working Temperature -40~+80°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

  ELED-600-DP2 series Features: Description:600W DALI 2 & Push Dimmable LED DriverFeatures:Constant voltage/ PWM OutputDALI2Flicker free dimmingBuilt-in active PFC functionEfficiency up to 93%Protections: Short circuit/ Over load/ Over voltageCooling by free air convectionIP67 design for indoor and outdoor installationSuitable for intelligent LED lighting Ecopac Power offers from stock the ELED-600-24DP2, a 600 Watt 24 volt constant voltage DALI2 and Push Dim LED Driver designed to provide a smooth and integrated solution for LED lighting systems. With a built-in DALI interface, this innovative 600 watt LED Driver offers unmatched efficiency and control for various lighting applications With DALI2 and Push Dim technology, the ELED-600-24DP2 allows users to easily adjust and control the brightness levels of their lighting system. The DALI2 protocol provides a reliable and standardized interface for controlling lighting systems, while the Push Dim feature allows users to dim their lights with a simple push button. The ELED-600-24DP2 is rated for a maximum output of 600 watts, making it ideal for use in a variety of lighting applications, including commercial and residential settings. With advanced protection features including over-voltage protection, over-current protection, and short circuit protection to ensure safe and reliable operation. The ELED-600-24DP2 reflects Ecopac Power's commitment to providing high-quality, efficient and reliable lighting solutions to customers. With high efficiency and designed to deliver maximum power while minimizing energy consumption, helping to reduce operating costs and environmental impact.

Read more less

This 60W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 12V constant voltage and is TRIAC dimmable suitable for both leading edge dimmers and trailing edge dimmers

Read more less

ELED-60P-C600-2100T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch • Dimming function: Triac/phase cut dimming • Work with leading or trailing edge Triac dimmer • (ON key: leading edge; 1 key: trailing edge) • AC input: 200-240VAC • Built-in active PFC function • Efficiency up to 83% • IP20 design for indoor installation • Full protection plastic housing easy installation • Protections: Short circuit/ Over load • Cooling by free air convection • Suitable for LED lighting and moving sign applications • Strong compatibility, flicker-free dimming ELED-60P-C600-2100T(C600mA) ELED-60P-C600-2100T(C700mA) ELED-60P-C600-2100T(C800mA) ELED-60P-C600-2100T(C900mA) ELED-60P-C600-1200T(C1000mA) ELED-60P-C600-2100T(C1100mA) ELED-60P-C600-2100T(C1200mA) ELED-60P-C600-1200T(C1300mA) ELED-60P-C600-2100T(C1400mA) ELED-60P-C600-2100T(C1500mA) ELED-60P-C600-2100T(C1600mA) ELED-60P-C600-2100T(C1700mA) ELED-60P-C600-2100T(C1800mA) ELED-60P-C600-2100T(C1900mA) ELED-60P-C600-2100T(C2000mA) ELED-60P-C600-2100T(C2100mA) Wattage 39 45.5 52 58.5 60 60 60 60 60 60 60 60 60 60 60 60 Input Voltage 200~240 200~240VAC 200~240VAC 200~240VAC 200~240 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC Output Current 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 Output Voltage 3~65 3~65 3~65 3~65 3~60 3~55 3~50 3~46 3~43 3~40 3~38 3~35 3~33 3~32 3~30 3~39 Dimensions 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm Working Temperature -40~60°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

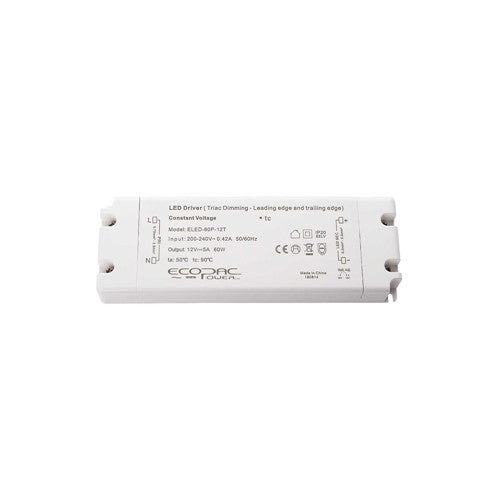

Constant Voltage Design 12V or 24V Output Dimmable using leading edge & trailing edge Triac Dimmers PWM Output 3 Years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 60 Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 178x 61x 24 EMC Standards Compliance to EN55015, EN61000-3-2,3 (>60% load) Input Voltage 200-240VAC Safety Standards EN61347-1, EN61347-2-13 Working Temperature -40~+70°C PDF Datasheet ELED-60P-T.pdf

Read more less

The Ecopac ELED-75-12D DALI Dimmable LED Driver is 75W 12VDC output.  Constant Voltage  / PWM Output Design Dali & Push Dimmable Protections: Short circuit/ Over Voltage/ Over Temperature Other features: Dimming range from 0.1% to 100% Input Range 200-265VAC Output 12VDC Built-in PFC function IP20design for indoor or outdoor installations 87% efficiency 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 75 Output Voltage 12V Dimmable (Type) DALI, Push Dimming DC Output Adjustment No Dimensions 355 x 215 x 215 mm EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (?60% load), EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60°C PDF Datasheet ELED-75-D.pdf

Read more less

Obsolete Alternative Up to 100W Alternative up to 60W   The Ecopac ELED-75-24D DALI Dimmable LED Driver is 75W 24VDC output.  Constant Voltage  / PWM Output Design Dali & Push Dimmable Protections: Short circuit/ Over Voltage/ Over Temperature Other features: Dimming range from 0.1% to 100% Input Range 200-265VAC Output 24VDC Built-in PFC function IP20design for indoor or outdoor installations 87% efficiency 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 75 Output Voltage 24V Dimmable (Type) DALI, Push Dimming DC Output Adjustment No Dimensions 355 x 215 x 215 mm EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (?60% load), EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60°C PDF Datasheet ELED-75-D.pdf

Read more less

obsolete ,  please  order the below . Which is the 100W variant     https://www.easy-controlgear.com/products/eled-100-12t-ecopac-constant-voltage-led-driver-eled-100-12t-100w-12v?_pos=1&_sid=6421e0f7f&_ss=r   Constant voltage Triac/ Mains dimming Suitable for leading/ trailing edge Protections: Short circuit/ Over voltage   Other features: Built-in active PFC funtion (PF>0.95) Cooling by free air convection IP66 Rated Design Fully isolated, delivering up to 80W of powerMore Information Manufacturer Ecopac Power Output Wattage (W) 80 Output Voltage 12V Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 200x 68x 45 EMC Standards Compliance to EN55015, EN61000-3-2 (?50% load), EN55015, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, light industry level Input Voltage 175~265VAC Safety Standards EN-60950-1 Output Voltage Options Single Working Temperature -40°C ~ +60°C PDF Datasheet ELED-80-T.pdf

Read more less

Constant voltage Triac/ Mains dimming Suitable for leading/ trailing edge Protections: Short circuit/ Over voltage   Other features: Built-in active PFC funtion (PF>0.95) Cooling by free air convection IP66 Design Fully isolated, delivering up to 80W of powerMore Information Manufacturer Ecopac Power Output Wattage (W) 80 Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 200x 68x 45 EMC Standards Compliance to EN55015, EN61000-3-2 (?50% load), EN55015, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, light industry level Input Voltage 175~265VAC Safety Standards EN-60950-1 Output Voltage Options Single Working Temperature -40°C ~ +60°C PDF Datasheet ELED-80-T.pdf

Read more less

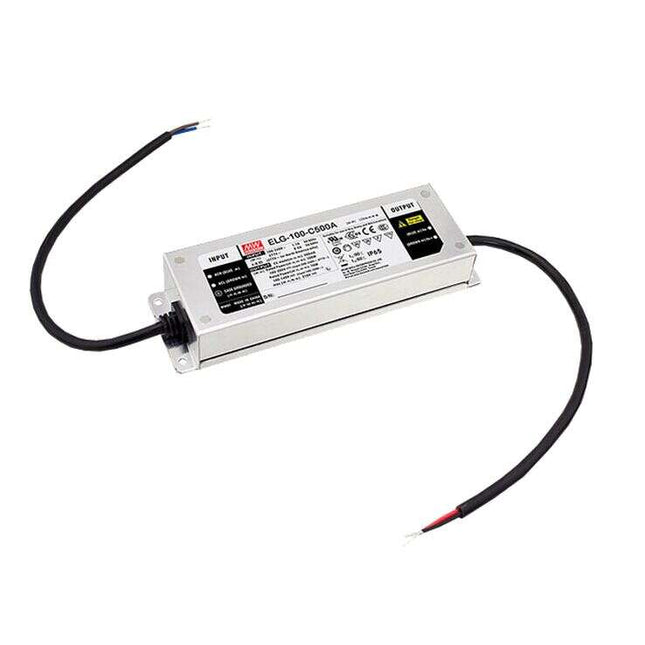

Constant current mode outputTypical lifetime>50000 hoursProtections: Short circuit/ Over Voltage/ Over temperatureOther features:Built-in active PFC functionNo load power consumption <0.5WIP67 / IP65 rated design for indoor or outdoor installationsMetal housing design3 in 1 dimming5 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 96 Output Voltage 48V Dimmable (Type) 3 in 1 Dimming DC Output Adjustment 43.2-52.8V (A type only) Dimensions 199x 63x 35.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "Derating Curve") PDF Datasheet elg-100.pdf

Read more less

ELG-100-C700-DA-3Y Series Features: Constant current mode output Typical lifetime>50000 hours Protections: Short circuit/ Over Voltage/ Over temperature Other features: Built-in active PFC function No load power consumption <0.5W IP67 / IP65 rated design for indoor or outdoor installations Metal housing design 3 in 1 dimming 5 years warranty

Read more less

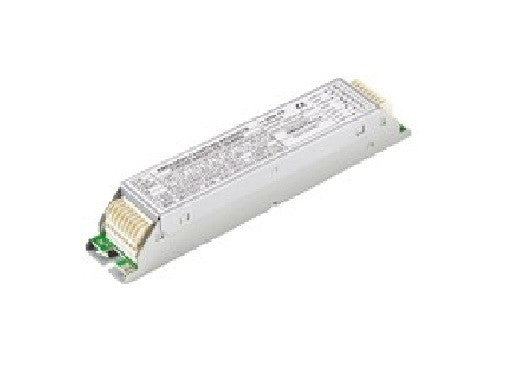

This is an Emergency Lighting Products (ELP) OM/336/TI emergency module to operate a range of lamps with wattages between 4 and 36w. This module should be used with a 3 cell emergency battery. This module has been designed to suit all emergency lighting applications that require an inverter and battery. It has compact dimensions and push-wire/IDC terminals to simplify assembly.
