The Osram QTi DALI 4x18/220-240 DIM is a digital dimmable ballast to run 4 x 18w T8 Tubes. These ballasts have an average life of 100,000 hours, offer flicker free light, have an automatic safety shutdown at lamp failure, automatic restart after lamp replacement and are suitable for emergency lighting.

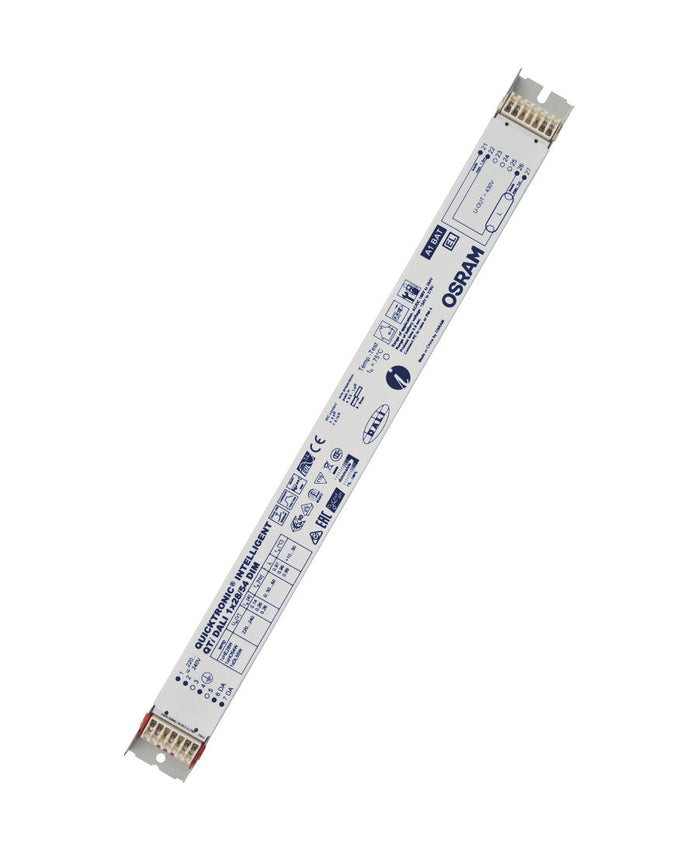

The Osram QTi 1x28/54/220-240 DIM is a 1-10v intelligent dimmable ballast to run 1 x 28w or 54w T5 Tubes. These ballasts have an average life of 100,000 hours, offer flicker free light, have an automatic safety shutdown at lamp failure, automatic restart after lamp replacement and are suitable for emergency lighting.
Product benefits
Same luminous flux with direct and alternating current
Perfect lamp start for applications with motion sensors
Dimming of amalgam lamps without flickering or reduced lifespan
Very high efficiency thanks to cut-off technology
Automatic restart after lamp replacement
ECGs comply with MINERGIE standard due to very low standby consumption
Configurable emergency power characteristics
The Philips HF-P 113 PL-C is a non-dimmable high frequency ballast to run:1 x 13w lamps.This ballast has a flicker free warm-start circuit,50% longer lamp life and an automatic stop circuit (safety stop). The Philips HF-P PL-T/C range is suitable for Department stores,Suprmarkets, Hotels and Hospitals, It is also for use in emergency installations with re-ignition.
The Mackwell D113+ is an M1/M3 3 cell combination emergency module and ballast to run 9w or 11w single turn compact fluorescent lamps or 13w double turn compact fluorescent lamps. This module is designed for single lamp operation and can be used for 1 or 3 hour emergency duration.

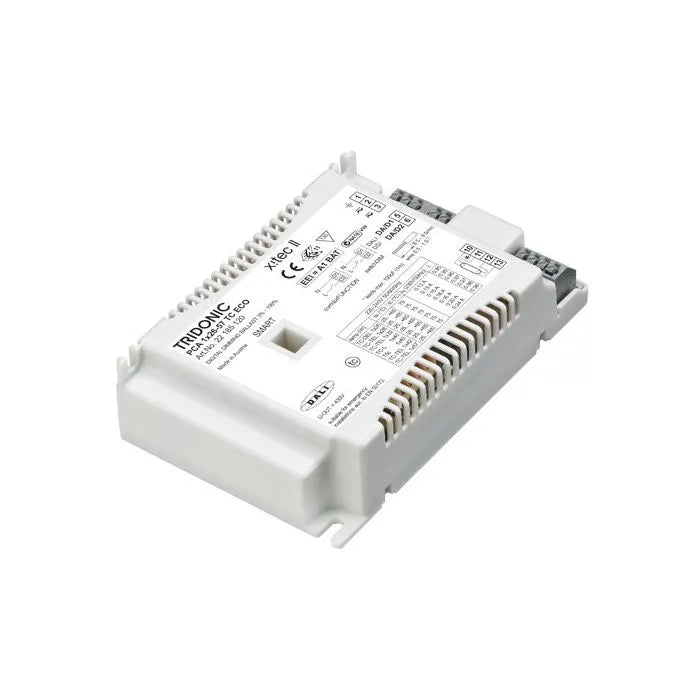

Electronic ballast with highest possible energy class CELMA EEI A2 BAT. It offers large temperature range, intelligent voltage guard, precise lamp operation using adjustment of lamp parameters, advanced SMART-Heating for minimum 50000 starts without replacement of lamps, constant luminous flux irrespective of fluctuations in mains voltage, designed for THD <10%, for luminaires of protection class I and protection class II. It features automatic start after replacement of defective lamps, safety shutdown of defective lamps and at end of lamp life (EOL 2), insulation displacement connection (IDC) terminal for rapid automatic or manual wiring and for emergency lighting systems as per EN 50172.
· Rated lifespan: 100,000 hours
· Flicker free warm start
· Min/Max ambient working temperature: -25°C to 70°C
· Degree of protection: IP20
· Operating voltage: 198-264V (AC), 176-280V (DC)
