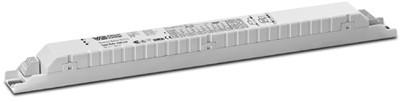

4x14w T5 Electronic Ballast 240v - Vossloh Schwabe - ELXC414.868
This item is now obsolete an alternative will be sent
Technical Specifications
Control Gear Type
High Frequency
Accessory Type
Ballast
Wattage
14 W
Manufacturer
Vossloh Schwabe
Dimming?
Non-Dimmable
No. Of Lamps
Quad (4x)
Height
28 mm
Lamp
4 x 14w
Length
230 mm
Type
Control Gear
Width
40 mm
Compatible Lamp Type
T5
Control Gear Technology
Fluorescent
obsolete , as long as you are using the dali feature please order the below
DALI Alternative
The Tridonic PCA 2x26/32/42 TC ECO is a high frequency dimmable ballast to run: 2 x 26w Double Turn Compact Fluorescent Lamps 2 x 26w Triple Turn Compact Fluorescent Lamps 2 x 32w Triple Turn Compact Fluorescent Lamps 2 x 42w Triple Compact Fluorescent Lamps Tridonic part number: 22185121
General Information
Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
EII
Type version
mk2
Lamp type
TL-D
Number of lamps
2 piece/unit
Number of products on MCB (16 A type B) (nom.)
12
Automatic restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input frequency
50 to 60 Hz
Operating frequency (max.)
89 kHz
Operating frequency (min.)
45 kHz
Ignition method
Programmed Start
Crest factor (max.)
1.7
Power factor 100% load (nom.)
0.98
Ignition time (max.)
0.2 s
Mains voltage performance (AC)
-8%-+6%
Mains voltage safety (AC)
-10%-+10%
Earth leakage current (max.)
0.5 mA
Inrush current width
0.40 ms
Power losses (nom.)
7.3 W
Inrush current peak (max.)
45 A
Efficiency at full load [%]
88.69 %
1 x TUV36T5HO - TUV60WPLL - TUV55WHO - TUV75WHO - GXO36T6PH
Lightwave UV Ballast - EB-1006-02LF (LW20EB65-G01S). This ballast has switch for 120 volt or 220/230 volt. Operates one germicidal lamp, Max Lamp Wattage: 75 watts, Lamp Voltage Range: 110-179 v, Lamp Current Range: 600-800 mA. Lamp type - GHO36, GXO36T6PH, TUV 55, 65, 75 W (PLL). Rapid start. Dimensions - Length (includes mounting tabs) 4.25" , Width - 2.25", Height 1.25". * No Wires, plug in wire ports, Case Size D. Model # EB-1006-02LF, Lightwave.
This item is now obsolete an alternative will be sent

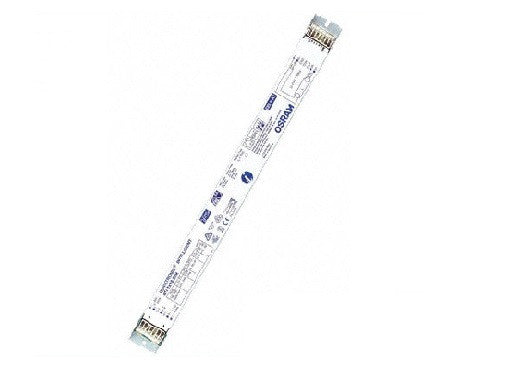

This Osram QT-ECO 1x18-24/220-240 S is a non dimmable matchbox ballast to run: 1 x 24w T5 fluorescent tube 1 x 22w T5 Circular tube 1 x 15w or 18w T8 Fluorescent tube 1 x18w or 24w Double turn CFL's 1 x 18w or 24w DuluxW F CFL's
Obsolete, If you are using the dali dimming feature please order the EL2X80IDIM , please note this is dali dimming only and not DSI dimming
Product description
Processor-controlled ballast with xitec II inside
Highest possible energy class CELMA EEI = A1 BAT (1)
Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION
Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
Multilamp management
OEM-specific reserved memory areas
5 years guarantee
Interfaces
DALI
DSI
switchDIM (with memory function + selectable dimming rate)
corridorFUNCTION (3 preprogrammed profiles)
Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs
Functions
Intelligent Temperature Guard (overtemperature protection)
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Optimum filament heating in any dimmer setting
Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
corridorFUNCTION with ambient light control
Automatically triggered emergency lighting value in DC mode, 15 %
For emergency lighting systems as per EN 50172
Automatic start after replacement of defective lamps
Automatic shutdown if the lamp is faulty
Tridonic PC122642TCPRO Electronic compact ballast to run 1x18-42w - 1x22w - 2x18-26w TCT Pro
Tridonic are a world-leading supplier of lighting technology and support their customers with intelligent hardware and software solutions. Tridonic aim to make products which offer the highest level of quality, reliability and energy savings.
The Tridonic 22176408 PC TC PRO electronic fixed output ballast is designed for luminaires with 1 or 2 x 26-42W TC lamps. The ballast has a compact design and boasts a nominal life-time up to 100,000 hours.
The ballast offers a large temperature range and ensures constant luminous flux irrespective of fluctuations in mains voltage. Various functions and safety features are included, such as: Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown), Automatic start after replacement of defective lamps and Safety shutdown of defective lamps at end of life.
