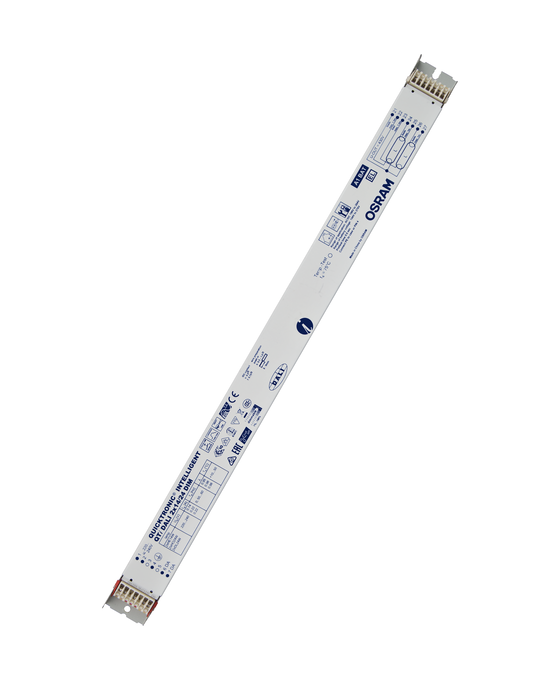

QUICKTRONIC INTELLIGENT DALI DIM T5
QTi DALI 2X14/24 DIM
Areas of applicationPRODUCT DATASHEETQTi DALI 2X14/24 DIMQUICKTRONIC® INTELLIGENT DALI DIM T5 | ECG dimmable DALI for FL 16 mmProduct benefitsDALI product featuresTouch DIM and Touch DIM Sensor functionSuitable for use in emergency lighting systems as per EN 50172/DINVDE 0108-100−Installation in emergency lighting systems according to IEC 61347-2-3,appendix J−− Industry− Open-plan offices, corridors and storage rooms− Public buildings− Sports halls and factories− Strip lighting− Shop lighting− Suitable for luminaires of protection class I
Control Gear Type
High Frequency
Wattage
14 W
Wattage
21 W
Wattage
28 W
Wattage
35 W
Manufacturer
BAG Electronics
Dimming?
Non-Dimmable
Height
30 mm
Length
425 mm
Type
Control Gear
Voltage
220-240 Volt
Compatible Lamp Type
T5
Manufacturers Part Number
166482
PCA 2x80 T5 ECO lp Y II 22185098
Product description• Processor-controlled ballast with y II inside• Highest possible energy class CELMA EEI = A1 BAT1• Noise-free precise control via DALI orDSI signal, switchDIM or corridorFUNCTION• Nominal life up to 100,000 h (at ta 50 °Cwith a failure rate max. 0.2 % per 1,000 h)• Multi-lamp management• OEM-specific reserved memory areas• 5 years guaranteeInterfaces• DALI• DSI• switchDIM (with memory function + selectable dimming rate)• corridorFUNCTION (3 preprogrammed profiles)• Integrated SMART interface for function withSMART Sensor 5D 19f and corridorFUNCTION plugsFunctions• Intelligent Temperature Guard (overtemperature protection)• Intelligent Voltage Guard (overvoltage indicationand undervoltage shutdown)• Optimum filament heating in any dimmer setting• Disconnection of filament heating from a dimming level of approx.90 % for maximum energy efficiency (SMART-Heating concept)• corridorFUNCTION with ambient light control• Automatically triggered emergency lighting value in DC mode, 15 %• For emergency lighting systems as per EN 50172• Automatic start after replacement of defective lamps• Automatic shutdown if the lamp is faultyÈStandards, page 3Wiring diagrams and installation examples, page 8PCA T5 ECO lp Y II, 14 – 80 WECO T5 T5 TC-L6Ø4,1LD21 4,130side fixing featureTechnical dataMains voltage range 220 – 240 VAC voltage range 198 – 264 VDC voltage range 176 – 280 V (lamp start ≥ 198 V DC)Mains frequency 0 / 50 / 60 HzOvervoltage protection 320 V AC, 1 hTyp. power input on standby < 0.2 WProtective hot restart 0.5 s for AC / 0.2 s for DCDimming range 1 – 100 %Lamp start possible from 1 %Operating frequency ~ 40 – 130 kHzType of protection IP20Ordering dataType Article number Packaging,cartonPackaging,palletWeightper pc.For luminaires with 1 lampPCA 1x14/24 ECO lp Y II 22185094 10 pc(s). 760 pc(s). 0.342 kgPCA 1x21/39 T5 ECO lp Y II 22185101 10 pc(s). 760 pc(s). 0.233 kgPCA 1x28/54 T5 ECO lp Y II 22185099 10 pc(s). 760 pc(s). 0.242 kgPCA 1x35/49/80 T5 ECO lp Y II 22185096 10 pc(s). 760 pc(s). 0.243 kgFor luminaires with 2 lampsPCA 2x14/24 ECO lp Y II 22185095 10 pc(s). 760 pc(s). 0.272 kgPCA 2x21/39 T5 ECO lp Y II 22185102 10 pc(s). 760 pc(s). 0.270 kgPCA 2x28/54 T5 ECO lp Y II 22185100 10 pc(s). 640 pc(s). 0.332 kgPCA 2x35/49 T5 ECO lp Y II 22185097 10 pc(s). 760 pc(s). 0.260 kgPCA 2x80 T5 ECO lp Y II 22185098 10 pc(s). 640 pc(s). 0.343 kgPH
The most important product properties of the TRIDONIC PC 1x5-16W BASIC sl at a glance: - CELMA energy efficiency class A2 / A3 - Nominal service life up to 50,000 h (at ta 50 °C and a failure rate of ? 0.2% per 1,000 h) - Large temperature range (See table for values) - Automatic restart after lamp replacement - Safety shutdown of defective lamps and at the end of lamp life - Temperature protection in accordance with EN 61347-2-3 C5e
Product description• Processor-controlled ballast with y II inside• Highest possible energy class CELMA EEI = A1 BAT1• Noise-free precise control via DALI orDSI signal, switchDIM or corridorFUNCTION• Nominal life up to 100,000 h (at ta 50 °Cwith a failure rate max. 0.2 % per 1,000 h)• Multi-lamp management• OEM-specific reserved memory areas• Extended DALI commands• 5 years guaranteeInterfaces• DALI• DSI• switchDIM (with memory function + selectable dimming
• corridorFUNCTION (3 preprogrammedprofiles + individually programmable)• Integrated SMART interface for function with allSMART Sensors and SMART plugs of the y II rangeFunctions• Intelligent Temperature Guard (overtemperature protection)• Intelligent Voltage Guard (overvoltage indicationand undervoltage shutdown)• Optimum filament heating in any dimmer setting• Disconnection of filament heating from a dimming level of approx.90 % for maximum energy efficiency (SMART-Heating concept)• Fade rates between 100 ms and 90 s (min. – max.)• corridorFUNCTION with ambient light control• Automatically triggered emergency lighting value in DC mode 15 %,can be set between 1 and 100 %• For emergency lighting systems as per EN 50172• Automatic start after replacement of defective lamps
