ELED-60-C600/2100V(2100mA) ELED-60-C600/2100V(2000mA) ELED-60-C600/2100V(1900mA) ELED-60-C600/2100V(1800mA) ELED-60-C600/2100V(1700mA) ELED-60-C600/2100V(1600mA) ELED-60-C600/2100V(1500mA) ELED-60-C600/2100V(1400mA) ELED-60-C600/2100V(1300mA) ELED-60-C600/2100V(1200mA) ELED-60-C600/2100V(1100mA) ELED-60-C600/2100V(1000mA) ELED-60-C600/2100V(900mA) ELED-60-C600/2100V(800mA) ELED-60-C600/2100V(700mA) ELED-60-C600/2100V(600mA) Wattage 60 60 60 60 60 60 60 60 60 60 60 60 58.5 52 45.5 39 Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC Output Current 2100mA 2000mA 1900mA 1800mA 1700mA 1600mA 1500 1400mA 1300mA 1200mA 1100mA 1100mA 900mA 800mA 700mA 600mA Output Voltage Options 3~29 3~30 3~32 3~33 3~35 3~38 3~40 3~43 3~46 3~55 3~60 3~65 3~65 3~65 3~65 Dimensions 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm Working Temperature -40~+80°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

 Download Product Specification

Read more less

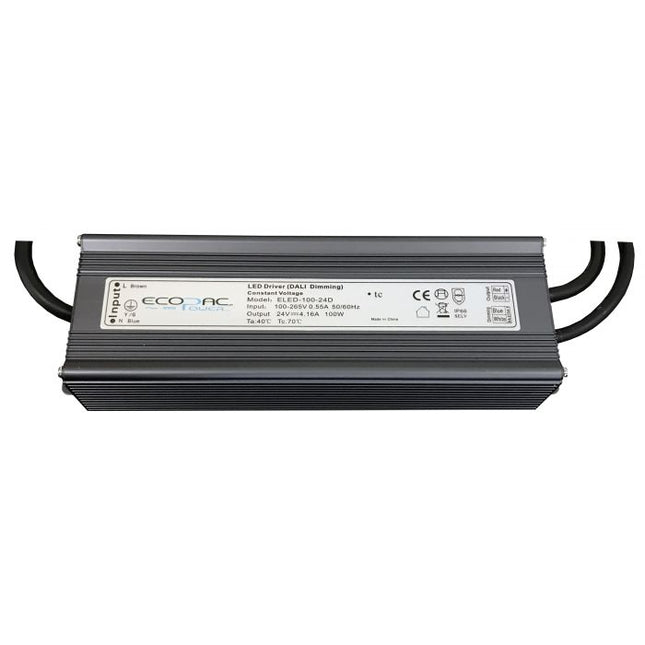

Constant Voltage DesignDali DimmableProtections: Short circuit/ Over Voltage/ Over TemperatureOther features:Dimming range from 0.1% to 100%Range 100-265VACBuilt-in PFC functionIP66 design for indoor or outdoor installations87% efficiency3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 24V Dimmable (Type) DALI Dimensions 230x 70x 44 EMC Standards Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11 (Surge 4KV) Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100-Dali Series.pdf

Read more less

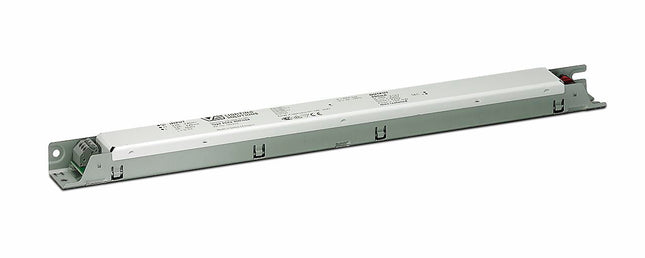

ComfortLine Terminal L-R1 Product features • Linear casing shape Functions • The required current output can be chosen by selecting the respective pin at the output terminal. Electrical features • Mains voltage: 220–240 V ±10% • Mains frequency: 50–60 Hz • Push-in terminals: 0.2–1.5 mm² • Power factor at full load: > 0.97 • Max. working voltage (UOUT): 250 V • Secondary side switching of LED modules is not allowed. Safety features • Protection against transient main peaks up to 1 kV (between L and N) and up to 2 kV (between L/N and PE) • Electronic short-circuit protection • Overtemperature protection • Protection against "no load" operation • Degree of protection: IP20 • Protection class I Dimensions Casing: M10 Length: 359 mm Width: 30 mm Height: 21 mm

Read more less

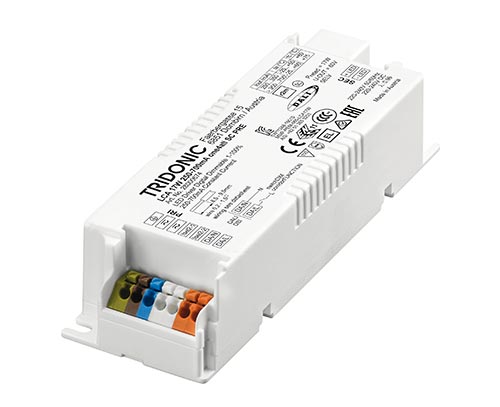

Pictured with Strain relief ( separate product  )  https://www.easy-controlgear.com/products/strain-relief-set-43x30mm-280001168 Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Can be either used built-in or independent with clip-on strain-relief (see accessory) Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 250 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 17 W Up to 86 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Typical applications For linear/area lighting in office applications

Read more less

This is obsolete , an alternative will be sent  LED Driver 500ma Contast Current - Harvard - ELD500-1-2-NM12

Read more less

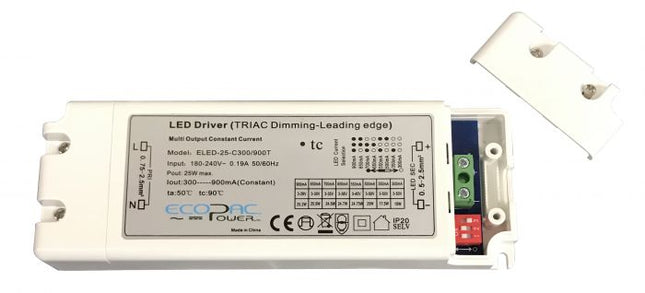

Constant current mode output Multiple levels selectable by dip switch Protections: Short circuit/ Over load/ Over Current Other features: Full protection housing east installation IP20 design for indoor installation Cooling by free air convection Dimming function : Triac dimmable phase cut dimmable 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 25 Output Current Choose Option Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment 300-900mA Dimensions 155x 54x 20 EMC Standards Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV ) Input Voltage 180-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature Tcase= -40~+60°C PDF Datasheet ELED-25-CT.pdf

Read more less

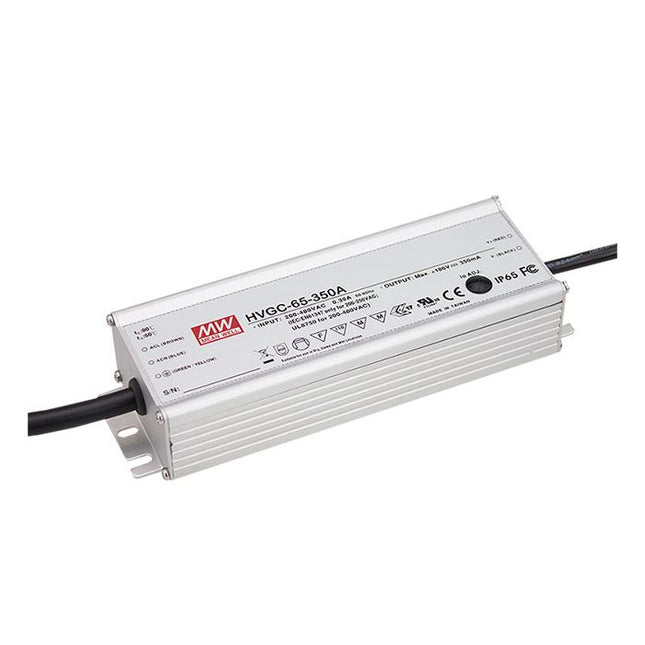

Constant current designWide input range 180~528VACOCP point adjustable through internal potentiometerProtections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warrantyMore Information Manufacturer Mean Well Output Wattage (W) 65 Output Current 500mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 13~130 Dimensions 189x 61.5x 36.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC, 254~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP65 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVGC-65-spec.pdf

Read more less

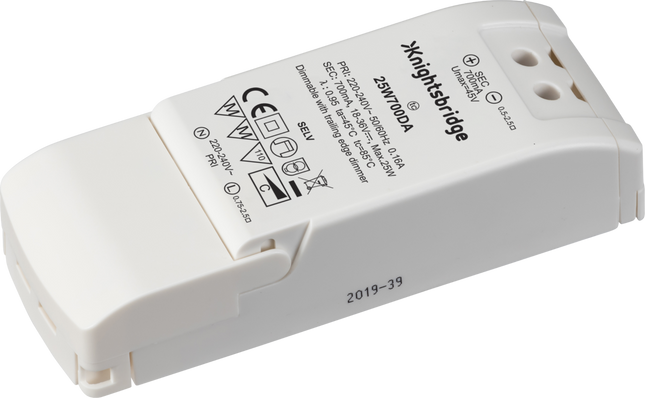

18-36V 700mA 25W Constant current driver Dimmable with most trailing edge dimmers CONSTRUCTION Polycarbonate FINISH White CLASS II IP RATING IP20 PRIMARY VOLTAGE 230V 50Hz LENGTH 120 mm HEIGHT 28 mm WIDTH 45 mm

Read more less

Driver LCBI 15W 350/500/700mA BASIC phase-cut lp advanced series Product description Dimmable via leading edge and trailing edge phase dimmers Output dimmed analogue (current amplitude) Dimming range typ. 5 to 100 % (depending on dimmer) Type of protection IP20 Push-in terminals Connecting cable, wire cross-section 0.5 – 1.5 mm² SELV 350, 500 or 700 mA output current Output power 15/16 W Nominal lifetime of 50,000 h (at max ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) 5 years guarantee Properties Casing: polycarbonate, white Compact dimensions Overload protection Short-circuit protection No-load protection

Read more less

Obsolete replaced by  https://www.easy-controlgear.com/products/hlg-150h-48a-mean-well-led-driver-hlg-150h-48a-150w-48v Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295 VAC) / Full rangeIP65 design for indoor or outdoor installationsCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)Output voltage and C.C level can be adjusted through internal potentiometer3 years warranty  More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 48V Dimmable (Type) No DC Output Adjustment A type can be adjusted by internal potentiometer Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf

Read more less

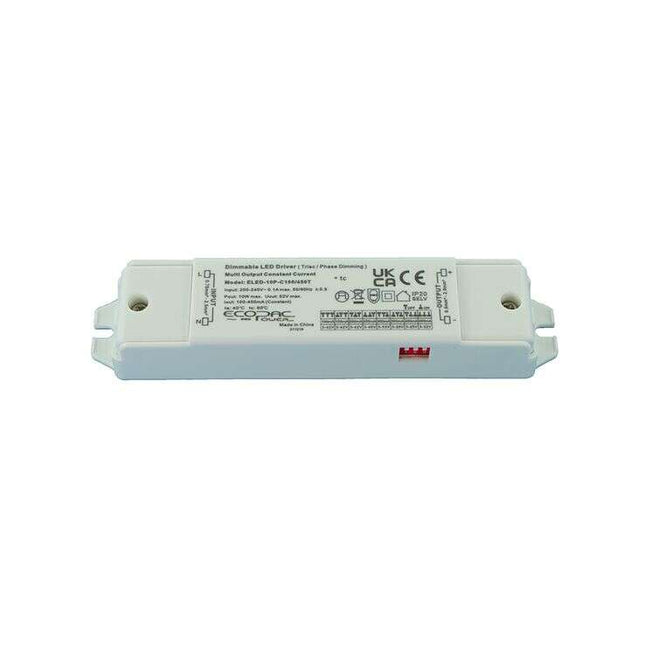

ELED-10P-C100-450T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch • Dimming function: Triac/phase cut dimming • Work with leading or trailing edge Triac dimmer • (ON key: leading edge; 1 key: trailing edge) • AC input: 200-240VAC • Built-in active PFC function • Efficiency up to 75% • IP20 design for indoor installation • Full protection plastic housing easy installation • Protections: Short circuit/ Over load • Cooling by free air convection • Suitable for LED lighting and moving sign applications • Strong compatibility, flicker-free dimming Spec ELED-10P-C100-450T(C450mA) ELED-10P-C100-450T(C400mA) ELED-10P-C100-450T(C350mA) ELED-10P-C100-450T(C300mA) ELED-10P-C100-450T(C250mA) ELED-10P-C100-450T(C200mA) ELED-10P-C100-450T(C150mA) ELED-10P-C100-450T(C100mA) Wattage 10 10 10 10 10 8.4 6.3 4.2 Input Voltage 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC Output Current 450 400 350 300 250 200 150 100 Output Voltage 3~22 3~25 3~28 3~33 3~40 3~42 3~42 3~42 Dimensions 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm Working Temperature -40~60°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
