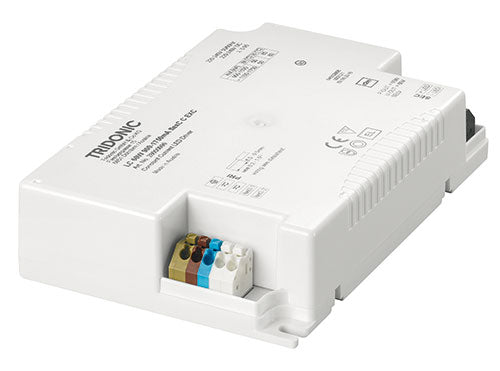

Driver LC 60W 900–1750mA flexC C EXC excite series Product description Constant current LED driver Adjustable output current between 900 and 1,750 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 60 W Up to 90 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces ready2mains (configuration via mains) Terminal blocks: 45° push terminals Functions Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to high efficiency Flexible configuration via ready2mains and I-SELECT 2 Typical applications For downlight, spotlight and decorative applications   Data sheet   Order information Common data Technical data Downloads Links Certificates Accessories CAD Ordering data Type Article number Pack­ag­ing, carton Pack­ag­ing, pallet Weight per pc. LC 60W 900-1750mA flexC C EXC 28000696 10 pc(s). 720 pc(s). 0.205 kg

Read more less

Obsolete, Please consider the below as a viable alternative   Alternative  LED Driver 1050ma Dali Harvard C/Clamp - CL1050D2-240-C

Read more less

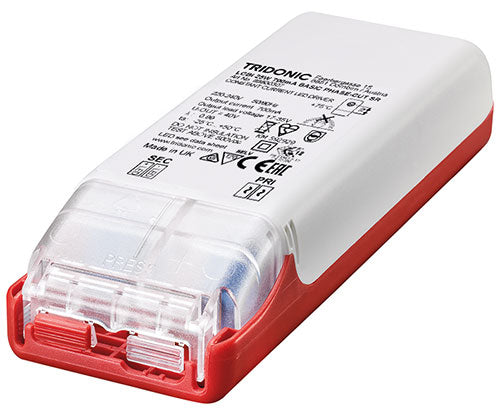

Driver LCBI 25W 700mA BASIC phase-cut SR advanced series Product description Dimmable via leading edge and trailing edge phase dimmers Output dimmed analogue (current amplitude) Dimming range typ. 5 to 100 % (depending on dimmer) Type of protection IP20 Screw terminal Connecting cable, wire cross-section 0.5 – 2.5 mm² SELV 700 mA output current Output power 25 W Nominal lifetime up to 50,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) 5 years guarantee Properties Casing: polycarbonate, white Compact dimensions Overload protection Short-circuit protection No-load protection

Read more less

Driver LCA 150W 24V one4all SC PRE premium series 24 V – dimmable (IP20) With strain-relief Product description NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance) Dimmable 24 V constant voltage LED driver for flexible constant voltage strips Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards) One4all interface and ready2mains enable different dimming options Dimming range 1 to 100 % No additional external dimmer is needed Suitable for emergency escape lighting systems acc. to EN 50172 Nominal lifetime up to 50,000 h 5 years guarantee Typical applications Cove lighting, facade accent lighting, ceiling integration Technical details 24 V, 150 W Small design (325 x 43 x 30 mm) with stretched-compact strain relief Small cross section Push terminals for simple wiring Output terminals (+/–) equipped twice for more flexibility in the application Interfaces one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals System solution Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m In connection with Flex accessories wire to PCB plug The functioning of third party light sources at a low dim level cannot be guaranteed and is not recommended

Read more less

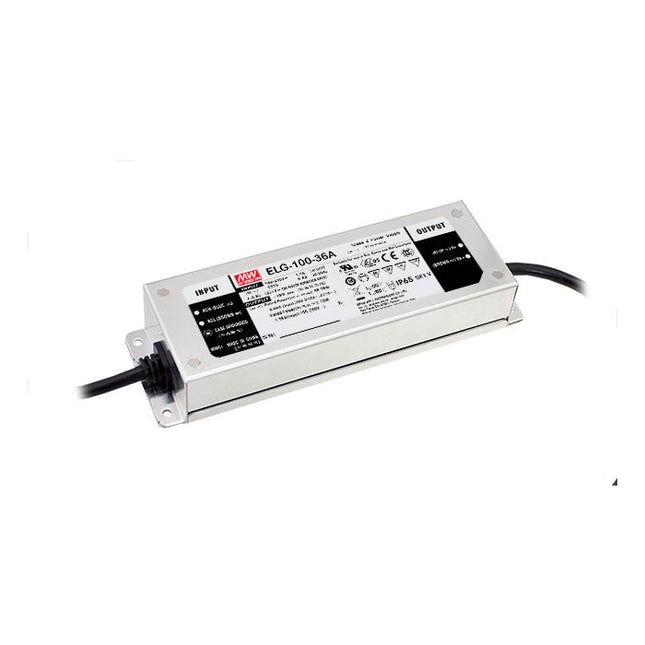

Constant current mode outputTypical lifetime>50000 hoursProtections: Short circuit/ Over Voltage/ Over temperatureOther features:Built-in active PFC functionNo load power consumption <0.5WIP67 / IP65 rated design for indoor or outdoor installationsMetal housing design3 in 1 dimming5 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 96 Output Voltage 48V Dimmable (Type) 3 in 1 Dimming DC Output Adjustment 43.2-52.8V (A type only) Dimensions 199x 63x 35.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "Derating Curve") PDF Datasheet elg-100.pdf

Read more less

25w 350-1050Ma flexC Sr EXC LED Driver - Tridonic - 28000700   Driver LC 25W 350–1050mA flexC SR EXC excite series Product description Independent constant current LED Driver Adjustable output current between 350 and 1,050 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 25 W Up to 86 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces ready2mains (configuration via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to high efficiency Flexible configuration via ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications

Read more less

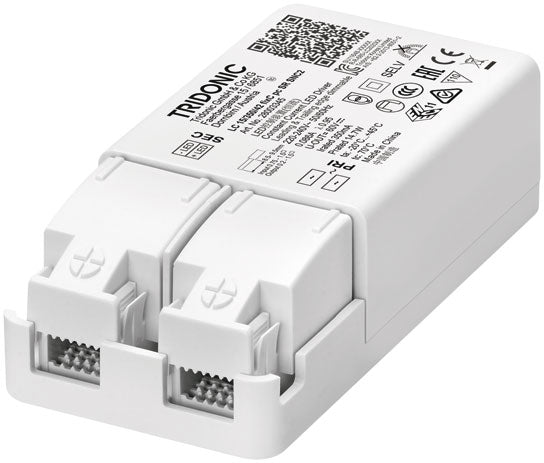

Product description Dimmable constant current LED driver (SELV) Independent driver with strain-relief housing Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) Dimmable via leading edge and trailing edge phase dimmers Trailing edge is a benefit in terms of noise compared to leading edge Dimming range 5 to 100 % (depending on dimmer) For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711 Max. output power 14.7 W Output current 350 mA Nominal lifetime up to 50,000 h 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)

Read more less

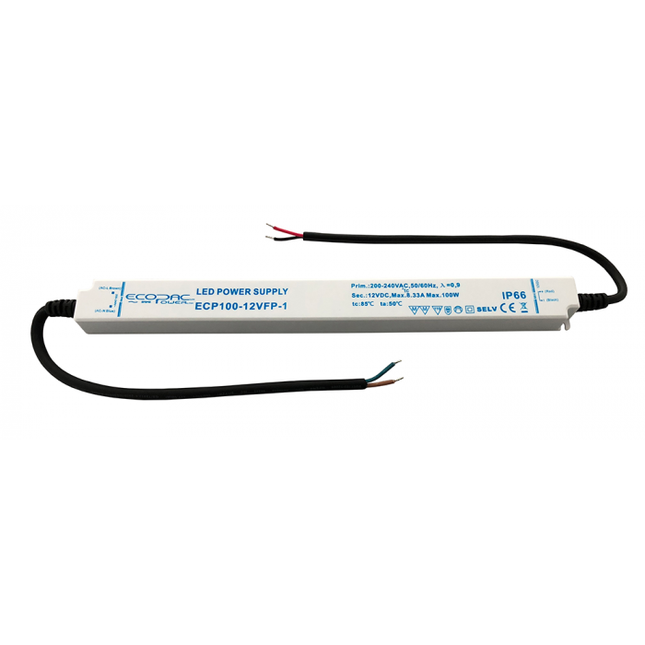

The Ecopac Power ECP100-12VFP-1 slimline constant voltage LED driver is ideal for concealment where space is restricted, such as hiding behind a strip. Short circuit, over temperature and over loading protection are all standard features.  Ecopac Power LED Drivers are supplied with a 3 year warranty.  Other features: Slim line LED Driver Universal AC input/ Full range 180-264VAC Input Frequency 50/60Hz 12V Constant voltage output IP66 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 12V Dimmable (Type) No DC Output Adjustment N/a EMC Standards EN61000-3-2; EN61547, EN61000-4-2,3,4,5,6 Input Voltage 180-264VAC Safety Standards EN61347-1, EN61347-2-13, Working Temperature -20~+45°C PDF Datasheet ECP100-VFP-1.pdf

Read more less

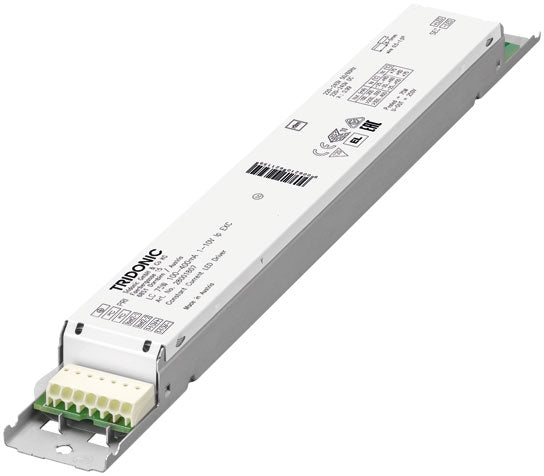

Driver LC 75W 100–400mA 1-10V lp EXC Linear drivers Data sheet Product description Constant current LED driver for luminaire installation Dimmable via 1 ... 10 V interface Dimming range 10 – 100 % (Depending on load, for details refer to chapter 4.7 Dimming in data sheet.) For luminaires of protection class I and protection class II Adjustable output current between 100 and 400 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 75 W Up to 94 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee (conditions at www.tridonic.com)

Read more less

LL80HE-DA-100-800 80 W DALI-2 dimmable LED driver 100 mA – 800 mA adjustable current output Product number: 5758001 Dimensions: 280 x 30 x 21 mm LED Driver family: HE Series Main features: DALI, Amplitude, SMARTSWITCH Datasheet

Read more less

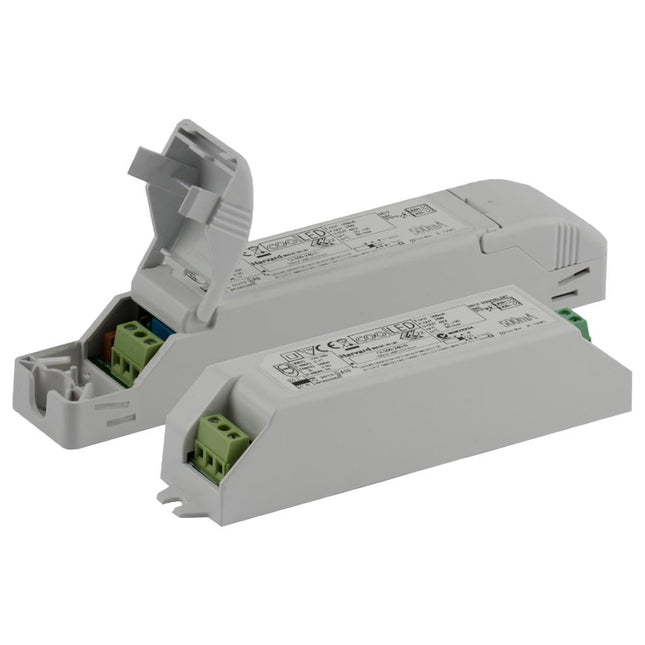

Specifications Technical data Information Brand Harvard Power Systems Commodity 8504409090 Item number CL500D2-240-C Warranty pack 60 Months Bring-In Series CL RoHS Compliant Description AC-DC 33W LED driver Constant Current mode (CC); Max. output 48Vdc at 0.5A; IP20; Dimming with DALI; Remote control Packing Quantity 40 Application LED EN 61347 Net weight (gram) 130 Technology AC/DC Constant Current C.C. Format Box Type - Enclosed Output Power (W) 33 Output Voltage (V) 48 Output Current (A) 0.5 Input Voltage (V) 220 - 240 IP Rating IP20 Width (mm) 32 Height (mm) 32 Depth (mm) 180 Control Signals Remote Sense Dimming Technology DALI

Read more less

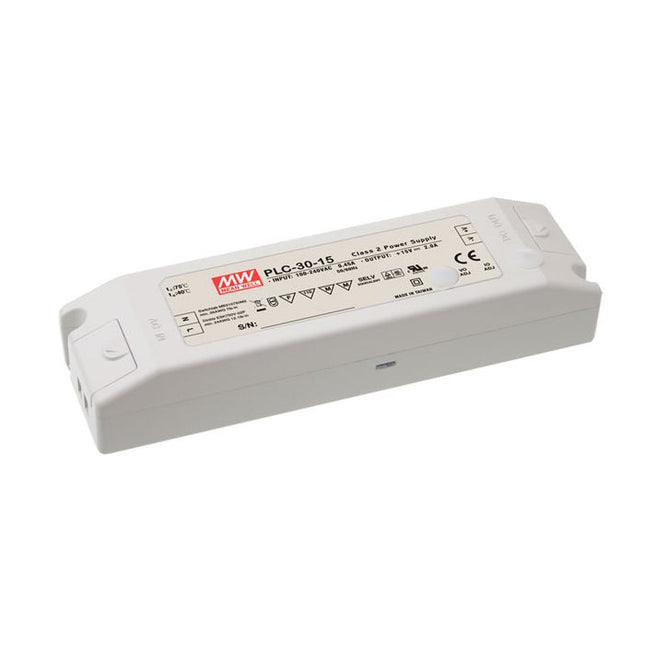

Built-in constant current limiting circuit (C.V. + C.C. mode)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Universal AC input / full rangeFully isolated plastic case with screw terminal style of I/OAdjustable output voltage and current levelBuilt-in active PFC function, PF>0.9 for 75% of load or higherHigh efficiency up to 90%Class 2 power unit / Pass LPSIsolation class II, no F.G.Cooling by free air convection100% full load burn-in test2 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 30 Output Voltage 48V Dimmable (Type) No DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 160 x 47 x 30 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC; 127~370VDC Safety Standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet PLC-30-spec.pdf
