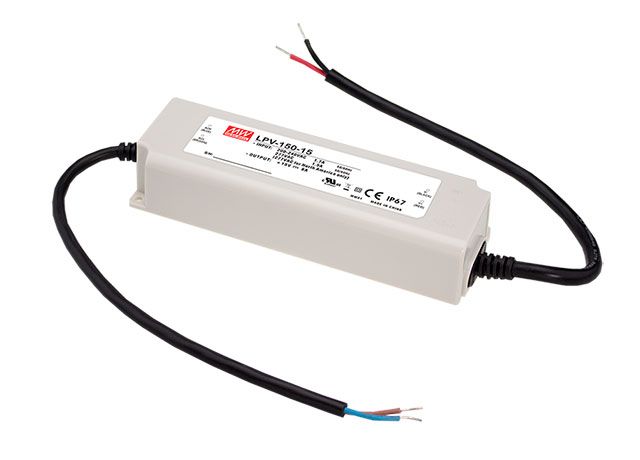

Constant Voltage Fully encapsulated with IP67 level Protections: Short circuit/ Overload/ Over voltage Other features: Universal AC input / Full Range Class II power unit, no F.G. Fully isolated plastic case Cooling by free air convection 100% full load burn-in test Low cost, High reliability 2 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 120 Output Voltage 12V Dimmable (Type) No Dimensions 190 x 61 x 37 EMC Standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Safety Standards Design refer to TUV EN60950-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30°C~+70°C PDF Datasheet LPV-150-spec.pdf

Read more less

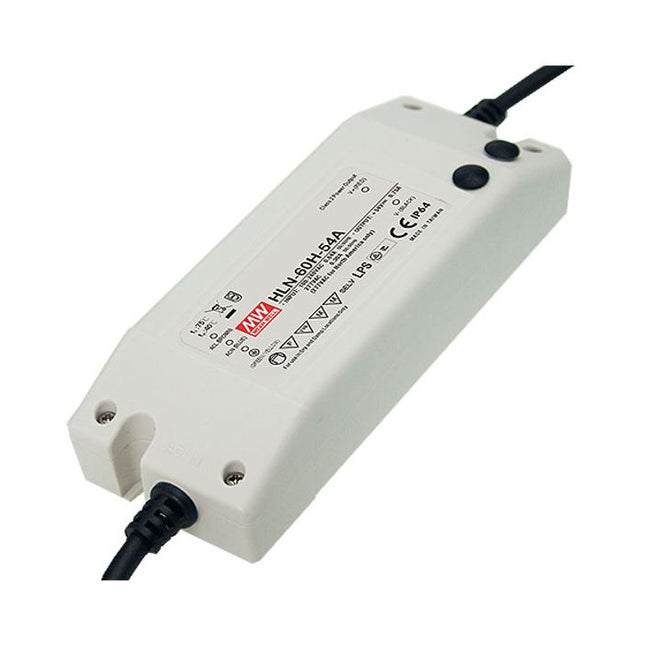

Output and C.C level can be adjusted through internal potentiometerBuilt-in constant current limiting circuit (C.V. + C.C mode) Protections: Short circuit/ Over current/ Over voltage/ Over temperature Other features:Universal AC input (up to 305VAC) / Full rangeFully isolated plastic case with IP64 levelClass 2 power unitHigh efficiency up to 91%Cooling by free air convectionSuitable for dry, damp locationsSuitable for LED lighting and moving sign applicationsBuilt-in active PFC function, PF> 0.9 for 60% load or higher3 years warranty More Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage 24V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1 Output Voltage Options Single Working Temperature -40~+50°C (refer to output derating curve) PDF Datasheet HLN-60H-spec_12.pdf

Read more less

Electrical input data Specification item Value Unit Condition Rated input voltage range 220...240 Vac Performance range Rated input voltage 230 Vac Rated input frequency range 50...60 Hz Performance range Rated input current 0.27 A @ rated output power @ rated input voltage Rated input power 58 W @ rated output power @ rated input voltage Power factor 0.9 @ rated output power @ rated input voltage Total harmonic distortion 20 % @ rated output power @ rated input voltage Efficiency ≥ 91 % @ rated output power @ rated input voltage Input voltage AC range 202...254 Vac Operational range Input frequency AC range 47.5...63 Hz Operational range Isolation input to output SELV Electrical output data Specification item Value Unit Condition Regulation method Constant Current Output voltage 24...54 Vdc Output voltage max. 60 V Maximum output voltage (rms) Output current 0.7...1.5 A Output current tolerance ± 5 % Output current ripple LF ≤ 4 % Ripple = peak / average, < 3kHz Output current ripple HF ≤ 30 % Output power 17...50 W Electrical data controls input Specification item Value Unit Condition Control method Fixed Wiring and Connections Specification item Value Unit Type Input wire cross-section 0.5...1.5 / 20...16 mm2 / AWG WAGO250 (pitch 3.5 mm), solid / stranded wire Input wire strip length 8.5...9.5 mm Output wire cross-section 0.5...1.5 / 20...16 mm2 / AWG WAGO250 (pitch 3.5 mm), solid / stranded wire Output wire strip length 8.5...9.5 mm Maximum cable length 0.6 m Total length of wiring including LED module, one way

Read more less

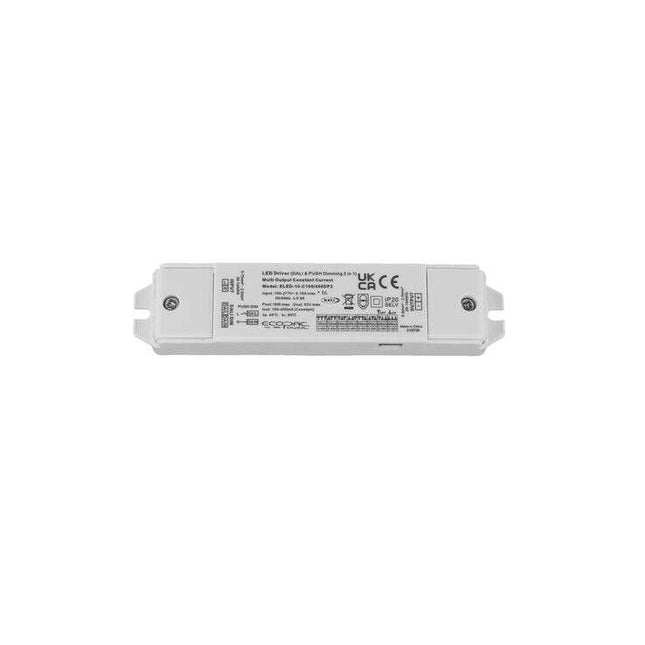

  ELED-10-C100/450DP2 Features: 10W DALI2 and Push Dimming Multiple-Stage Output Current LED DriveFeatures: • Constant Current mode output with multiple levels selectable by dip switch• DALI 2 dimming function (IEC62386)• AC input: 100-277VAC• Built-in active PFC function• Efficiency up to 79%• Protections: Short circuit/ Over load/Over temperature• Cooling by free air convection• Suitable for intelligent LED lighting   ELED-10-C100/450DP2(450mA) ELED-10-C100/450DP2(400mA) ELED-10-C100/450DP2(350mA) ELED-10-C100/450DP2(300mA) ELED-10-C100/450DP2(250mA) ELED-10-C100/450DP2(200mA) ELED-10-C100/450DP2(150mA) ELED-10-C100/450DP2(100mA) Wattage 10 10 10 10 10 8.4 6.3 4.2 Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC Output Current 450mA 400mA 350mA 300mA 250mA 200mA 150mA 100mA Output Voltage 3~22 3~25 3~29 3~33 3~40 3~42 3~42 3~42 Dimensions 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm Working Temperature -40~60°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

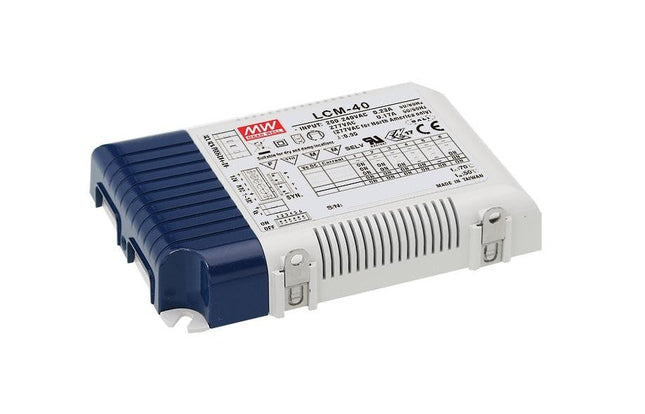

The 40w Multiple-Stage Output LED Driver (LCM-40) by Meanwell offers multiple selectable levels that can be chosen by a dip switch. Operates from 180-295VAC and has different current levels ranging between 350mA and 1050mA. The fanless desgin leads to an efficiency of up to 92%, resulting inan operating case temperature of -30° - +90° Equipped with various functions, such as the dimming function and synchronization, so as to provide the optimal design flexibility forLED lighting system.

Read more less

Driver LCA 100W 1100–2100mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Adjustable output current between 1,100 and 2,100 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 100 W Up to 92 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For applications in downlight, panel and low Bay / high Bay luminaires

Read more less

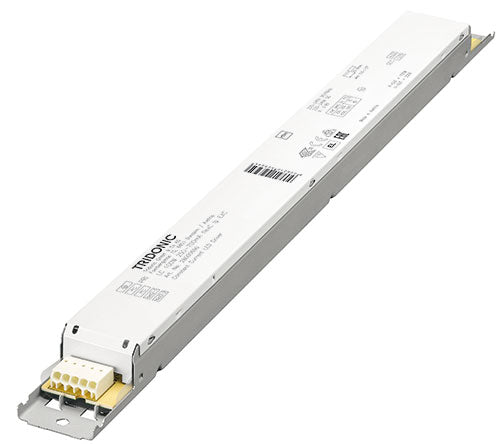

Driver LC 100W 250–700mA flexC lp EXC excite series non-SELV Product description Constant current LED driver for luminaire installation For luminaires of protection class I and protection class II Adjustable output current between 250 and 700 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 100 W Up to 95 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces ready2mains (configuration via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to high efficiency Flexible configuration via ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

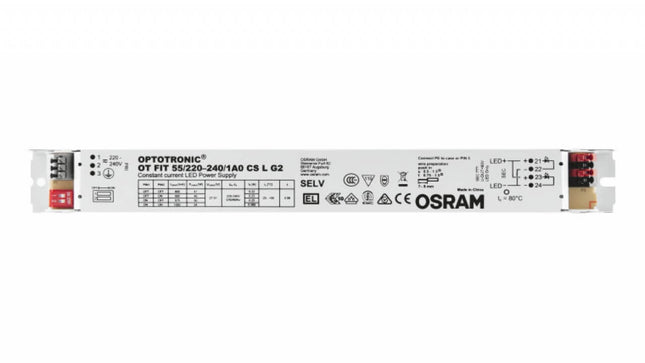

Product family benefits Flexible current setting (DIPswitch – 4 currents) Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate) High efficiency High quality of light thanks to low output ripple current Fulfil safety requirement due to overload, overtemperature, Hot Plug protection Areas of application Linear lighting for office, education, industry, storage areas and retail Suitable for luminaires of protection class I Data sheet Technical Data Electrical data Nominal input voltage 220…240 V Mains frequency 0/50/60 Hz Input voltage AC 198…264 V Current set DipSwitch Input voltage DC 176…276 V Total harmonic distortion < 10 % Power factor λ 0.98 Device power loss 7.0 W Inrush current 20 A Max. ECG no. on circuit breaker 10 A (B) 16 Max. ECG no. on circuit breaker 16 A (B) 25 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 27…51 V U-OUT (working voltage) < 60 V Nominal output current 800 / 900 / 975 / 1050 mA Output current tolerance ±7.5 % Output ripple current (100 Hz) < 5 % Output PSTLM ≤1 Output SVM ≤0.4 Nominal output power 21.6…53.6 W Galvanic isolation SELV Dimensions & weight Mounting hole spacing, length 270.0 mm Product weight 217.00 g Cable cross-section, input side 0.5…1.5 mm² Cable cross-section, output side 0.5…1.5 mm² Wire preparation length, input side 8.5…9.5 mm Wire preparation length, output side 8.5…9.5 mm Length 280.0 mm Width 30.0 mm Height 21.0 mm Colors & materials Casing material Metal Temperatures & operating conditions Ambient temperature range -25…+50 °C Maximum temperature at tc test point 80 °C Max.housing temperature in case of fault 110 °C Temperature range at storage -25…85 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 / 100000 h Capabilities Dimmable No Overheating protection Automatic reversible Overload protection Non-reversible Short-circuit protection Automatic reversible No-load proof Yes Max. cable length to lamp/LED module 2.0 m Suitable for fixtures with prot. class I Type of connection, output side Push terminal Number of channels 1 Programming Programming device DIPswitch Certificates & standards Approval marks – approval CE / EL / ENEC 05 / EAC / CCC / RCM / BIS Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 62384/Acc. to EN 61000-3-2/Acc. to EN 61000-3-3/Acc. to EN 61547 Protection class I Type of protection IP20 Logistical data Commodity code 850440829000

Read more less

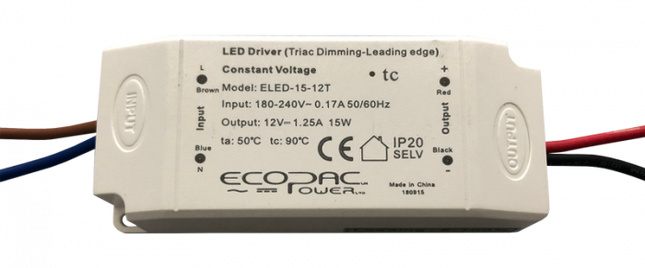

The Ecopac ELED-15-12T is a compact, 15W triac dimmable LED driver with constant voltages output of 12V DC. The compact lightweight design make it ideally suited when space is at a premium.  Triac leading edge dimming makes for easy installation as dimming is controlled from the mains input. Works with many dimmer but is optimised to work with EcoDim triac dimming modules.  Features: Suitable for triac leading edge dimming Constant voltage High efficiency up to 80% Protections: Short circuit / Over loading / Over current Cooling by free air convention Lightweight plastic caseMore Information Manufacturer Ecopac Power Output Wattage (W) 15 Output Voltage 12V Dimmable (Type) Leading edge, Triac DC Output Adjustment No Dimensions 370 x 230 x 160 mm EMC Standards EN61000-3-2,3 (>60%loading) Input Voltage 180-240 VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40°C - +70°C PDF Datasheet ELED-15-T.PDF

Read more less

Product benefits   Same as 147492(Bi)  Dimmable: DALI (Ed. 2) Product guarantee: 5 years SELV Selectable output current via DIP switch Suitable for built-in into furniture Suitable for emergency escape lighting systems acc. to EN 50172 Very low ripple: < 3% With integrated cord grip for independent operation Long service life: up to 100.000 hrs.

Read more less

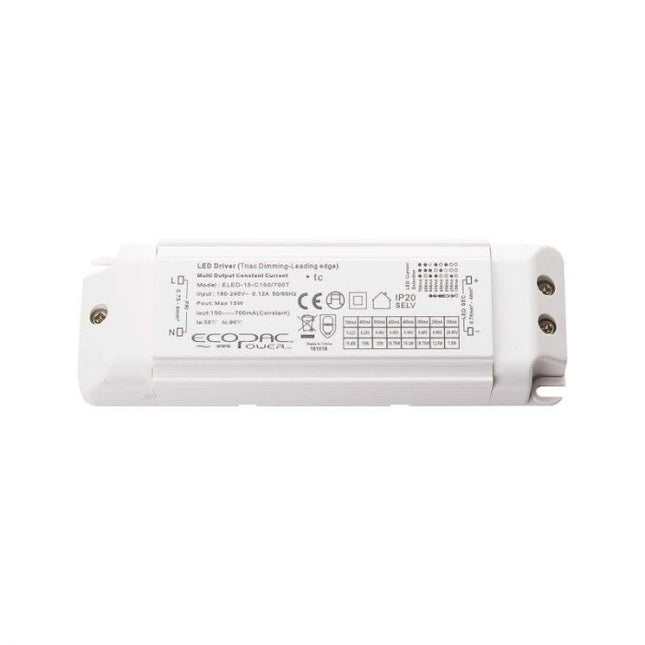

Obsolete please order either of the below depending on the Ma you are using   If between  250 /700Ma https://www.easy-controlgear.com/products/eled-20p-c250-700t-constant-current-led-drivers-10-5-20-3w?_pos=8&_sid=8e6a3d564&_ss=r If you are using less than  250Ma https://www.easy-controlgear.com/products/eled-10p-c100-450t-series-constant-current-led-drivers-4-2-10w?_pos=1&_sid=daab3a194&_ss=r The Ecpoac Power ELED-15-C150/700T features the ability to select the output current required between 150mA and 700mA via a set of dip switches. This LED driver is also dimmable using triac dimming. Ecopac LED drivers are high quality at affordable cost and come complete with a 3 year warranty.  Constant current mode output Multiple current levels selectable by dip switch Protections: Short circuit/ Over load/ Over Current Other features: Full protection housing IP20 design for indoor installation Cooling by free air convection Dimming function : Triac dimmable 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 15 Output Current Selectable Dimmable (Type) Leading edge, Triac Output Voltage Range (V) 3-50V DC Output Adjustment 150-700mA Dimensions 140x 45x 28 (LxWxH) Mm EMC Standards Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV ) Input Voltage 180-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-15-CT.pdf

Read more less

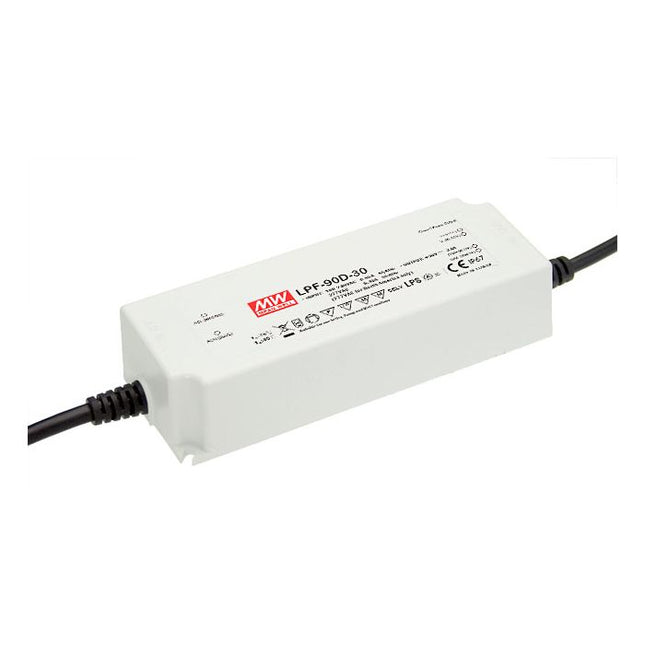

Built-in active PFC functionFully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC)  / Full RangeFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 90 Output Voltage 48V DC Output Adjustment N/A Dimensions 161 x 61 x 36 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPF-90-spec_10.pdf
