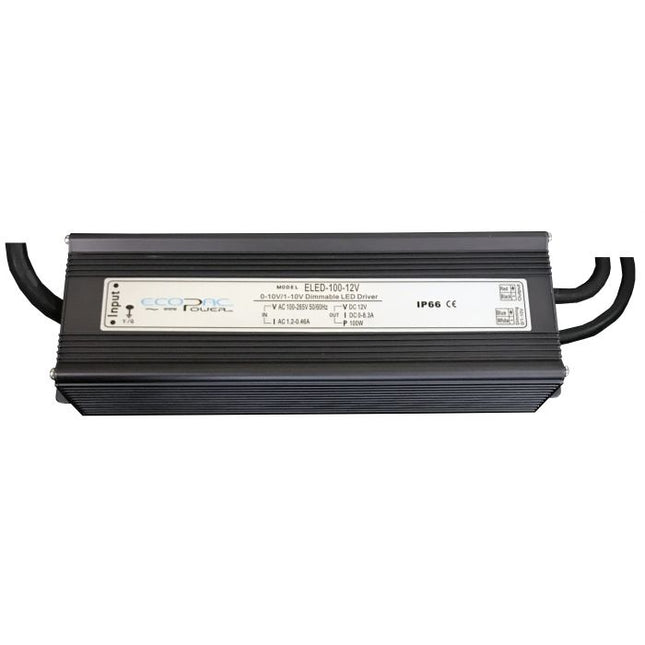

Constant Voltage Design 0-10V Dimmable Protections: Short circuit/ Over Voltage/ Overload Other features: Universal AC input/ Full range IP66 design for indoor or outdoor installations Built-in PFC function Cooling by free air convection Over 83% efficiency 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 12V Dimmable (Type) 0-10V Dimensions 230x 68.5x 44 EMC Standards Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11 EN61547 A light industry level Input Voltage 100-265VAC Safety Standards EN61347-2-13, IP66 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100 0~10V Series.pdf

Read more less

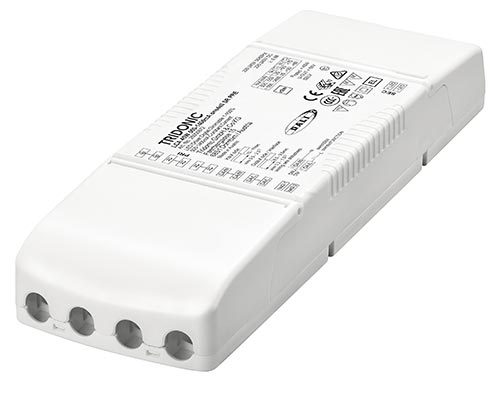

Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED Driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 900 – 1,750 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 60 W Up to 90 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

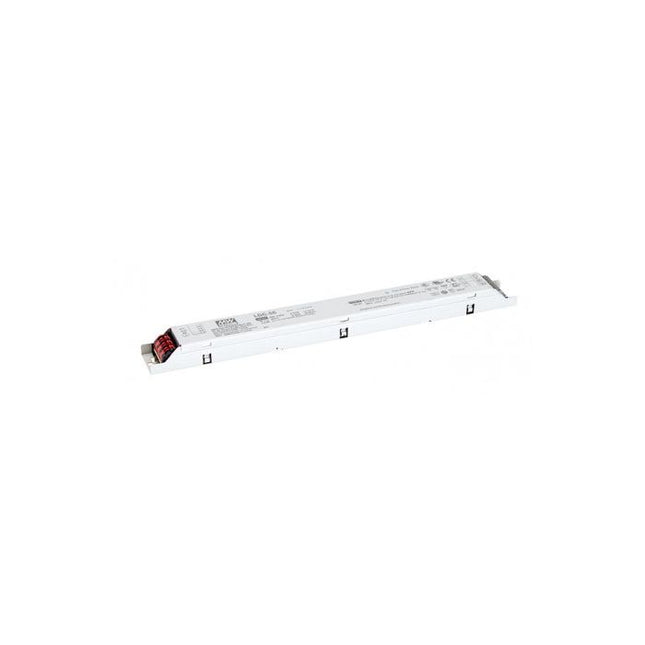

Mean Well 3 in 1 dimming (0-10Vdc & 10v PWM signal & resistance) Constant Power mode output Metal housing design Full Power at 70~100% max Current Built-in active PFC function Flicker Free design No load / Standby power consumption <0.5W Output current level pre-settable Typical lifetime>50000 hours SELV and Isolated Class 2 power supply 5 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 80 Dimmable (Type) 3 in 1 Dimming Output Voltage Range (V) 27 ~ 56V DC Output Adjustment 27-56V Dimensions 360 x 30 x 21mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13, EN62384; GB19510.14,GB19510.1 approved Output Voltage Options Single Working Temperature -25°C-+80°C PDF Datasheet LDC-80-spec.pdf

Read more less

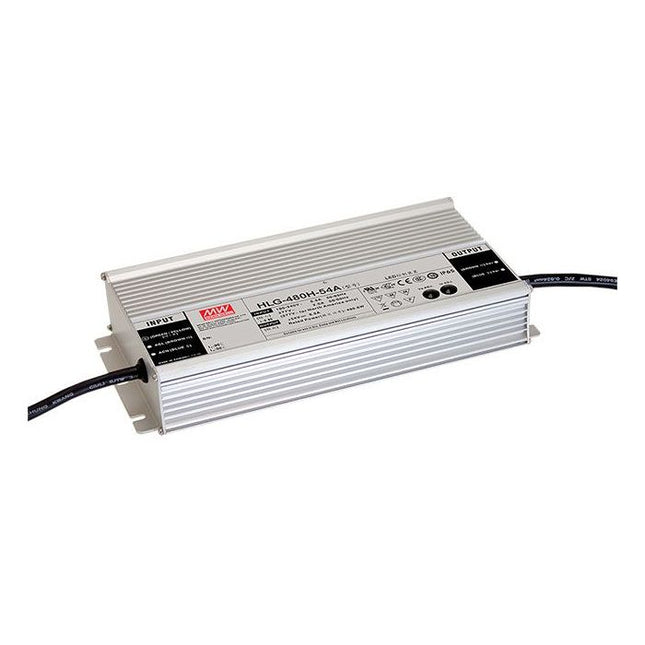

A Type: Io and Vo adjustable through built-in potentiometerB Type: 3 in 1 dimming function (0~10VDC, 10V PWM signal and resistance)Metal housing with class I designProtections: Short circuit / Over voltage / Over Current / Over temperatureOther features:IP67 / IP65 design for indoor or outdoor installationsConstant Voltage mode output designFunction options : output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimmingBuilt-in active PFC functionTypical lifetime >62000 hours7 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 480 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 262x 125x 43.8 (LxWxH) Mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) Input Voltage 90-305VAC 127-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14, GB19510.1; IP65 or IP67 approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet HLG-480H-SPEC.PDF

Read more less

Constant current designIP66 ratedProtections: Short circuit/ Overload/ Over temp.Input Voltage: 100 – 240VACCooling by free air convectionLow cost, high reliabilityOutput Power: 4WCompact and light-weight plastic caseWorking Temperature: 0°C to +45°C3 year warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 10 Output Current 350mA Dimmable (Type) No Output Voltage Range (V) 12 Max Dimensions 38x 30x 23.5 EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61547 Input Voltage 100~240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet ECP4-ILP.pdf   Similar to  : AU-LED0335CC

Read more less

Driver LCA 45W 500–1400mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED Driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Output current adjustable between 500 – 1,400 mA Max. output power 45 W Up to 90 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications

Read more less

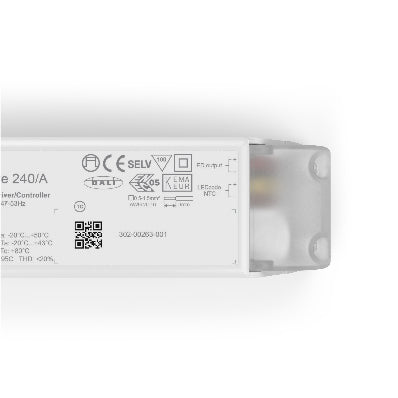

Please NOTE you need to select the Ma rating you wish to have it programmed to .   SOLOdrive 240/A delivers 20W and is DALI-2 certified. As all SOLOdrives, the 240/A smoothly dims all the way down to dark.   The 20W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 50mm diameter hole in the ceiling into a plenum with a 110mm height between functional and decorative ceiling.   Features Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to zero for every fixture LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices NTC interface for robust thermal management   Benefits Increase performance and capability of any LED fixture Reduce inventory and decrease lead times with configurable drivers Short lead times, designed to meet the most aggressive timelines Trusted brand with proven track record of performance and reliability   Certifications SL0240A3 CE EN 61347-1/-2-13, EN 62384, EN 55015, EN 55022, EN 61000-3-2, EN 61547 IEC 62386-101 Ed. 2.0, IEC 62386-102 Ed. 2.0, IEC 62386-207 Ed. 1 ENEC by DEKRA EL RCM

Read more less

Ecopac LED Driver ECP4-700ILP 4W 700mA 3-6v DC Output  IP66 4W

Read more less

Driver LCA 60W 24V one4all SC PRE premium series 24 V – dimmable (IP20) With strain-relief Product description NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance) Dimmable 24 V constant voltage LED driver for flexible constant voltage strips Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards) One4all interface and ready2mains enable different dimming options Dimming range 1 to 100 % No additional external dimmer is needed Suitable for emergency escape lighting systems acc. to EN 50172 Nominal lifetime up to 50,000 h 5 years guarantee Typical applications Cove lighting, facade accent lighting, ceiling integration Technical details 24 V, 60 W Small design (225 x 43 x 30.2 mm) with stretched-compact strain relief Small cross section Push terminals for simple wiring Output terminals (+/–) equipped twice for more flexibility in the application Interfaces one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals System solution Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m In connection with Flex accessories wire to PCB plug The functioning of third party light sources at a low dim level cannot be guaranteed and is not recommended

Read more less

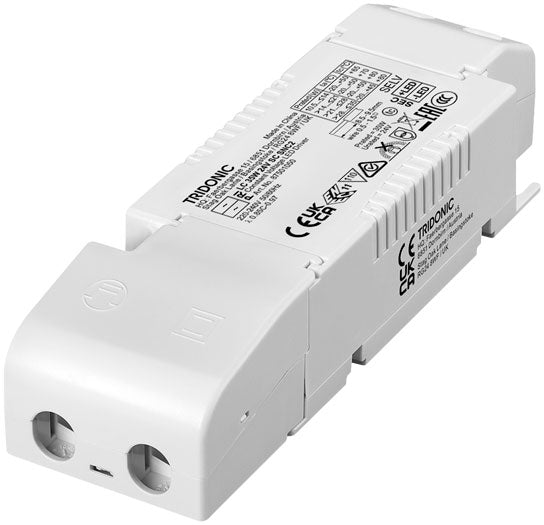

Data sheet Replaces the   28000411/87500852 Product description Constant voltage LED driver Output voltage 24 V Max. output power 35 W Dimmable via external PWM LED dimmers attached on output side For luminaires of protection class I and protection class II The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging Nominal lifetime up to 50,000 h 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)

Read more less

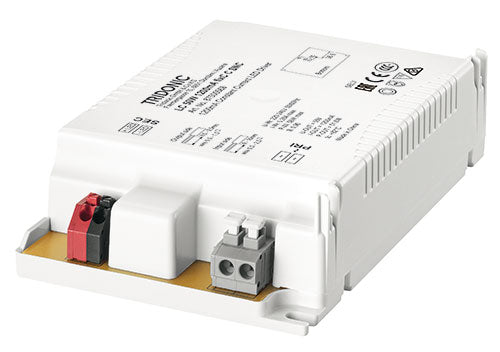

Driver LC 50/60W 1200/700/1400mA fixC C SNC essence series Product description Fixed output built-in LED driver Constant current LED driver For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e KC certificate for LC 60W 1400mA fixC C SNC Output current 1,200, 700 or 1,400 mA Max. output power 50 or 60 W Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Functions Overtemperature protection Overload protection Short-circuit protection No-load protection

Read more less

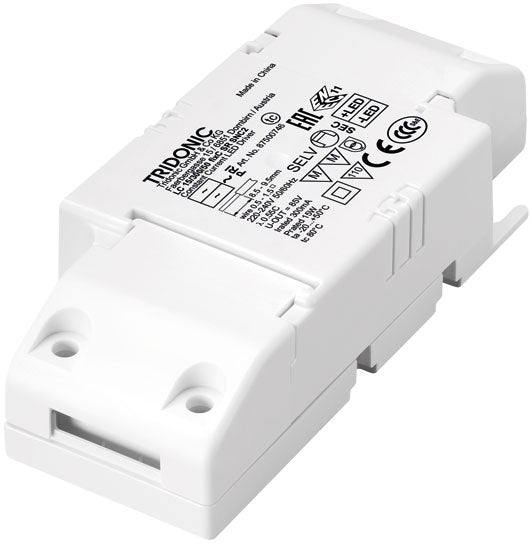

Driver LC 15W 300/350mA fixC SR SNC2 Compact drivers Data sheet Product description Independent driver with strain-relief housing Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Output current 300 or 350 mA Max. output power 15 W Nominal lifetime up to 50,000 h 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
