Product family benefits Flexible current setting (DIPswitch – 4 currents) Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate) High efficiency High quality of light thanks to low output ripple current Fulfil safety requirement due to overload, overtemperature, Hot Plug protection Areas of application Linear lighting for office, education, industry, storage areas and retail Suitable for luminaires of protection class I Data sheet Technical Data Electrical data Nominal input voltage 220…240 V Mains frequency 0/50/60 Hz Input voltage AC 198…264 V Current set DipSwitch Input voltage DC 176…276 V Total harmonic distortion < 10 % Power factor λ 0.98 Device power loss 7.0 W Inrush current 20 A Max. ECG no. on circuit breaker 10 A (B) 16 Max. ECG no. on circuit breaker 16 A (B) 25 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 27…51 V U-OUT (working voltage) < 60 V Nominal output current 800 / 900 / 975 / 1050 mA Output current tolerance ±7.5 % Output ripple current (100 Hz) < 5 % Output PSTLM ≤1 Output SVM ≤0.4 Nominal output power 21.6…53.6 W Galvanic isolation SELV Dimensions & weight Mounting hole spacing, length 270.0 mm Product weight 217.00 g Cable cross-section, input side 0.5…1.5 mm² Cable cross-section, output side 0.5…1.5 mm² Wire preparation length, input side 8.5…9.5 mm Wire preparation length, output side 8.5…9.5 mm Length 280.0 mm Width 30.0 mm Height 21.0 mm Colors & materials Casing material Metal Temperatures & operating conditions Ambient temperature range -25…+50 °C Maximum temperature at tc test point 80 °C Max.housing temperature in case of fault 110 °C Temperature range at storage -25…85 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 / 100000 h Capabilities Dimmable No Overheating protection Automatic reversible Overload protection Non-reversible Short-circuit protection Automatic reversible No-load proof Yes Max. cable length to lamp/LED module 2.0 m Suitable for fixtures with prot. class I Type of connection, output side Push terminal Number of channels 1 Programming Programming device DIPswitch Certificates & standards Approval marks – approval CE / EL / ENEC 05 / EAC / CCC / RCM / BIS Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 62384/Acc. to EN 61000-3-2/Acc. to EN 61000-3-3/Acc. to EN 61547 Protection class I Type of protection IP20 Logistical data Commodity code 850440829000

Read more less

The Ecopac ELED-15-12T is a compact, 15W triac dimmable LED driver with constant voltages output of 12V DC. The compact lightweight design make it ideally suited when space is at a premium.  Triac leading edge dimming makes for easy installation as dimming is controlled from the mains input. Works with many dimmer but is optimised to work with EcoDim triac dimming modules.  Features: Suitable for triac leading edge dimming Constant voltage High efficiency up to 80% Protections: Short circuit / Over loading / Over current Cooling by free air convention Lightweight plastic caseMore Information Manufacturer Ecopac Power Output Wattage (W) 15 Output Voltage 12V Dimmable (Type) Leading edge, Triac DC Output Adjustment No Dimensions 370 x 230 x 160 mm EMC Standards EN61000-3-2,3 (>60%loading) Input Voltage 180-240 VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40°C - +70°C PDF Datasheet ELED-15-T.PDF

Read more less

Product benefits   Same as 147492(Bi)  Dimmable: DALI (Ed. 2) Product guarantee: 5 years SELV Selectable output current via DIP switch Suitable for built-in into furniture Suitable for emergency escape lighting systems acc. to EN 50172 Very low ripple: < 3% With integrated cord grip for independent operation Long service life: up to 100.000 hrs.

Read more less

Obsolete please order either of the below depending on the Ma you are using   If between  250 /700Ma https://www.easy-controlgear.com/products/eled-20p-c250-700t-constant-current-led-drivers-10-5-20-3w?_pos=8&_sid=8e6a3d564&_ss=r If you are using less than  250Ma https://www.easy-controlgear.com/products/eled-10p-c100-450t-series-constant-current-led-drivers-4-2-10w?_pos=1&_sid=daab3a194&_ss=r The Ecpoac Power ELED-15-C150/700T features the ability to select the output current required between 150mA and 700mA via a set of dip switches. This LED driver is also dimmable using triac dimming. Ecopac LED drivers are high quality at affordable cost and come complete with a 3 year warranty.  Constant current mode output Multiple current levels selectable by dip switch Protections: Short circuit/ Over load/ Over Current Other features: Full protection housing IP20 design for indoor installation Cooling by free air convection Dimming function : Triac dimmable 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 15 Output Current Selectable Dimmable (Type) Leading edge, Triac Output Voltage Range (V) 3-50V DC Output Adjustment 150-700mA Dimensions 140x 45x 28 (LxWxH) Mm EMC Standards Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV ) Input Voltage 180-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-15-CT.pdf

Read more less

Built-in active PFC functionFully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC)  / Full RangeFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 90 Output Voltage 48V DC Output Adjustment N/A Dimensions 161 x 61 x 36 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPF-90-spec_10.pdf

Read more less

The Ecopac ELED-30P-T-SLS Series slimline triac dimmable LED driver is ideal where space is at a premium. These high quality drivers are flicker free and have an a built in active PFC function.  Features: AC input: 200-240VAC Efficiency up to 79% Dimming range: 0-100%, Load: 10-100% PWM Output Protections: short circuit/ over loading/over temperature Cooling by free air convection IP20 designMore Information Manufacturer Ecopac Power Output Wattage (W) 30 Output Voltage 24 Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 260 x 30 x 18.5 mm EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 200-240VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60C PDF Datasheet ELED-30P-T-SL-1.pdf

Read more less

12V IP20 50W constant voltage dimmable driver Max. output 50W Dimmable with most trailing edge dimmer Protections; open circuit, short circuit, overload, over temperature SELV output Protection Class II For internal use only Please check dimmer compatibility before installation

Read more less

30 W 1–10 V dimmable LED driver 350 mA / 500 mA / 700 mA multiple currents output Lifetime up to (h): 100000 Dimming range: 1% – 100% Product number: 5 504 004 More information: OUTCOAT, PanelReady Datasheet Voltage range (V): 198–264 DC range (V): 176–280 Max temperature at Tc point (°C): 75 Ambient temperature range: –20 °C .. +50 °C IP rating: IP20 Lifetime up to (h): 100000

Read more less

ELED-10-C100/450V Series0-10V Dimmable Constant Current LED Drivers 10W Download Datasheet ELED-10-C100/450V(450mA)ELED-10-C100/450V(4000mA)ELED-10-C100/450V(350mA)ELED-10-C100/450V(300mA)ELED-10-C100/450V(250mA)ELED-10-C100/450V(200mA)ELED-10-C100/450V(150mA)ELED-10-C100/450V(100mA)Wattage1010101010101010Input Voltage100~277VAC100~277VAC100~277VAC100~277VAC100~277VAC100~277VAC100~277VAC100~277vVACOutput Current450mA400mA350mA300mA250mA200mA150mA100mAOutput Voltage Options3~223~253~293~333~403~423~423~42Dimensions135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mmWorking Temperature-40~+60°CSafety StandardsEN61347-1, EN61347-2-13, UL8750EMC StandardsCompliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

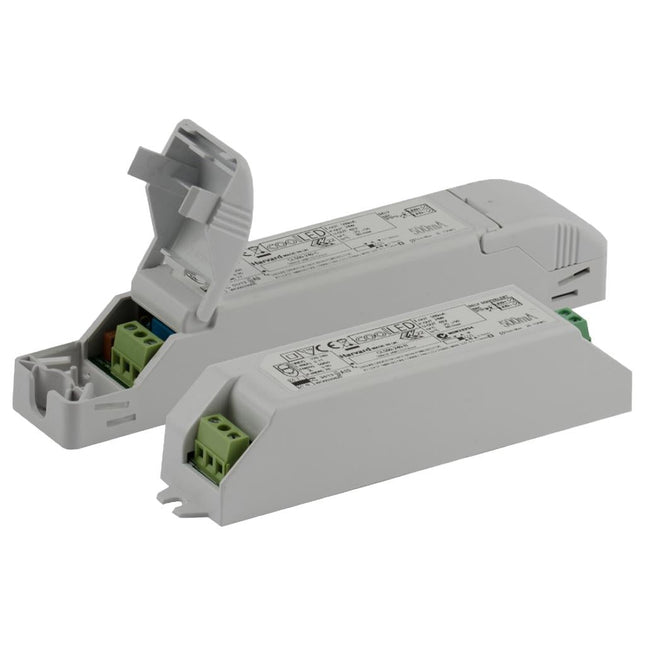

Obsolete, Please consider the below as a viable alternative     Alternative    AC-DC 33W LED driver Constant Current mode (CC); Max. output 32Vdc at 1.05A; IP20; Dimming with DALI Specifications Technical data Information Brand Harvard Power Systems Commodity 8504409090 Item number CL1050D2-240-C Warranty pack 60 Months Bring-In Series CL RoHS Compliant Description AC-DC 33W LED driver Constant Current mode (CC); Max. output 32Vdc at 1.05A; IP20; Dimming with DALI; Remote control Packing Quantity 40 Application LED EN 61347 Net weight (gram) 130 Technology AC/DC Constant Current C.C. Format Box Type - Enclosed Output Power (W) 33 Output Voltage (V) 32 Output Current (A) 1.05 Input Voltage (V) 220 - 240 IP Rating IP20 Width (mm) 32 Height (mm) 32 Depth (mm) 180 Control Signals Remote Sense Dimming Technology DALI

Read more less

The Tridonic LC 75W 1800mA LED Driver is a fixed output, constant current LED driver with a maximum output power of 75w. These drivers have an average life of 100,000 hours and a 5 year guarantee. . Tridonic article number: 28000684

Read more less

FEATURES Rated Voltage 110...127 V 220...240 V Constant Current Current 250 mA 220-240 V = Output power 10 W 110-127 V =  10 W Current 350 mA 220-240 V = Output power 15 W 110-127 V =  15 W Current 400 mA 220-240 V = Output power 17 W 110-127 V =  15 W Current 450 mA 220-240 V = Output power 19 W 110-127 V =  15 W Current 500 mA 220-240 V = Output power 20 W 110-127 V =  15 W Current 550 mA 220-240 V = Output power 20 W 110-127 V =  15 W Current 600 mA 220-240 V = Output power 20 W 110-127 V =  15 W Current 700 mA 220-240 V = Output power 20 W 110-127 V =  15 W Constant Voltage (LED STRIP) Dimming: DALI-1 Additional technical features: RIPPLE FREE ACTIVE PFC (pf>0.9) SELV <> DIMMING: PWM WIDE RANGE INPUT VOLTAGE EXTERNAL NTC INPUT Approvals: KEMAKEUR, ENEC, UL (class 2), CCC, RCM, CE, EAC, IRAM, UKCA Plastic case: IP 20 (Independent Use) Minimum cut-out hole diameter: 55 mm Size: 111 x 22 x 52 mm Features • Multipower driver supplied with dip-switch for the selection of the output current. • IP20 independent driver, for indoor use. • Class II protection against electric shock for direct or indirect contact. • Driver for built-in use (DC MINI JOLLY DALI BI). • It can be used for lighting equipment in protection class I and II (DC MINI JOLLY DALI BI). • IP00, creepage distances and clearances rely on the final application according to IEC/EN 60598-1 (DC MINI JOLLY DALI BI). • Active Power Factor Corrector. • Analogical input (NTC) for thermal sensor connection. • Current regulation ±5 % including temperature variations. • Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 / AWG15). • Clamping screws on primary and secondary circuits for cables with diameter: PRI 5-8 mm / SEC 3-5 mm. • Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads. • Thermal protection = C.5.a
