Variants Description   Please note all the DNA kits are now D2N kits which is the exact same plus its Dali 2 Compatible  Order Codes Order Code Description DNA/1-K Module, Single Cell Battery and Charge LED Indicator for LED loads from 6-55Vf D2N/1 DNA/1S-K Module, Triple Cell Battery and Charge LED Indicator for LED loads from 6-55Vf D2N/1S DNA/1/TP40 Above Single Cell Kit Housed in a Two Part Enclosure for 40mm Apertures D2N/1/TP40 DNA/1S/TP40 Above Triple Cell Kit Housed in a Two Part Enclosure for 40mm Apertures D2N/1S/TP40     DNA/1/80-K Module, Single Cell Battery and Charge LED Indicator for LED loads from 6-80Vf DNA/1S/80-K Module, Triple Cell Battery and Charge LED Indicator for LED loads from 6-80Vf DNA/1/80/TP40 Above Single Cell Kit Housed in a Two Part Enclosure for 40mm Apertures DNA/1S/80/TP40 Above Triple Cell Kit Housed in a Two Part Enclosure for 40mm Apertures

Read more less

Obsolete, this how been replaced with the ADM/1-K which will be supplied with a new smaller lithium battery   Replacement   A 3-hour emergency DALI self-test driver designed for constant current LED devices, supplied complete with extra long life LiFePO4 battery packs. This product is suitable for integral applications. The DLP/1 operates a single 4V chip at 550mA. In keeping with the DALI standard, this unit will revert to standalone self-test if not connected to a DALI operating system. For a full list of our compatible devices, please see our LED Device range.  This range operates with LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour due their long operational life.  DLP/1 DALI Addressable Range Specifications For Integral Use with Slim Batteries High Temperature Tolerance Batteries Extra Long Life LiFePO4 Batteries DALI Self-Test Module High Output (700mA) Version Available   DLP/1 Input Voltage 230-240 Volts AC – 50/60Hz Power Rating Charging Maintained: 32mA λ = 0.6 Standby Non-Maintained: 8mA λ = 0.15 Em. Duration 3-hours Battery Type IRF26650 LiFePO4 Battery Voltage 3.2V Battery Capacity 3.8Ah Charge Current Dual Rate 0-225mA Discharge Current 700mA nominal Recharge Time 24-hours TC Max 60°C Module / 55°C Battery Output Load 1 x 2W Output Current 550mA Module Dims. 149mm x 35mm x 28mm Battery Dimensions (with end caps) 220mm long x 22mm wide x 24mm high Fixing Centres 132mm x M4 Module Weight 0.1Kg Battery Weight 0.11Kg

Read more less

The Lite-Plan HRN/T5/4/14+24 is a 3hr emergency lighting conversion lit. Specifically designed for use with 14w & 24w T5 fluorescent lamps.4-pole change over relay plus additional 5th pole for HF ballast isolation. This Lite-Plan conversion kit has the following benefits :- Specific T5 lamp calibration to maximise BLF%, 4 pole changeover relay, additional 5th pole relay, Deep discharge protection, Low profile enclosure, constant current charger and high temperature NiCd cells. The HRN/T5 range is supplied in conversion kit form. They are supplied as standard with the following parts :- 500mm green charge healthy LED indicator and mounting collar, 4 Cell kits are supplied with T1 NiCd and 6-Cell with T3 NiCd batteries and AMP irreversible battery connector.

Read more less

This item is obsolete, it has been replaced but the  NLP/1, please see image. You will be supplied with the whole kit including the new battery. Please do not use the existing battery .    THIS IS WHAT YOU WILL BE SENT NLP/1 Basic Conversion The NLP/1, is a high quality 3-hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. The unit is designed to work with lithium iron phosphate (LiFePO4) batteries and is available in 2 versions, one with PCB terminal blocks, for internal mounting inside a luminaire, or a pre-wired version for mounting remotely from the luminaire where integral mounting is not possible. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED. This range uses the latest LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour. Where space inside the luminaire is limited and the battery is deemed too tall, we are able to supply the NLP/1S/80. This is supplied with a slim LiFePO4 battery stick, ideal for slimmer luminaires. The NLP range has been independently certified by TÜV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.   Liteplan Emergency Kit + Battery  - NED/3-KIT LitePlan NED/3-K Module, Battery and Charge LED Indicator from Lite-Plan Model: NED/3/KIT Liteplans NED emergency lighting conversion modules carry ENEC approval and BSI kitemark, and have been specifically designed to convert a wide range of LED types. This standard type NED/3 Kit is the natural choice for converting most standard LED luminaires and arrays, containing 2 to 20 LED chips in series. The NED range automatically adjusts to the output current to provide the best match between the battery and load, maximising illumination whilst ensuring great battery duration. Technical Specifications Control Gear Type Conversion Module Accessory Type Ballast Wattage 5W W Manufacturer Lite Plan Dimming? Non-Dimmable Length 165 mm Number of LEDs 2-20 (in series) Type Control Gear Batteries 3.0V Batteries 3.6V 4.5Ah NiCd LED Voltage Range 6-60V LED Current Limit 320mA LED Voltage Limit 60V Bat. Current Limit 1100mA Mains Supply 230-240V AC 50/60 Hz Charge Current 200mA Nominal Recharge Period 24 Hours Compatible Lamp Type LED Control Gear Technology LED

Read more less

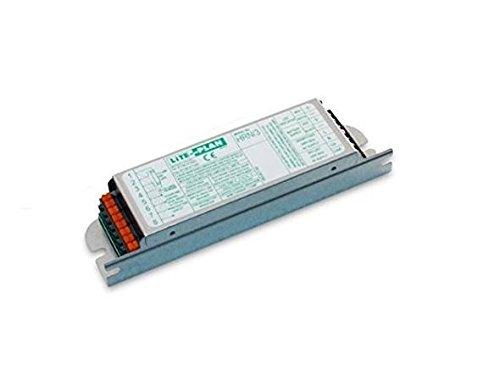

Obsolete the below alternative will be sent   https://www.easy-controlgear.com/products/mackwell-s3che-mw-emergency-module-58w-mackwell-3-cell?_pos=1&_sid=2cccf60fe&_ss=r 4-36w 3hr emergency lighting module Volts:220 - 240 v Watts:4 x 36 w Length:165 mm Height:29 mm Width:45 mm Weight:0.324kg Technology: Electronic Size:165 x 45 x 29 mm Other codes: HRN/3

Read more less

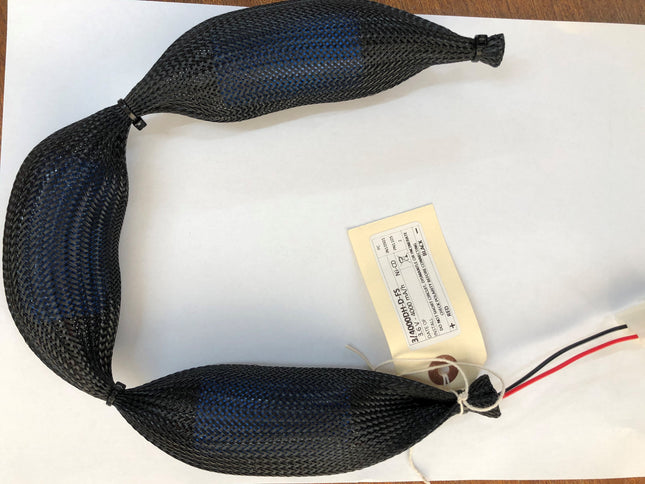

D Size 1+1+1 in a fire sock  3.6V 4000Ma Ref Amp Connector    Same as  3 Cell NiCd 3 CELL NICD D CELL FLEXI 3.6V 4.5Ah High Temp 3-CD45/F LITEPLAN 3-CD45/F/AS LITE-PLAN 3-CD45/FL/FPS/AS LITE-PLAN 3-CD45/FL/FRS/A

Read more less

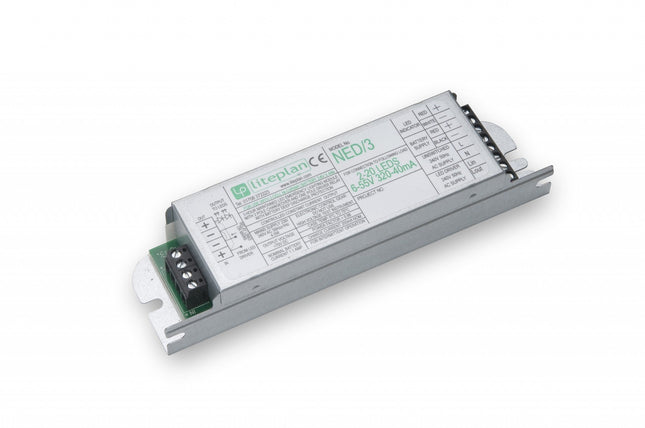

Obsolete, Liteplan has replaced it with the NLP/1S/80-K . This is what you will be sent including the new battery which you have to use. Do not use the existing battery a new one will be supplied  as per the below image  This is a Liteplan NED/3/80 3 cell emergency module for use 2 with 2-30 LEDs in series (6-80v). Module size: 165mm x 45mm 29mm. Fixing points 155mm.

Read more less

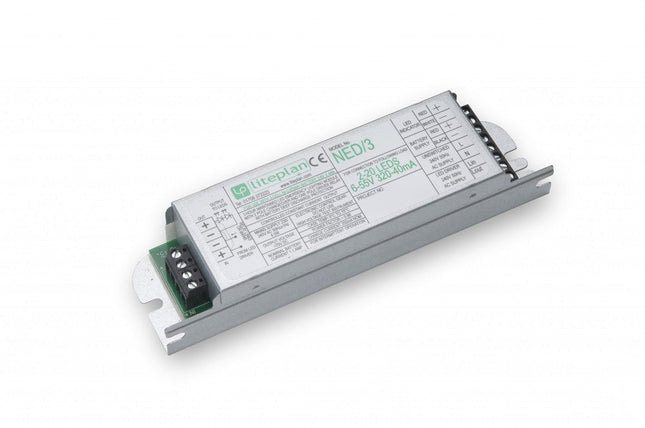

This item is now obsolete, Liteplan have replaced it with  the NLP/1-KIT https://www.easy-controlgear.com/products/nlp-conversion-range?gclid=CjwKCAjwsKqoBhBPEiwALrrqiKgYpSLti7QpU2D7_1IEtRnu428YBvBrBy82bX31NsrEZVAaGkONmBoC-JgQAvD_BwE   This is a Liteplan NED/3 3 cell emergency module for use 2 with 2-20 LEDs in series (6-60v). LitePlan NED/3 Conversion Module Only from Lite-Plan Model: NED/3/MOD Technical Specifications Control Gear Type Conversion Module Accessory Type Ballast Manufacturer Lite Plan Dimming? Non-Dimmable Input Voltage 220-240 V Length 165 mm Type Control Gear Batteries 4.5Ah NiCd Batteries 3.6V Charging Time 24 Hours IP Rating IP20 Emergency Duration 3 Hours Discharge Current 1000mA Control Gear Technology Fluorescent

Read more less

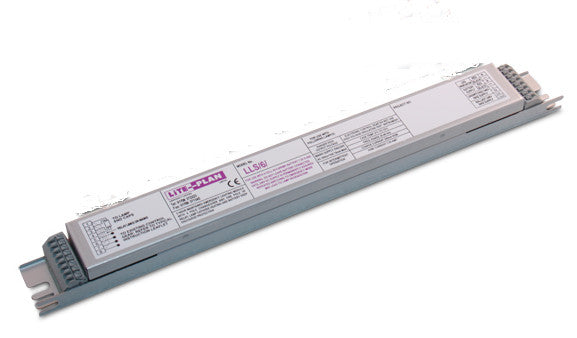

This item is now obsolete, if orderd you will be sent the ELP  OM680LP  This is a Lite-Plan LLS/6 emergency inverter module for use with 21-80w lamps. This module should be used with a 6 cell emergency lighting battery. Technical Specifications Control Gear Type Conversion Module Manufacturer Lite Plan Dimming? Non-Dimmable Height 20 mm Input Voltage 220-240 V Length 292 mm Max Wattage 80 W Type Control Gear Width 32 mm Discharge Current 200mA Compatible Lamp Type T5 Control Gear Technology LED

Read more less

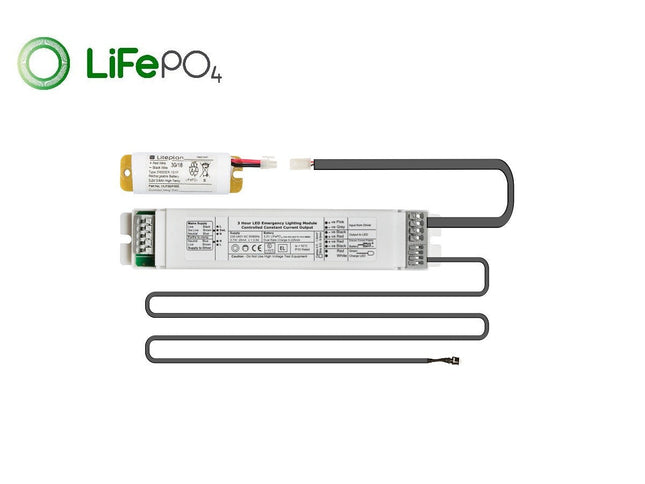

NLP Conversion Range https://www.liteplan.com/images/products/E-C-Kits-Packs-LED-Lamps/NLP/NLP-1-Datasheet-web.pdf   The NLP/1, is a high quality 3-hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. The unit is designed to work with lithium iron phosphate (LiFePO4) batteries and is available in 2 versions, one with PCB terminal blocks, for internal mounting inside a luminaire, or a pre-wired version for mounting remotely from the luminaire where integral mounting is not possible. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED. This range uses the latest LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour.  Where space inside the luminaire is limited and the battery is deemed too tall, we are able to supply the NLP/1S. This is supplied with a slim LiFePO4 battery stick, ideal for smaller luminaires.  Order Codes Order Code Description     NLP/1-K Module, single cell battery and charge LED indicator for 6-55 Volt LED loads   Suitable for mounting inside the luminaire NLP/1/80-K Module, single cell battery and charge LED indicator for 6-79V LED loads   Suitable for mounting inside the luminaire     NLP/1S-K Module, three cell battery and charge LED indicator for 6-55 Volt LED loads   Suitable for mounting inside the luminaire NLP/1S/80-K Module, three cell battery and charge LED indicator for 6-79V LED loads   Suitable for mounting inside the luminaire

Read more less

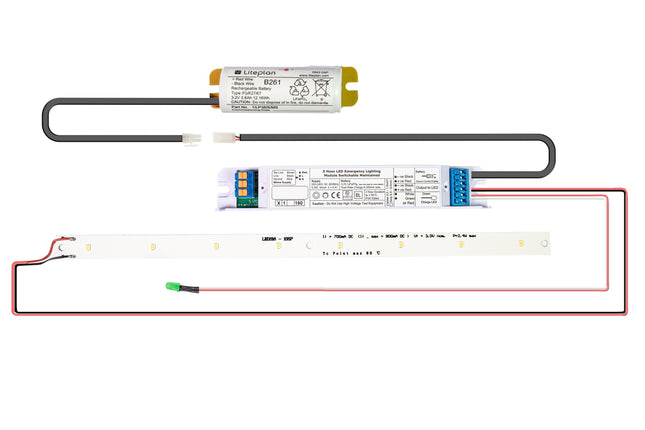

This has now been upgraded to the BMM/1-Kit LED S16 this is what you will be sent if you order this. The only difference is it operates as both maintained and non maintained.    The 3-hour emergency lighting driver operates the LED strip at 700mA which provides 240 lumen from the LED strip. This unit is designed for emergency lighting, not for continuous use.   This product is suitable for mounting to a gear-tray adjacent to an LED tube, mitigating the risk of LED tubes being miss-replaced and causing non-compatibility with existing emergency packs. BMM/1 Maintained/Non-Maintained Driver A 3-hour 700mA maintained/non-maintained emergency driver designed for constant current LED devices, supplied complete with the latest, extra long life lithium iron phosphate (LiFePO4) battery packs. The unit is designed to power a single LED in emergency mode, which can also be used for night lighting, where required. The Bmm/1/LEDS16 is supplied as a complete non-maintained/Maintained emergency driver/LED strip for integral mounting within a luminaire. The 3-hour emergency lighting driver operates the LED strip at 700mA which provides 240 lumen from the LED strip. This unit is designed for emergency lighting, not for continuous use.   This product is suitable for mounting to a gear-tray adjacent to an LED tube, mitigating the risk of LED tubes being miss-replaced and causing non-compatibility with existing emergency packs.   Operates With Extra Long Life LiFePO4 Batteries Suitable for Mounting To Gear-tray Deep Discharge Protection 1W Load Emmitting 240 Lumen For Non-Maintained Operation Technical Details:   Mains Supply 230-240V AC 50/60 Hz Max Ta and Tc Ta - 50 °C - Tc - 70 °C Power Rating - Operating 4.9W 51mA λ = 0.41 Overall Weight 0.4Kg - Charging 2.0W 25mA λ = 0.35 Battery Discharge Current 660mA nominal - Charged 0.45W 7.5mA λ = 0.24 Recharge Period 24-Hours Duration 3-Hours Discharge Voltage Cut Off 2.5 Volts Battery Size & Type 3.2V 4.5Ah LiFePO4 Ingress Protection IP20 Charge Current Dual Rate 0-300mA Mains Input Terminal 1.0mm² - 1.5 mm² Max Battery Temperature                   55 °C Battery Dimensions (LxWxH)               230mm x 24mm x 21mm Battery Fixing Centres             215-220mm Module Dimensions (LxWxH) Module Fixing Centres LED Strip Dimensions 165mm x 26.5mm x 21.5mm 155mm 304mm x 15mm
