river LC 57W 800-1050mA flexC lp ADV
advanced series SELV
Product description
LED Constant current LED driver for luminaire installation
New version DC operating with EL marking
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
Output current adjustable between 800 – 1,050 mA
Max. output power 57 W
Up to 86 % efficiency
Nominal lifetime up to 100,000 h
5 years guarantee
Housing properties
Low profile metal casing with white cover
Type of protection IP20
Interfaces
Terminal blocks: 45° push terminals
Functions
Overload protection
Short-circuit protection
No-load protection
Overtemperature protection
Burst protection voltage 1 kV
Surge protection voltage 1 kV (L to N)
Surge protection voltage 2 kV (L/N to earth)
Suitable for emergency escape lighting systems acc. to IEC 50172
Typical applications
For linear/area lighting in office applications
Electronic ballast with highest possible energy class CELMA EEI A2 BAT. It offers large temperature range, intelligent voltage guard, precise lamp operation using adjustment of lamp parameters, advanced SMART-Heating for minimum 50000 starts without replacement of lamps, constant luminous flux irrespective of fluctuations in mains voltage, designed for THD <10%, for luminaires of protection class I and protection class II. It features automatic start after replacement of defective lamps, safety shutdown of defective lamps and at end of lamp life (EOL 2), insulation displacement connection (IDC) terminal for rapid automatic or manual wiring and for emergency lighting systems as per EN 50172.
· Rated lifespan: 100,000 hours
· Flicker free warm start
· Min/Max ambient working temperature: -25°C to 70°C
· Degree of protection: IP20
· Operating voltage: 198-264V (AC), 176-280V (DC)
Obsolete , you will be sent the below
https://www.easy-controlgear.com/products/tridonic-pc126basicsl-tr-1x26-tcd-1-x-26w-tct-slim-basic-ballast?_pos=2&_sid=a8b496c0b&_ss=r
Tridonic PC128DDPRO Electronic HF ballast to run 1 x 28w Compact DD lamps

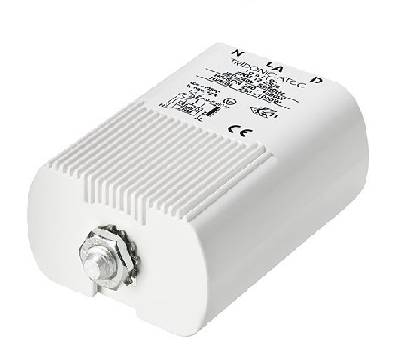

The Tridonic ZRM 6-ES/C is a superimposed ignitor to ignite 70-400w SON lamps and specific 35-400w metal halide lamps. Tridonic article number : 87500083

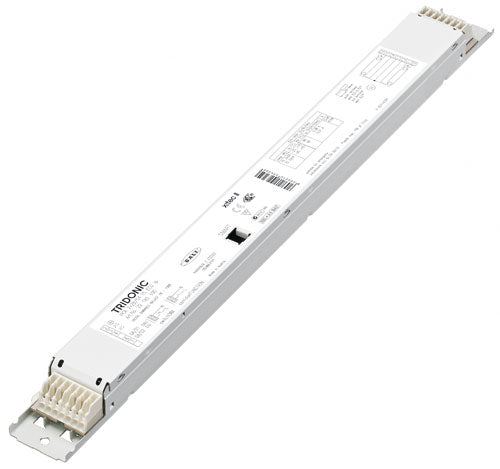

Tridonic PC3414T5PRO Electronic ballast to run 3/4 x 14w T5 tubes - 22176315/22185211
Specifications
Attribute
Value
Wattage
14 W
Ballast Type
Electronic
Supported Lamp Shape
T5
Supported Lamp Type
Fluorescent
Voltage Rating
220 → 240 V
Dimmable
No
High Frequency
Yes
Length
360 mm
Width
30 mm
Height
21mm
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+60°C
EU Energy Efficiency Rating
A2
Driver LC 60W 1050/1200/1400mA flexC SR ADV
advanced series
Product description
Independent fixed output LED driver
For luminaires of protection class I and protection class II
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Temperature protection as per EN 61347-2-13 C5e
Adjustable output current between 1,050, 1,200 and 1,400 mA
Max. output power 60 W
Up to 90.5 % efficiency
Nominal lifetime up to 50,000 h
5 years guarantee
Housing properties
Casing: polycarbonate, white
Type of protection IP20
Interfaces
Input terminals: 0° screw terminals
Output terminals: 45° push terminals
Functions
Overload protection
Short-circuit protection
No-load protection
Overtemperature protection
Burst protection voltage 1 kV
Burst protection voltage 1 kV (L to N)
Surge protection voltage 2 kV (L/N to earth)
Typical applications
For spot light and downlight in retail and hospitality applications
For panel light and area light in office and education application
Data sheet
Order information
Common data
Technical data
Downloads
Links
Certificates
Accessories
CAD
EPD
Ordering data
Type
Article number
Packaging, carton
Packaging, pallet
Weight per pc.
LC 60W 1050/1200/1400mA flexC SR ADV
28002498
20 pc(s).
1,120 pc(s).
0.202 kg
Data sheet
Replaces the 28000411/87500852
Product description
Constant voltage LED driver
Output voltage 24 V
Max. output power 35 W
Dimmable via external PWM LED dimmers attached on output side
For luminaires of protection class I and protection class II
The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
Nominal lifetime up to 50,000 h
5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
This item is obsolete, please co0nsider either of the below as viable alternatives
Alternative 1
Alternative 2
ridonic Electronic Emergency Lighting Module 230/240v 50/60/Hz HT Nicd 3 Cells
