OBSOLETE , IF using DALI dimming the below will suffice
DALI Alternative
If using DSI no alternative available

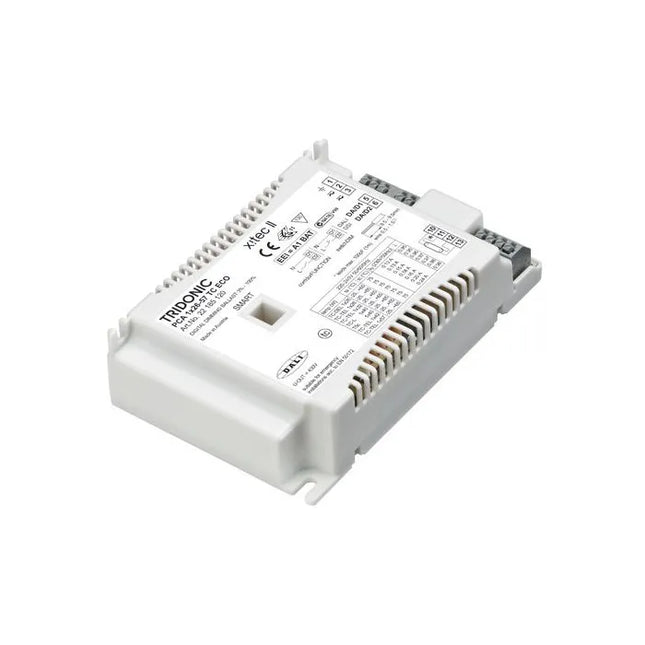

Tridonic Electronic compact dimming ballast to run 1 x 26-57w TC Compact
The Tridonic PCA 1x26-57 TC ECO xitec II is a high frequency dimmable ballast for use with DALI/DSI/switchDIM interfaces.
Compatible with the following lamps:
1 x 40w T5 Circular Lamp
1 x 26w Double Turn Compact Fluorescent Lamp
1 x 26w Triple Turn Compact Fluorescent Lamp
1 x 40w Long Single Turn Compact Fluorescent Lamp
1 x 40w T5 Circular Fluorescent Lamp
1 x 32w Triple Compact Fluorescent Lamp
1 x 42w Triple Turn Compact Fluorescent Lamp
1 x 57w Triple Turn Compact Fluorescent Lamp
Tridonic part number: 22185120
This is now obsolete, the Osram one in the link below is the same size 360mm
Alternative

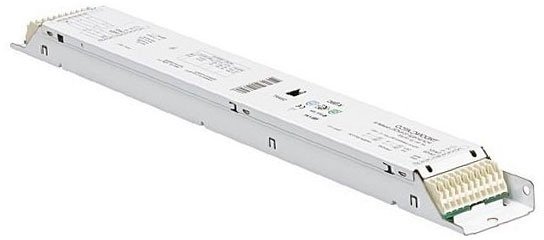

Tridonic PC21435T5PRO Electronic HF low profile ballast to run 2 X 14w /21w/28w/35w T5 Tubes
T5 2x14-35W Non Dimmable. High frequency electronic ballast. Dims: Length 360mm Width 30mm Height 28mm Fixing Centres 445mm** Replaces article codes:22087731, 22176097 **
Volts:
220 - 240 v
Watts:
2x14 w
Length:
360 mm
Average Life:
N/A
Diameter:
30 mm
Bulb/Lamp Type:
Ballast
Size:
30 x 360 mm
Height:
360 mm
Width:
30 mm
Fix Centre:
350mm
Weight:
200g
Technology:
Electronic
Beam Angle:
N/A
Lumens:
N/A
Colour Temperature:
N/A

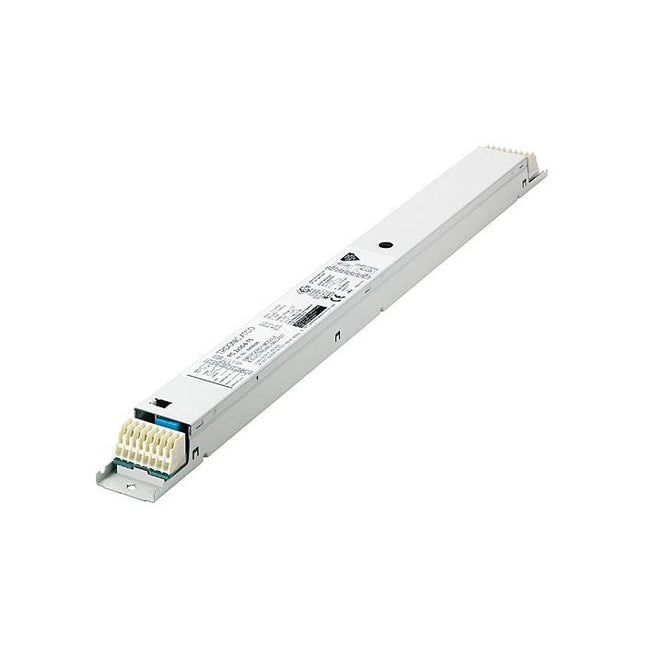

1X 35w T5 6 Cell Combo Ballast - Tridonic - 89899885
Rated supply voltage 220 – 240 VMains frequency 50 / 60 HzMains voltage changeover threshold According to EN 60598-2-22Starting time ~ 1.6 stc point max. 70 °Ctc point (PC 2x54-6 T5 COMBO lp) 75 °CAmbient temperature ta 0 ... 55 °COperating frequency (normal operation) 40 – 50 kHzOperating frequency (emergency mode) 20 – 30 kHzOvervoltage protection 320 V (for 1 h)Battery charging time 24 hCharge current 1 h 105 mACharge current 3 h 210 mALeakage current (PE) < 0.5 mAMin. lamp starting temperature (normal operation) -15 °CMin. lamp starting temperature (emergency mode) 0 °CType of protection IP20Dimensions L x W x H 425 x 30 x 21 mm
Alternative Emergecny Dali Kit covers 6-80W using a 4 cell battery ( Included )
Please Click Here for Alternative
EM Inverter NIMH 6Cell - Tridonic - 89800335
Driver LC 35W 800mA fixC SR SNC2
essence series
Product description
Independent driver with strain-relief housing
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Temperature protection as per EN 61347-2-13 C5e
Output current 800 mA
Max. output power 35 W
Nominal lifetime up to 50,000 h
5 years guarantee
Housing properties
Casing: polycarbonate, white
Type of protection IP20
Push-in terminals
2 separate strain relief parts for input and output cables with highly robust clamps
Functions
Overload protection
Short-circuit protection
No-load protection
No output current overshoot at mains on/off
Burst protection voltage 1 kV
Surge protection voltage 1 kV (L to N)
Surge protection voltage 2 kV (L/N to earth)
Typical applications
For spot light and downlight in retail and hospitality applications
For panel light and area light in office and education application

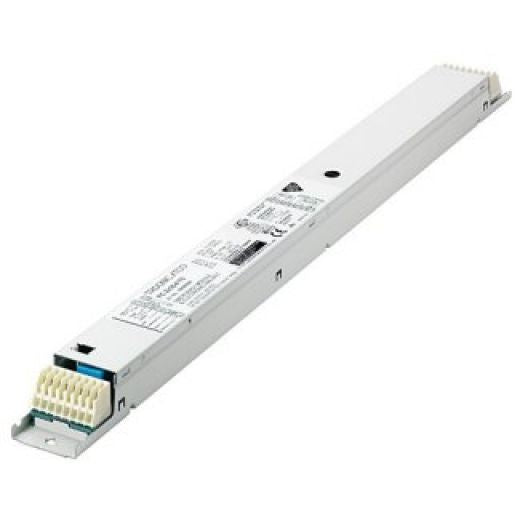

Tridonic Combined Electronic ballast to run 3/4 x 14w T5 Combo (3h 3 Cell)
89800002
Rated supply voltage 220 – 240 VMains frequency 50 / 60 HzMains voltage changeover threshold according to EN 60598-2-22tc point max. 70 °CAmbient temperature ta 0 ... 50 °COperating frequency > 30 kHzBattery charging time 24 hCharge current 210 mADischarge current 1 h 2.4 ADischarge current 3 h 1.1 AMin. lamp starting temperature (normaloperation)-15 °CMin. lamp starting temperature (emergency mode)0 °CType of protection IP20
Driver LCA 150W 24V one4all SC PRE
premium series 24 V – dimmable (IP20)
With strain-relief
Product description
NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
One4all interface and ready2mains enable different dimming options
Dimming range 1 to 100 %
No additional external dimmer is needed
Suitable for emergency escape lighting systems acc. to EN 50172
Nominal lifetime up to 50,000 h
5 years guarantee
Typical applications
Cove lighting, facade accent lighting, ceiling integration
Technical details
24 V, 150 W
Small design (325 x 43 x 30 mm) with stretched-compact strain relief
Small cross section
Push terminals for simple wiring
Output terminals (+/–) equipped twice for more flexibility in the application
Interfaces
one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 45° push terminals
System solution
Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m
Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
In connection with Flex accessories wire to PCB plug
The functioning of third party light sources at a low dim level cannot be guaranteed and is not recommended
