TRIDONIC 28003212
LC 32/700-800/40 flexC R ADV2
Product description
Fixed output built-in LED driver
Constant current LED driver
For luminaires of protection class I and protection class II
Adjustable output current 700 or 800 mA
Up to 90 % efficiency
For ambient temperatures up to 60 °C
Nominal lifetime up to 50,000 h (at ta 50 °C)
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Tridonic PC 2/26/32/42 TC PRO 22176410
Description
The Tridonic PC 2/26/32/42 TCT PRO is a non-dimmable high frequency ballast to run: 2 x 18 Watt long single turn compact fluorescent lamps 2 x 24 Watt long single turn compact fluorescent lamps OR 2 x 26 Watt double turn compact fluorescent lamps OR 2 x 26 Watt triple turn compact fluorescent lamps 2 x 32 or 42 Watt triple turn compact fluorescent lamps OR 2 x 22 Watt T5 circular fluorescent tubes. Tridonic Part code 22176410 Click here to see Data Sheet and Wiring Diagrams!
28002318

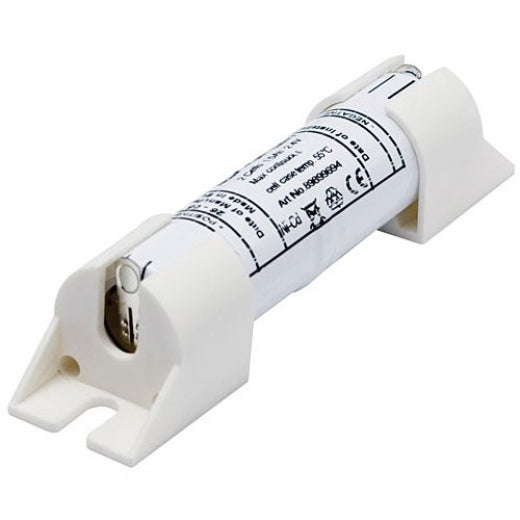

ACCU-LiFePO4 3.0Ah 2A CON
Product description_ High-temperature LiFePO4 cells only for use with Tridonicemergency lighting units_ Up to 8 year design life_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Properties_ Environmental friendly technology_ High energy density_ Low profile cross-section with removable end caps_ Constant high-temperature operation_ Good charging properties at high temperature_ Electronic thermal battery management_ High energy maintenance of the charged battery_ Long shelf life_ Integrated electronics_ Safety features incorporated_ Certified quality manufacturer_ In various configurations_ Simple connection with plug-in system_ With polycarbonate fixing caps_ Suitable for emergency lighting equipment as per IEC 60598-2-22
Product description_ LED Constant current LED driver for luminaire installation_ For class I luminaires_ Temperature protection as per EN 61347-2-13 C5e_ Selectable fixed output current 200, 250, 300 and 350 mA (preselected current 350 mA)_ Max. output power 61.25 W_ Up to 93 % efficiency_ Nominal lifetime up to 50,000 h_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Housing properties_ Casing: metal, white_ Type of protection IP20Functions_ Overload protection_ Short-circuit protection_ No-load protection

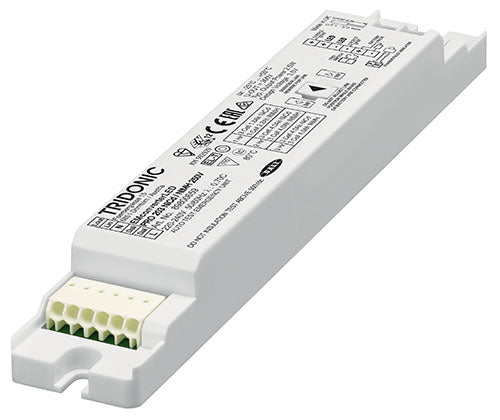

Product description
Emergency lighting LED driver with DALI-2 interface and automatic test function
For self-contained emergency lighting
For LED modules with a forward voltage of 50 – 250 V
Low profile casing (21 x 30 mm cross-section)
For luminaire installation
EM = Emergency
Nominal lifetime up to 100,000 h
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Properties_ Non maintained operation_ DALI-2 interface for controlled testing and monitoring_ 1, 2 or 3 h rated duration_ Operating time selectable with plug (duration link)_ Compatible with most constant current LED drivers (see datasheet, LED driver compatibility)_ 3-pole technology: 2-pole LED module changeover and delayedpower switching for the LED driver_ Automatic shutdown of output if LED load is out of range_ Constant power output_ Two-colour status display LED_ Electronic charge system_ Deep discharge protection_ Short-circuit-proof battery connection_ Polarity reversal protection for battery provided by 3-poleconnector_ Automatic detection of the connected battery technology (NiMHor LiFePO4 batteries) Self-test:_ Status of the battery_ Status of the LED_ Function test_ Duration testBatteries_ High-temperature cells_ NiMH or LiFePO4 batteries_ LA or 18650 cells_ NiMH: 4 years design life / 2 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)_ LiFePO4: up to 12 years design life_ 8 years guarantee for LiFePO4 batteries (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions) 1_ LiFePO4 batteries with Tridonic LiFeGuard_ For battery compatibility refer to data sheet, battery selection1 28005859 - 5-year guarantee. 28006323 und 28006324 - 4-year guarantee

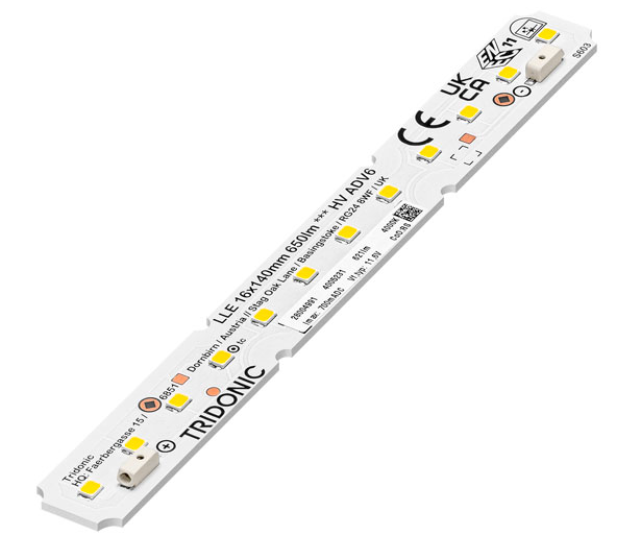

This LED module is designed for linear and panel lighting applications, featuring a SELV design with a forward voltage below 60 V. It offers two terminal options: 2 terminals for serial wiring and 4 terminals suitable for parallel, serial, or robotic wiring. Part of a high-efficiency LED system, it delivers up to 166 lm/W overall, with module efficacy reaching 187 lm/W. It provides high-quality light with a CRI above 80 and tight MacAdam 3 color tolerance. Available in multiple color temperatures from 2,700 K to 6,500 K, it ensures uniform illumination even when multiple modules are combined. Quick push terminals and a wide range of lenses and covers simplify installation. Rated for 50,000 hours (L80F10) with a 5-year warranty.
• Ideal for linear and panel lights• SELV module – the single module has a forward voltage < 60 V• Terminals – 2 variants:2 terminals for serial wiring4 termninals for parallel, serial or robot wiring• LED system solution with outstanding system efficacy up to166 lm/W, consisting of linear LED modules and dimmableLED Driver LCA 50W 100–400mA lp PRE• Efficacy of the module up to 187 lm/W• High colour rendering index CRI > 80• Small colour tolerance MacAdam 31• Small luminous flux tolerances• Colour temperatures 2,700 K, 3,000 K, 3,500 K, 4,000 K, 5,000 Kand 6,500 K• Perfectly uniform light, even if several LED modules are usedtogether in a line• Push terminals for quick and simple wiring of LED module toLED module• Broad portfolio from extruded lenses and covers available• Simple installation (e.g. clips or screws)• Long life-time: 50,000 hours (L80F10)• 5-year guarantee
This LED module is designed for linear and panel lighting applications, featuring a SELV design with a forward voltage below 60 V. It offers two terminal options: 2 terminals for serial wiring and 4 terminals suitable for parallel, serial, or robotic wiring. Part of a high-efficiency LED system, it delivers up to 166 lm/W overall, with module efficacy reaching 187 lm/W. It provides high-quality light with a CRI above 80 and tight MacAdam 3 color tolerance. Available in multiple color temperatures from 2,700 K to 6,500 K, it ensures uniform illumination even when multiple modules are combined. Quick push terminals and a wide range of lenses and covers simplify installation. Rated for 50,000 hours (L80F10) with a 5-year warranty.
• Ideal for linear and panel lights• SELV module – the single module has a forward voltage < 60 V• Terminals – 2 variants:2 terminals for serial wiring4 termninals for parallel, serial or robot wiring• LED system solution with outstanding system efficacy up to166 lm/W, consisting of linear LED modules and dimmableLED Driver LCA 50W 100–400mA lp PRE• Efficacy of the module up to 187 lm/W• High colour rendering index CRI > 80• Small colour tolerance MacAdam 31• Small luminous flux tolerances• Colour temperatures 2,700 K, 3,000 K, 3,500 K, 4,000 K, 5,000 Kand 6,500 K• Perfectly uniform light, even if several LED modules are usedtogether in a line• Push terminals for quick and simple wiring of LED module toLED module• Broad portfolio from extruded lenses and covers available• Simple installation (e.g. clips or screws)• Long life-time: 50,000 hours (L80F10)• 5-year guarantee
Dimmable constant current LED driver (SELV)
Independent LED driver with cable clamps
Dimmable via leading edge and trailing edge phase dimmers
Dimming range 5 to 100 % (depending on dimmer)
For luminaires of protection class I and protection class II
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Temperature protection as per EN 61347-2-13 C5e
Selectable output current between 180, 250 and 350 mA
Max. output power 15 W
Up to 81 % efficiency
Nominal lifetime up to 50,000 h
Digital Dimming Ballast to run 2 X 14/24w T5 tubes - PCA 2x14/24 T5 ECO - 22185095
Product Details
Processor-Controlled Electronic Ballast with xitec II inside and highest possible energy class CELMA EEI A1 BAT. Ballast offers noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION as well as Multilamp management. Intelligent temperature guard, intelligent voltage guard, optimum filament heating in any dimmer setting. It features disconnection of filament heating from a dimming level of approximately 90% for maximum energy efficiency corridorFUNCTION with ambient light control, automatically triggered emergency lighting value in DC mode 15%, for emergency lighting systems as per EN 50172, automatic start after replacement of defective lamps and automatic shutdown if the lamp is faulty.
· Dimming capability (1-100% range)
· Rated lifespan: 100,000 hours
· Flicker free warm start
· Min/Max ambient working temperature: -25°C to 70°C
· Degree of protection: IP20
· Operating voltage: 198-264V (AC), 176-280V (DC)
· Dimensions: 360x30x21mm (LxWxH)
· CE Approved
Technical Specifications
Ballast
Model
Electronic
Suitable for number of lamps
2
Nominal voltage
220 - 240 V
Suitable for lamp power
14 W
Width
30 mm
Height
21 mm
Length
360 mm
Suitable for lamp type
T5
Dimming Type
DALI
Dimmable
Yes
Tridonic LCA 100W 250-700mA one4all lp PRE 28000661
Dimmable built-in constant current LED driver
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Output current adjustable between 250 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
Max. output power 100 W
Up to 93 % efficiency
Power input on stand-by < 0.15 W
Nominal lifetime up to 100,000 h
