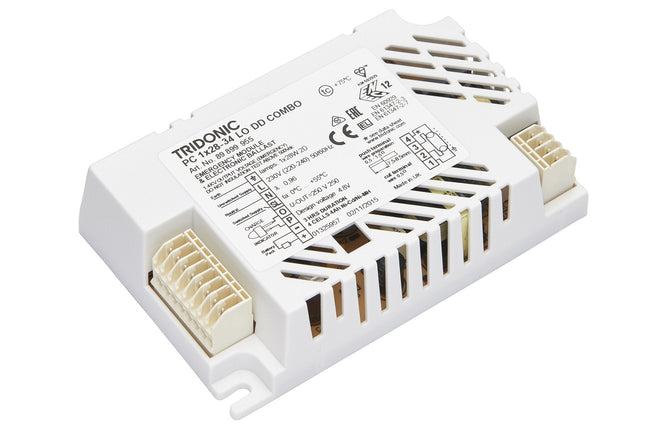

The Tridonic PC 1x28-33 LO DD COMBO is a combination electronic ballast and emergency lighting unit to run 1 x 28w 2D compact fluorescent. They have a 3 hour rated duration and should be used with a 3 cell battery pack. These ballasts come with a 5-year warranty Tridonic article number: 89899957Dimensions: 123 x 79 x 31mm
Driver LCA 60W 900–1750mA one4all SR PRE
premium series
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Independent dimmable constant current LED driver with strain-relief
Dimmable via DALI / DALI-2
Dimming range 1 – 100 % (whole operating window)
Output current adjustable between 900 – 1,750 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
Max. output power 60 W
Up to 90 % efficiency
Power input on stand-by < 0.2 W
Nominal lifetime up to 100,000 h
5 years guarantee
Housing properties
Casing: polycarbonate, white
Type of protection IP20
Strain relief with loop through function
Interfaces
one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° / 45° push terminals (input / output)
Functions
Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Constant light output function (CLO)
Power-up fading at AC
Configurable via ready2mains
Switch off the driver with fade2zero
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Suitable for emergency escape lighting systems acc. to EN 50172
For cable cross-sections up to 2.5 mm²
Benefits
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency
Flexible configuration via DALI, ready2mains and I-SELECT 2
No tools required for installation
Typical applications
For downlight, spotlight and decorative applications
Digital Dimming Ballast to run 1 X 28/54w T5 tubes - PCA 1x28/54 T5 ECO - 22185099
Product description _ Processor-controlled ballast with yII inside _ Highest possible energy class CELMA EEI = A1 BAT 1 _ Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION _ Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) _ Multilamp management _ OEM-specific reserved memory areas _ 5 years guarantee Interfaces _ DALI _ DSI _ switchDIM (with memory function + selectable dimming rate) _ corridorFUNCTION (3 preprogrammed profiles) _ Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs _ SMART interface for SMART plug cF – for setting the corridorFUNCTION profiles _ SMART interface for SMART sensor with daylight control Functions _ Intelligent Temperature Guard (overtemperature protection) _ Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) _ Optimum filament heating in any dimmer setting _ Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) _ corridorFUNCTION with ambient light control _ Automatically triggered emergency lighting value in DC mode, 15 % _ For emergency lighting systems as per EN 50172 _ Automatic start after replacement of defective lamp
Product description
Holder for indicator LED in emergency operation
Glow-wire test with a temperature of 850 °C passed
Same as CRL5
Article information Data sheet
Obsolete, please use the below as a viable alternative. This is what you will be sent .
Alternative
The Tridonic PC 1x18-24 W Basic (Linear) is a basic non-dimmable high frequency ballast to run: 1 x 24 Watt T5 Fluorescent tube OR 1 x 18 Watt T8 Fluorescent tube OR 1 x 22 Watt T5 circular fluorescent tube OR 1 x 18 Watt F shaped compact fluorescent 1 x 24 Watt F shaped compact fluorescent OR 1 x 18 Watt long single turn compact fluorescent 1 x 24 Watt long single turn compact fluorescent Tridonic 22176001!
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Constant current built-in LED driver, particularly suitable for industrial applications in tough environments with elevated ambient temperatures such as cold warehouses or factories
Dimming range 1 to 100 %
Output current adjustable between 200 – 850 mA
Max. output power 100 W
Suitable for mains voltage peaks (burst/surge) up to 4 kV
Expanded temperature range of -40 ... +70 °C
Nominal lifetime up to 100,000 h (at ta 60 °C)
8 years guarantee
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Dimmable built-in constant current LED driver
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Output current adjustable between 350 – 1,050 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
Max. output power 75 W
Up to 92 % efficiency
Power input on stand-by < 0.16 W
Nominal lifetime up to 100,000 h
5 years guarantee
Housing properties
Low profile metal casing with white cover
Type of protection IP20
Interfaces
one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° push terminals
Functions
Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Constant light output function (CLO)
Power-up fading at AC
Configurable via ready2mains
Switch off the driver with fade2zero
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
Flexible configuration via companionSUITE
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency
Flexible configuration via DALI, ready2mains and I-SELECT 2
Reliability proven by lifetime up to 100,000 h and 5 years guarantee
Typical applications
For linear/area lighting in office applications
Product description_ Emergency lighting LED driver with DALI interface and automatic test function_ For self-contained emergency lighting_ For LED modules with a forward voltage of 50 – 200 V_ Low profile casing (21 x 30 mm cross-section)_ Nominal lifetime up to 50,000 h_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Properties_ Non maintained operation_ DALI interface for controlled testing and monitoring_ 1, 2 or 3 h rated duration_ Operating time selectable with plug (duration link)_ For 2 h operation: first test 120 min, all other tests 90 min, ratedduration_ Compatible with all dimmable and non-dimmable constant currentLED driver (see data sheet, LED driver compatibility)_ 3-pole technology: 2-pole LED module changeover and delayedpower switching for the LED driver_ Automatic shutdown of output if LED load is out of range_ Constant power output_ Maximum light output for all LED modules_ Addressing function, patented (“EZ easy addressing”)_ Two-colour status display LED_ Electronic multi-level charge system_ Intermittent charge for NiMH batteries (pulse charge)_ “Rest mode” function_ Deep discharge protection_ Short-circuit-proof battery connection_ Polarity reversal protection for battery Tests:_ Status of the battery_ Status of the LED_ Charge condition_ Function test_ Duration testBatteries_ High-temperature cells_ NiCd or NiMH batteries_ D, Cs or LA cells_ 4 year design life_ 1 year guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)_ For battery compatibility refer to data sheet
Product description• Dimmable built-in LED control gear for LED• Constant current LED control gear with 350 mA output current• Output power 80 W• Nominal life-time up to 50,000 h• 5-year guaranteeProperties• Low-profile metal casing with white cover• Type of protection IP20Interfaces• DALI (device type 6)• DSI• switchDIM (with memory function)• corridorFUNCTIONFunctions• Overload protection• Overtemperature protection• Short circuit proof• Dimming in DC adjustable• Suitable for emergency escape lighting systems acc. to EN 5017
