EM powerLED PRO EZ-3, 1 – 2 W
Combined emergency lighting LED Driver 1 – 4 W
Screw-fix
Clip-fix
Screw-fix
Clip-fix
Product description
Emergency lighting LED Driver with DALI interface and automatic test function
For self-contained emergency lighting
SELV for output voltage < 60 V DC
Low profile casing (21 x 30 mm cross-section)
5 years guarantee
Properties
Mains and emergency operation
DALI interface for controlled testing and monitoring
DALI switchable in mains operation (on/off); the switched phase SL must be switched on
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Two-colour status display LED
Automatic restart after LED replacement
Electronic multi-level charge system
SELV classified (outputs powerLED, battery, status LED, test switch)
Polarity reversal protection for battery
Deep discharge protection
Very low energy consumption from the battery after activation of the deep discharge protection
Short-circuit-proof battery connection
Addressing function, patented (“EZ easy addressing”)
Emergency lighting LEDs available
Tests:
Status of the battery
Status of the LED
Charge condition
Function test
Duration test
Batteries
High-temperature cells 2 Ah
NiMH batteries
Cs cells
4 year design life
1 year guarantee
For battery compatibility refer to data sheet
EM powerLED PRO DIM SR 45 W
Combined emergency lighting LED driver
Note: LED driver supplied with duration dip switch (2-way) in 3 hours position. Duration dip switch and I-SELECT 2 PLUG must be set before battery and mains connection.
Product description
Independent dimmable LED driver
Emergency lighting LED driver with DALI interface and automatic test function
For self-contained emergency lighting
For LED modules with a forward voltage of 20 – 50 V
SELV for output voltage < 60 V DC
Compact plastic casing with strain relief
Properties
Output power 6 – 45 W
Constant current LED operation
300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA
Integrated emergency lighting unit
1, 2 or 3 h rated duration
Operating time selectable with dip switch (2-way)
Automatic shutdown of output if the forward voltage of the LED is out of range
Two-colour status display LED
Electronic multi-level charge system
Pulse current charging for NiMH batteries
Polarity reversal protection for battery
Power-up fading at AC
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Deep discharge protection
Short-circuit-proof battery connection
5 years guarantee
Interfaces
one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION)
Terminal blocks: 45° push terminals
Batteries
High-temperature cells
NiCd or NiMH batteries
D, Cs, LA or LAL cells
Battery box for independent use
4 year design life
1 year guarantee
For battery compatibility refer to data sheet

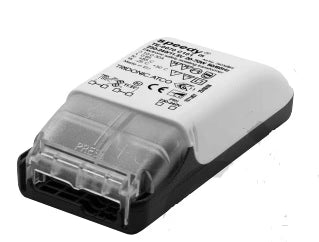

Speedy TE-0105 C101..
Tridonic 24034874 Speedy TE-0105 C101 35-105VA Dimmable 12V Transformer
Product description
Compact dimensions 101.5mm L 51mm W 29.5mm H
35-105W
Short-circuit shutdown feature with automatic restart
Overtemperature and overload protection with power regulation
Large connection compartment
Double assignment of the terminal possible
Cage clamp terminals for rigid and flexible wires
Double terminals on the secondary side
Rapid installation of cable clamp and terminal cover, no tool required
Casing: polycarbonate, dark blue/white

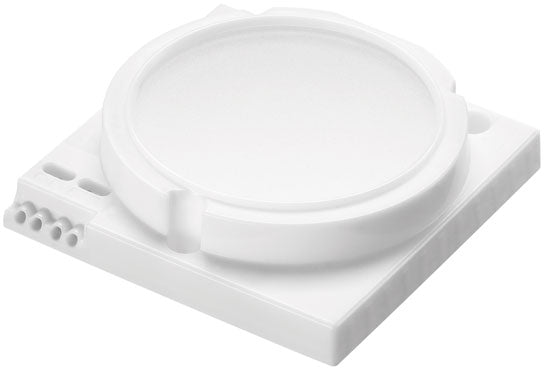

Product description
For downlights
Safety glass for 5,000 lm version
Built-in LED module
Cooling required
Flexible operating mode
HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output

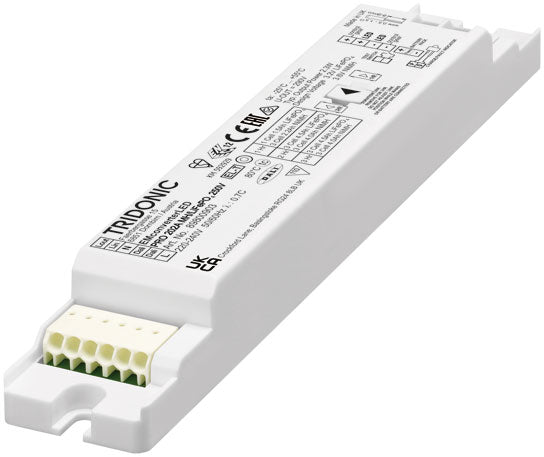

Combined emergency LED driver for manual testing
For self-contained emergency lighting
Can be either used build-in or independent with clip-on strain-relief (see accessory)
Max. output power 32 W
Nominal lifetime up to 100,000 h
5 years guarantee
Functions
Adjustable output current between 350 and 700 mA via I-SELECT 2 plugs
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
Suitable for emergency escape lighting systems acc. to EN 50172
1 or 3 h rated duration depending on connected battery
Constant power output in emergency mode
Battery management
Intelligent charge system
Deep discharge protection
Temperature protection
Polarity reversal protection for battery provided by 3-pole connector
Batteries
LiFePO4 batteries with Tridonic LiFeGuard
Temperature-protected
Overcharge-/Overdischarge protection
Ensures safety in use
Up to 8 year design life
3 years guarantee
For battery compatibility refer to datasheet, battery selection

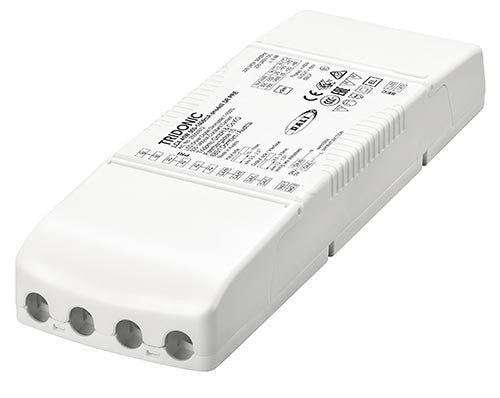

Product description
Dimmable constant current LED driver (SELV)
Independent driver with strain-relief housing
Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
Dimmable via leading edge and trailing edge phase dimmers
Trailing edge is a benefit in terms of noise compared to leading edge
Dimming range 5 to 100 % (depending on dimmer)
For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
Max. output power 7.6 W
Output current 180 mA
Nominal lifetime up to 50,000 h
5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Compact drivers
Data sheet

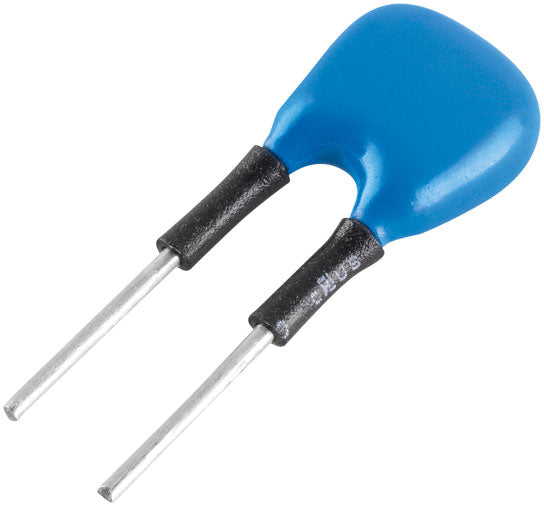

Product description
Ready-for-use resistor to set output current value
Compatible with LED driver featuring I-select 2 interface; not compatible with I-SELECT (generation 1)
Resistor is base insulated
Resistor power 0.25 W
Current tolerance ± 2 % additional to output current tolerance
Compatible with LED driver series PRE and EXC
Show more

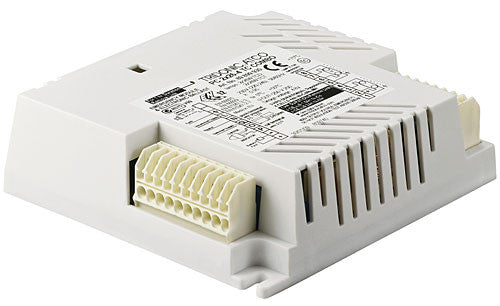

The Tridonic PC 1x28-34 HO DD COMBO is a combination electronic ballast and emergency lighting unit to run 1 x 28w 2D 4Pin compact fluorescent. They have a 3 hour rated duration and should be used with a 4 cell battery pack. These ballasts come with a 5-year warranty. Tridonic article number: 89899958 Dimensions: 123 x 79 x 31mm

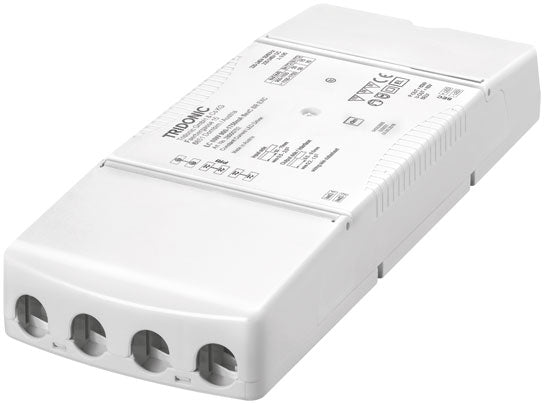

The Tridonic Tridonic LCA 60w 900-1750mA one4all SR PRE is a 60W Tridonic Dali dimmable LED driver with an adjustable output current of 900-1750mA. This driver has a max output power of 60w and an average life of 100,000 hours.
