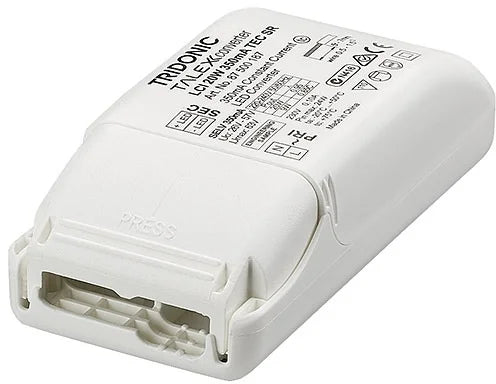

87500191 Driver LCI 20 W 350/500/700 mA TEC SR
Product description• Independent fixed output LED Driver• Constant current LED Driver• Output current 350, 500 or 700 mA• Max. output power 20 W• Nominal life-time up to 50,000 h• KC certificate for LCI 20W 350mA TEC SR andLCI 20W 500mA TEC SR• For luminaires of protection class I and protection class II• For luminaires with M and MM as per EN 60598, VDE 0710 andVDE 0711• Temperature protection as per EN 61347-2-13 C5e• 5-year guaranteeProperties• Casing: polycarbonat, white• Type of protection IP20Functions• Overtemperature protection• Overload protection• Short-circuit protection• No-load protectionTRIDONIC

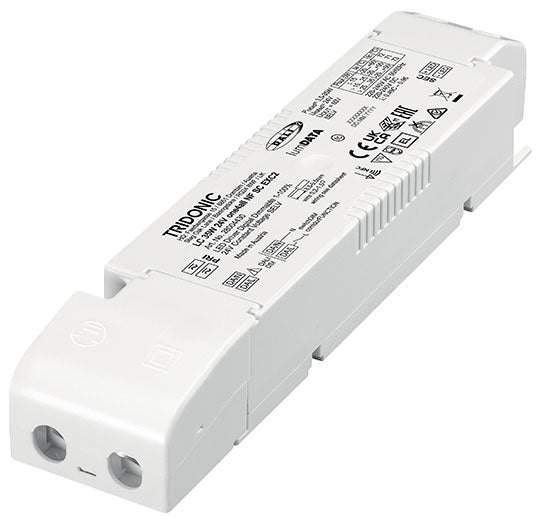

28004430
LC 35W 24V one4all NF SC EXC2
Product description
Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
one4all interface enables different dimming options
Dimming range 1 to 100 %
No additional external dimmer is needed
lumDATA (DALI-2 part ext. 251, 252 and 253)
Can be either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
Suitable for emergency escape lighting systems acc. to EN 50172
Nominal lifetime up to 50,000 h
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Made in Austria
Functions
LTI (Lifetime Indicator)
Typical applications
Ambient and decorative illumination. Cove lighting, façade accent lighting
Technical details
24 V, 35 W
Small design
Push terminals for simple wiring
Interfaces
Near field communication (NFC)
one4all (DALI-2, DSI, switchDIM, corridorFUNCTION)
Terminal blocks: 45° push terminals
System solution
Tridonic LLE FLEX 24V SNC4
Tridonic LLE FLEX 24V EXC4
In connection with ACL FLEX accessories wire to PCB
Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly
EAN/UPC: 9006210797243
Country of Origin: AT
Customs tariff No.: 85044095
SCIP.: 205a8bff-5a51-432e-8520-9fec82abf5fe
Show less

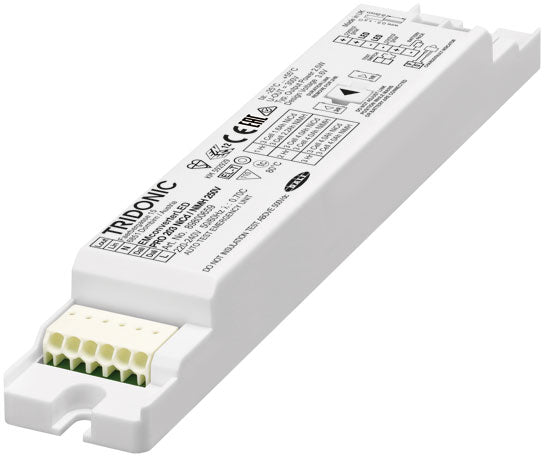

Self-contained emergency lighting LED driver with DALI interface
Non maintained operation
For LED modules with a forward voltage of 48 – 250 V
For luminaire installation
EM = Emergency
Nominal lifetime up to 100,000 h
89602874 DLE G4 65mm 2000lm 830 H ADV
Product description
For downlights
Built-in LED module
Cooling required
Flexible operating mode
Optical properties
Colour temperature 3,000 K
Useful luminous flux 1,341 lm at Irated and tp = 25 °C
Efficacy of the LED module 117 lm/W at Irated and tp = 25 °C
High colour rendering index CRI > 80
High colour consistency (MacAdam 3)
Small luminous flux tolerances
Mechanical properties
Fixing holes for M3 screws
System solution
Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
EAN/UPC: 9006210628165
Country of Origin: RS
Customs tariff No.: 94054231
Tridonic 28000134 Driver LCAI 65W 150mA–400mA ECO lp
Product description• Dimmable built-in LED Driver for LED• Constant current LED Driver• Output current adjustable between 150 – 400 mA• Max. output power 65 W• Nominal life-time up to 100,000 h• 5-year guarantee• Dimming range 1 ... 100 %Properties• Low-profile metal casing with white cover• Type of protection IP20Interfaces• DALI DEVICE Type 6• DSI• switchDIM (with memory function)• corridorFUNCTIONFunctions• Adjustable output current (I-select resistor or DALI)• Power-up fading at AC• Intelligent Temperature Guard (overtemperature protection)• Short-circuit proof• Overload protection• Constant Light Output function• Suitable for emergency escape lighting systems acc. to EN50172
87500710 LCO 60/200-1050/100 o4a NF C EXC3
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Dimmable built-in constant current outdoor LED driver
Dimming range 5 – 100 % (min. 10 mA)
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer
Max. output power 60 W
Up to 92 % efficiency
Lowest power input on stand-by < 0.16 W
Article number 28003168: Made in Europe, article number 87500710: Made in China.
Nominal lifetime of 100,000 h and 8 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
89899859
EMpowerLED 2W BASIC SCREW-FIX
EM LED drivers
Product description
Emergency lighting LED driver for manual testing
For self-contained emergency lighting
SELV for output voltage < 60 V DC
Low profile casing (21 x 30 mm cross-section)
EM = Emergency
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

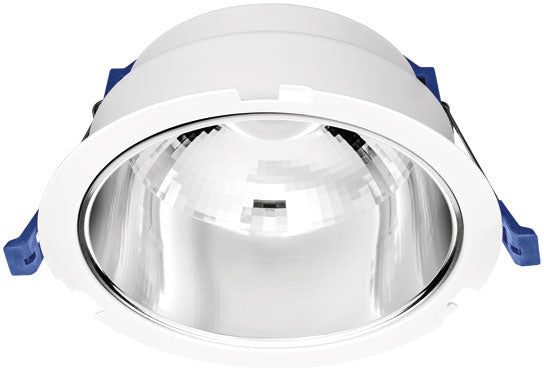

28002244
DLA G2 150mm 1000/2000lm 840 SNC EM MOD
Product description
LED replacement for downlight with compact fluorescent lamps
Complete ready2apply solution comprising module, driver, reflector and trim ring
Ripple current 5 % and UGR19 (specific model only) makes office installation possible
Approved emergency solution with EM converterLED
Optional reflector solution with 60° and 90°
Nominal lifetime of 50,000 h (L70/B50)
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

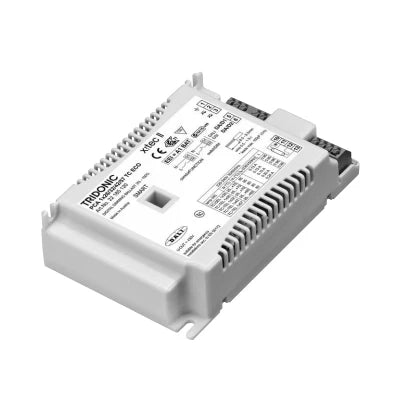

22185122 PCA 1x18 TC ECO Y II
Product description• Processor-controlled ballast with y II inside• Highest possible energy class CELMA EEI = A1 BAT1• Noise-free precise control via DALI orDSI signal, switchDIM or corridorFUNCTION• Nominal life up to 100,000 h (at ta 50 °Cwith a failure rate max. 0.2 % per 1,000 h)• OEM-specific reserved memory areas• 5-year guaranteeInterfaces• DALI• DSI• switchDIM (with memory function + selectable dimming rate)• corridorFUNCTION (3 preprogrammed profiles)• Integrated SMART interface for function withSMART Sensor 5D 19f and corridorFUNCTION plugsFunctions• Intelligent Temperature Guard (overtemperature protection)• Intelligent Voltage Guard (overvoltage indicationand undervoltage shutdown)• Optimum filament heating in any dimmer setting• Disconnection of filament heating from a dimming level of approx.90 % for maximum energy efficiency (SMART-Heating concept)• corridorFUNCTION with ambient light control• Automatically triggered emergency lighting value in DC mode, 15 %• For emergency lighting systems as per EN 50172• Automatic start after replacement of defective lamps• Automatic shutdown if the lamp is faultyÈStandards, page 3Wiring diagrams and installation examples,
