Product family features Line frequency: 0 Hz | 50 Hz | 60 Hz Versatile scope of application due to output power range of up to 120 W Supply voltage: 220…240 V Available with output current range: up to 750 mA Non-isolated drivers Product family benefits Flexible current setting (LEDset2) Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate) High quality of light thanks to low output ripple current Very high efficiency Fulfill safety requirement due to overload, overtemperature, Hot Plug protection Areas of application Linear lighting for office, education, industry, storage areas and retail Installation in emergency lighting systems according to IEC 61347-2-13, appendix J Suitable for installation in emergency lighting systems according to EN 60598-2-22 Suitable for luminaires of protection class I Ecodesign regulation information: Intended for use with LED modules. The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable. Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled. Find technical data and additional assets in our datasheet Product Datasheet

Read more less

Osram OT CABLE CLAMP F-STYLE 4052899325555

Read more less

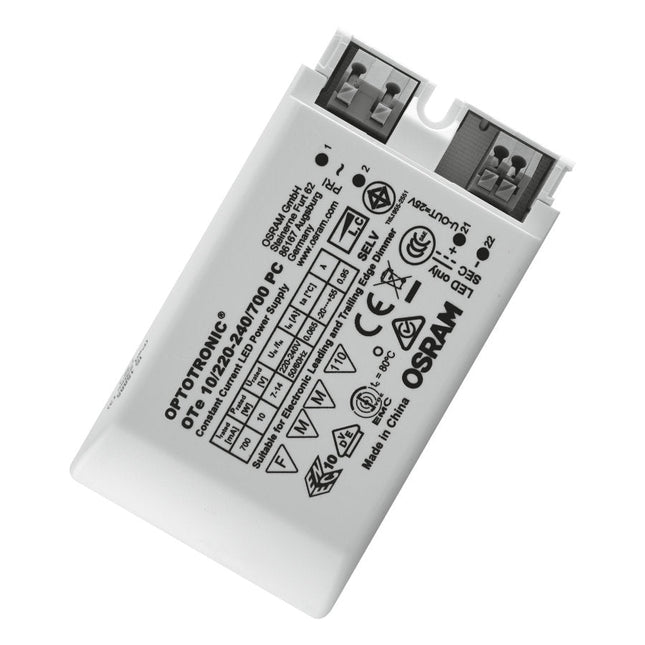

Technical Data Electrical data Nominal input voltage 220…240 V Mains frequency 50/60 Hz Input voltage AC 198…264 V Total harmonic distortion < 20 % Power factor λ 0.95/0.90 ECG efficiency 79 % Device power loss 2.8 W Inrush current 5 A Max. ECG no. on circuit breaker 10 A (B) 101 Max. ECG no. on circuit breaker 16 A (B) 160 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 1 kV Surge capability (L-N) 1 kV Nominal output voltage 7…14 V U-OUT (working voltage) 25 V Nominal output current 700 mA Output current tolerance ±10 % Output ripple current (100 Hz) 35 % Output PSTLM ≤1 Output SVM ≤1.0 Nominal output power 10 W Galvanic isolation SELV Dimensions & weight Mounting hole spacing, length - Mounting hole spacing, width - Product weight 81.00 g Cable cross-section, input side 0.75…1.5 mm² Cable cross-section, output side 0.5…1.5 mm² Wire preparation length, input side 8.0…9.0 mm Wire preparation length, output side 8.0…9.0 mm Height 25.0 mm Length 95.0 mm Width 53.0 mm Colors & materials Casing material Plastic Temperatures & operating conditions Ambient temperature range -20…+55 °C Maximum temperature at tc test point 80 °C Max.housing temperature in case of fault 110 °C Temperature range at storage -25…75 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 h Capabilities Dimmable Yes Dimming interface Phase Cut Dimming range 10…100 % Dimming method Amplitude Modulation Overheating protection Automatic reversible Overload protection Automatic reversible Short-circuit protection Automatic reversible No-load proof Yes Max. cable length to lamp/LED module 2.0 m Suitable for fixtures with prot. class I / II Type of connection, output side Push terminal Certificates & standards Approval marks – approval CE / ENEC 10 / VDE / CB Standards Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Protection class II Type of protection IP20 Logistical data Commodity code 850440829000

Read more less

OSRAM OTI DALI 10/220-240/700 NFC 4062172143899 Product family benefits Versatile DALI window driver due to flexible output characteristic Locking and unlocking of luminaire/driver data Easy and fast output current setting via NFC Very high efficiency High-quality dimming of 1…100 % by amplitude dimming DALI-2 certified incl. Parts 251, 252, 253 Areas of application Suitable for downlights, spotlights and LED panels Suitable for use in luminaires with flexible current setting Installation in emergency lighting systems according to IEC 61347-2-13, appendix J Suitable for indoor SELV installations Suitable for luminaires of protection classes I and II

Read more less

Osram OTi DALI 15/220…240/1A0 LT2

Read more less

Osram OTi DALI 35/220-240/400 D LT2 UF L Line frequency: 0 Hz | 50 Hz | 60 Hz Versatile DALI window driver up to 75 W due to flexible output characteristic Supply voltage: 220…240 V Available with output current range: up to 700 mA Direct Ultraflat sensor connection via LEDset (LS/PD LT2 LI UF Sensor) Use with Ultraflat DALI sensor (LS/PD DALI LI UF Sensor) Constant Lumen Output (CLO) Non-isolated drivers DALI-2 certified (Part -101,-102 and -207)

Read more less

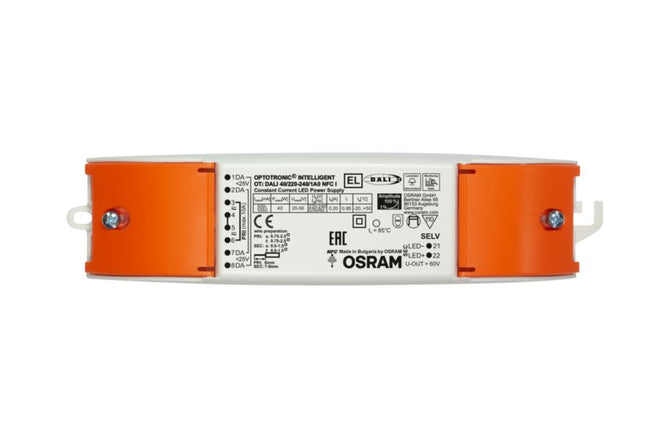

Osram  OTi DALI 40/220-240/1A0 NFC  I 4062172115001

Read more less

Fully programmable via software (DALI Interface) Flexible current setting (LEDset2) Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate) High-quality dimming of 1…100 % by amplitude dimming (except 80 W versions) High quality of light thanks to <1% output ripple current Very high efficiency Very low standby power consumption: < 0.15 W * Fulfill safety requirement due to overload, overtemperature, Hot Plug protection

Read more less

The Osram PTi 70s is an open fronted high frequency ballast to run: 1 x 70 Watt Metal Halide Lamp Product family benefits Long reliable life at maximum permitted temperatures Compact dimensions and low weight for small luminaire designs Excellent thermal behavior for very high limit temperatures tc and ta Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL) Areas of application Shop lighting Health and fitness areas (in luminaires with protection class IP66 or higher) Effect and accent lighting Safety adviceBallast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point t of the ECG does not exceed the maximum value. Data Sheet Product data sheet

Read more less

This item is obsolete, for alternative please click on the below for Philips variant   https://www.easy-controlgear.com/products/philips-hfr258tld-ph-2x-58w-hf-regulator-ii-ballast-dimmable?_pos=1&_sid=6e0d82d08&_ss=r Osram Quicktronic QT HF DIM (1-10V) 2 X 58W T8 Dimming ballast for T8 fluorescent tubes.

Read more less

This Osram QT-ECO 1x18-24/220-240 L is a non dimmable matchbox ballast to run: 1 x 24w T5 fluorescent tube 1 x 22w T5 Circular tube 1 x 15w or 18w T8 Fluorescent tube 1 x18w or 24w Double turn CFL's 1 x 18w or 24w Dulux F CFL's This product is now obsolete please click on the link below for viable alternative  to 18W  and 24W   https://www.easy-controlgear.com/products/tridonic-pc-1x18-24w-basic-linear?_pos=6&_sid=199dc1f00&_ss=r If it is a 21W tube please order the  https://www.easy-controlgear.com/products/philips-hfmblue121lh-ph-1x21w-tl5-hf-linear-m-bx-blue-ballst?_pos=1&_sid=88515baf7&_ss=r If you want the same but square  https://www.easy-controlgear.com/products/qt-eco-1x18-24-220-240-s?_pos=1&_sid=167c82a4e&_ss=r

Read more less

This Osram QT-ECO 1x4-16/220-240 L is a non dimmable matchbox ballast to run: 1 x 14w T8 fluorescent tube 1 x 4w, 6w, 8w, 10w, 13w or 16w T5 fluorescent tube 1 x 5w, 7w, 9w or 11w Single turn cfl 1 x 10w or 13w Double turn cfl Product family benefits Compact housing Automatic restart after lamp replacement Large input voltage range Areas of application Public buildings Data Sheet Product data sheet
