The Osram QTi DALI 1x58/220-240 DIM is a digital dimmable ballast to run 1 x 58w T8 Tubes. These ballasts have an average life of 100,000 hours, offer flicker free light, have an automatic safety shutdown at lamp failure, automatic restart after lamp replacement and are suitable for emergency lighting.

Read more less

The Osram QTi DALI 2x18/220-240 DIM is a digital dimmable ballast to run 2 x 18w T8 Tubes. These ballasts have an average life of 100,000 hours, offer flicker free light, have an automatic safety shutdown at lamp failure, automatic restart after lamp replacement and are suitable for emergency lighting.

Read more less

The Osram QTi DALI 2x28/54/220-240 DIM is a digital dimmable ballast to run 2 x 28w or 54w T5 Tubes. These ballasts have an average life of 100,000 hours, offer flicker free light, have an automatic safety shutdown at lamp failure, automatic restart after lamp replacement and are suitable for emergency lighting. 4050300870502

Read more less

The Osram QTi DALI 4x18/220-240 DIM is a digital dimmable ballast to run 4 x 18w T8 Tubes. These ballasts have an average life of 100,000 hours, offer flicker free light, have an automatic safety shutdown at lamp failure, automatic restart after lamp replacement and are suitable for emergency lighting.

Read more less

Stock clearance, buy fast whilst stocks last The Osram QTP-DL 2x36-40/220-240 is a non dimmable high frequency ballast to run 2 x 36 or 40w Long single turn PL-L compact fluorescent lamp.

Read more less

The Osram QTP-DL 2x55/220-240 is a non dimmable high frequency ballast to run 2 x 55w Long single turn PL-L compact fluorescent lamp. Product family benefits Long lamp life No adverse effect from frequent on/off switching Automatic restart after lamp replacement Perfect lamp start for applications with motion sensors VDE/VDE EMC certified system Very high energy efficiency due to cut-off technology Areas of application Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100 Open-plan offices, corridors and storage rooms Public buildings Suitable for luminaires of protection classes I and II Data sheet More downloads Technical Data Electrical data Input voltage AC 198…264 V Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 176…276 V Maximum output power 2 x 55 W Efficiency in full-load 95 % Operating frequency 40…50 kHz Max. ECG no. on circuit breaker 10 A (B) 8 Max. ECG no. on circuit breaker 16 A (B) 13 Inrush current 28 A Light technical data Starting time 1.0 s Dimensions & weight Length 360.0 mm Width 30.0 mm Height 21.0 mm Mounting hole spacing, length 350.0 mm Product weight 265.00 g Temperatures & operating conditions Ambient temperature range -20…+50 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 h Additional product data Suitable for lamp power (2 lamps) 55 W Capabilities Suitable for fixtures with prot. class I / II End of lamp life safety shutdown EOL T.2 Intended for no-load operation No Max. cable length to lamp/LED module 2.0 m / 1.0 m Dimmable No Certificates & standards Approval marks – approval VDE / VDE-EMC / ENEC 10 / GOST / RCM EEI – Energy Label A2 BAT Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Type of protection IP20 Protection class III Logistical data Commodity code 850410809000 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 14-04-2022 Primary Article Identifier 4008321390172 Candidate List Substance 1 Orange lead (lead tetroxide) CAS No. of substance 1 1314-41-6 Candidate List Substance 2 Lead CAS No. of substance 2 7439-92-1 Safe Use Instruction The identification of the Candidate List substance is sufficient to allow safe use of the article. Declaration No. in SCIP database 65971722-45e8-4623-b17a-f93e23c6b0bd

Read more less

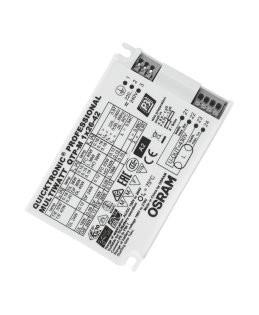

Osram/ledvance QTM 1x26-42w 230-240 Multiwatt Product benefits Long lamp life No adverse effect from frequent on/off switching Automatic restart after lamp replacement Perfect lamp start for applications with motion sensors Separate installations thanks to optional cable clamp for K2 and K3 casings VDE/VDE EMC certified system Areas of application Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100 Public buildings Sports halls and factories EAN:4008321329134

Read more less

The Osram QTP-OPTIMAL 1x18-40 is a Multiwatt non dimmable high frequency ballast to run 1 x 18w, 24w, 36w, 40w PL-L, 18w & 24w DULUX F, 15w & 18w T8 tubes and 24w & 39w T5 lamps. Product family benefits Long lamp life No adverse effect from frequent on/off switching Automatic restart after lamp replacement Perfect lamp start for applications with motion sensors VDE/VDE EMC certified system Very high energy efficiency due to cut-off technology Areas of application Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100 Industry Open-plan offices, corridors and storage rooms Public buildings Sports halls and factories Strip lighting Suitable for emergency lighting (DC operation) Modernization of existing systems Suitable for luminaires of protection classes I and II Data Sheets Product Data Sheet

Read more less

The Osram QTP-OPTIMAL 2x18-40 is a Multiwatt non dimmable high frequency ballast to run 2 x 18w, 24w, 36w, 40w PL-L, 18w & 24w DULUX F, 15w & 18w  30W T8 tubes and 24w & 39w T5 lamps. Product family benefits Long lamp life No adverse effect from frequent on/off switching Automatic restart after lamp replacement Perfect lamp start for applications with motion sensors VDE/VDE EMC certified system Very high energy efficiency due to cut-off technology Areas of application Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100 Industry Open-plan offices, corridors and storage rooms Public buildings Sports halls and factories Strip lighting Suitable for emergency lighting (DC operation) Modernization of existing systems Suitable for luminaires of protection classes I and II Data Sheet Product Data Sheet

Read more less

The Osram QTP-T/E 1x18-13/220-240 is a non dimmable high frequency ballast to run 1 x 18w double turn PL-C/T compact fluorescent lamp.

Read more less

The Osram QTP-T/E 2x18-13/220-240 is a non dimmable high frequency ballast to run 2 x 18w double turn PL-C/T and a 2 x 13w triple turn PL-C/T compact fluorescent lamp.

Read more less

The Osram QTP5 2x24-39/230-240 is a non dimmable high frequency ballast to run: 2x 24w & 39w T5 and 2x 30w T8 lamps. These ballasts have an average lifetime of 100,000 hours They offer flicker free light, have an automatic safety shutdown at lamp failure, automatic restart after lamp replacement and are suitable for emergency lighting.

Read more less
