The Osram QTP5 2x54/230-240 is a non dimmable high frequency ballast to run: 2x 54w T5 lamps. These ballasts have an average lifetime of 100,000 hours They offer flicker free light, have an automatic safety shutdown at lamp failure, automatic restart after lamp replacement and are suitable for emergency lighting.

Read more less

obsolete, if ordered  the Philips variant will be sent out   Osram QT 1X58/220-240 DIM (1-10V) 1 X 58W T8 Dimming ballast for T8 fluorescent tubes. Dimming range: 1-100 % luminous flux. 360 x 30 x 21mm dimensions.

Read more less

OSRAM Quicktronic QT-FQ 2X80 4050300825564 Product family features   Supply voltage: 220…240 V   Line voltage: 198…264 V   Line frequency: 50 Hz | 60 Hz   Lamp start with optimum filament preheating   Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max.10 % failure rate)   Energy Efficiency Index EEI: A2   Safety: to EN 61347-2-3   Automatic shutdown of defective lamps and at end of life(EoL T.2) Product family benefits – Long lamp life– No adverse effect from frequent on/off switching– Automatic restart after lamp replacement– Perfect lamp start for applications with motion sensors – VDE/VDE EMC certified system– Very high energy efficiency due to cut-off technology Areas of application – Industry– Open-plan offices, corridors and storage rooms – Public buildings– Sports halls and factories– Strip lighting– Modernization of existing systems Product Data Sheet

Read more less

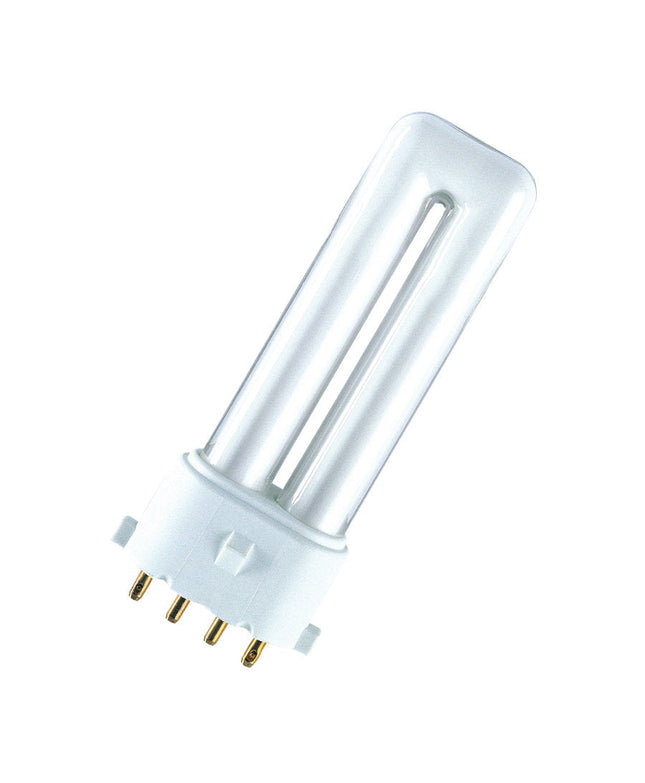

please note all these lamps are obsolete and in short supply so may be an alternative brand sent  Products Product Overall length Data sheet DULUX S/E 9 W/840 151.80 mm DULUX S/E 11 W/830 221.80 mm DULUX S/E 11 W/840 221.80 mm Information about Family • Offices, public buildings • Shops • Supermarkets and department stores • Hotels, restaurants References / LinksFor more information on QUICKTRONIC electronic control gear go to www.osram.com/QUICKTRONIC Ecodesign regulation information:Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled. Products Product Overall length Data sheet DULUX S/E 9 W/840 151.80 mm DULUX S/E 11 W/830 221.80 mm DULUX S/E 11 W/840 221.80 mm Information about Family • Offices, public buildings • Shops • Supermarkets and department stores • Hotels, restaurants References / LinksFor more information on QUICKTRONIC electronic control gear go to www.osram.com/QUICKTRONIC Ecodesign regulation information:Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Read more less

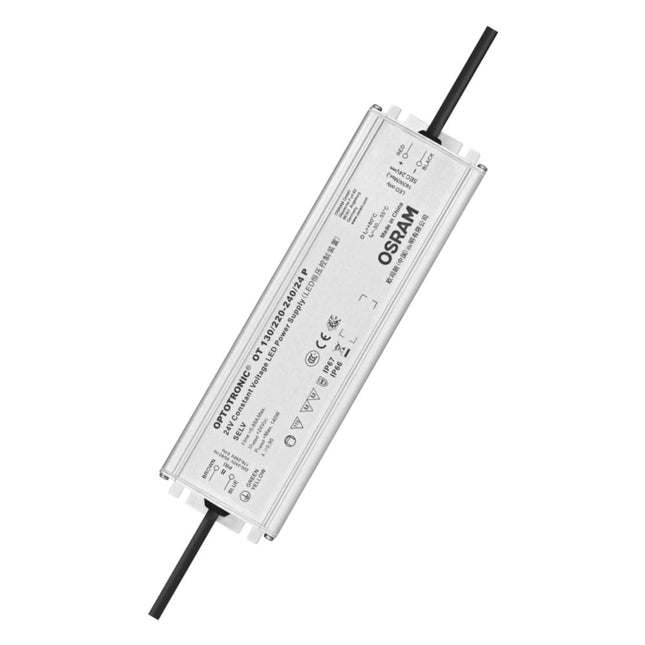

Product family features DC mode functionality Type of protection: IP66 and IP67 Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE) Wide operating temperature range: -30…+55 °C Lifetime: up to 50,000 h (temperature at max. tc ) Product family benefits Large range of products from 20 W to 250 W Installation in very cold and hot environments Very stable output power High electronical reversible short-circuit, overload, overtemperature protection Smart Power Supply: boosting power to turn on cold LEDs Independent installation possible Areas of application Facades, public squares, cruise ships Signage Suitable for indoor and outdoor installations Ecodesign regulation information: Intended for use with LED modules. The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable. Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Read more less

Product family features DC mode functionality Type of protection: IP66 and IP67 Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE) Wide operating temperature range: -30…+55 °C Lifetime: up to 50,000 h (temperature at max. tc ) Product family benefits Large range of products from 20 W to 250 W Installation in very cold and hot environments Very stable output power High electronical reversible short-circuit, overload, overtemperature protection Smart Power Supply: boosting power to turn on cold LEDs Independent installation possible Areas of application Facades, public squares, cruise ships Signage Suitable for indoor and outdoor installations Ecodesign regulation information: Intended for use with LED modules. The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable. Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Read more less

Product family features Type of protection: IP20 Wide operating temperature range: -20…+50 °C Lifetime: up to 50,000 h (temperature at max. tc ) Product family benefits Installation in cold and hot environments Very stable output power High electronical reversible short-circuit, overload, overtemperature protection Independent installation possible Areas of application Facades, public squares, cruise ships Signage Suitable for indoor and outdoor installations Ecodesign regulation information: Intended for use with LED modules. The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable. Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled. Find technical data and additional assets in our datasheet Product Datasheet

Read more less

Product family benefits Large range of products from 20 W to 250 W Installation in very cold and hot environments Very stable output power High electronical reversible short-circuit, overload, overtemperature protection Smart Power Supply: boosting power to turn on cold LEDs Independent installation possible Dimming range: 1…100 % Areas of application Facades, public squares, cruise ships Signage Suitable for indoor and outdoor installations Data sheet 4052899545908

Read more less

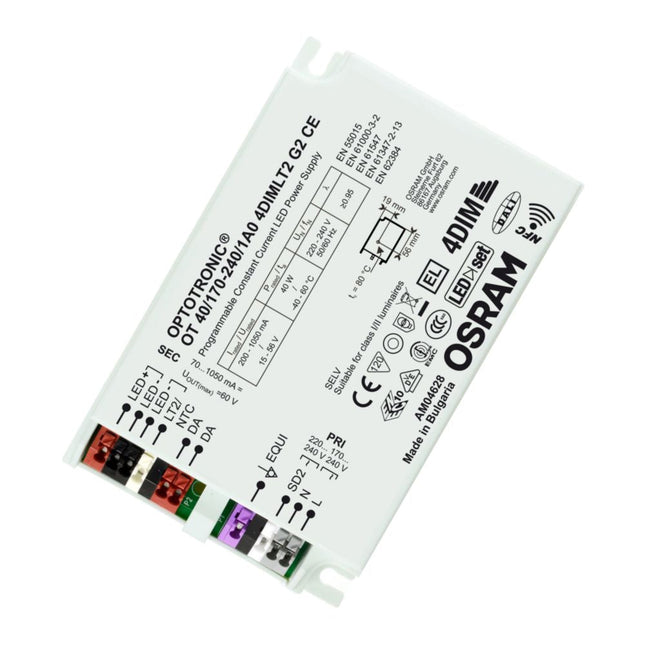

Product family features Supply voltage: 220…240 V Current output range: 70…1,050 mA Easy and fast wireless luminaire programming via NFC Flexible current setting with one additional wire (LEDset2) AstroDIM for autonomous dimming with five independent levels (astro, time mode) Allows for energy saving in twilight phases MainsDIM function for dimming via reduction of line voltage amplitude Isolated DALI interface for bidirectional telemanagement systems Standby power consumption: < 0.35 W Constant Lumen Output (CLO) Overtemperature protection via external NTC Integrated customizable thermal management (Driver Guard) Product family benefits 4DIM functionality in one device (StepDIM, AstroDIM, MainsDIM, DALI) DALI-2 certified incl. Parts 251, 252, 253 Easy and fast wireless luminaire programming Very high efficiency Wide current output range: 200 mA…1050 mA High surge protection: up to 10 kV (in protection class I or II) Great flexibility due to wide operating temperature range of -40…55 °C or 60 °C Protection through double isolation between mains input and LED output Areas of application Street and urban lighting Industry Suitable for outdoor applications in luminaires with IP > 54 Suitable for use in outdoor luminaires of protection class I and II Ecodesign regulation information: Intended for use with LED modules. The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable. Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Read more less

TECHNICAL DATA Electrical data Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage AC 198…264 V Total harmonic distortion < 10 % Power factor λ 0.98 ECG efficiency 90 % 1) Device power loss 4.9 W 2) Protective conductor current <0.7 mA Inrush current < 16 A 3) Max. ECG no. on circuit breaker 10 A (B) 16 Max. ECG no. on circuit breaker 16 A (B) 25 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 25…42 V U-OUT (working voltage) 60 V Nominal output current 800 / 900 / 1050 / 950 mA Output current tolerance ±7.5 % Output ripple current (100 Hz) < 5 % Nominal output power 20…44 W Galvanic isolation SELV

Read more less

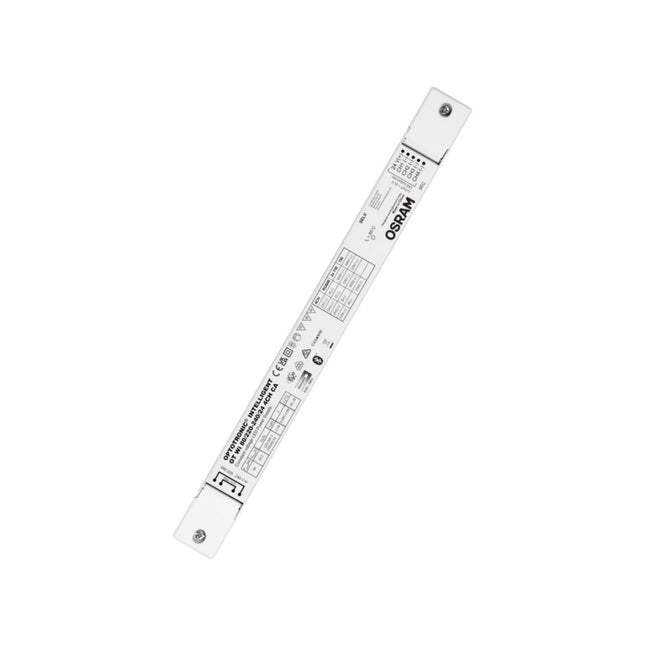

Product family features 50, 80, 160 W / 24 V LED drivers, multichannel output Lighting wireless Bluetooth Mesh network Different light profiles to customize the application Product family benefits Power supply and control of white, Tunable White, Tunable Warm White, Dim to Warm Power supply and control of RGB and RGBW LED modules Driver with integrated CASAMBI lighting control system Slim form factor for installation in light boxes No stroboscopic effect thanks to patented high PWM frequency management (> 2 kHz) Areas of application Suitable for indoor installations Shops and hospitality: retail, hotels, restaurants Museums, residential buildings

Read more less

Please note these will be supplied without the cable clamps in the picture, these are an additional extra  Product family benefits Compact housing for mounting in very tight spaces Compatible with the most common leading-edge and trailing-edge phase dimmers Areas of application Optional cable clamp E-style for independent mounting Suitable for indoor installations Suitable for indoor SELV installations Ecodesign regulation information: Intended for use with LED modules. The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable. Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled. Find technical data and additional assets in our datasheet Product Datasheet

Read more less
