OTe 50/220…240/1A4 CS OPTOTRONIC ECO | Compact constant current LED driver – Non dimmable Product family features _ Supply voltage: 220…240 V _ Line frequency: 50 Hz | 60 Hz _ Line voltage: 198…264 V _ According to EN 61347-1, 61347-2-13, 62384 _ RI suppression: to EN 55015/CISPR 15 _ Line harmonics according to EN 61000-3-2 _ Immunity according to EN 61547 _ Lifetime: up to 50,000 h _ Independent connection via through-looping (depending on version of product)

Read more less

Gen 3 will be sent out   Product family benefits Intelligent power matching thanks to Smart power supply Slim form factor for mounting on the cove or in linear luminaires No stroboscopic effect thanks to patented high PWM frequency management (> 2 kHz) Suitable for installation in emergency lighting systems according to EN 60598-2-22 Available as single-channel or multi-channel with DT6 and DT8 in one device DALI message detection "LED Module failure" IP rating: IP20 Areas of application Cove lighting, wall washer, corridor, handrail, luminous ceilings Suitable for use in luminaires of protection class I and II Equipment / Accessories Suitable for 24 V LED modules 4062172274326 Data sheet

Read more less

Nominal input voltage 220…240 V Mains frequency 0/50/60 Hz Input voltage AC 198…264 V Input voltage DC 176…276 V Total harmonic distortion < 20 % Power factor λ > 0.95 ECG efficiency 88 % Device power loss 4.5 W Power loss in stand-by mode <0.1 W Inrush current < 20 A Max. ECG no. on circuit breaker 10 A (B) 50 Max. ECG no. on circuit breaker 16 A (B) 80 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 12…54 V U-OUT (working voltage) 60 V Nominal output current 180…700 mA Output current LEDset open 90 mA Output current LEDset shorted 500 mA Default output current 500 mA Output current tolerance ±3 % Output ripple current (100 Hz) < 1 % Output PSTLM ≤1 Output SVM ≤0.4 Nominal output power 27 W Galvanic isolation SELV Dimensions & weight Mounting hole spacing, length 94.0 mm Mounting hole spacing, width 58.0 mm Product weight 149.00 g Cable cross-section, input side 0.2…1.5 mm² Cable cross-section, output side 0.2…1.5 mm² Wire preparation length, input side 8.0…9.0 mm Wire preparation length, output side 8.0…9.0 mm Height 29.5 mm Length 103.0 mm Width 67.0 mm Colors & materials Casing material Plastic Temperatures & operating conditions Ambient temperature range -20…+50 °C Maximum temperature at tc test point 75 °C Max.housing temperature in case of fault 110 °C Temperature range at storage -25…85 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 / 100000 h Capabilities Dimmable Yes Dimming interface DALI / Touch DIM / Touch DIM Sensor Dimming range 1…100 % Dimming method Amplitude Modulation Constant lumen function Programmable Overheating protection Automatic reversible Overload protection Automatic reversible Short-circuit protection Automatic reversible No-load proof Yes Max. cable length to lamp/LED module 2.0 m Suitable for fixtures with prot. class I / II Type of connection, output side Push terminal Number of channels 1 Programming interface DALI, LEDset DALI-2 Diagnostic Data Yes DALI-2 Energy Data Yes Programming Tuner4TRONIC Field App No Programming device DALI / LEDset Programmable features Lamp Operating Time Yes Driver Guard No DALI Settings Yes Emergency Mode Yes DALI-2 Luminaire Data Yes Configuration Lock No Soft Switch Off Yes Dim to Dark No TouchDIM + Sensor Yes Corridor Functionality Yes OEM Key Yes Certificates & standards Approval marks – approval ENEC 10 / VDE / EMC / EL / CE / DALI-2 Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1 Protection class II Type of protection

Read more less

Product family features Line frequency: 0 Hz | 50 Hz | 60 Hz Versatile DALI window driver up to 80 W due to flexible output characteristic Supply voltage: 220…240 V Available with output current range: up to 2,100 mA Constant Lumen Output (CLO) Integrated customizable thermal management (Driver Guard) DALI-2 certified (Part -101,-102 and -207) Product family benefits Fully programmable via software (DALI Interface) Flexible current setting (LEDset2) Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate) High-quality dimming of 1…100 % by amplitude dimming (except 80 W versions) High quality of light thanks to <1% output ripple current Very high efficiency Very low standby power consumption: < 0.15 W * Fulfill safety requirement due to overload, overtemperature, Hot Plug protection Versatile scope of application due to OSRAM DALI Technology: Easy to use in corridors and restrooms because of three-level Corridor function Touch DIM application: easy to control via pushbutton or sensor Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable Feedback of power consumption and operating hours (Fit for SMART GRID) Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting Luminaire information for easy maintenance Areas of application Linear lighting for office, education, storage areas and retail Installation in emergency lighting systems according to IEC 61347-2-13, appendix J Suitable for luminaires of protection class I Ecodesign regulation information: Intended for use with LED modules. The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable. Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled. Find technical data and additional assets in our datasheet Product Datasheet

Read more less

Product family benefits Versatile DALI window driver due to flexible output characteristic Very high efficiency Protection of the system thanks to thermal management and Smart Control High-quality dimming of 1…100 % by amplitude dimming Versatile scope of application due to OSRAM DALI Technology: Easy to use in corridors and restrooms because of three-level Corridor function Touch DIM application: easy to control via pushbutton or sensor Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable Feedback of power consumption and operating hours (Fit for SMART GRID) Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting Areas of application Installation in emergency lighting systems according to IEC 61347-2-13, appendix J Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset) Suitable for indoor SELV installations Suitable for luminaires of protection classes I and II Suitable for downlights, spotlights and LED panels Installation via Cable Clamp Kit possible (depending on version of product)    Data sheet

Read more less

Product family benefits Versatile DALI window driver due to flexible output characteristic Locking and unlocking of luminaire/driver data Advanced luminaire/driver data (power, energy, operating hours…) for analytics DALI-2 certified incl. Parts 251, 252, 253 Easy and fast output current setting via NFC Very high efficiency High-quality dimming of 1…100 % by amplitude dimming Versatile scope of application due to OSRAM DALI Technology: Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13,appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable Feedback of power consumption and operating hours (Fit for SMART GRID) Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting Areas of application Installation in emergency lighting systems according to IEC 61347-2-13, appendix J Suitable for use in luminaires with flexible current setting Suitable for indoor SELV installations Suitable for luminaires of protection classes I and II Suitable for downlights, spotlights and LED panels Installation via Cable Clamp Kit possible (depending on version of product)   Data sheet

Read more less

Product family features Line frequency: 0 Hz | 50 Hz | 60 Hz Versatile DALI window driver up to 50 W due to flexible output characteristic Supply voltage: 220…240 V Available with output current range: up to 1,400 mA Constant Lumen Output (CLO) Integrated customizable thermal management (Driver Guard) Product family benefits Fully programmable via software (DALI Interface, NFC) Advanced luminaire/driver data (power, energy, operating hours…) for analytics DALI-2 certified incl. Parts 251, 252, 253 Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate) High-quality dimming of 1…100 % by amplitude dimming Higher quality of light thanks to < 3% output ripple current Very high efficiency Very low standby power consumption: < 0.15 W * Fulfill safety requirement due to overload, overtemperature, Hot Plug protection Areas of application Linear lighting for office, education, industry, storage areas and retail Installation in emergency lighting systems according to IEC 61347-2-13, appendix J Suitable for luminaires of protection class I Ecodesign regulation information: Intended for use with LED modules. The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable. Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled. Find technical data and additional assets in our datasheet Product Datasheet

Read more less

Product Datasheet   Product family features _ Line frequency: 0 Hz | 50 Hz | 60 Hz _ Versatile DALI window driver up to 75 W due to flexible output characteristic _ Supply voltage: 220…240 V _ Usable as DT6 (2-channel) or DT8 (Tunable White) driver* _ Available with output current range: up to 700 mA _ Constant Lumen Output (CLO) _ Integrated customizable thermal management (Driver Guard) _ Non-isolated drivers

Read more less

Technical Data Electrical data Nominal input voltage 220…240 V Mains frequency 50…60 Hz Input voltage AC 198…264 V Input voltage DC 176…276 V Current set DALI / LEDset / Programmable Total harmonic distortion < 10 % Power factor λ > 0.95 ECG efficiency up to 94 % Device power loss 9.0 W Power loss in stand-by mode <0.25 W Inrush current 25 A Max. ECG no. on circuit breaker 10 A (B) 15 Max. ECG no. on circuit breaker 16 A (B) 24 Max. ECG no. on circuit breaker 25 A (B) 29 Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 54…240 V U-OUT (working voltage) < 250 V Nominal output current 250…1000 mA Output current LEDset open 125 mA Output current LEDset shorted 250 mA Default output current 125 mA Output current tolerance ±3 % Output ripple current (100 Hz) < 1 % Output PSTLM ≤1 Output SVM ≤0.4 Nominal output power 13.5…90 W Galvanic isolation Non isolated Dimensions & weight Mounting hole spacing, length 270.0 mm Product weight 205.00 g Cable cross-section, input side 0.5…1.5 mm² Cable cross-section, output side 0.5…1.5 mm² Wire preparation length, input side 8.5…9.5 mm Wire preparation length, output side 8.5…9.5 mm Height 21.0 mm Width 30.0 mm Length 280.0 mm Colors & materials Casing material Metal Temperatures & operating conditions Ambient temperature range -25…+50 °C Maximum temperature at tc test point 75 °C Max.housing temperature in case of fault 110 °C Temperature range at storage -25…85 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 / 100000 h Additional product data Encapsulated No Capabilities Programming interface DALI, LEDset Dimmable Yes Dimming interface DALI-2 / Touch DIM / Touch DIM Sensor Dimming range 1…100 % Dimming method Full analogue dimming Overheating protection Automatic reversible Overload protection Automatic reversible Short-circuit protection Automatic reversible No-load proof Yes Max. cable length to lamp/LED module 2.0 m Suitable for fixtures with prot. class I Suitable for emergency lighting Yes Type of connection, input side Push terminal Type of connection, output side Push terminal Number of channels 1 Control interface DALI Programming Tuner4TRONIC Field App Yes Programming device DALI magic Tuner4TRONIC Yes Certificates & standards Approval marks – approval CE / EL / VDE-ENEC / VDE-EMC / EAC / CCC / BIS / RCM Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386 Type of protection IP20 Logistical data

Read more less

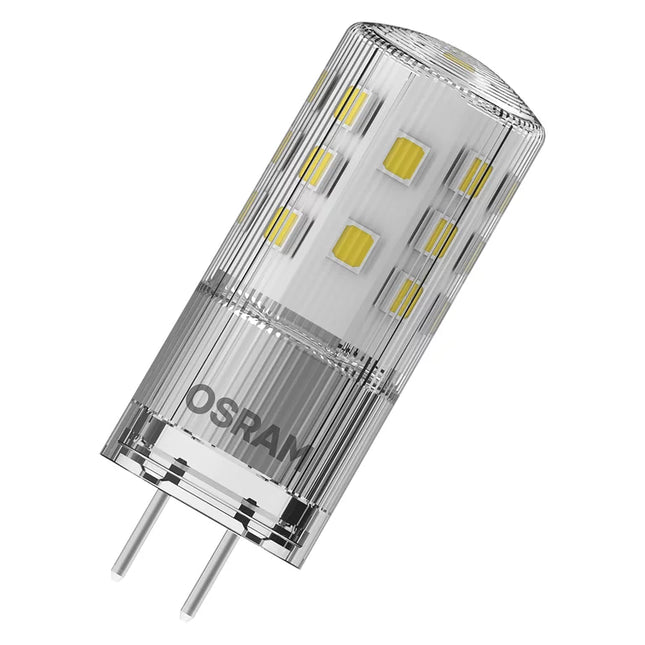

P DIM PIN 40 320 ° 4.5 W/2700 K GY6.35 Product benefits Variable use at Direct Current and Alternating Current Good all-around light emission Ideal for decorative and free-burning applications Very long lifetime of up to 25,000 h Four year guarantee Four year guarantee View all details Product data sheet

Read more less

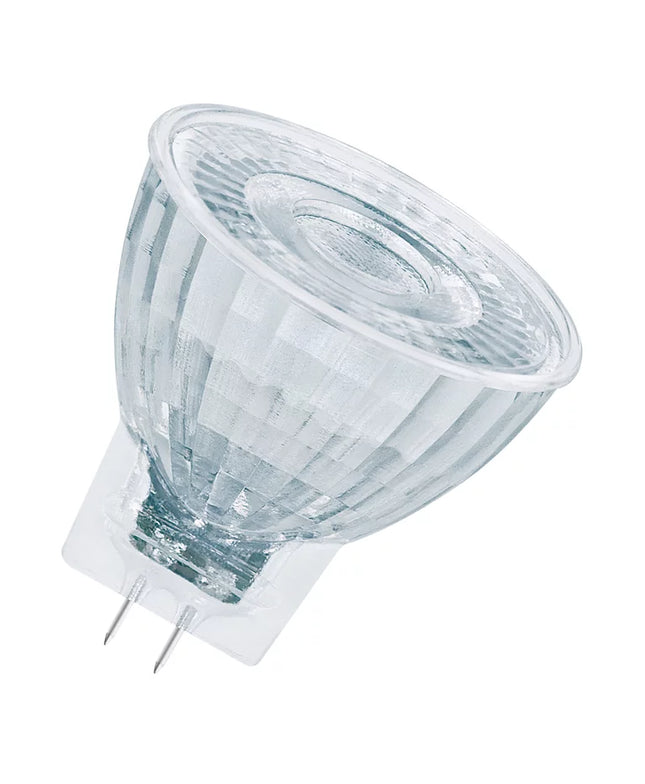

Product benefits Quick, simple and safe replacement without rewiring Design, dimensions, luminous flux comparable to an incandescent or halogen lamp Low maintenance costs thanks to long lifetime No UV and near-IR radiation in the light beam Stepless dimming Very high dimmer compatibility, see also www.ledvance.com/dim Compatible with many common conventional and electronic control gears (see also compatibility list) Instant 100 % light, no warm-up time Compatible with most existing halogen transformers if in any doubt please order  the OSram HTM70 for 100! confirmed compatibility

Read more less

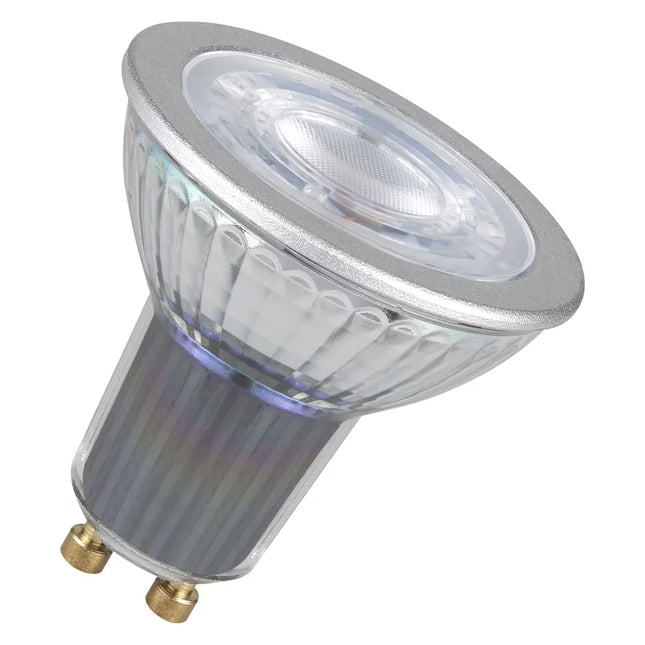

P PAR16 100 36 ° 9.6 W/2700 K GU10 DIM Product benefits Quick, simple and safe replacement without rewiring Design, dimensions, luminous flux comparable to an incandescent or halogen lamp Low maintenance costs thanks to long lifetime No UV and near-IR radiation in the light beam Stepless dimming Very high dimmer compatibility, see also www.ledvance.com/dim Instant 100 % light, no warm-up time

Read more less
