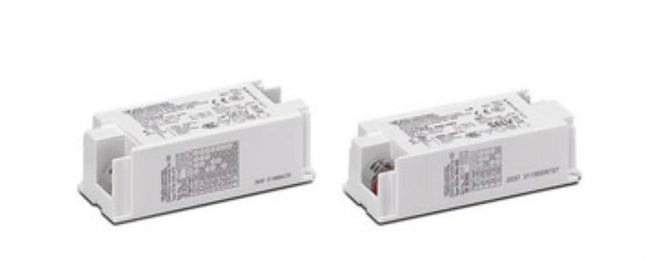

https://www.vossloh-schwabe.com/fileadmin/perfion/files/CC-EasyLine-DIP-switch-C-R5_186841-186842-186843_EN.pdf   Dimensions • Casing: K25 • Length: 97 mm • Width: 43 mm • Height: 29.5 mm   EasyLine DIP switch C-R5 Product features • Compact casing shape Functions • Selectable current output by dip-switch Electrical features • Mains voltage: 220–240 V ±10% • Mains frequency: 50–60 Hz • Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm² • Power factor at full load: > 0.98 • Open circuit voltage (Umax.): 60 V • Secondary side switching of LED modules is not allowed. Safety features • Protection against transient main peaks up to 1 kV (between L and N) • Electronic short-circuit protection • Overload protection • Overtemperature protection • Protection against "no load" operation • Degree of protection: IP20 • Protection class II • SELV Packaging units

Read more less

Product details ECXe400.223 LED Driver - Adjustable Current by LEDSET The LED drivers in the ECX range are so-called constant current drivers. Their role is to stabilize the output current (mA) for the LED module. The output current is stabilized, but the output voltage is variable. For example, the driver with reference 186681 stabilizes the current at 700mA, and the output voltage is between 2V and 25V. This driver will therefore power an LED with a power of 1.4W to 17.5W. There are different types of drivers in this range, suitable for all LED applications (residential, shop, industry, public lighting, etc.). The simplest drivers only have one output current (700mA for example). Some other drivers, called multi-current, have several output currents, from 300mA to 1050mA for the reference 186763 for example. Several options for selecting the output current exist, and change from one driver to another: - several output connectors on the driver - programmable driver with an additional tool (in NFC) - DIP Switch - selection wheel - etc...EcxThe LED drivers in the ECX range are so-called constant current drivers. Their role is to stabilize the output current (mA) for the LED module.The output current is stabilized, but the output voltage is variable.For example, the reference driver 186681 stabilizes the current at 700mA, and the output voltage is between 2V and 25V. This driver will therefore power an LED with a power of 1.4W to 17.5W.There are different types of drivers in this range, suitable for all LED applications (residential, shop, industry, public lighting, etc.).The simplest drivers only have one output current (700mA for example).Some other drivers, called multi-current, have several output currents, from 300mA to 1050mA for the reference 186763 for example.Several options for selecting the output current exist, and change from one driver to another:- several output connectors on the driver- programmable driver with an additional tool (in NFC)- DIP Switch- selection wheel- etc...

Read more less

0

Read more less

Product features Compact casing shape Functions Selectable current output by dip-switch Electrical features Mains voltage: 220–240 V ±10% Mains frequency: 50–60 Hz Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm² Power factor at full load: > 0.95 Open circuit voltage (Umax.): 60 V Secondary side switching of LED modules is not allowed Safety features Protection against transient main peaks up to 1 kV (between L and N) Electronic short-circuit protection Overload protection Degree of protection: IP20 Protection class II SELV Dimensions Length: 97 mm • Width: 43 mm • Height: 30 mm Product guarantee 5 years for operation at recommended operation temperature

Read more less

ComfortLine Terminal L-R1 Product features • Linear casing shape Functions • The required current output can be chosen by selecting the respective pin at the output terminal. Electrical features • Mains voltage: 220–240 V ±10% • Mains frequency: 50–60 Hz • Push-in terminals: 0.2–1.5 mm² • Power factor at full load: > 0.97 • Max. working voltage (UOUT): 250 V • Secondary side switching of LED modules is not allowed. Safety features • Protection against transient main peaks up to 1 kV (between L and N) and up to 2 kV (between L/N and PE) • Electronic short-circuit protection • Overtemperature protection • Protection against "no load" operation • Degree of protection: IP20 • Protection class I Dimensions Casing: M10 Length: 359 mm Width: 30 mm Height: 21 mm

Read more less

186842   EasyLine DIP switch C-R5 Product features • Compact casing shape Functions • Selectable current output by dip-switch Electrical features • Mains voltage: 220–240 V ±10% • Mains frequency: 50–60 Hz • Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm² • Power factor at full load: > 0.98 • Open circuit voltage (Umax.): 60 V • Secondary side switching of LED modules is not allowed. Safety features • Protection against transient main peaks up to 1 kV (between L and N) • Electronic short-circuit protection • Overload protection • Overtemperature protection • Protection against "no load" operation • Degree of protection: 21 ECXe 700.345 186842 220–240 120 < 16 / 100 500 23–42 < 10 89 < 5 25.2 140 600 27.3 150 650 29.4 160 700

Read more less

Leading edge & Trailing Edge Dimmable Constant Current Design Protections: Short circuit/ Over Voltage/ Overload/ Over Temperature Other features: Power Factor >0.9 Class II 3 years warrantyMore Information Manufacturer Eaglerise Output Wattage (W) 7 Output Current 700mA Dimmable (Type) No Output Voltage Range (V) 11.5~17.5 DC Output Adjustment No EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN61547; EN61000-4-2 – Performance Criteria B; EN61000-4-5 – 500V; Performance Criteria C Input Voltage 220-240VAC Safety Standards EN61347-1, EN61347-2-13 Working Temperature -10~+50°C

Read more less

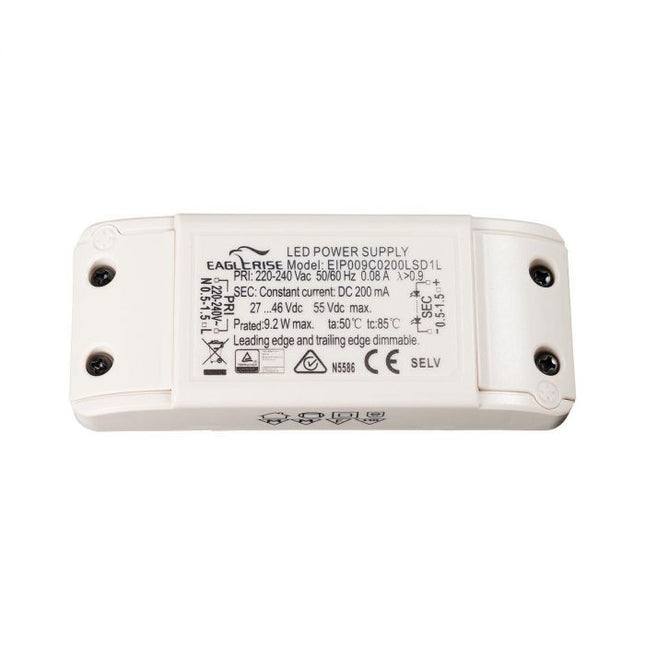

OBSOLETE, THE BELOW WILL BE SENT Or  Alternative alternative    Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 200mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year WarrantyMore Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 200mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf

Read more less

Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 400mA 9W Features: Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor 0.9 Efficiency 78% Class II, SELV Leading edge & trailing edge dimmable. 5 Year Warranty More Information: Manufacturer: Eaglerise Output Wattage (W): 9 Output Current: 400mA Dimmable (Type): Triac Leading edge & Trailing edge DC Output Adjustment: No Dimensions: 105 x 42 x 24 mm EMC Standards: EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage: 220-240VAC Safety Standards: EN 61347-1; EN61347-2-13 Output Voltage Options: Single Working Temperature: -10 ~ +50C

Read more less

Obsolete please order  the below as an alternative and select  700Ma .  https://www.easy-controlgear.com/products/eled-20p-c250-700t-constant-current-led-drivers-10-5-20-3w?_pos=1&_sid=2e417cc1e&_ss=r   Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 700mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year WarrantyMore Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 700mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf

Read more less

OBSOLETE YOU WILL BE SENT A EUP12T-1HMC-O    Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current range 200-700mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year WarrantyMore Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current Choose Option Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf

Read more less

Leading edge & Trailing Edge Dimmable Constant Current Design Protections: Short circuit/ Over Voltage/ Overload/ Over Temperature Other features: Power Factor >0.9 Class II 3 years warrantyMore Information Manufacturer Eaglerise Output Wattage (W) 12 Output Current 250mA Dimmable (Type) Triac Leading edge & Trailing edge Output Voltage Range (V) 23~35 DC Output Adjustment No EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN61547; EN61000-4-2 – Performance Criteria B; EN61000-4-5 – 1000V; Performance Criteria C Input Voltage 220-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -10~+50°C PDF Datasheet EIP012.pdf
