Technical Data Electrical data Nominal input voltage 220…240 V Mains frequency 50…60 Hz Input voltage AC 198…264 V Input voltage DC 176…276 V Current set DALI / LEDset / Programmable Total harmonic distortion < 10 % Power factor λ > 0.95 ECG efficiency up to 94 % Device power loss 9.0 W Power loss in stand-by mode <0.25 W Inrush current 25 A Max. ECG no. on circuit breaker 10 A (B) 15 Max. ECG no. on circuit breaker 16 A (B) 24 Max. ECG no. on circuit breaker 25 A (B) 29 Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 54…240 V U-OUT (working voltage) < 250 V Nominal output current 250…1000 mA Output current LEDset open 125 mA Output current LEDset shorted 250 mA Default output current 125 mA Output current tolerance ±3 % Output ripple current (100 Hz) < 1 % Output PSTLM ≤1 Output SVM ≤0.4 Nominal output power 13.5…90 W Galvanic isolation Non isolated Dimensions & weight Mounting hole spacing, length 270.0 mm Product weight 205.00 g Cable cross-section, input side 0.5…1.5 mm² Cable cross-section, output side 0.5…1.5 mm² Wire preparation length, input side 8.5…9.5 mm Wire preparation length, output side 8.5…9.5 mm Height 21.0 mm Width 30.0 mm Length 280.0 mm Colors & materials Casing material Metal Temperatures & operating conditions Ambient temperature range -25…+50 °C Maximum temperature at tc test point 75 °C Max.housing temperature in case of fault 110 °C Temperature range at storage -25…85 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 / 100000 h Additional product data Encapsulated No Capabilities Programming interface DALI, LEDset Dimmable Yes Dimming interface DALI-2 / Touch DIM / Touch DIM Sensor Dimming range 1…100 % Dimming method Full analogue dimming Overheating protection Automatic reversible Overload protection Automatic reversible Short-circuit protection Automatic reversible No-load proof Yes Max. cable length to lamp/LED module 2.0 m Suitable for fixtures with prot. class I Suitable for emergency lighting Yes Type of connection, input side Push terminal Type of connection, output side Push terminal Number of channels 1 Control interface DALI Programming Tuner4TRONIC Field App Yes Programming device DALI magic Tuner4TRONIC Yes Certificates & standards Approval marks – approval CE / EL / VDE-ENEC / VDE-EMC / EAC / CCC / BIS / RCM Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386 Type of protection IP20 Logistical data

Read more less

Driver LC 20W 100-1050mA 44V o4a NF SR EXC3 excite series Product description Independent constant current LED driver Dimmable via DALI-2 Dimming range 1 to 100 % (min. 5 mA) Output current adjustable between 100 – 1,050 mA with DALI or NFC Max. output power 20 W Up to 85 % efficiency Power input on stand-by < 0.4 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Toolless mounting of strain relief Interfaces Near field communication (NFC) one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION V2) Functions Adjustable output current in 1-mA-steps (NFC, DALI-2) Constant light output function (CLO) Protective features (overtemperature, short-circuit, overload, no-load) Surge protection voltage 1 kV (L – N) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Flexible configuration via companionSUITE (NFC, DALI-2) Application-oriented operating window for maximum compatibility New strain relief concept – fast mounting and pre-assembled connection of the LED load possible Typical applications For applications in downlight and decorative luminaires

Read more less

89800702   EMpowerLED BASIC FX 202 LiFePO4 2W SCREW EM LED drivers Product description_ Self contained emergency lighting LED driver for manual testing_ Non-maintained and maintained operation_ For luminaire installation_ EM = Emergency_ Nominal lifetime up to 100,000 h_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Functions_ 1 or 3 h rated duration depending on connected battery_ For 1 or 2 LEDs connected in series_ Automatic detection of connected LED load_ Switched live for switching the LED outputBattery management_ Intelligent charge system_ Deep discharge protection_ Temperature protection_ Polarity reversal protection for battery provided by 3-poleconnectorBatteries_ LiFePO4 batteries with Tridonic LiFeGuard_ Temperature-protected_ Overcharge-/Overdischarge protection_ Ensures safety in use_ LiFePO4: up to 12 years design life_ 8 years guarantee for LiFePO4 batteries (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions) 1_ For battery compatibility refer to data sheet, battery selection1 28005859 - 5 Jahre Garantie. 28006323 - 4 Jahre Garantie.LiFeGuardWebsitehttp://www.tridonic.com/89800701

Read more less

Constant Voltage Fully encapsulated with IP67 level Protections: Short circuit/ Overload/ Over voltage Other features: Universal AC input / Full Range Class 2 power unit Isolation class II, no F.G. Withstand 300VAC surge input for 5 seconds Cooling by free air convection Pass LPS 100% full load burn-in test Low cost, High reliability 2 years warrantyMore Information: Manufacturer: Mean Well Output Wattage (W) 60 Output Voltage 24V Dimmable (Type) No DC Output Adjustment N/A Dimensions 162.5 x 42.5 x 32 EMC Standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC Safety Standards UL1310, UL879 approved; Design refer to TUV EN60950-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30°C~+70°C

Read more less

Osram OTi DALI 15/220…240/1A0 LT2

Read more less

The Luxna LXPAN30DND is a 30W LED driver designed for non-dimmable lighting applications, featuring an IP20 rating suitable for indoor environments. Engineered to provide stable and efficient power supply, it ensures consistent LED performance and longevity. Its compact design facilitates easy integration into various lighting fixtures, making it ideal for professional installations where reliable, maintenance-free operation is essential. This driver supports a wide range of LED loads, delivering optimal current regulation to enhance overall lighting quality.

Read more less

Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED Driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 150 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 35 W Up to 88 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

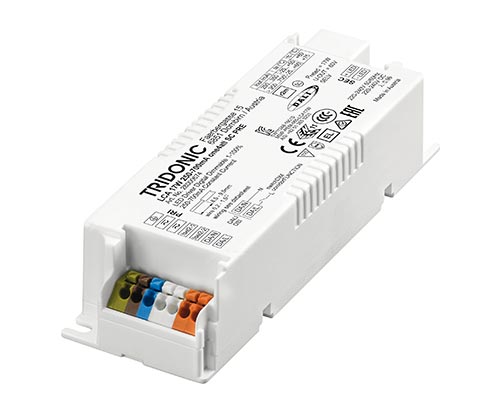

Pictured with Strain relief ( separate product  )  https://www.easy-controlgear.com/products/strain-relief-set-43x30mm-280001168 Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Can be either used built-in or independent with clip-on strain-relief (see accessory) Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 250 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 17 W Up to 86 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Typical applications For linear/area lighting in office applications

Read more less

This item is now obsolete, please click the below for the alternative  set to 350Ma Alternative  186519 Illuminate your space with precision using the Electronic LED Driver Ledline ECXe 350.192 9W 350mA. Designed for constant current driven LED modules, it offers a power factor of 0.6, 50,000-hour service life, and multiple safety features. Versatile and efficient, this driver guarantees exceptional lighting for any environment. Introducing the Electronic LED Driver Ledline ECXe 350.192 9W 350mA: Illuminate Your World with Precision Illuminate your space with unparalleled precision and efficiency using the Electronic LED Driver Ledline ECXe 350.192 9W 350mA. Designed to be the ultimate companion for constant current driven LED modules, this cutting-edge electronic LED driver is engineered to bring you the perfect lighting experience. Dive into the details and discover why this LED driver is a game-changer for your lighting needs. Description: Precision Meets Performance Our Ledline ECXe 350.192 9W 350mA electronic LED driver is the epitome of precision and performance. Crafted to cater to the specific requirements of constant current driven LED modules, this driver guarantees exceptional results with every installation. Features: Masterful Engineering at a Glance Electrical Characteristics: No secondary side switching of LED modules allowed, ensuring consistent performance. Power factor of 0.6 for optimal energy efficiency. Remarkable service life of 50,000 hours, offering long-lasting illumination. Connection Details: Mains voltage range of 220 - 240 V ±10% for versatility in installation. Mains frequency of 0 Hz, 50 - 60 Hz, ensuring compatibility with various setups. Screw terminals with 2.5 mm² capacity for secure and reliable connections. Integrated cord grip (except 186180) for added convenience. Safety Features: Electronic short-circuit protection for peace of mind. Overload protection to safeguard your LED modules. Protection against no-load operation, enhancing durability. Degree of protection: IP20, shielding against dust and moisture. Protection class II and SELV equivalent for safety compliance. Max output of 9 W, providing ample power for your lighting needs. Output Specifications: Mains voltage: 0 Hz, 176 - 264 V, 60 - 40 mA. Mains voltage: 50 - 60 Hz, 220 - 240 V, 91 - 88 mA. Current output DC: 350 mA, ensuring stable performance. Voltage output DC: 2 - 24 V for versatile applications. Max. voltage without load DC: 25 V for added flexibility. Efficiency at full load (230 V): > 78% for energy efficiency. Operating temperature range of -20…50 °C. Casing temperature can reach up to 80 °C, assuring durability. Additional Safety Features: Protection against transient main peaks. Electronic short-circuit protection for extra security. Overload protection to preserve your LED modules. Overtemperature protection for long-lasting performance. Protection against "no load" operation for added reliability. Degree of protection: IP20, shielding against dust and moisture. Protection class I for built-in setups and protection class II for independent use. SELV (Safety Extra Low Voltage) for peace of mind. Applications: Illuminate Your Imagination The Electronic LED Driver Ledline ECXe 350.192 9W 350mA is a versatile powerhouse, perfect for a wide range of applications. Whether you're lighting up your home, office, retail space, or any other environment, this LED driver ensures consistent and efficient performance. It's compatible with constant current driven LED modules, making it the ideal choice for various lighting setups. Say goodbye to flickering lights and uneven illumination – with the Ledline ECXe 350.192, you can create the perfect lighting atmosphere for any space. Conclusion: Shine Bright with Confidence In the world of LED drivers, the Electronic LED Driver Ledline ECXe 350.192 9W 350mA stands out as a beacon of excellence. With its precision engineering, robust safety features, and versatile applications, it's the ultimate choice for anyone seeking impeccable lighting solutions. Illuminate your world with confidence and make the Ledline ECXe 350.192 your trusted companion for all your lighting needs.

Read more less

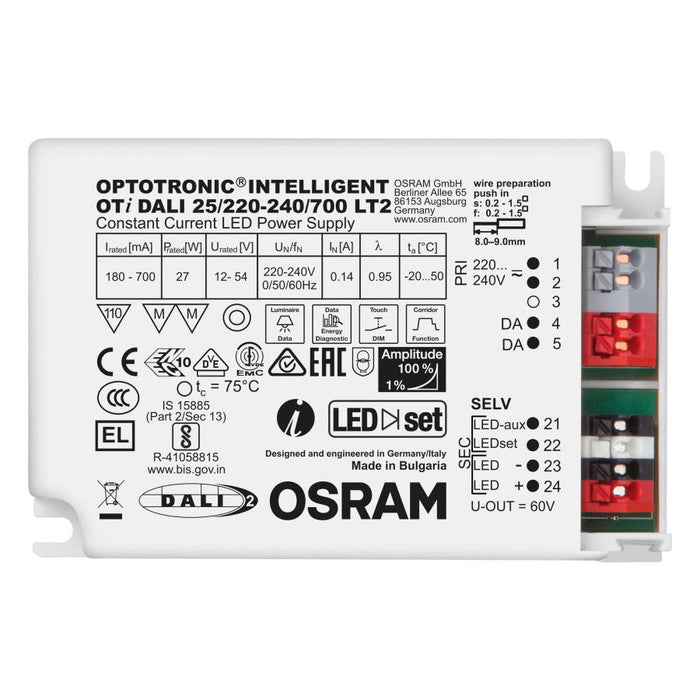

Nominal input voltage 220…240 V Mains frequency 0/50/60 Hz Input voltage AC 198…264 V Input voltage DC 176…276 V Total harmonic distortion < 20 % Power factor λ > 0.95 ECG efficiency 88 % Device power loss 4.5 W Power loss in stand-by mode <0.1 W Inrush current < 20 A Max. ECG no. on circuit breaker 10 A (B) 50 Max. ECG no. on circuit breaker 16 A (B) 80 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 12…54 V U-OUT (working voltage) 60 V Nominal output current 180…700 mA Output current LEDset open 90 mA Output current LEDset shorted 500 mA Default output current 500 mA Output current tolerance ±3 % Output ripple current (100 Hz) < 1 % Output PSTLM ≤1 Output SVM ≤0.4 Nominal output power 27 W Galvanic isolation SELV Dimensions & weight Mounting hole spacing, length 94.0 mm Mounting hole spacing, width 58.0 mm Product weight 149.00 g Cable cross-section, input side 0.2…1.5 mm² Cable cross-section, output side 0.2…1.5 mm² Wire preparation length, input side 8.0…9.0 mm Wire preparation length, output side 8.0…9.0 mm Height 29.5 mm Length 103.0 mm Width 67.0 mm Colors & materials Casing material Plastic Temperatures & operating conditions Ambient temperature range -20…+50 °C Maximum temperature at tc test point 75 °C Max.housing temperature in case of fault 110 °C Temperature range at storage -25…85 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 / 100000 h Capabilities Dimmable Yes Dimming interface DALI / Touch DIM / Touch DIM Sensor Dimming range 1…100 % Dimming method Amplitude Modulation Constant lumen function Programmable Overheating protection Automatic reversible Overload protection Automatic reversible Short-circuit protection Automatic reversible No-load proof Yes Max. cable length to lamp/LED module 2.0 m Suitable for fixtures with prot. class I / II Type of connection, output side Push terminal Number of channels 1 Programming interface DALI, LEDset DALI-2 Diagnostic Data Yes DALI-2 Energy Data Yes Programming Tuner4TRONIC Field App No Programming device DALI / LEDset Programmable features Lamp Operating Time Yes Driver Guard No DALI Settings Yes Emergency Mode Yes DALI-2 Luminaire Data Yes Configuration Lock No Soft Switch Off Yes Dim to Dark No TouchDIM + Sensor Yes Corridor Functionality Yes OEM Key Yes Certificates & standards Approval marks – approval ENEC 10 / VDE / EMC / EL / CE / DALI-2 Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1 Protection class II Type of protection

Read more less

Tridonic 28003603 LC 60/150-550/230 o4a NF h16 EXC4   Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Dimming range 1 to 100 % (min. 5.5 mA) For luminaires of protection class I and protection class II Adjustable output current between 150 and 550 mA Max. output power 60 W Up to 94 % efficiency Power input on stand-by < 0.14 W Nominal lifetime up to 100,000 h 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

Read more less

ELDOLED ECODRIVE 360/A
