EldoLED ECODRIVE 240A

Read more less

89800702   EMpowerLED BASIC FX 202 LiFePO4 2W SCREW EM LED drivers Product description_ Self contained emergency lighting LED driver for manual testing_ Non-maintained and maintained operation_ For luminaire installation_ EM = Emergency_ Nominal lifetime up to 100,000 h_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Functions_ 1 or 3 h rated duration depending on connected battery_ For 1 or 2 LEDs connected in series_ Automatic detection of connected LED load_ Switched live for switching the LED outputBattery management_ Intelligent charge system_ Deep discharge protection_ Temperature protection_ Polarity reversal protection for battery provided by 3-poleconnectorBatteries_ LiFePO4 batteries with Tridonic LiFeGuard_ Temperature-protected_ Overcharge-/Overdischarge protection_ Ensures safety in use_ LiFePO4: up to 12 years design life_ 8 years guarantee for LiFePO4 batteries (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions) 1_ For battery compatibility refer to data sheet, battery selection1 28005859 - 5 Jahre Garantie. 28006323 - 4 Jahre Garantie.LiFeGuardWebsitehttp://www.tridonic.com/89800701

Read more less

Constant Voltage Fully encapsulated with IP67 level Protections: Short circuit/ Overload/ Over voltage Other features: Universal AC input / Full Range Isolation class II, no F.G. Withstand 300VAC surge input for 5 seconds Cooling by free air convection 100% full load burn-in test Low cost, High reliability 2 years warranty

Read more less

New article (28005037) with updated NFC interface for compatibility with ID ECCO Smart 2D-TR Constant current LED driver for luminaire installation For class I luminaires Adjustable output current between 200 and 800 mA via NFC Max. output power 90 W Up to 95 % efficiency Nominal lifetime up to 100,000 h

Read more less

Osram OTi DALI 15/220…240/1A0 LT2

Read more less

The Luxna LXPAN30DND is a 30W LED driver designed for non-dimmable lighting applications, featuring an IP20 rating suitable for indoor environments. Engineered to provide stable and efficient power supply, it ensures consistent LED performance and longevity. Its compact design facilitates easy integration into various lighting fixtures, making it ideal for professional installations where reliable, maintenance-free operation is essential. This driver supports a wide range of LED loads, delivering optimal current regulation to enhance overall lighting quality.

Read more less

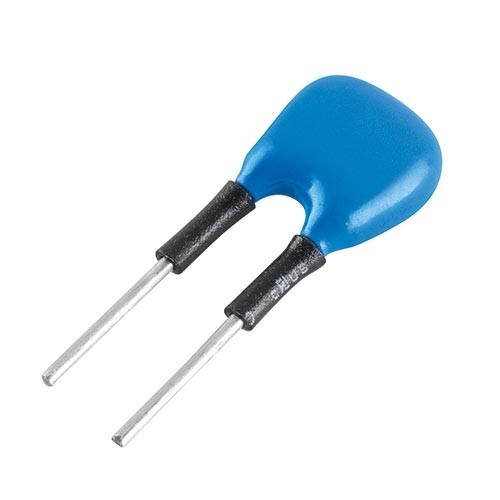

The Tridonic I-SELECT 2 PLUG 700MA BL plug is a ready-to-use resistor to set output current value. This is compatible with LED drivers featuring I-Select 2 interface and is not suitable for use with first generation I-Select interface. The resistor is based isolated, has a resistor power of 0.25w and is suitable for use with LED Driver series PRE and EXC. Tridonic article number: 28001118

Read more less

Pictured with Strain relief ( separate product  )  https://www.easy-controlgear.com/products/strain-relief-set-43x30mm-280001168 Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Can be either used built-in or independent with clip-on strain-relief (see accessory) Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 250 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 17 W Up to 86 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Typical applications For linear/area lighting in office applications

Read more less

Constant Voltage Fully encapsulated with IP67 level Protections: Short circuit/ Overload/ Over voltage Other features: Universal AC input / Full Range Class II power unit, no F.G. Fully isolated plastic case Cooling by free air convection 100% full load burn-in test Low cost, High reliability 2 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 120 Output Voltage 12V Dimmable (Type) No Dimensions 190 x 61 x 37 EMC Standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Safety Standards Design refer to TUV EN60950-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30°C~+70°C PDF Datasheet LPV-150-spec.pdf

Read more less

Nominal input voltage 220…240 V Mains frequency 0/50/60 Hz Input voltage AC 198…264 V Input voltage DC 176…276 V Total harmonic distortion < 20 % Power factor λ > 0.95 ECG efficiency 88 % Device power loss 4.5 W Power loss in stand-by mode <0.1 W Inrush current < 20 A Max. ECG no. on circuit breaker 10 A (B) 50 Max. ECG no. on circuit breaker 16 A (B) 80 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 12…54 V U-OUT (working voltage) 60 V Nominal output current 180…700 mA Output current LEDset open 90 mA Output current LEDset shorted 500 mA Default output current 500 mA Output current tolerance ±3 % Output ripple current (100 Hz) < 1 % Output PSTLM ≤1 Output SVM ≤0.4 Nominal output power 27 W Galvanic isolation SELV Dimensions & weight Mounting hole spacing, length 94.0 mm Mounting hole spacing, width 58.0 mm Product weight 149.00 g Cable cross-section, input side 0.2…1.5 mm² Cable cross-section, output side 0.2…1.5 mm² Wire preparation length, input side 8.0…9.0 mm Wire preparation length, output side 8.0…9.0 mm Height 29.5 mm Length 103.0 mm Width 67.0 mm Colors & materials Casing material Plastic Temperatures & operating conditions Ambient temperature range -20…+50 °C Maximum temperature at tc test point 75 °C Max.housing temperature in case of fault 110 °C Temperature range at storage -25…85 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 / 100000 h Capabilities Dimmable Yes Dimming interface DALI / Touch DIM / Touch DIM Sensor Dimming range 1…100 % Dimming method Amplitude Modulation Constant lumen function Programmable Overheating protection Automatic reversible Overload protection Automatic reversible Short-circuit protection Automatic reversible No-load proof Yes Max. cable length to lamp/LED module 2.0 m Suitable for fixtures with prot. class I / II Type of connection, output side Push terminal Number of channels 1 Programming interface DALI, LEDset DALI-2 Diagnostic Data Yes DALI-2 Energy Data Yes Programming Tuner4TRONIC Field App No Programming device DALI / LEDset Programmable features Lamp Operating Time Yes Driver Guard No DALI Settings Yes Emergency Mode Yes DALI-2 Luminaire Data Yes Configuration Lock No Soft Switch Off Yes Dim to Dark No TouchDIM + Sensor Yes Corridor Functionality Yes OEM Key Yes Certificates & standards Approval marks – approval ENEC 10 / VDE / EMC / EL / CE / DALI-2 Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1 Protection class II Type of protection

Read more less

  28004432 LC 100W 24V one4all NF SC EXC2
