Driver LCA 25W 350–1050mA one4all C PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 350 – 1,050 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 25 W Up to 89 % efficiency Power input on stand-by < 0.17 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

Specifications General information Protection class IEC Safety class I Constant light output Programmable Nominal Lifetime (Nom) 50000 h Number of Products on MCB (16A Type B) (Max) 24 Number of Products on MCB (16A Type-C) (Max) 24 piece/unit Operating and electrical Input Frequency 50 to 60 Hz Mains voltage operation (DC) 168-275 V Total Harmonic Distortion IEC (Max) 20 % Output Current Ripple (Max) 4 % Maximum Efficiency at Full Load 93.1 % Power Factor 100% Load (Min) 0.9 Power Factor 100% Load (Nom) 0.9 Output Current (Max) 400 mA Output Current (Nom) 260 mA Output Current Tolerance (Max) 5 % Input Voltage (AC) 220-240 V Mains voltage performance (DC) 186-250 V Earth Leakage Current (Max) 0.4 mA Standby Power Consumption (Max) 0.47 W Power Factor (Min) 0.9 Open Circuit Voltage (DC) (Max) 275 V Protection Level Up (L-N) at 5 kA (Max) 1 kV Protection Level Up (LN-Earth) at 5 kA (Max) 2 kV Input Current (Nom) 370 mA Input current (AC) 0.37 mA Input current (DC) 0.45 Input Power (Nom) 75 W Inrush Current Peak (Max) 22 A Output Power (Max) 75 W Output Power (Nom) 48 W Output Voltage 100-215 V Default output current 120 mA Inrush Current Width to 50% of Peak 275 µs Power Factor 100% Load (Max) 0.9 Energy Metering Yes Constant Current (CC) True Constant Voltage (CV) False Diagnostics True Output Power (Min) 21 W Output Current (Min) 120 mA Output Voltage (Max) 215 V Output Voltage (Min) 100 V Wiring Connector Type Input Terminals Wago 744 Hot Wiring no Connector Type Output Terminals Wago 744 Output Wire Cross Section (Max) 1.5 mm² Output Wire Cross Section (Min) 0.5 mm² Cable Length From Device to Lamp 4 m Input Wire Gauge 16-20 Input wire strip length 8 mm to 9 mm Output wire strip length 8 mm to 9 mm Input Wire Cross Section (Max) 1.5 mm² Input Wire Cross Section (Min) 0.5 mm² System characteristics Central DC Operation Yes YellowDot ready No Temperature T-Ambient (Max) 50 °C T-Ambient (Min) -20 °C T-Storage (Max) 85 °C T-Storage (Min) -25 °C T-Case Lifetime (Max) 75 °C T-Case Lifetime (Nom) 75 °C T-Case Maximum (Max) 75 °C Module Temperature Protection yes Maximum case temperature (in case of failure) 110 °C Controls and dimming Dimmable DALI Control Interface Touch and DALI Dimming Dimming Range 100-1 % D4i compliant No DynaDimmer No Mechanical and housing Product Length 360 mm Housing Office 360x30x22 744 7 7p SideM Housing Dimensions 360 x 30 x 22 Overall length 360 mm Overall width 30 mm Overall height 22 mm Approval and application Surge Protection (Common/Differential) EN61547 (L-L 1kV, L-G 2kV) kV Relative Humidity (Operation) (Max) 90 % Relative Humidity (Operation) (Min) 10 % IP Classification IP20  [ Finger-protected] Isolation Classification No Short Circuit Protection Protected Over Power Protection Protected Open Circuit Protection Protected Approval Marks CCC certificate CE marking ENEC certificate RCM compliance REACH compliance RoHS compliance Corridor Mode True Output Current Set Options Programmable,Rset2 Product data Full product code 871829168402200 Order product name Xitanium 75W 0.12-0.4A 215V TD 230V EAN/UPC - Product 8718291684022 Order code 929000852103 Numerator - Quantity Per Pack 1 Numerator - Packs per outer box 12 Material Nr. (12NC) 929000852103 Net Weight (Piece) 0.250 kg

Read more less

Driver LC 38W 250-350mA flexC lp ADV advanced series non-SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 250 – 350 mA Max. output power 38 W Up to 88.5 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For linear/area lighting in office applications

Read more less

Driver LCA 100W 24V one4all SC PRE premium series 24 V – dimmable (IP20) With strain-relief Product description NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance) Dimmable 24 V constant voltage LED driver for flexible constant voltage strips Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards) One4all interface and ready2mains enable different dimming options Dimming range 1 to 100 % No additional external dimmer is needed Suitable for emergency escape lighting systems acc. to EN 50172 Nominal lifetime up to 50,000 h 5 years guarantee Typical applications Cove lighting, facade accent lighting, ceiling integration Technical details 24 V, 100 W Small design (295 x 43 x 30 mm) with stretched-compact strain relief Small cross section Push terminals for simple wiring Output terminals (+/–) equipped twice for more flexibility in the application Interfaces one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals System solution Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m In connection with Flex accessories wire to PCB plug Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly

Read more less

Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 300mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year WarrantyMore Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 300mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf

Read more less

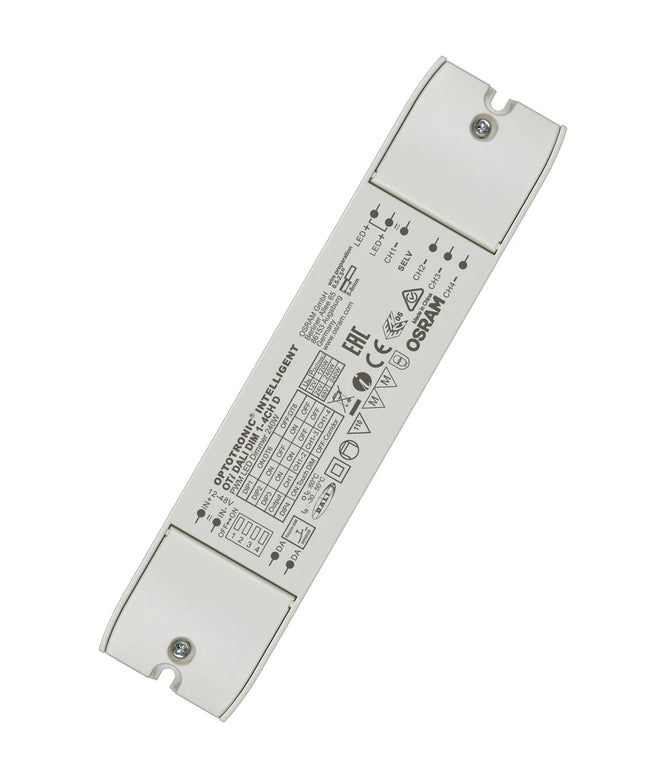

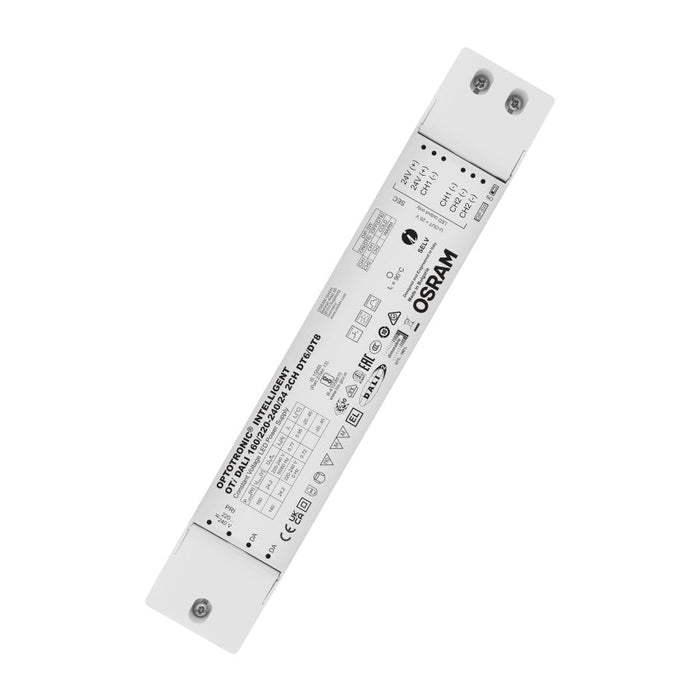

Gen 3 will be sent out   Product family benefits Intelligent power matching thanks to Smart power supply Slim form factor for mounting on the cove or in linear luminaires No stroboscopic effect thanks to patented high PWM frequency management (> 2 kHz) Suitable for installation in emergency lighting systems according to EN 60598-2-22 Available as single-channel or multi-channel with DT6 and DT8 in one device DALI message detection "LED Module failure" IP rating: IP20 Areas of application Cove lighting, wall washer, corridor, handrail, luminous ceilings Suitable for use in luminaires of protection class I and II Equipment / Accessories Suitable for 24 V LED modules 4062172274326 Data sheet

Read more less

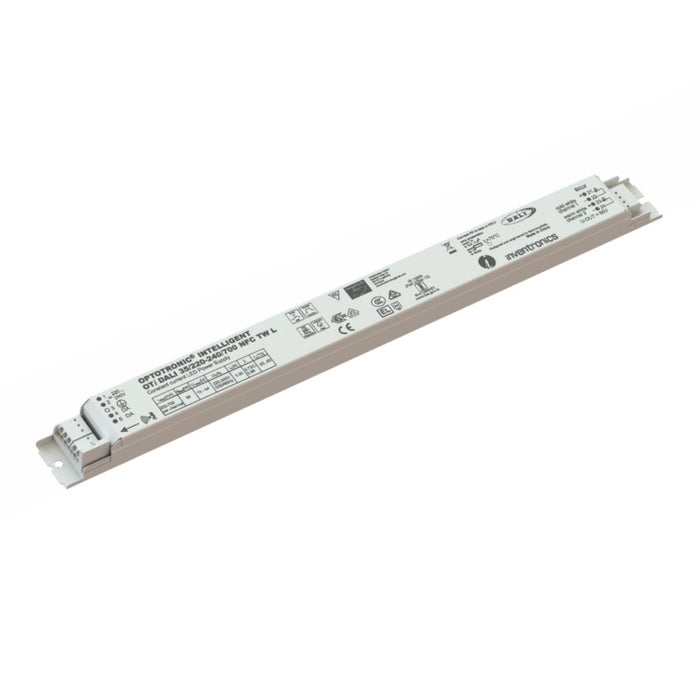

Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED Driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 150 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 35 W Up to 88 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

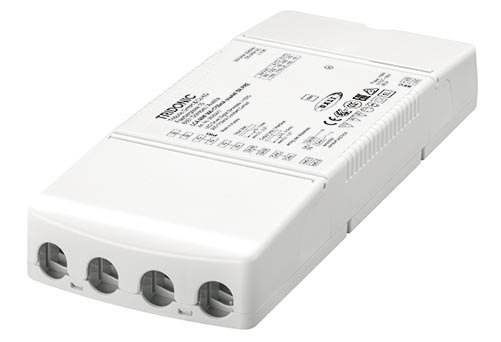

Driver LCA 60W 900–1750mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Output current adjustable between 900 – 1,750 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 60 W Up to 90 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications

Read more less

Please see attached Data Sheet for specifications

Read more less

This item is now obsolete, please click the below for the alternative  set to 350Ma Alternative  186519 Illuminate your space with precision using the Electronic LED Driver Ledline ECXe 350.192 9W 350mA. Designed for constant current driven LED modules, it offers a power factor of 0.6, 50,000-hour service life, and multiple safety features. Versatile and efficient, this driver guarantees exceptional lighting for any environment. Introducing the Electronic LED Driver Ledline ECXe 350.192 9W 350mA: Illuminate Your World with Precision Illuminate your space with unparalleled precision and efficiency using the Electronic LED Driver Ledline ECXe 350.192 9W 350mA. Designed to be the ultimate companion for constant current driven LED modules, this cutting-edge electronic LED driver is engineered to bring you the perfect lighting experience. Dive into the details and discover why this LED driver is a game-changer for your lighting needs. Description: Precision Meets Performance Our Ledline ECXe 350.192 9W 350mA electronic LED driver is the epitome of precision and performance. Crafted to cater to the specific requirements of constant current driven LED modules, this driver guarantees exceptional results with every installation. Features: Masterful Engineering at a Glance Electrical Characteristics: No secondary side switching of LED modules allowed, ensuring consistent performance. Power factor of 0.6 for optimal energy efficiency. Remarkable service life of 50,000 hours, offering long-lasting illumination. Connection Details: Mains voltage range of 220 - 240 V ±10% for versatility in installation. Mains frequency of 0 Hz, 50 - 60 Hz, ensuring compatibility with various setups. Screw terminals with 2.5 mm² capacity for secure and reliable connections. Integrated cord grip (except 186180) for added convenience. Safety Features: Electronic short-circuit protection for peace of mind. Overload protection to safeguard your LED modules. Protection against no-load operation, enhancing durability. Degree of protection: IP20, shielding against dust and moisture. Protection class II and SELV equivalent for safety compliance. Max output of 9 W, providing ample power for your lighting needs. Output Specifications: Mains voltage: 0 Hz, 176 - 264 V, 60 - 40 mA. Mains voltage: 50 - 60 Hz, 220 - 240 V, 91 - 88 mA. Current output DC: 350 mA, ensuring stable performance. Voltage output DC: 2 - 24 V for versatile applications. Max. voltage without load DC: 25 V for added flexibility. Efficiency at full load (230 V): > 78% for energy efficiency. Operating temperature range of -20…50 °C. Casing temperature can reach up to 80 °C, assuring durability. Additional Safety Features: Protection against transient main peaks. Electronic short-circuit protection for extra security. Overload protection to preserve your LED modules. Overtemperature protection for long-lasting performance. Protection against "no load" operation for added reliability. Degree of protection: IP20, shielding against dust and moisture. Protection class I for built-in setups and protection class II for independent use. SELV (Safety Extra Low Voltage) for peace of mind. Applications: Illuminate Your Imagination The Electronic LED Driver Ledline ECXe 350.192 9W 350mA is a versatile powerhouse, perfect for a wide range of applications. Whether you're lighting up your home, office, retail space, or any other environment, this LED driver ensures consistent and efficient performance. It's compatible with constant current driven LED modules, making it the ideal choice for various lighting setups. Say goodbye to flickering lights and uneven illumination – with the Ledline ECXe 350.192, you can create the perfect lighting atmosphere for any space. Conclusion: Shine Bright with Confidence In the world of LED drivers, the Electronic LED Driver Ledline ECXe 350.192 9W 350mA stands out as a beacon of excellence. With its precision engineering, robust safety features, and versatile applications, it's the ultimate choice for anyone seeking impeccable lighting solutions. Illuminate your world with confidence and make the Ledline ECXe 350.192 your trusted companion for all your lighting needs.

Read more less

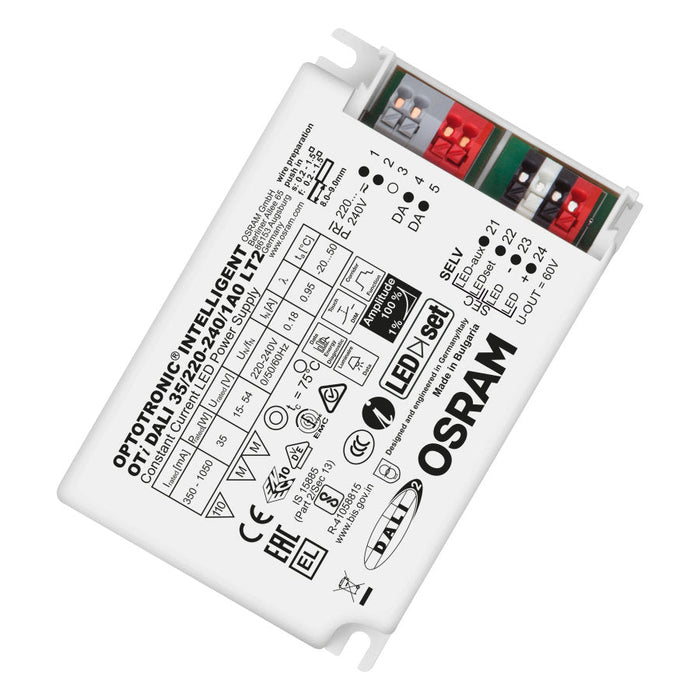

Technical Data Electrical data Nominal input voltage 220…240 V Mains frequency 50…60 Hz Input voltage AC 198…264 V Input voltage DC 176…276 V Current set DALI / LEDset / Programmable Total harmonic distortion < 10 % Power factor λ > 0.95 ECG efficiency up to 94 % Device power loss 9.0 W Power loss in stand-by mode <0.25 W Inrush current 25 A Max. ECG no. on circuit breaker 10 A (B) 15 Max. ECG no. on circuit breaker 16 A (B) 24 Max. ECG no. on circuit breaker 25 A (B) 29 Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 54…240 V U-OUT (working voltage) < 250 V Nominal output current 250…1000 mA Output current LEDset open 125 mA Output current LEDset shorted 250 mA Default output current 125 mA Output current tolerance ±3 % Output ripple current (100 Hz) < 1 % Output PSTLM ≤1 Output SVM ≤0.4 Nominal output power 13.5…90 W Galvanic isolation Non isolated Dimensions & weight Mounting hole spacing, length 270.0 mm Product weight 205.00 g Cable cross-section, input side 0.5…1.5 mm² Cable cross-section, output side 0.5…1.5 mm² Wire preparation length, input side 8.5…9.5 mm Wire preparation length, output side 8.5…9.5 mm Height 21.0 mm Width 30.0 mm Length 280.0 mm Colors & materials Casing material Metal Temperatures & operating conditions Ambient temperature range -25…+50 °C Maximum temperature at tc test point 75 °C Max.housing temperature in case of fault 110 °C Temperature range at storage -25…85 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 / 100000 h Additional product data Encapsulated No Capabilities Programming interface DALI, LEDset Dimmable Yes Dimming interface DALI-2 / Touch DIM / Touch DIM Sensor Dimming range 1…100 % Dimming method Full analogue dimming Overheating protection Automatic reversible Overload protection Automatic reversible Short-circuit protection Automatic reversible No-load proof Yes Max. cable length to lamp/LED module 2.0 m Suitable for fixtures with prot. class I Suitable for emergency lighting Yes Type of connection, input side Push terminal Type of connection, output side Push terminal Number of channels 1 Control interface DALI Programming Tuner4TRONIC Field App Yes Programming device DALI magic Tuner4TRONIC Yes Certificates & standards Approval marks – approval CE / EL / VDE-ENEC / VDE-EMC / EAC / CCC / BIS / RCM Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386 Type of protection IP20 Logistical data

Read more less

Product family benefits Versatile DALI window driver due to flexible output characteristic Very high efficiency Protection of the system thanks to thermal management and Smart Control High-quality dimming of 1…100 % by amplitude dimming Versatile scope of application due to OSRAM DALI Technology: Easy to use in corridors and restrooms because of three-level Corridor function Touch DIM application: easy to control via pushbutton or sensor Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable Feedback of power consumption and operating hours (Fit for SMART GRID) Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting Areas of application Installation in emergency lighting systems according to IEC 61347-2-13, appendix J Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset) Suitable for indoor SELV installations Suitable for luminaires of protection classes I and II Suitable for downlights, spotlights and LED panels Installation via Cable Clamp Kit possible (depending on version of product)    Data sheet
