Obsolete Alternative Up to 100W Alternative up to 60W   The Ecopac ELED-75-24D DALI Dimmable LED Driver is 75W 24VDC output.  Constant Voltage  / PWM Output Design Dali & Push Dimmable Protections: Short circuit/ Over Voltage/ Over Temperature Other features: Dimming range from 0.1% to 100% Input Range 200-265VAC Output 24VDC Built-in PFC function IP20design for indoor or outdoor installations 87% efficiency 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 75 Output Voltage 24V Dimmable (Type) DALI, Push Dimming DC Output Adjustment No Dimensions 355 x 215 x 215 mm EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (?60% load), EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60°C PDF Datasheet ELED-75-D.pdf

Read more less

ELED-40-C300/1400DP2 Features: 40W DALI 2 and Push Dimming Multiple-Stage Output Current LED Driver Features: • Constant Current mode output with multiple levels selectable by dip switch• DALI 2 dimming function (IEC62386)• AC input: 100-277VAC• Built-in active PFC function• Efficiency up to 86%• Protections: Short circuit/ Over load/Over temperature• Cooling by free air convection• Suitable for intelligent LED lighting ELED-C40-300/1400DP2(1400) ELED-C40-300/1400DP2(1300) ELED-C40-300/1400DP2(1200) ELED-C40-300/1400DP2(1100) ELED-C40-300/1400DP2(1000) ELED-C40-300/1400DP2(900) ELED-C40-300/1400DP2(800) ELED-C40-300/1400DP2(700) ELED-C40-300/1400DP2(650) ELED-C40-300/1400DP2(600) ELED-C40-300/1400DP2(550) ELED-C40-300/1400DP2(500) ELED-C40-300/1400DP2(450) ELED-C40-300/1400DP2(400) ELED-C40-300/1400DP2(350) ELED-C40-300/1400DP2(300) Wattage 40 40 40 40 40 40 40 40 40 39 35.8 32.5 29.3 26 22.8 19.5 Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 300mA Output Current 1400mA 1300mA 1200mA 1100Ma 1000mA 900mA 800mA 700mA 650mA 600mA 550mA 500mA 450mA 400mA 350mA 3~65 Output Voltage 3~29 3~31 3~34 3~37 3~40 3~45 3~50 3~57 3~62 3~65 3~65 3~65 3~65 3~65 3~65 Dimensions 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm Working Temperature -40~80°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

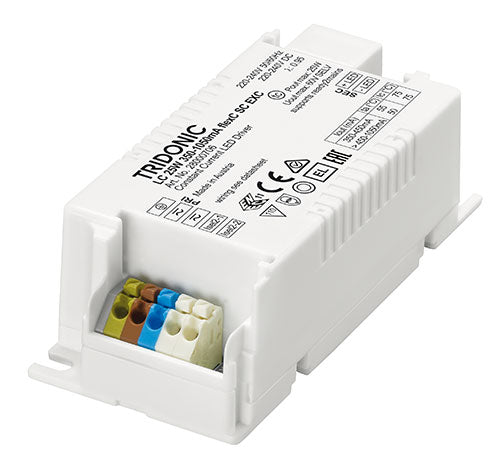

Driver LC 25W 350–1050mA flexC SC EXC excite series With strain-relief Product description Constant current LED driver Can be either used built-in or independent with clip-on strain-relief (see accessory) Adjustable output current between 350 and 1,050 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 25 W Up to 86 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces ready2mains (configuration via mains) Terminal blocks: 45° push terminals Functions Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to high efficiency Flexible configuration via ready2mains and I-SELECT 2 Typical applications For downlight, spotlight and decorative applications   Data sheet

Read more less

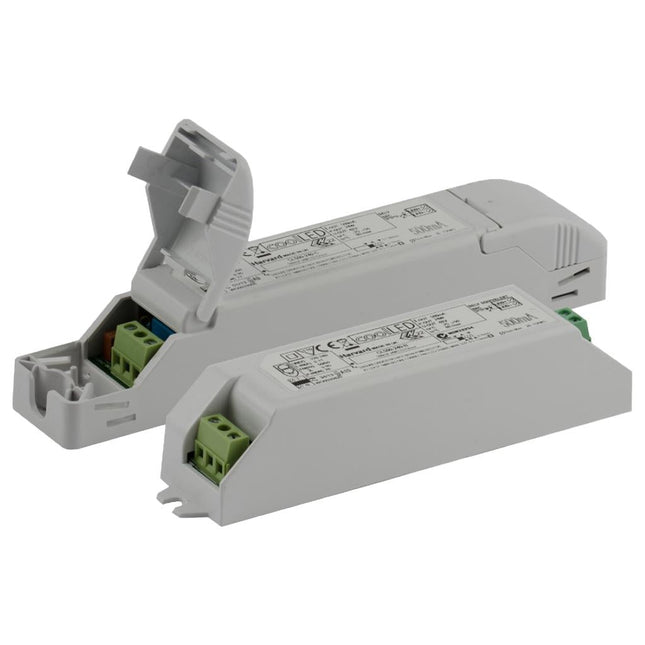

Obsolete, please order the below  Alternative    https://www.easy-controlgear.com/products/ecxd1050-299-sr-186763-vossloh-schwabe?_pos=1&_sid=e471d17bd&_ss=r Specifications Technical data Information Brand Harvard Power Systems Commodity 8504409090 Item number CL350D2-240-C Warranty pack 60 Months Bring-In Series CL RoHS Compliant Description AC-DC 33W LED driver Constant Current mode (CC); Max. output 48Vdc at 0.35A; IP20; Dimming with DALI; Remote control Packing Quantity 40 Application LED EN 61347 Net weight (gram) 130 Technology AC/DC Constant Current C.C. Format Box Type - Enclosed Output Power (W) 33 Output Voltage (V) 48 Output Current (A) 0.35 Input Voltage (V) 220 - 240 IP Rating IP20 Width (mm) 32 Height (mm) 32 Depth (mm) 180 Control Signals Remote Sense Dimming Technology DALI

Read more less

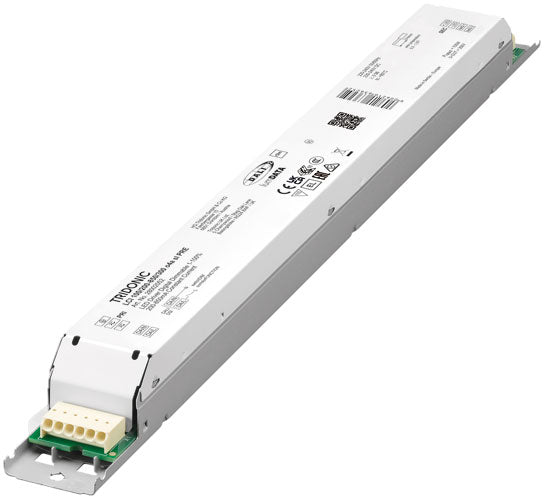

Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Constant current built-in LED driver, particularly suitable for industrial applications in tough environments with elevated ambient temperatures such as cold warehouses or factories Dimming range 1 to 100 % Output current adjustable between 200 – 850 mA Max. output power 100 W Suitable for mains voltage peaks (burst/surge) up to 4 kV Expanded temperature range of -40 ... +70 °C Nominal lifetime up to 100,000 h (at ta 60 °C) 8 years guarantee

Read more less

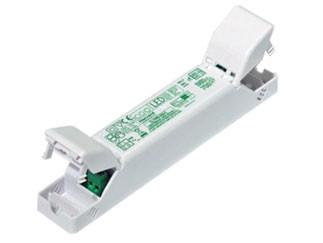

LED Driver 240v 33w 500/1000ma - Harvard - CL1000S-240-C

Read more less

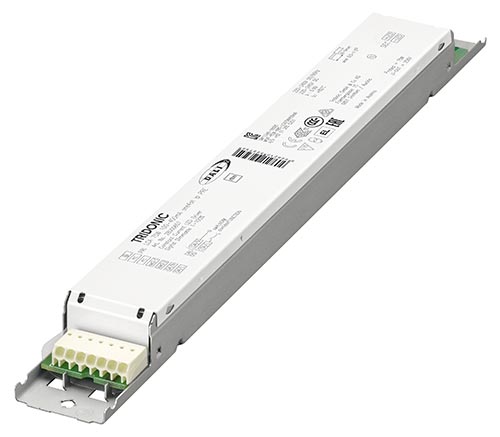

Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 350 – 1,050 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 75 W Up to 92 % efficiency Power input on stand-by < 0.16 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

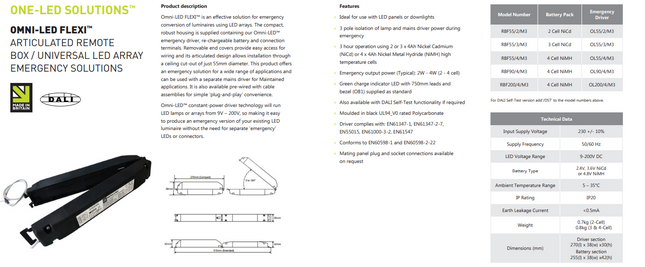

OMNI-LED FLEXITM ARTICULATED LED REMOTE BOX EMERGENCY CONVERSION SOLUTIONS Product Overview Effective solution for emergency conversion of luminaires Articulated design allows installation through a ceiling cut-out of just 55mm diameter Removable end covers provide easy wiring access Ideal for use with LED panels or downlights Available with pre-wired cable assemblies for ‘plug-and-play’ convenience Available with DALI Self-Test functionality 3 hour operation using high temperature Nickel Cadmium or Nickel Metal Hydride cells Designed and manufactured in Great Britain Technical Data Input Supply Voltage 230V +/- 10% Supply Frequency 50/60 Hz Output Voltage Range 9 – 200 VDC Battery Type 2.4V NiCd, 3.6V NiCd or 4.8V NiMH Ambient Temperature Range 5°C – 35°C Battery Charge Time 24 Hours Earth Leakage Current <0.5mA IP Rating IP20

Read more less

Perfect alternative to the Harvard CL350S and CL700S    Mackwell LED Drivers utilise quasi-resonant technology, which ensures higher efficiency levels are maintained across a wider voltage range. The switchable models provide the added flexibility to switch between different currents during the installation stage.All drivers are UK designed and manufactured, incorporating premium grade components as standard. The use of these components ensures all drivers maintain a high power factor and low operating temperatures. All our LED Drivers are designed to achieve a minimum operating lifetime of 50,000 hours. All drivers are housed in a robust white plastic case and include 1-7mm cable clamping as standard. KEY FEATURES• Switchable between 350 mA and 500 mA• Up to 88% operating efficiency• 0.95 power factor• 1-7mm secure cable clamping• Double insulation (Class II)• Short circuit protection• Open circuit protection• Over temperature protection• Mains surge protection• Automatic thermal cut-out• UK designed and manufactured Technical DataSPECIFICATION OUTPUTWATTAGE:33 wattsCURRENT: 350mA or 700mAVOLTAGE RANGE: 9 to 48 Volts INPUTEFFICIENCY: 88% at full loadPOWER FACTOR: 0.96 at full loadVOLTAGE: 198 to 265 VacFREQUENCY: 50/60 Hz PROTECTIONS-Mains surge-Over load-Open circuit-Short circuit-Thermal cut-out DIMENSIONS186 mm x 31.7 mm x 32.5 mm WEIGHT120g ENVIRONMENTAL CONDITIONS OPERATING TEMPERATURE: -20°C to +50°CSTORAGE TEMPERATURE-30°C to +70°CRELATIVE HUMIDITY: 95% non-condensingLIFE TIME: 50,000 hours (minimum)IP RATING: 40 ELECTRICAL TESTING STANDARDS EN61347-2-13EN60950EN61547EN62384:2006EN60068-2-1,2,30,78EN55015:2006 + A2:2009EN61000-3-2APPLICATION NOTES -Ensure the mains has been disconnected from the driver for at least 1 minute before connecting to the LEDs.-Do not connect Live and Neutral to the LED output terminals.-Ensure LED QTY usage is within the recommended guidelines of the driver. Mackwell maintains a policy of continuous development and reserves the right to change the details shown on this data sheet without prior notice. The contents are intended forguidance only. SKU: MLD-SCC-33-350/700

Read more less

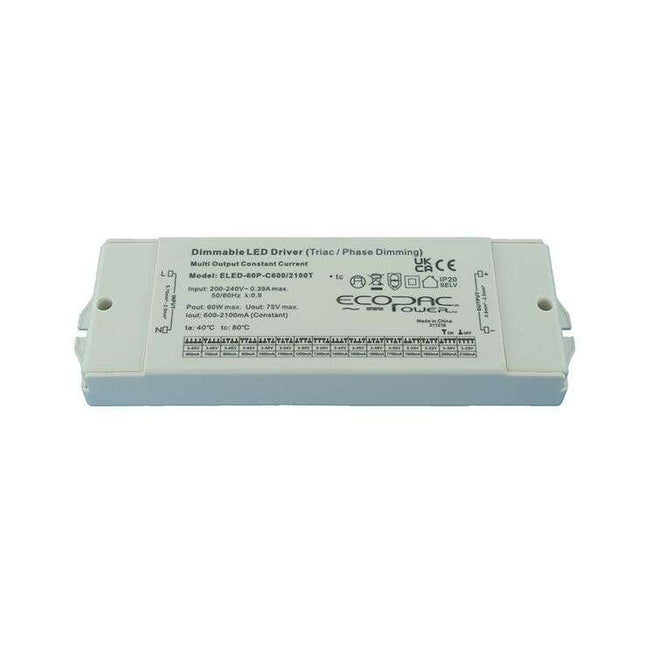

ELED-60P-C600-2100T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch • Dimming function: Triac/phase cut dimming • Work with leading or trailing edge Triac dimmer • (ON key: leading edge; 1 key: trailing edge) • AC input: 200-240VAC • Built-in active PFC function • Efficiency up to 83% • IP20 design for indoor installation • Full protection plastic housing easy installation • Protections: Short circuit/ Over load • Cooling by free air convection • Suitable for LED lighting and moving sign applications • Strong compatibility, flicker-free dimming ELED-60P-C600-2100T(C600mA) ELED-60P-C600-2100T(C700mA) ELED-60P-C600-2100T(C800mA) ELED-60P-C600-2100T(C900mA) ELED-60P-C600-1200T(C1000mA) ELED-60P-C600-2100T(C1100mA) ELED-60P-C600-2100T(C1200mA) ELED-60P-C600-1200T(C1300mA) ELED-60P-C600-2100T(C1400mA) ELED-60P-C600-2100T(C1500mA) ELED-60P-C600-2100T(C1600mA) ELED-60P-C600-2100T(C1700mA) ELED-60P-C600-2100T(C1800mA) ELED-60P-C600-2100T(C1900mA) ELED-60P-C600-2100T(C2000mA) ELED-60P-C600-2100T(C2100mA) Wattage 39 45.5 52 58.5 60 60 60 60 60 60 60 60 60 60 60 60 Input Voltage 200~240 200~240VAC 200~240VAC 200~240VAC 200~240 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC Output Current 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 Output Voltage 3~65 3~65 3~65 3~65 3~60 3~55 3~50 3~46 3~43 3~40 3~38 3~35 3~33 3~32 3~30 3~39 Dimensions 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm Working Temperature -40~60°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

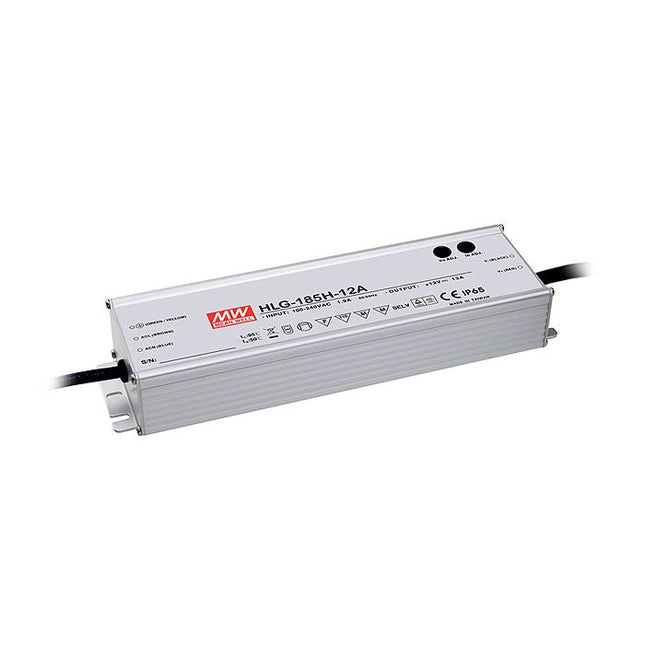

IP65 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 95%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Optional CQC models availableOutput voltage and C.C level can be adjusted through internal potentiometerMore Information Manufacturer Mean Well Output Wattage (W) 185 Output Voltage 36V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment 33 ~ 40V Dimensions 228*68*38.8mm EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1 Output Voltage Options Single Working Temperature -40~+70°C (refer to output derating curve) PDF Datasheet HLG-185H-spec_1.pdf

Read more less

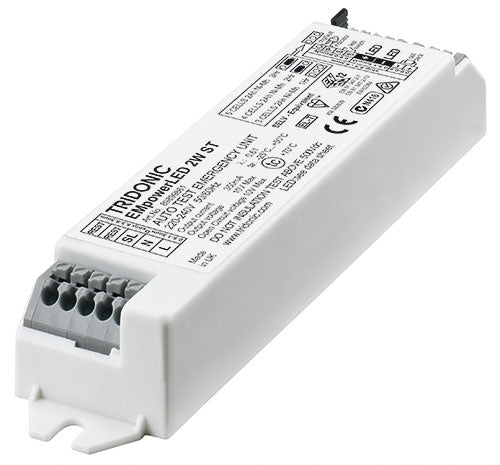

EM powerLED SELFTEST 1 – 2 W Combined emergency lighting LED driver 1 – 4 W Screw-fix Clip-fix Screw-fix Clip-fix Product description Emergency lighting LED driver with selftest function For self-contained emergency lighting SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm) 5 years guarantee Properties Mains and emergency operation Self-test as per IEC 62034 Constant current mode With either screw or clip fastening (clip-fix) 1, 2 or 3 h rated duration Selectable operating time (jumper) Output power limitation Two-colour status display LED “Rest mode” function Simple set-up Automatic restart after LED replacement Electronic multi-level charge system SELV classified (outputs powerLED, battery, status LED, test switch) Polarity reversal protection for battery Deep discharge protection Very low energy consumption from the battery after activation of the deep discharge protection Short-circuit-proof battery connection Emergency lighting LEDs available Self-test: Status of the battery Status of the LED Charge condition Function test Duration test Batteries High-temperature cells 2 Ah NiMH batteries Cs cells 4 year design life 1 year guarantee For battery compatibility refer to data sheet Picture for illustrative purposes only
