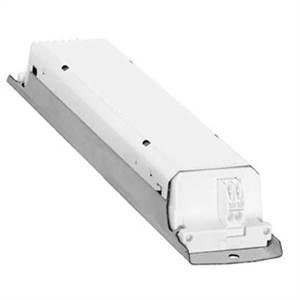

Tridonic PC3414T5PRO Electronic ballast to run 3/4 x 14w T5 tubes - 22176315/22185211
Specifications
Attribute
Value
Wattage
14 W
Ballast Type
Electronic
Supported Lamp Shape
T5
Supported Lamp Type
Fluorescent
Voltage Rating
220 → 240 V
Dimmable
No
High Frequency
Yes
Length
360 mm
Width
30 mm
Height
21mm
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+60°C
EU Energy Efficiency Rating
A2
Driver LC 60W 1050/1200/1400mA flexC SR ADV
advanced series
Product description
Independent fixed output LED driver
For luminaires of protection class I and protection class II
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Temperature protection as per EN 61347-2-13 C5e
Adjustable output current between 1,050, 1,200 and 1,400 mA
Max. output power 60 W
Up to 90.5 % efficiency
Nominal lifetime up to 50,000 h
5 years guarantee
Housing properties
Casing: polycarbonate, white
Type of protection IP20
Interfaces
Input terminals: 0° screw terminals
Output terminals: 45° push terminals
Functions
Overload protection
Short-circuit protection
No-load protection
Overtemperature protection
Burst protection voltage 1 kV
Burst protection voltage 1 kV (L to N)
Surge protection voltage 2 kV (L/N to earth)
Typical applications
For spot light and downlight in retail and hospitality applications
For panel light and area light in office and education application
Data sheet
Order information
Common data
Technical data
Downloads
Links
Certificates
Accessories
CAD
EPD
Ordering data
Type
Article number
Packaging, carton
Packaging, pallet
Weight per pc.
LC 60W 1050/1200/1400mA flexC SR ADV
28002498
20 pc(s).
1,120 pc(s).
0.202 kg
Data sheet
Replaces the 28000411/87500852
Product description
Constant voltage LED driver
Output voltage 24 V
Max. output power 35 W
Dimmable via external PWM LED dimmers attached on output side
For luminaires of protection class I and protection class II
The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
Nominal lifetime up to 50,000 h
5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
This item is obsolete, please co0nsider either of the below as viable alternatives
Alternative 1
Alternative 2
ridonic Electronic Emergency Lighting Module 230/240v 50/60/Hz HT Nicd 3 Cells

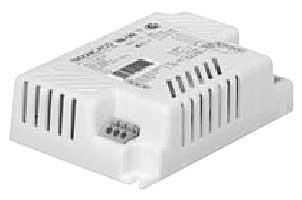

Driver LC 15W 350mA fixC pc SR SNC2
essence series
Product description
Dimmable constant current LED driver (SELV)
Independent driver with strain-relief housing
Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
Dimmable via leading edge and trailing edge phase dimmers
Dimming range 5 to 100 % (depending on dimmer)
For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
Max. output power 14.7 W
Output current 350 mA
Nominal lifetime up to 50,000 h
5 years guarantee
Housing properties
Casing: polycarbonate, white
Type of protection IP20
Push-in terminals
2 separate strain relief parts for input and output cables with highly robust clamps
Functions
Overload protection
Short-circuit protection
No-load protection
No output current overshoot at mains on/off
80w 350ma LED Driver - Tridonic - 28000093 - LCI080/0350/1010
alternative + 28001110 I select plug 350Ma
Product description • Built-in LED Driver for LED • Constant current LED Driver with 350 mA output current • Output power 80 W • Nominal life-time of 50,000 h (at ta 50 °C with a failure rate max. 0.2 % per 1,000 h) • 5-year guarantee Properties • Low-profile metal casing with white cover • Type of protection IP20 Functions • Overload protection • Short circuit proof • Suitable for emergency lighting units acc. to EN 50172
