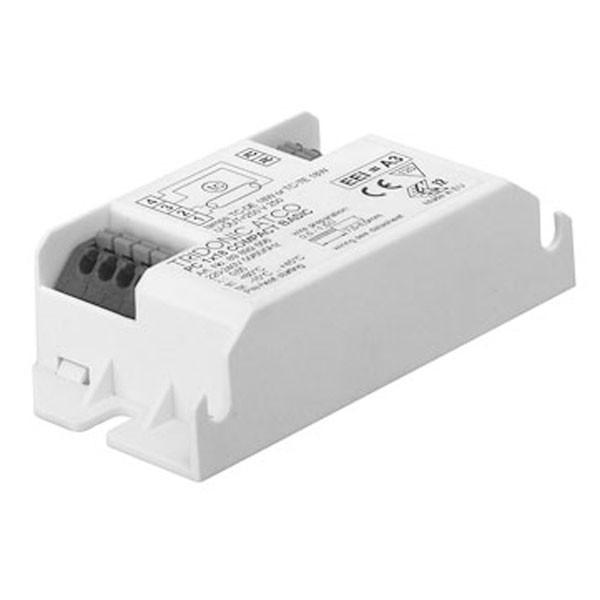

PLEASE READ BELOW  Tridonic PC118BASIC Electronic compact ballast 1x18w TCD lamp & 1x18w TCT Lamp - Tridonic - 2413882 OBSOLETE , please click below for alternative  ALTERNATIVE

Read more less

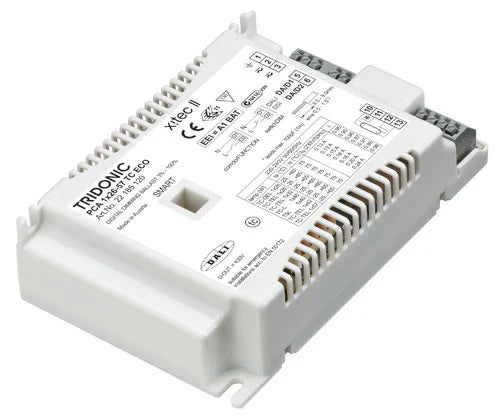

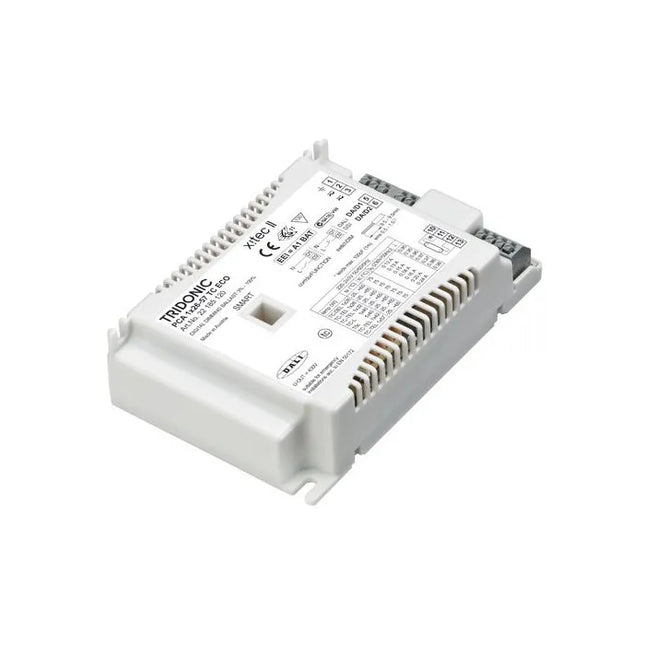

OBSOLETE , IF using DALI dimming the below will suffice   DALI Alternative   If using DSI no alternative available    Tridonic Electronic compact dimming ballast to run 1 x 26-57w TC Compact The Tridonic PCA 1x26-57 TC ECO xitec II is a high frequency dimmable ballast for use with DALI/DSI/switchDIM interfaces. Compatible with the following lamps: 1 x 40w T5 Circular Lamp 1 x 26w Double Turn Compact Fluorescent Lamp 1  x 26w Triple Turn Compact Fluorescent Lamp 1 x 40w Long Single Turn Compact Fluorescent Lamp 1 x 40w T5 Circular Fluorescent Lamp 1 x 32w Triple Compact Fluorescent Lamp 1 x 42w Triple Turn Compact Fluorescent Lamp 1 x 57w Triple Turn Compact Fluorescent Lamp Tridonic part number: 22185120

Read more less

Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED Driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 900 – 1,750 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 60 W Up to 90 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

Tridonic PC3418T8PRO Electronic Ballast 240/250v 50/60/0Hz to run 3-4x18w T8 Tubes - PC 3-4/18 T8PRO

Read more less

Tridonic Electronic compact dimming ballast to run 2x 26/32/42W Energy 2pin lamps - PCA2/26 TCD ECO

Read more less

Driver LCA 60W 24V one4all SC PRE premium series 24 V – dimmable (IP20) With strain-relief Product description NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance) Dimmable 24 V constant voltage LED driver for flexible constant voltage strips Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards) One4all interface and ready2mains enable different dimming options Dimming range 1 to 100 % No additional external dimmer is needed Suitable for emergency escape lighting systems acc. to EN 50172 Nominal lifetime up to 50,000 h 5 years guarantee Typical applications Cove lighting, facade accent lighting, ceiling integration Technical details 24 V, 60 W Small design (225 x 43 x 30.2 mm) with stretched-compact strain relief Small cross section Push terminals for simple wiring Output terminals (+/–) equipped twice for more flexibility in the application Interfaces one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals System solution Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m In connection with Flex accessories wire to PCB plug The functioning of third party light sources at a low dim level cannot be guaranteed and is not recommended

Read more less

Data sheet Replaces the   28000411/87500852 Product description Constant voltage LED driver Output voltage 24 V Max. output power 35 W Dimmable via external PWM LED dimmers attached on output side For luminaires of protection class I and protection class II The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging Nominal lifetime up to 50,000 h 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)

Read more less

Driver LC 50/60W 1200/700/1400mA fixC C SNC essence series Product description Fixed output built-in LED driver Constant current LED driver For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e KC certificate for LC 60W 1400mA fixC C SNC Output current 1,200, 700 or 1,400 mA Max. output power 50 or 60 W Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Functions Overtemperature protection Overload protection Short-circuit protection No-load protection

Read more less

Driver LC 15W 300/350mA fixC SR SNC2 Compact drivers Data sheet Product description Independent driver with strain-relief housing Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Output current 300 or 350 mA Max. output power 15 W Nominal lifetime up to 50,000 h 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)

Read more less

Driver LC 60W 24V bDW SC PRE2 premium series 24 V – dimmable (IP20) With strain-relief Product description NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance) Dimmable 24 V constant voltage LED driver for flexible constant voltage strips Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards) The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging. basicDIM Wireless enables different dimming options Forms automatically a wireless communication network with up to 250 nodes Dimming range 1 to 100 % No additional external dimmer is needed Suitable for emergency escape lighting systems acc. to EN 50172 Nominal lifetime up to 50,000 h 5 years guarantee Typical applications Cove lighting, facade accent lighting, ceiling integration Technical details 24 V, 60 W Small design (225 x 43 x 30.2 mm) with stretched-compact strain relief Small cross section Push terminals for simple wiring Output terminals (+/–) equipped twice for more flexibility in the application Interfaces basicDIM Wireless ready2mains (configuration via mains) Terminal blocks: 45° push terminals System solution Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m In connection with Flex accessories wire to PCB plug Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly   Data sheet

Read more less

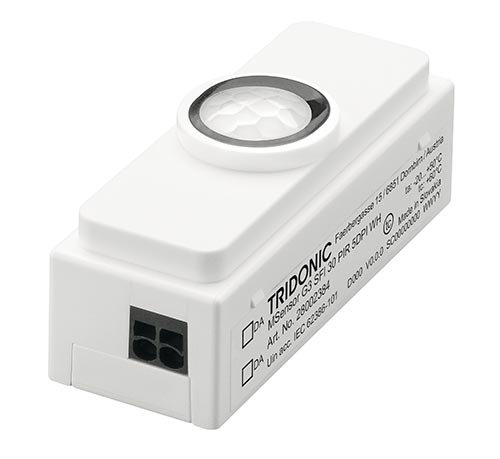

Product description Sensor developed to work with the latest DALI specification Monitoring of ambient light and motion detection Remote control interface allowing infrared remote control interaction Individual adjustment of the parameters with configuration software Power supply via DALI line Shutter for preventing movement detection in one direction included Small dimensions allowing easy and inconspicuous integration in luminaries Wide range of accessories allowing extended application range 5 years guarantee Housing properties Casing: polycarbonat, black or white Type of protection IP20 Note Tridonic MSensor G3 family sensors are developed according to DALI Standard EN 62386-101 Ed.2, also known as DALI-2. To be able to use the sensor in such installation, an application controller is necessary. List of approved application controller can be found on our WEB page in 28002386

Read more less

Digital Dimming Ballast to run 2 X 21/39w T5 tubes - PCA 2x21/39 T5 ECO - 22185102 Product description Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI = A1 BAT (1) Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) Multilamp management OEM-specific reserved memory areas 5 years guarantee Interfaces DALI DSI switchDIM (with memory function + selectable dimming rate) corridorFUNCTION (3 preprogrammed profiles) Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs Functions Intelligent Temperature Guard (overtemperature protection) Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Optimum filament heating in any dimmer setting Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) corridorFUNCTION with ambient light control Automatically triggered emergency lighting value in DC mode, 15 % For emergency lighting systems as per EN 50172 Automatic start after replacement of defective lamps Automatic shutdown if the lamp is faulty

Read more less
