87501090 LC 42/900-1050/42 flexC SR SNC4 Product description Independent fixed output LED driver For luminaires of protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Selectable fixed output current 900, 950, 1,000 and 1,050 mA (pre-selected current 900 mA) Max. output power 42 W Up to 91 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

Read more less

28005035 LC 60/150-550/220 flexC NF h16 EXC4 Product description New article (28005035) with updated NFC interface for compatibility with ID ECCO Smart 2D-TR Constant current LED driver for luminaire installation For class I luminaires Adjustable output current between 150 and 550 mA via NFC Max. output power 60 W Up to 93.5 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

Read more less

28002090 ACCU-NiMH 2.2Ah 5A Product description_ High-temperature NiMH cells for use with emergency lightingunits_ 4 year design life_ 2 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Properties_ Cadmium free_ Constant high-temperature operation – depending on theemergency lighting unit used (refer to respective emergencycontrol gear data sheet)_ Low profile cross-section 23 mm (without end caps)_ Good charging properties at high temperature_ High energy maintenance of the charged battery_ Certified quality manufacturer_ In various configurations_ Simple connection with blade terminal_ With polycarbonate fixing caps and connecting cable_ Electrical connection with mounted end caps possible_ Suitable for emergency lighting equipment as per IEC 60598-2-22

Read more less

Tridonic LC 200W 24V SC SNC 87500855

Read more less

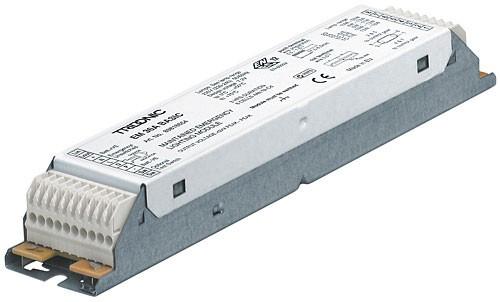

     Emergency lighting supply unit for manual testing• For linear and compact fluorescent lamps• Low-profile casing (21 x 30 mm cross-section)• 5-year guaranteeProperties• Non maintained operation• 1 or 3 h rated duration• Operating time selectable with plug (duration link)• Compatible with all electronic ballasts(dimmable and non-dimmable)• 5-pole technology: 4-pole lamp changeoverand delayed power switching for the ballast• High-frequency ac operation of the lamp• Gentle on the lamp thanks to preheated lamp start and permanent cathode heating in emergency mode• 5.5 min. boost start for rapid heating of the lamp, morelight in the startup phase and optimum lamp life• Power control technology ensures maximum emergency ballastlumen factors (EBLF) for all lamps• Green charge status display LED• Electronic multi-level charge system• „Rest mode“ function• Deep discharge protection• Very low energy consumption from the battery after activation ofthe deep discharge protection• Short-circuit-proof battery connection• Polarity reversal protection for batteryBatteries• High-temperature cells• NiCd or NiMH batteries• D- Cs- or LA cells• 4-year design life• 1-year guarantee• For battery compatibility refer to chapter„Ballast-Lumen-Factor (BLF)“ÈStandards, page 8Wiring diagrams and installation examples, page 11EM BASIC lp G2, 220 – 240 V 50/60 HzBASIC version TC-F TC-DD T5cTC-LTCDELTC-SELTC-TELT5 T8PH

Read more less

  89800270 LED EM GREEN 300mm CON A green LED indicates that charging current is flowing into thebattery_ 0.3 / 1.0 m cable length Plug connection

Read more less

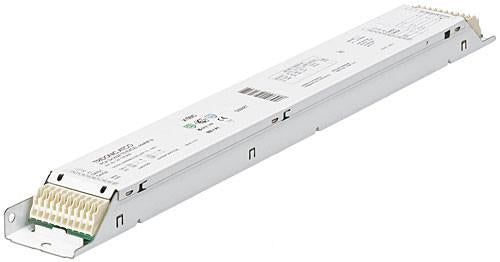

PCA 2x80 T5 ECO lp Y II 22185098 Product description• Processor-controlled ballast with y II inside• Highest possible energy class CELMA EEI = A1 BAT1• Noise-free precise control via DALI orDSI signal, switchDIM or corridorFUNCTION• Nominal life up to 100,000 h (at ta 50 °Cwith a failure rate max. 0.2 % per 1,000 h)• Multi-lamp management• OEM-specific reserved memory areas• 5 years guaranteeInterfaces• DALI• DSI• switchDIM (with memory function + selectable dimming rate)• corridorFUNCTION (3 preprogrammed profiles)• Integrated SMART interface for function withSMART Sensor 5D 19f and corridorFUNCTION plugsFunctions• Intelligent Temperature Guard (overtemperature protection)• Intelligent Voltage Guard (overvoltage indicationand undervoltage shutdown)• Optimum filament heating in any dimmer setting• Disconnection of filament heating from a dimming level of approx.90 % for maximum energy efficiency (SMART-Heating concept)• corridorFUNCTION with ambient light control• Automatically triggered emergency lighting value in DC mode, 15 %• For emergency lighting systems as per EN 50172• Automatic start after replacement of defective lamps• Automatic shutdown if the lamp is faultyÈStandards, page 3Wiring diagrams and installation examples, page 8PCA T5 ECO lp Y II, 14 – 80 WECO T5 T5 TC-L6Ø4,1LD21 4,130side fixing featureTechnical dataMains voltage range 220 – 240 VAC voltage range 198 – 264 VDC voltage range 176 – 280 V (lamp start ≥ 198 V DC)Mains frequency 0 / 50 / 60 HzOvervoltage protection 320 V AC, 1 hTyp. power input on standby < 0.2 WProtective hot restart 0.5 s for AC / 0.2 s for DCDimming range 1 – 100 %Lamp start possible from 1 %Operating frequency ~ 40 – 130 kHzType of protection IP20Ordering dataType Article number Packaging,cartonPackaging,palletWeightper pc.For luminaires with 1 lampPCA 1x14/24 ECO lp Y II 22185094 10 pc(s). 760 pc(s). 0.342 kgPCA 1x21/39 T5 ECO lp Y II 22185101 10 pc(s). 760 pc(s). 0.233 kgPCA 1x28/54 T5 ECO lp Y II 22185099 10 pc(s). 760 pc(s). 0.242 kgPCA 1x35/49/80 T5 ECO lp Y II 22185096 10 pc(s). 760 pc(s). 0.243 kgFor luminaires with 2 lampsPCA 2x14/24 ECO lp Y II 22185095 10 pc(s). 760 pc(s). 0.272 kgPCA 2x21/39 T5 ECO lp Y II 22185102 10 pc(s). 760 pc(s). 0.270 kgPCA 2x28/54 T5 ECO lp Y II 22185100 10 pc(s). 640 pc(s). 0.332 kgPCA 2x35/49 T5 ECO lp Y II 22185097 10 pc(s). 760 pc(s). 0.260 kgPCA 2x80 T5 ECO lp Y II 22185098 10 pc(s). 640 pc(s). 0.343 kgPH

Read more less

28001250 Driver LCA 75W 250–550mA one4all lp PRE Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 250 – 550 mA Max. output power 75 W Up to 92 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) Typical applications For linear/area lighting in office applications

Read more less

  87500274 LCBI 10W 350mA PHASE-CUT/1-10V SR   Product description Independent dimmable LED driver Constant current LED driver Dimmable via leading edge and trailing edge phase dimmers Dimmable via 1 ... 10 V Output dimmed analogue (current amplitude) Dimming range typ. 10 to 100 % (depending on dimmer) For luminaires of protection class I and protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e SELV Output current 350 mA Output power 10 W Nominal lifetime up to 50,000 h 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

Read more less

Product description_ High-temperature NiCd cells for use with emergency lighting unit_ Please note that due to EU law, this article is available forpurchasing only outside of the European Union._ 4 year design life_ 2 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Properties_ Constant high-temperature operation – depending on theemergency lighting unit used (refer to respective emergencycontrol gear data sheet)_ Good charging properties at high temperature_ High energy maintenance of the charged battery_ Certified quality manufacturer_ In various configurations_ Simple connection with blade terminal respectively plug terminal_ With polycarbonate fixing caps and connecting cable_ Electrical connection with mounted end caps possible_ Suitable for emergency lighting equipment as per IEC 60598-2-22

Read more less

Description Tridonic 89800024 EM 36 PRO EZ-3 Product description Emergency lighting supply unit with DALI interface and automatic test function  For linear and compact fluorescent lamps Low-profile casing (21 x 30 mm cross-section) Properties DALI interface for testing and feedback 1 or 3 h rated duration Compatible with all electronic ballasts (dimmable and non-dimmable) 5-pole technology: 4-pole lamp changeover and delayed power switching for the ballast High-frequency ac operation of the lamp Power control technology ensures maximum emergency ballast lumen factors for all lamps on a given module Gentle on the lamp thanks to permanent cathode heating in emergency mode 5.5 min. boost start for rapid heating of the lamp, more light in the startup phase and optimum lamp life Standard and high ballast lumen factor for 1 hour types Electronic multi-level charge system “Rest mode” function 6 Cell 7.2V 4Ah Battery required (Sold Separately)

Read more less
