Product description_ Emergency lighting LED driver with DALI interface and automatic test function_ For self-contained emergency lighting_ For LED modules with a forward voltage of 50 – 200 V_ Low profile casing (21 x 30 mm cross-section)_ Nominal lifetime up to 50,000 h_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Properties_ Non maintained operation_ DALI interface for controlled testing and monitoring_ 1, 2 or 3 h rated duration_ Operating time selectable with plug (duration link)_ For 2 h operation: first test 120 min, all other tests 90 min, ratedduration_ Compatible with all dimmable and non-dimmable constant currentLED driver (see data sheet, LED driver compatibility)_ 3-pole technology: 2-pole LED module changeover and delayedpower switching for the LED driver_ Automatic shutdown of output if LED load is out of range_ Constant power output_ Maximum light output for all LED modules_ Addressing function, patented (“EZ easy addressing”)_ Two-colour status display LED_ Electronic multi-level charge system_ Intermittent charge for NiMH batteries (pulse charge)_ “Rest mode” function_ Deep discharge protection_ Short-circuit-proof battery connection_ Polarity reversal protection for battery Tests:_ Status of the battery_ Status of the LED_ Charge condition_ Function test_ Duration testBatteries_ High-temperature cells_ NiCd or NiMH batteries_ D, Cs or LA cells_ 4 year design life_ 1 year guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)_ For battery compatibility refer to data sheet
Product description• Dimmable built-in LED control gear for LED• Constant current LED control gear with 350 mA output current• Output power 80 W• Nominal life-time up to 50,000 h• 5-year guaranteeProperties• Low-profile metal casing with white cover• Type of protection IP20Interfaces• DALI (device type 6)• DSI• switchDIM (with memory function)• corridorFUNCTIONFunctions• Overload protection• Overtemperature protection• Short circuit proof• Dimming in DC adjustable• Suitable for emergency escape lighting systems acc. to EN 5017
Product description_ Fixed output LED driver_ Can be either used built-in or independent with clip-on strainrelief (see accessory)_ Independent LED driver with cable clamps_ For luminaires of protection class I and protection class II_ Temperature protection as per EN 61347-2-13 C5e_ Constant current LED driver_ Selectable fixed output current via DIP switch 150, 180, 200 and250 mA (pre-selected current 150 mA)_ Max. output power 10.5 W_ Nominal lifetime up to 100,000 h_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Housing properties_ Casing: polycarbonate, white_ Type of protection IP20Functions_ Overload protection_ Short-circuit protection_ No-load protection
87501088
LC 25/450-600/42 flexC SR SNC4
Product description
Independent fixed output LED driver
For luminaires of protection class II
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Temperature protection as per EN 61347-2-13 C5e
Selectable fixed output current 450, 500, 550 and 600 mA (pre-selected current 450 mA)
Max. output power 25.5 W
Up to 87.5 % efficiency
Nominal lifetime up to 100,000 h
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
89800176 EM powerLED BASIC CLE 12/15 W
Product description
LED driver for mains operation with integrated Simple CORRIDOR FUNCTION (CF) and emergency lighting funtion for manual testing
For self-contained emergency lighting
For luminaire installation
For the use with CLE 1500lm EM
EM = Emergency
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
28004810
LLE 24x280mm 650lm 840 LV ADV6
Product description
Ideal for linear and panel lights
4 terminals for parallel wiring
Perfectly uniform light, even if several LED modules are used together in a line
Push terminals for quick and simple wiring of LED module to LED module
Option backside terminal
Broad portfolio from extruded lenses and covers available
HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output
Long lifetime up to 102,000 hours
5 years guarantee (conditions at
Tridonic PCA 1x24 T5 ECO lp (22089521)
This is a genuine Tridonic PCA 1x24 T5 ECO lp (Part code: 22089521) from our ex-stock profile. An unused, as new unit still available for purchase from a reputable lighting retailer. These are now obsolete and vary rare. We only have a limited number of these in stock so purchase while you can.
Product description
Independent dimmable LED driver
Emergency lighting LED driver with DALI interface and automatic test function
For self-contained emergency lighting
For LED modules with a forward voltage of 20 – 50 V
SELV for output voltage < 60 V DC
Compact plastic casing with strain relief
EM = Emergency
Properties
Output power 6 – 45 W
Constant current LED operation
300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA
Integrated emergency lighting unit
1, 2 or 3 h rated duration
Operating time selectable with dip switch (2-way)
Automatic shutdown of output if the forward voltage of the LED is out of range
Two-colour status display LED
Electronic multi-level charge system
Pulse current charging for NiMH batteries
Polarity reversal protection for battery
Power-up fading at AC
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Deep discharge protection
Short-circuit-proof battery connection
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Interfaces
one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION)
Terminal blocks: 45° push terminals

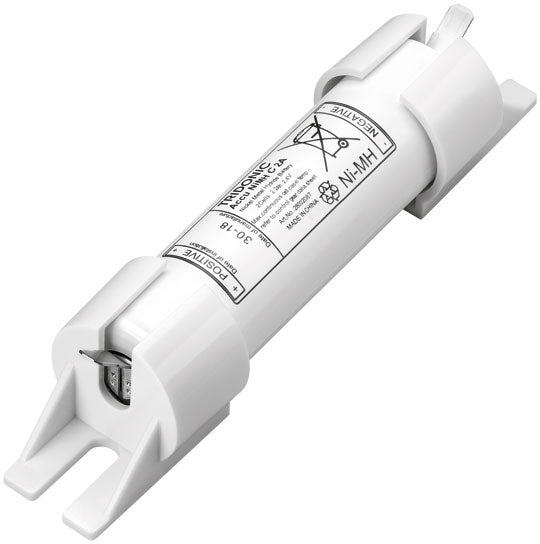

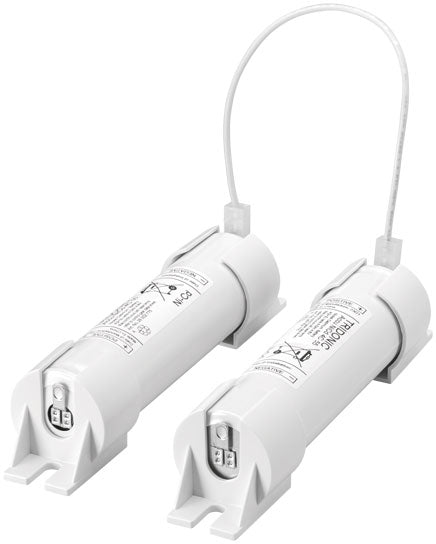

Batteries
High-temperature cells
NiCd or NiMH batteries
D, Cs, LA or LAL cells
Battery box for independent use
4 year design life
2 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
For battery compatibility refer to data sheet
