Non Maintained Emergency LED Module 1w 3H Basic - Tridonic - 89800112
Emergency lighting LED driver for manual testing
For self-contained emergency lighting
Non maintained operation
SELV for output voltage < 60 V DC
Low profile casing (21 x 30 mm cross-section)
EM = Emergency
View Datasheet

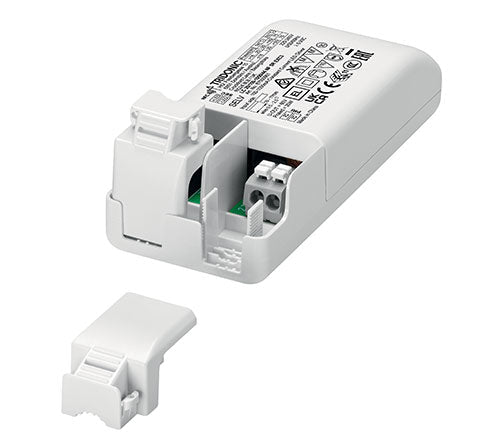

Driver LCA 10W 150–400mA one4all SC PRE
premium series
With strain-relief
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Dimmable built-in constant current LED driver
Can be either used built-in or independent with clip-on strain-relief (see accessory)
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Output current adjustable between 150 – 400 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
Max. output power 10 W
Up to 82 % efficiency
Power input on stand-by < 0.2 W
Nominal lifetime up to 100,000 h
5 years guarantee
Housing properties
Casing: polycarbonate, white
Type of protection IP20
Interfaces
one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 45° push terminals
Functions
Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Constant light output function (CLO)
Power-up fading at AC
Configurable via ready2mains
Switch off the driver with fade2zero
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency
Flexible configuration via DALI, ready2mains and I-SELECT 2
Typical applications
For linear/area lighting in office applications
Driver LCBI 10W 180/350/500mA PHASE-CUT/1–10V lp
advanced series
Product description
Dimmable built-in constant current LED driver
Constant current LED driver
Dimmable via leading edge and trailing edge phase dimmers
Dimmable via 1 ... 10 V
Output dimmed analogue (current amplitude)
Dimming range typ. 10 to 100 % (depending on dimmer)
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
SELV
Output current 180, 350 or 500 mA
Output power 10 W
Nominal lifetime up to 50,000 h
5 years guarantee
Housing properties
Casing: polycarbonate, white
Type of protection IP20
Push-in terminals
Functions
Overload protection
Short-circuit protection
No-load protection
No output current overshoot at mains on/off

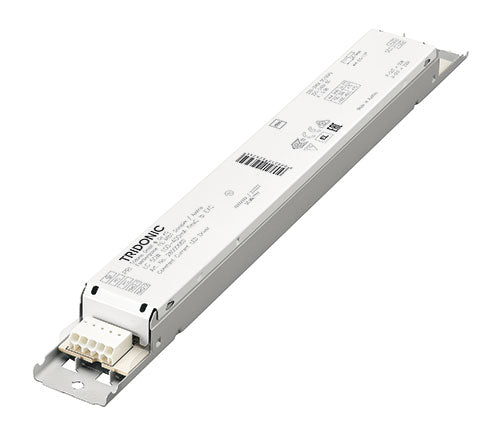

This is a Tridonic fixed output built-in, constant current LED driver with an output current of 150-400mA. This driver has a max output powr of 65w and an average life of 100,000 hours.
Data sheet

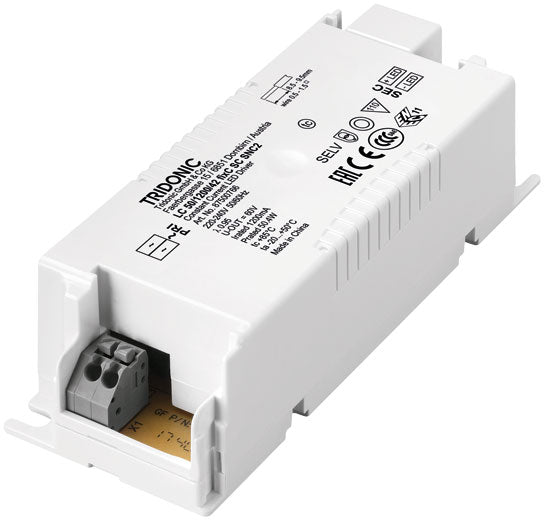

Product description
Constant current LED driver for luminaire installation
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
Selectable fixed output current 1,050, 900, 850 and 700 mA
Max. output power 56.7 W
Up to 88.5 % efficiency
Nominal lifetime up to 100,000 h
5 years guarantee (conditions at http://www.tridonic.com)

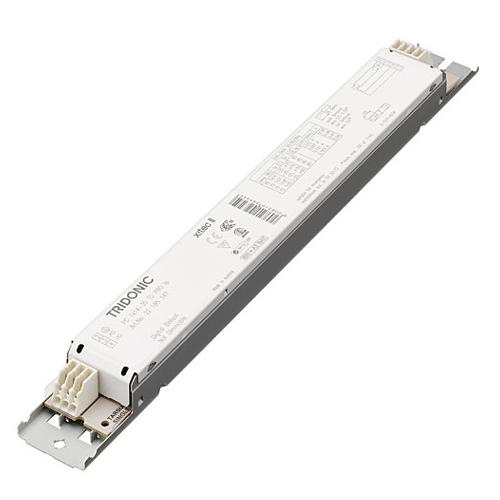

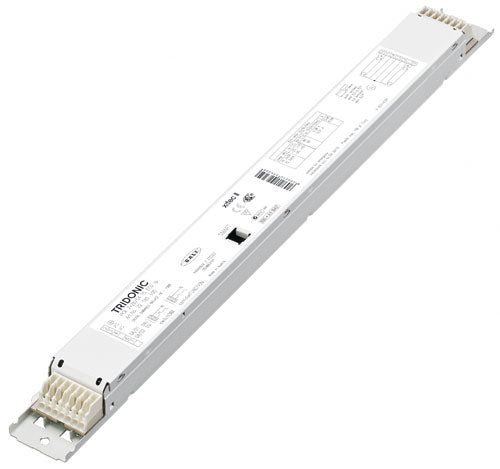

The Tridonic PC 2/55 TCL PRO is a non-dimmable high frequency ballast to run: 2 x 55 Watt long single turn compact fluorescent lamps. Click here to see Data Sheet and Wiring Diagrams!
Cheaper Alternative
osram-qtp-optimal-2x54-58-4008321880253
This item is obsolete, please co0nsider either of the below as viable alternatives
Alternative 1
Alternative 2
Tridonic Electronic Emergency Lighting Module 230/240v 50/60/Hz HT Nicd 3 Cells
1 x28-33w 3hr 3Cell TC-DD Low Output Combo HF Ballast - Tridonic - 89899943 / 89899943

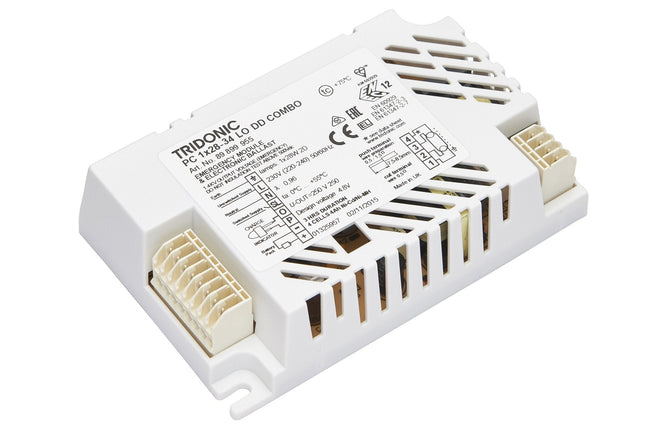

Tridonic 89899980 PC1X28-33LOEDD Emergency Combo for CFL
Combination electronic ballast and emergency lighting unit. For use with TC-DD compact fluorescent lamps. 3 hour rated duration, short circuit proof battery connection. NiCd batteries, separate battery pack with high temperature cells.
Volts:
240 v
Length:
123 mm
Width:
31 mm
Diameter:
31 mm
Bulb/Lamp Type:
Ballast
Height:
79 mm
Technology:
Compact Fluorescent

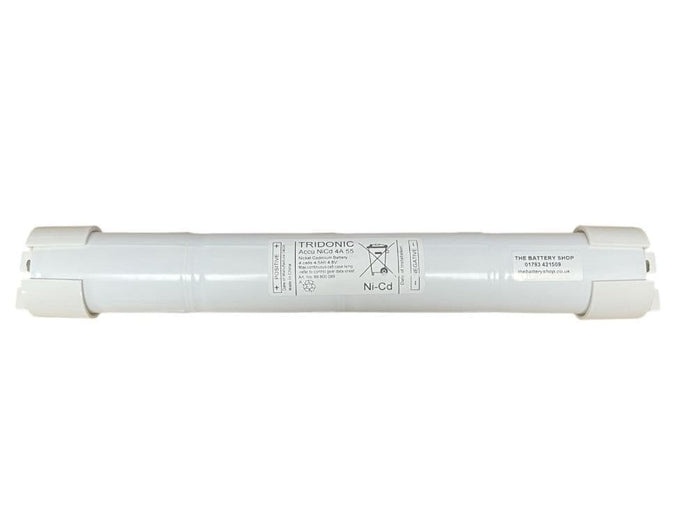

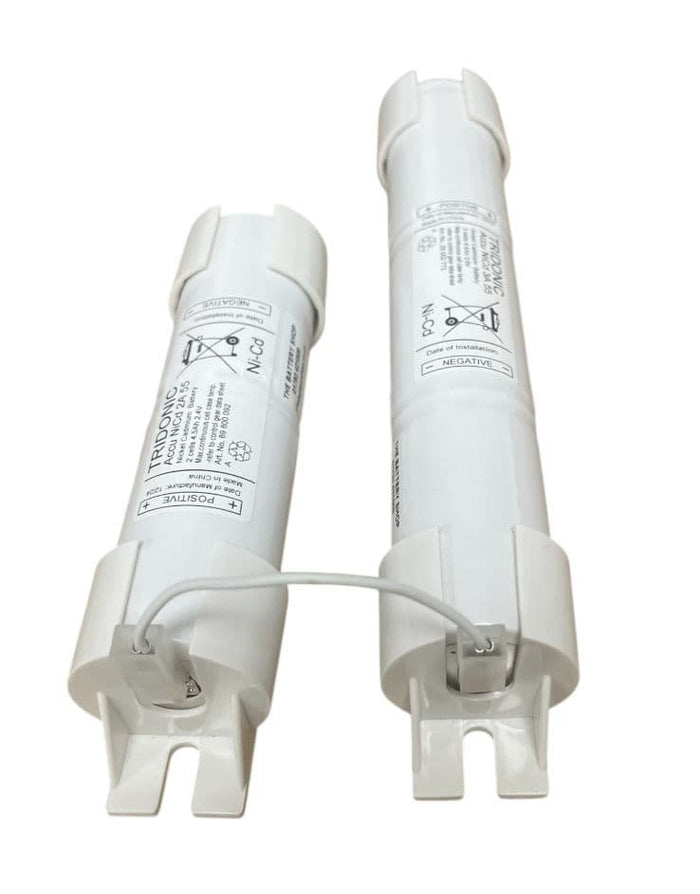

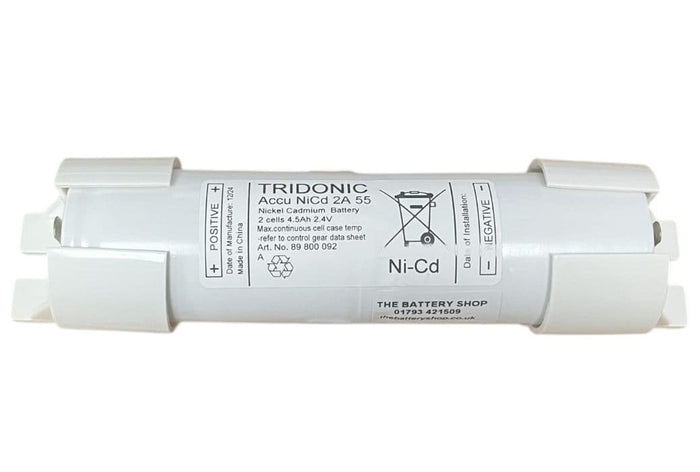

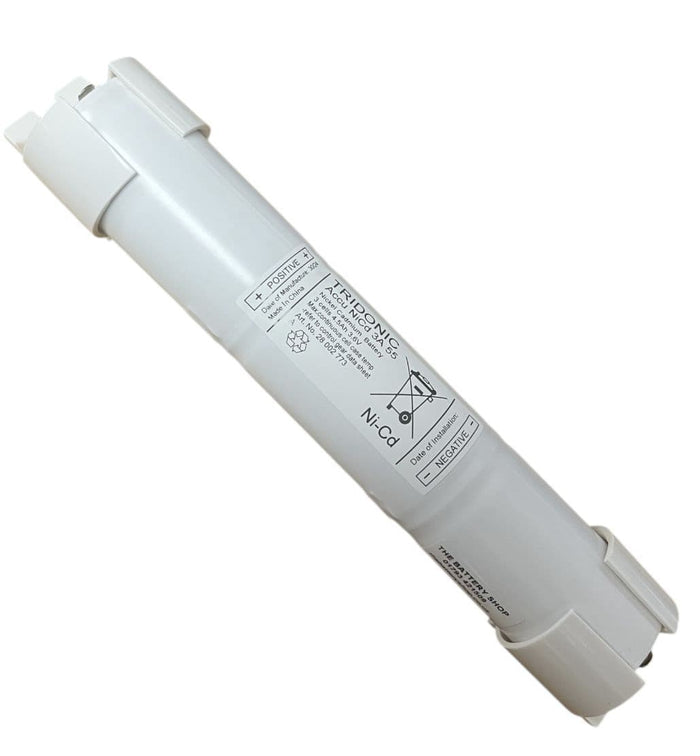

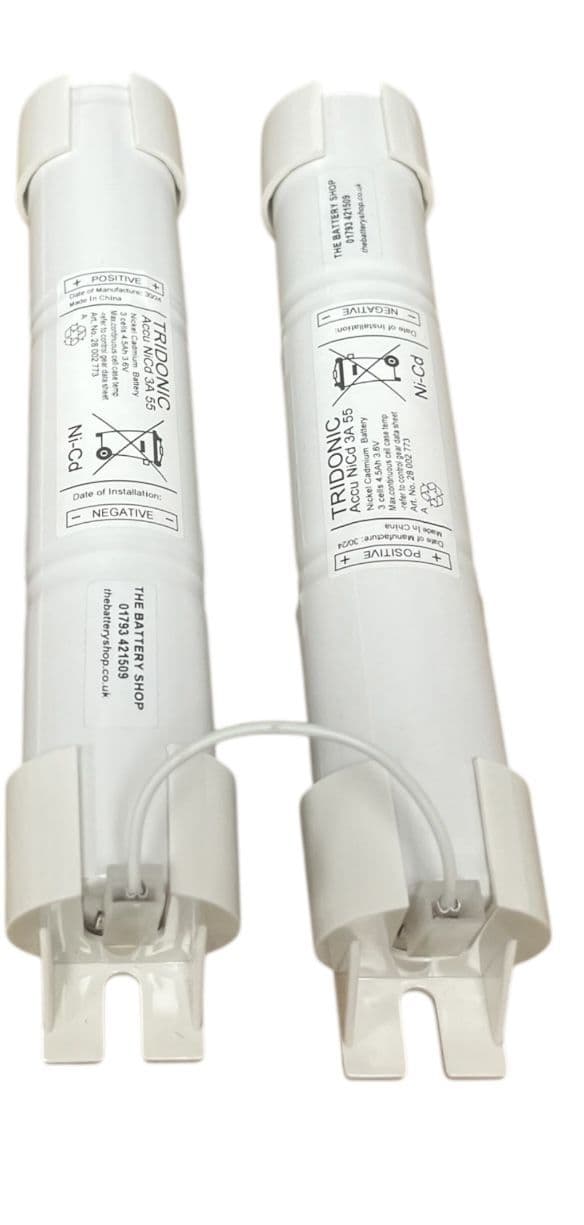

NiCd Accus 4.5 Ah
Nickel-Cadmium cells (NiCd)
Fig. 1: Stick; Connection: blade terminal
Product description
High-temperature NiCd cells for use with emergency lighting units
4 year design life
1 year guarantee from delivery date
Properties
Constant high-temperature operation – depending on the emergency lighting unit used (refer to respective emergency control gear data sheet)
Good charging properties at high temperature
High energy maintenance of the charged battery
Certified quality manufacturer
In various configurations
Simple connection with blade terminal respectively plug terminal
With polycarbonate fixing caps and connecting cable
Electrical connection with mounted end caps possible
Suitable for emergency lighting equipment as per IEC 60598-2-22

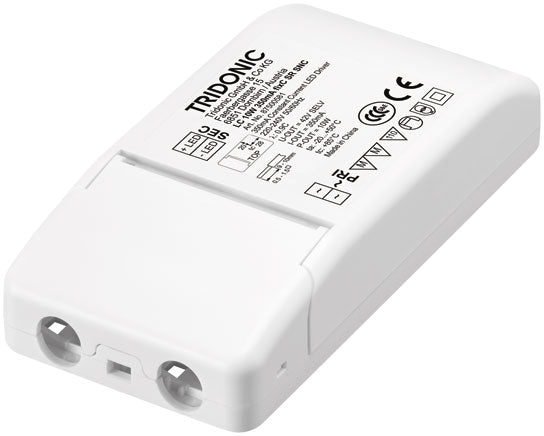

Product description
Independent driver with strain-relief housing
Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
Temperature protection as per EN 61347-2-13 C5e
Output current 350 mA
Max. output power 10 W
BIS approval mark for art. no.: 87500802, 87500804.
Nominal lifetime up to 50,000 h
Replacement for the 87500240 and 87500581
