Electronic ballast with highest possible energy class CELMA EEI A2 BAT. It offers large temperature range, intelligent voltage guard, precise lamp operation using adjustment of lamp parameters, advanced SMART-Heating for minimum 50000 starts without replacement of lamps, constant luminous flux irrespective of fluctuations in mains voltage, designed for THD <10%, for luminaires of protection class I and protection class II. It features automatic start after replacement of defective lamps, safety shutdown of defective lamps and at end of lamp life (EOL 2), insulation displacement connection (IDC) terminal for rapid automatic or manual wiring and for emergency lighting systems as per EN 50172. · Rated lifespan: 100,000 hours · Flicker free warm start · Min/Max ambient working temperature: -25°C to 70°C · Degree of protection: IP20 · Operating voltage: 198-264V (AC), 176-280V (DC)

Read more less

Tridonic 350mA I-SELECT 2 PLUG Blue from Tridonic Model: 28001110 This Tridonic resistor is a ready-to-use body used to set the output current value to 350mA in LED driver series PRE and EXC featuring the I-SELECT 2 interface (this resistor is not compatible with any driver with the I-SELECT generation 1 interface). When using this resistor at a value beyond the specified range the output current will be set to the minimum value (respective to when the resistor value is too large). Technical Specifications Accessory Type Plug Wattage 0.25 W Manufacturer Tridonic Dimming? Dimmable Depth 4 mm Length 21 mm Type Accessory Width 5 mm Resistor Power 0.25W

Read more less

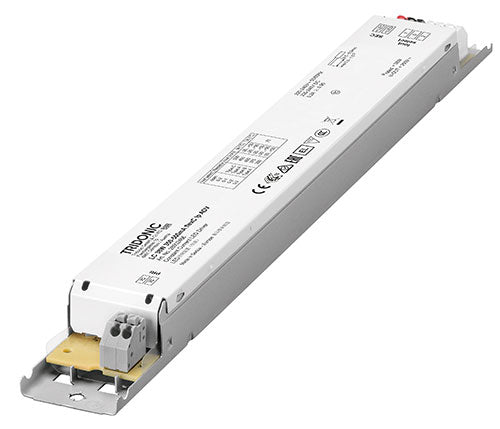

Driver LC 38W 250-350mA flexC lp ADV advanced series non-SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 250 – 350 mA Max. output power 38 W Up to 88.5 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For linear/area lighting in office applications

Read more less

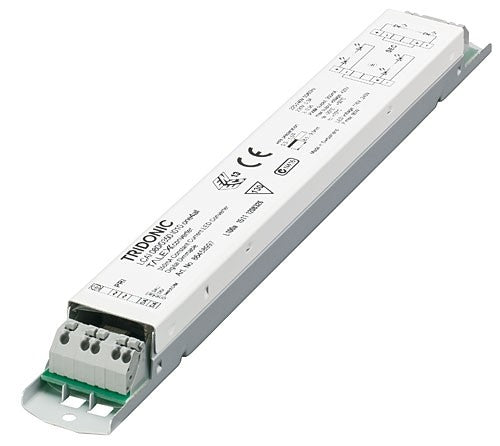

Driver LCA 100W 24V one4all SC PRE premium series 24 V – dimmable (IP20) With strain-relief Product description NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance) Dimmable 24 V constant voltage LED driver for flexible constant voltage strips Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards) One4all interface and ready2mains enable different dimming options Dimming range 1 to 100 % No additional external dimmer is needed Suitable for emergency escape lighting systems acc. to EN 50172 Nominal lifetime up to 50,000 h 5 years guarantee Typical applications Cove lighting, facade accent lighting, ceiling integration Technical details 24 V, 100 W Small design (295 x 43 x 30 mm) with stretched-compact strain relief Small cross section Push terminals for simple wiring Output terminals (+/–) equipped twice for more flexibility in the application Interfaces one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals System solution Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m In connection with Flex accessories wire to PCB plug Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly

Read more less

Obsolete , please order the successor below   Alternative  Driver LC 38W 700mA fixC lp SNC2 essence series SELV Product description Fixed output built-in LED driver Constant current LED driver For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current 700 mA Max. output power 37.8 W Up to 86 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: metal, white Type of protection IP20 Functions Overload protection Short-circuit protection No-load protection

Read more less

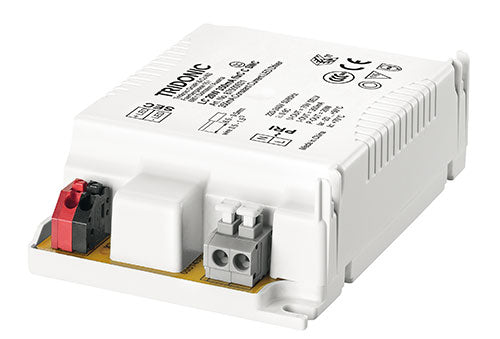

Product description Fixed output built-in LED driver Constant current LED driver For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e KC certificate for LC 60W 1400mA fixC C SNC Output current 1,400 mA Max. output power 60 W KC approval mark for art. no.: 87500568 and 87500570. Nominal lifetime up to 50,000 h 5 years guarantee (conditions at www.tridonic.com) Housing properties Casing: polycarbonate, white Type of protection IP20 Functions Overtemperature protection Overload protection Short-circuit protection No-load protection EAN/UPC: 9006210603384 Country of Origin: CN Customs tariff No.: 85044083

Read more less

Tridonic PC158T8PRO Electronic Ballast 240/250v 50/60/0Hz to run 1x58w T8 Tubes - PC 1/58 T8 PRO

Read more less

 We only have the slimline version of this item left now  or different brands in the same style  Alternatives  Same Size Shape and ratings   Alternatives  Same Size Shape and ratings  Alternative  Same item but slimline variant  Product Details High frequency digital ballast in a compact matchbox form factor for single lamp operation. Automatic start after replacement of defective lamps. Safety shutdown of defective lamps and at end of lamp life. · Suitable for single lamp operation · Runs 28w TC-DD, 26w TC-D and TC-T lamps · 5 year guarantee · IP20 · 50,000hr life Tridonic PC Square Basic High Frequency Ballast 1 x 26w from Tridonic Model: 22176208 An 18 Watt Square High Frequency Ballast from Tridonic Lighting designed to operate 1Single T5, 2D and PLT/PLC Fluorescent Lamps. Features for this non-dimmable gear include 25,000 starts, automatic shutdown at end of life, noise-free operation, low energy consumption and a 50,000 hour lifespan. Technical Specifications Control Gear Type High Frequency Accessory Type Ballast Wattage 28 W Manufacturer Tridonic Dimming? Non-Dimmable No. Of Lamps Single (1x) Depth 21 mm Lamp PL-C: 26w PLT: 26w 2D: 28w Length 80 mm Type Control Gear Width 40 mm Compatible Lamp Type PLT (4 Pin) Compatible Lamp Type T5 Compatible Lamp Type 2D (4 Pin) Control Gear Technology Fluorescent Manufacturers Part Number 22176208

Read more less

Driver LCA 75W 900–1800mA one4all lp PRE premium series SELV Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 900 – 1,800 mA Max. output power 75 W Up to 91 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

Driver LC 53W 250-350mA flexC lp ADV advanced series non-SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 250 – 350 mA Max. output power 53 W Up to 90.5 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For linear/area lighting in office applications

Read more less

premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED Driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 500 – 1,400 mA Max. output power 45 W Up to 90 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

Tridonic PC158T8PRO Electronic Ballast 240/250v 50/60/0Hz to run 1x58w T8 Tubes - PC 1/58 T8 PRO
