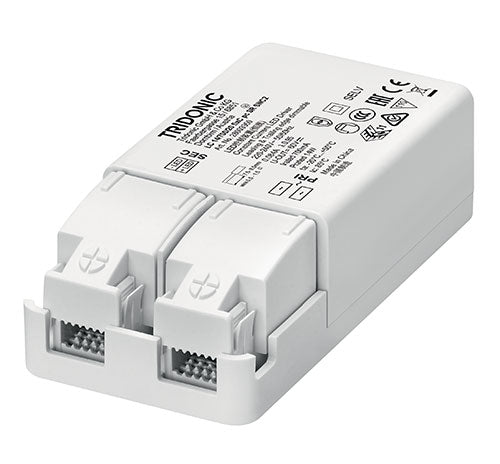

Driver LCBI 25W 700mA BASIC phase-cut SR advanced series Product description Dimmable via leading edge and trailing edge phase dimmers Output dimmed analogue (current amplitude) Dimming range typ. 5 to 100 % (depending on dimmer) Type of protection IP20 Screw terminal Connecting cable, wire cross-section 0.5 – 2.5 mm² SELV 700 mA output current Output power 25 W Nominal lifetime up to 50,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) 5 years guarantee Properties Casing: polycarbonate, white Compact dimensions Overload protection Short-circuit protection No-load protection

Read more less

THIS ITEM IS OBSOLETE,IF YOU ARE USING THE DALI DIMMING FEATURE THE BELOW WILL WORK   Dali Alternative  HOWEVER IF ITS THE DSI DIMMING FEATURE THEN WE ARE UNABLE TO OFFER ANY ALTERNATIVE   Digital Dimming Ballast to run 2 X 35/49w T5 tubes - PCA 2x35/49 T5 ECO - 22185097 Product description Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI = A1 BAT (1) Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) Multilamp management OEM-specific reserved memory areas 5 years guarantee Interfaces DALI DSI switchDIM (with memory function + selectable dimming rate) corridorFUNCTION (3 preprogrammed profiles) Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs Functions Intelligent Temperature Guard (overtemperature protection) Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Optimum filament heating in any dimmer setting Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) corridorFUNCTION with ambient light control Automatically triggered emergency lighting value in DC mode, 15 % For emergency lighting systems as per EN 50172 Automatic start after replacement of defective lamps Automatic shutdown if the lamp is faulty

Read more less

Driver LCA 100W 1100–2100mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Adjustable output current between 1,100 and 2,100 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 100 W Up to 92 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For applications in downlight, panel and low Bay / high Bay luminaires

Read more less

DALI PS3 DALI-2 power supply Product description DALI-2 power supply providing 70 mA for a DALI-2 installation Excellent scalability allowing to connect up to 2 PS3 in a DALI-2 installation Compact form factor combined with detachable mounting flaps allowing high installation flexibility, e.g. in luminaire Up to 100,000 guaranteed operating hours enable outstanding lifetime of the entire lighting system 5 years guarantee   Data sheet

Read more less

The Tridonic LC 75W 1800mA LED Driver is a fixed output, constant current LED driver with a maximum output power of 75w. These drivers have an average life of 100,000 hours and a 5 year guarantee. . Tridonic article number: 28000684

Read more less

Product description LED Constant current LED Driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 350 – 500 mA Max. output power 69 W Up to 91 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For linear/area lighting in office applications

Read more less

Emergency LED 1w Basic 1-3h 350Ma - Tridonic - 89899858 Product description Emergency lighting LED Driver for manual testing For self-contained emergency lighting SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm cross-section) 5 years guarantee Properties Mains and emergency operation Constant current mode With either screw or clip fastening (clip-fix) 1, 2 or 3 h rated duration Selectable operating time (jumper) Green charge status display LED Output power limitation Automatic restart after LED replacement Electronic multi-level charge system SELV classified (outputs powerLED, battery, status LED, test switch) Polarity reversal protection for battery Deep discharge protection Very low energy consumption from the battery after activation of the deep discharge protection Short-circuit-proof battery connection Emergency lighting LEDs available Batteries High-temperature cells 2 Ah NiMH batteries Cs cells 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

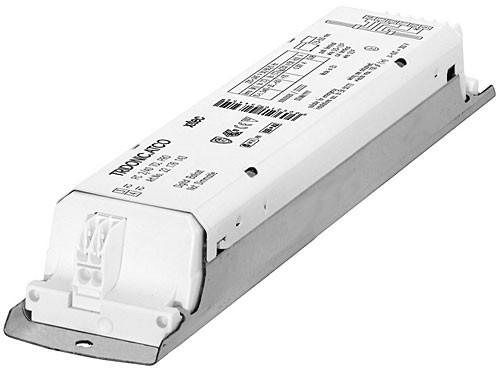

Tridonic PC240TCLPRO Electronic Ballast to run 2 x 40w PLL lamps - PC 2/40 TCL PRO - 22088426

Read more less

obsolete, you will be sent the ADV6 variant  28004903 Product description Ideal for linear and panel lights 2 terminals for serial wiring Perfectly uniform light, even if several LED modules are used together in a line Push terminals for quick and simple wiring of LED module to LED module Broad portfolio from extruded lenses and covers available HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output Long lifetime up to 72,000 hours 5 years guarantee (conditions at www.tridonic.com)

Read more less

Tridonic PC249T5PRO Electronic HF Ballast to run 2 x 49w T5 tubes - PC 2/49 T5 PRO low profile 22185154

Read more less

89800638 EM converterLED PRO MH/LiFePO4 250 V PRO version Note: LED driver supplied with duration link in 3 hours position. Duration link must be set before battery and mains connection. Product description Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 50 – 250 V Low profile casing (21 x 30 mm cross-section) For luminaire installation Nominal lifetime up to 100,000 h 5 years guarantee Properties Non maintained operation DALI interface for controlled testing and monitoring 1, 2 or 3 h rated duration Operating time selectable with plug (duration link) Compatible with most constant current LED drivers (see data sheet, LED driver compatibility) 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver Automatic shutdown of output if LED load is out of range Constant power output Two-colour status display LED Electronic charge system Deep discharge protection Short-circuit-proof battery connection Polarity reversal protection for battery provided by 3-pole connector Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries) Self-test: Status of the battery Status of the LED Function test Duration test Batteries High-temperature cells NiMH or LiFePO4 batteries LA or 18650 cells 4-year design life for NiMH batteries 1 years guarantee for NiMH batteries 4 – 8 years design life for LiFePO4 batteries 4 years guarantee for LiFePO4 batteries For battery compatibility refer to datasheet, battery selection

Read more less

obsolete , as long as you are using the dali feature please order the below  DALI Alternative The Tridonic PCA 2x26/32/42 TC ECO is a high frequency dimmable ballast to run:  2 x 26w Double Turn Compact Fluorescent Lamps 2 x 26w Triple Turn Compact Fluorescent Lamps 2  x 32w Triple Turn Compact Fluorescent Lamps 2 x 42w Triple Compact Fluorescent Lamps   Tridonic part number: 22185121
