river LC 57W 800-1050mA flexC lp ADV advanced series SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 800 – 1,050 mA Max. output power 57 W Up to 86 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Suitable for emergency escape lighting systems acc. to IEC 50172 Typical applications For linear/area lighting in office applications

Read more less

Tridonic Electronic HF Digital Dimming Ballast to run 2 X 36w T8 tubes - PCA 2/36 T8 ECO

Read more less

Tridonic PC236T8PRO Electronic Ballast 240v -50/60/0hz to run 2 x 36 T8 tubes - PC 2/36 T8 PRO

Read more less

EM powerLED SELFTEST 1 – 2 W Combined emergency lighting LED driver 1 – 4 W Screw-fix Clip-fix Screw-fix Clip-fix Product description Emergency lighting LED driver with selftest function For self-contained emergency lighting SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm) 5 years guarantee Properties Mains and emergency operation Self-test as per IEC 62034 Constant current mode With either screw or clip fastening (clip-fix) 1, 2 or 3 h rated duration Selectable operating time (jumper) Output power limitation Two-colour status display LED “Rest mode” function Simple set-up Automatic restart after LED replacement Electronic multi-level charge system SELV classified (outputs powerLED, battery, status LED, test switch) Polarity reversal protection for battery Deep discharge protection Very low energy consumption from the battery after activation of the deep discharge protection Short-circuit-proof battery connection Emergency lighting LEDs available Self-test: Status of the battery Status of the LED Charge condition Function test Duration test Batteries High-temperature cells 2 Ah NiMH batteries Cs cells 4 year design life 1 year guarantee For battery compatibility refer to data sheet Picture for illustrative purposes only

Read more less

Please click here to order  https://www.easy-controlgear.com/products/laht-ni-mh-4ah?_pos=3&_sid=2200419ab&_ss=r This is the popular 3 + 3 Cell Emergency Battery Stick. NiMH (Nickel Metal Hydride) 7.2v 4AH Twin Stick. It comes with Tags, Leads it will not be fitted with an AMP plug. This battery is the same as the more expensive Mackwell B906 battery without the premium price tag. Please note this battery does  come with the 4 x plastic support feet pictured.

Read more less

EM powerLED PRO DIM SR 45 W Combined emergency lighting LED driver Note: LED driver supplied with duration dip switch (2-way) in 3 hours position. Duration dip switch and I-SELECT 2 PLUG must be set before battery and mains connection. Product description Independent dimmable LED driver Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 20 – 50 V SELV for output voltage < 60 V DC Compact plastic casing with strain relief Properties Output power 6 – 45 W Constant current LED operation 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA Integrated emergency lighting unit 1, 2 or 3 h rated duration Operating time selectable with dip switch (2-way) Automatic shutdown of output if the forward voltage of the LED is out of range Two-colour status display LED Electronic multi-level charge system Pulse current charging for NiMH batteries Polarity reversal protection for battery Power-up fading at AC Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Deep discharge protection Short-circuit-proof battery connection 5 years guarantee Interfaces one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION) Terminal blocks: 45° push terminals Batteries High-temperature cells NiCd or NiMH batteries D, Cs, LA or LAL cells Battery box for independent use 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

Obsolete, If you are using the dali dimming feature please order the EL2X80IDIM , please note this is dali dimming only and not DSI dimming  Product description Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI = A1 BAT (1) Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) Multilamp management OEM-specific reserved memory areas 5 years guarantee Interfaces DALI DSI switchDIM (with memory function + selectable dimming rate) corridorFUNCTION (3 preprogrammed profiles) Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs Functions Intelligent Temperature Guard (overtemperature protection) Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Optimum filament heating in any dimmer setting Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) corridorFUNCTION with ambient light control Automatically triggered emergency lighting value in DC mode, 15 % For emergency lighting systems as per EN 50172 Automatic start after replacement of defective lamps Automatic shutdown if the lamp is faulty

Read more less

Tridonic PC122642TCPRO Electronic compact ballast to run 1x18-42w - 1x22w - 2x18-26w TCT Pro Tridonic are a world-leading supplier of lighting technology and support their customers with intelligent hardware and software solutions. Tridonic aim to make products which offer the highest level of quality, reliability and energy savings. The Tridonic 22176408 PC TC PRO electronic fixed output ballast is designed for luminaires with 1 or 2 x 26-42W TC lamps. The ballast has a compact design and boasts a nominal life-time up to 100,000 hours. The ballast offers a large temperature range and ensures constant luminous flux irrespective of fluctuations in mains voltage. Various functions and safety features are included, such as: Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown), Automatic start after replacement of defective lamps and Safety shutdown of defective lamps at end of life.

Read more less

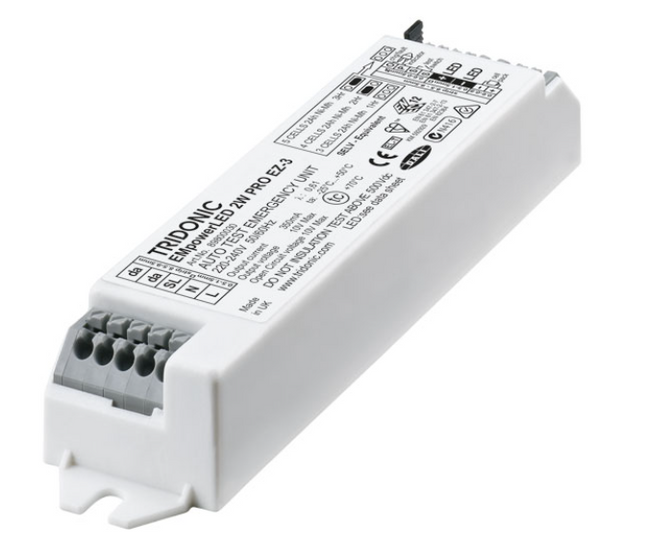

Product description_ Emergency lighting LED driver with DALI interface and automatictest function_ For self-contained emergency lighting_ SELV for output voltage < 60 V DC_ Low profile casing (21 x 30 mm cross-section)_ EM = Emergency_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Properties_ Mains and emergency operation_ DALI interface for controlled testing and monitoring_ DALI switchable in mains operation (on/off); the switched phaseSL must be switched on_ Constant current mode_ With either screw or clip fastening (clip-fix)_ 1, 2 or 3 h rated duration_ Selectable operating time (jumper)_ Output power limitation_ Two-colour status display LED_ Automatic restart after LED replacement_ Electronic multi-level charge system_ SELV classified (outputs powerLED, battery, status LED, testswitch)_ Polarity reversal protection for battery_ Deep discharge protection_ Very low energy consumption from the battery after activation ofthe deep discharge protection_ Short-circuit-proof battery connection_ Addressing function, patented (“EZ easy addressing”)_ Emergency lighting LEDs available Tests:_ Status of the battery_ Status of the LED_ Charge condition_ Function test_ Duration testBatteries_ High-temperature cells 2 Ah_ NiMH batteries_ Cs cells_ NiMH: 4 years design life / 2 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)

Read more less

Product description• Ideal for linear and panel lights• Luminous flux range 330 up to 1,840 lm• LED system solution with outstanding system efficacy up to145 lm/W, consisting of linear LED modules and dimmableLED Driver LCA 50W 100–400mA lp PRE• Efficacy of the module up to 172 lm/W• High colour rendering index CRI > 80• Small colour tolerance MacAdam 33• Small luminous flux tolerances• Colour temperatures 3,000 K, 4,000 K and 5,000 K• Perfectly uniform light, even if several LED modules are usedtogether in a line• Push terminals for quick and simple wiring of LED module toLED module• Simple installation (e.g. screws)• Long life-time: 50,000 hours• 5-year guarantee

Read more less

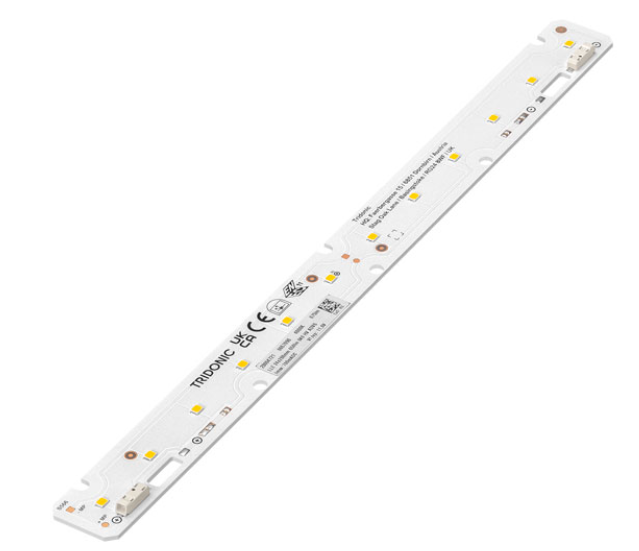

Product description_ Ideal for linear and panel lights_ 2 terminals for serial wiring_ Perfectly uniform light, even if several LED modules are usedtogether in a line_ Push terminals for quick and simple wiring of LED module to LEDmodule_ Option backside terminal_ Broad portfolio from extruded lenses and covers available_ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output_ Min. order quantity LLE 24x70mm QTY4: 36 pcs. The LLE24x70mm QTY4 module contains 4 single 24x70mm moduleswhich have to be separated_ Long lifetime up to 102,000 hours_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Optical properties_ Colour temperatures 2,700, 3,000, 3,500, 4,000, 5,000 and 6,500K_ Efficacy of the LED module 205 lm/W at Irated and tp = 25 °C_ High colour rendering index CRI > 80_ High colour consistency (MacAdam 3) 1_ Small luminous flux tolerancesMechanical properties_ Module dimension 24 x 70 mm, 24 x 140 mm, 24 x 280 mm and 24x 560 mm (ZHAGA compliant)_ Simple installation via clips or screwsSystem solution_ Combine Tridonic's LED modules and dimmable drivers to achievean outstanding system efficacy (configuration possible viahttps://setbuilder.tridonic.com/)

Read more less

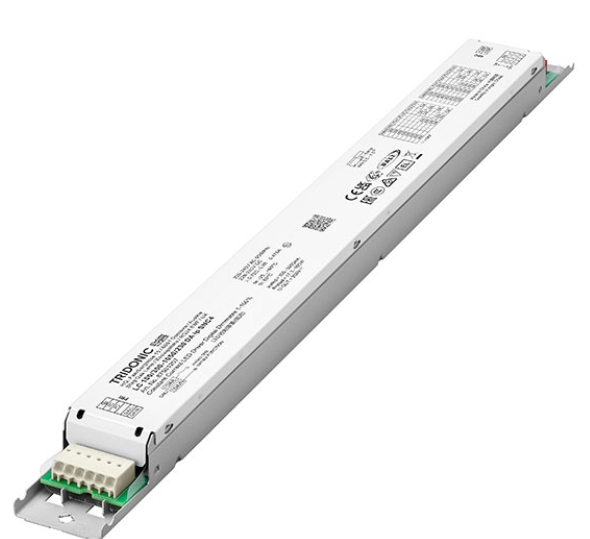

Product description_ Dimmable built-in constant current LED driver_ For luminaires of protection class I and protection class II_ Temperature protection as per EN 61347-2-13 C5e_ Adjustable output current via dip switch or DALI_ Selectable fixed output current 300, 350, 400, 450, 500, 550, 600,650, 700, 750, 800, 850, 900, 950, 1000 and 1050 mA (preselected current 300 mA)_ Max. output power 100 W_ Up to 93 % efficiency_ Anti-glowing design_ Nominal lifetime of 100,000 h_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Housing properties_ Low profile metal casing with white cover_ Type of protection IP20Interfaces_ one4all (DALI-2, switchDIM, corridorFUNCTION)_ Terminal blocks: 0° push terminalsFunctions_ Adjustable output current in 1-mA-steps (DALI)_ Constant light output function (CLO)_ Protective features (overtemperature, short-circuit, overload, noload)_ Suitable for emergency escape lighting systems acc. to EN 50172Benefits_ Flexible configuration via companionSUITE (DALI)_ Application-oriented operating window for maximumcompatibility_ Best energy savings due to low stand-by losses and highefficiency
