LitePlan CRL/5 LED Holder for Accessories Series from Lite-Plan
Model: CRL/5 LED HOLDER
Technical Specifications
Accessory Type
Lamp Holder
Technology
LED
Manufacturer
Lite Plan
Diameter
6.35 mm
Finish
White
Length
25 mm
Type
Accessory
Downlight Cut Out (mm)
20 mm
Control Gear Technology
LED
Obsolete, this how been replaced with the ADM/1-K which will be supplied with a new smaller lithium battery
Replacement
A 3-hour emergency DALI self-test driver designed for constant current LED devices, supplied complete with extra long life LiFePO4 battery packs. This product is suitable for integral applications. The DLP/1 operates a single 4V chip at 550mA. In keeping with the DALI standard, this unit will revert to standalone self-test if not connected to a DALI operating system. For a full list of our compatible devices, please see our LED Device range.
This range operates with LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour due their long operational life.
DLP/1 DALI Addressable Range
Specifications
For Integral Use with Slim Batteries
High Temperature Tolerance Batteries
Extra Long Life LiFePO4 Batteries
DALI Self-Test Module
High Output (700mA) Version Available
DLP/1
Input Voltage
230-240 Volts AC – 50/60Hz
Power Rating
Charging Maintained: 32mA λ = 0.6
Standby Non-Maintained: 8mA λ = 0.15
Em. Duration
3-hours
Battery Type
IRF26650 LiFePO4
Battery Voltage
3.2V
Battery Capacity
3.8Ah
Charge Current
Dual Rate 0-225mA
Discharge Current
700mA nominal
Recharge Time
24-hours
TC Max
60°C Module / 55°C Battery
Output Load
1 x 2W
Output Current
550mA
Module Dims.
149mm x 35mm x 28mm
Battery Dimensions (with end caps)
220mm long x 22mm wide x 24mm high
Fixing Centres
132mm x M4
Module Weight
0.1Kg
Battery Weight
0.11Kg
FED Conversion Range
Specifications
Slim Module Suitable for Linear Applications
Long Life LiFePO4 Batteries
Strain Relief Module with Fitted Cables
Suitable for a Wide Range of LED Loads
ENEC Approved
BSI Kitemark Approved
Mains Supply Voltage
230-240V AC 50/60Hz
Emergency Duration
3 Hours
Recharge Period
24 Hours
LED Current Limit
320mA
Battery Current Limit
1100mA
Cut off Voltage
2.5V
Double Pole Changeover Relay
Additional 3rd Pole Relay
Compact Design - will fit through a 45mm aperture

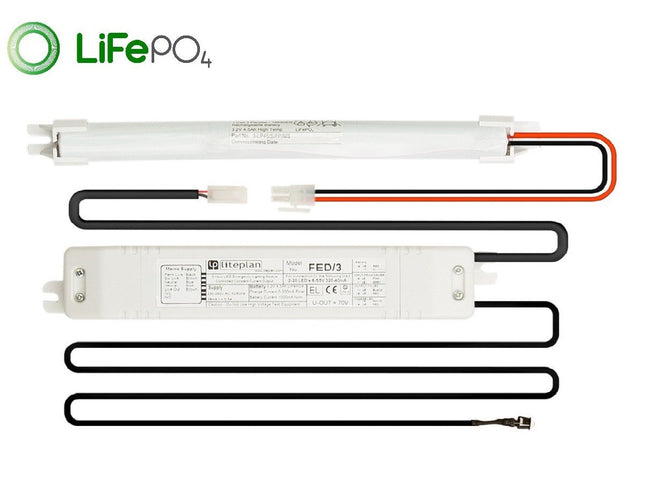

The FED/3 has ENEC and BSI Kitemark Approval, itis a high quality 3 hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. The unit is designed to work with lithium iron phosphate (LiFePO4) batteries and is available in 2 versions, one with PCB terminal blocks, for internal mounting inside a luminaire, or a pre-wired version for mounting remotely from the luminaire where integral mounting is not possible. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED.
This range pioneers the use of LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour.
• Suitable for Most Compact Fluorescent Lamps • Deep Discharge Protection • Four Pole Changeover Relay • Fifth Pole Relay for Ballast Protection • High Temperature NiCd Batteries • Compact Module Dimensions • Can be Provided in Various Remote Enclosures • Operates One Lamp Within Multi Lamp Circuits
A 3 hour emergency lighting conversion kit which operates with high temperature 7.2V NiCd batteries. The unit is designed to suit a wide range of fluorescent tubes. Please see lamp compatibility chart to see the BLF that will be achieved for your particular tube.
Technical Details: Mains Supply 230-240V AC 50/60 Hz Power Rating 22mA λ = 0.88 Emergency Duration 3 hours Battery Type 7.2V 4.5Ah NiCd Charge Current 200mA Cut-Off Voltage 6V Discharge Current 1.05 Amp Tc Point and Temperature 70 °C Case Side Module Dimensions (LxWxH) 165mm x 45mm x 29mm Battery Dimensions (LxØ) 2 x 220mm x 37mm Overall Kit Weight 1.1Kg
