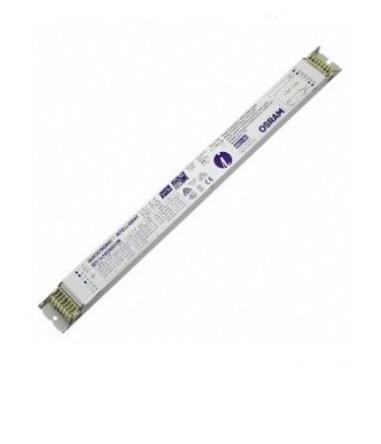

The Osram QTP-OPTIMAL 2x18-40 is a Multiwatt non dimmable high frequency ballast to run 2 x 18w, 24w, 36w, 40w PL-L, 18w & 24w DULUX F, 15w & 18w 30W T8 tubes and 24w & 39w T5 lamps.
Product family benefits
Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
VDE/VDE EMC certified system
Very high energy efficiency due to cut-off technology
Areas of application
Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
Industry
Open-plan offices, corridors and storage rooms
Public buildings
Sports halls and factories
Strip lighting
Suitable for emergency lighting (DC operation)
Modernization of existing systems
Suitable for luminaires of protection classes I and II
Data Sheet
Product Data Sheet
This item is obsolete, for alternative please click on the below for Philips variant
https://www.easy-controlgear.com/products/philips-hfr258tld-ph-2x-58w-hf-regulator-ii-ballast-dimmable?_pos=1&_sid=6e0d82d08&_ss=r
Osram Quicktronic QT HF DIM (1-10V) 2 X 58W T8 Dimming ballast for T8 fluorescent tubes.
This item is no longer available , If order you will be sent a smaller alternative
Technical Specifications
Wattage
16 W
Manufacturer
Vossloh Schwabe
Dimming?
Non-Dimmable
Compact
16 watt
Height
28 mm
Length
130 mm
Type
Control Gear
Width
28 mm
OBSOLETE, PLEASE CONSIDER THE BELOW ALTERNATIVE IF USING 240V
ALTERNATIVE
ARLEN FL 2x54-58M 110-240V Ballast
SI254-58
from Arlen (Model: HFL2x54-58M)
ARLEN FL2x54-58M Ballast
Technical Specifications
for ARLEN FL 2x54-58M 110-240V Ballast
Height
26 mm
Length
360 mm
Manufacturer
Arlen
Type
Control Gear
Voltage
110-240 Volt
Width
30 mm
Product Features
Flat, lightweight high-frequency electronic regulating ballast, using 1-10V protocol for TL5 fluorescent lamps
Features
Programmed start: flicker-free ignition < 0.5 seconds and striation-free operation, no stroboscopic effects. Preheating the lamp electrodes enables the lamps to be switched on and off without reducing life
Smart power ensures constant light, independent of mains fluctuations
Up to 60% reduction in energy consumption by using automatic lighting control systems
Stop circuit is activated within 5 seconds in the event of lamp failure (safety stop), and ballast resets automatically after lamp replacement
Application
1-10V installations with daylight linking and/or movement detection (for energy savings)
1-10V installations with remote control systems (combining energy savings with comfort)
Installations with emergency back-up, according to IEC 60598-2-22
Specifications
General Information
Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
EII
Type version
mk4
Lamp type
PL-T/C/L/TL5C
Number of lamps
2 piece/unit
Number of products on MCB (16 A type B) (nom.)
12
Automatic restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input frequency
50 to 60 Hz
Operating frequency (max.)
- kHz
Operating frequency (min.)
42 kHz
Operating frequency (nom.)
45 kHz
Ignition method
Warm Start
Crest factor (max.)
1.7
Power factor 100% load (nom.)
0.95
Ignition time (max.)
0.52 s
Mains voltage performance (AC)
-8%-+6%
Mains voltage safety (AC)
-10%-+10%
Earth leakage current (nom.)
0.5 mA
Inrush current width
0.35 ms
Constant wattage deviation
-2%/+2%
Ballast factor (nom.)
1
Power losses (nom.)
4.35-4.93 W
Inrush current peak (max.)
31 A
Wiring
Connector type input terminals
Insert
Cable capacity output wires mutual (nom.)
100 pF
Connector type output terminals
Insert
Cable length hot-wiring
0.75 m
Wire strip length
7.5-8.5 mm
Dual fixture master/slave
Not applicable [ Master/Slave oper. not applicable]
Input terminal cross section
0.50-1.50 mm²
Output terminal cross section
0.50-1.50 mm²
Cable capacity output wires to earth (nom.)
100 pF
System characteristics
Rated ballast-lamp power
22-42 W
Rated lamp power on PL-T/C
22/42 W
Temperature
T-ambient (max.)
50 °C
T-ambient (min.)
-25 °C
T storage (max.)
80 °C
T storage (min.)
-40 °C
T-case lifetime (nom.)
75 °C
T-Case maximum (max.)
75 °C
T-Ignition (max.)
50 °C
T-Ignition (min.)
-25 °C
Emergency Operation
Battery voltage lamp ignition
198-254 V
Battery voltage lamp operation
176-254
Approval and Application
Energy efficiency index
A2
IP classification
IP 20 [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz
EN55015
EMI 30 MHz ... 1,000 MHz
EN55022 level B
Safety standard
IEC 61347-2-3
Performance standard
IEC 60929
Quality standard
ISO 9000:2000
Environmental standard
ISO 14001
Harmonic current emission standard
IEC 61000-3-2
EMC immunity standard
IEC 61547
Vibration standard
IEC68-2-6 F c
Bumps standard
IEC 68-2-29 Eb
Humidity standard
EN 61347-2-3 clause 11
Approval marks
CE marking
ENEC certificate
VDE-EMV certificate
Temperature marking
Yes
Emergency standard
IEC 60598-2-22
Humming and noise level
Inaudible
Product Data
Full product code
871150091399930
Order product name
HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240V
EAN/UPC – product
8711500913999
Order code
91399930
Local code
HFP22242PLT/C/L
Numerator – quantity per pack
1
SAP numerator – packs per outer box
12
Material no. (12 NC)
913700630866
Net Weight (Piece)
0.150 kg
Installation Diagrams
HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240 V
4x14w T5 Electronic Ballast 240v - Vossloh Schwabe - ELXC414.868
This item is now obsolete an alternative will be sent
Technical Specifications
Control Gear Type
High Frequency
Accessory Type
Ballast
Wattage
14 W
Manufacturer
Vossloh Schwabe
Dimming?
Non-Dimmable
No. Of Lamps
Quad (4x)
Height
28 mm
Lamp
4 x 14w
Length
230 mm
Type
Control Gear
Width
40 mm
Compatible Lamp Type
T5
Control Gear Technology
Fluorescent
