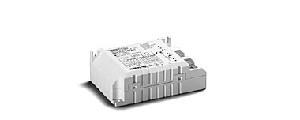

echnical Specifications
Accessory Type
Ballast
Wattage
50/80 W
Manufacturer
Vossloh Schwabe
Dimming?
Non-Dimmable
Depth
66 mm
Length
108 mm
Type
Control Gear
Number of Lamps
1
Voltage
220-240 Volt
Width
53 mm
Control Gear Technology
Discharge
Manufacturers Part Number
Q80/50.551
2 x 36w T8 Ballast - EL2X36HF - Helvar
Obsolete replaced by the EL2X36NGN
https://www.easy-controlgear.com/products/helvar-el2x36ngn-he-electronic-2x36w-t8-ballast?_pos=1&_sid=2d5ca08ec&_ss=r
This Philips HF-R TD 2 14-35 TL5 dimmable ballast runs between : 2 x 14w - 35w T5 fluorescent tubes. This ballast's lamp power can be regulated from 1% to 100%, digital control input according to the industry standard DALI (digital addressable lighting interface) combined with the touch and dim pushbutton protocol, automatic stop start, automatic restart after lamp replacement, up to 75% reduction in energy consumption and quick programme flicker free start.The Philips HD-f ballasts are commonly used in offices. These units are for use with installations with emergency back up.

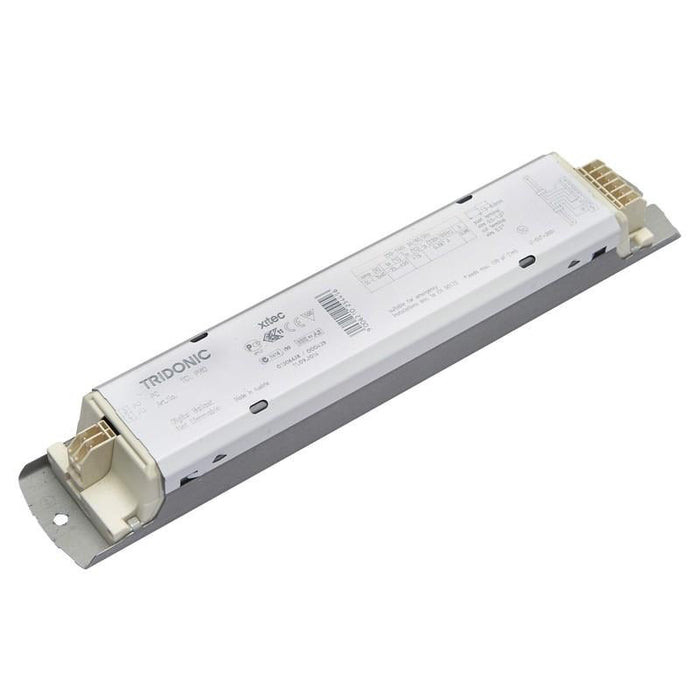

The Tridonic PC 2/55 TCL PRO is a non-dimmable high frequency ballast to run: 2 x 55 Watt long single turn compact fluorescent lamps. Click here to see Data Sheet and Wiring Diagrams!
Cheaper Alternative
osram-qtp-optimal-2x54-58-4008321880253
1 x28-33w 3hr 3Cell TC-DD Low Output Combo HF Ballast - Tridonic - 89899943 / 89899943
Tridonic 89899980 PC1X28-33LOEDD Emergency Combo for CFL
Combination electronic ballast and emergency lighting unit. For use with TC-DD compact fluorescent lamps. 3 hour rated duration, short circuit proof battery connection. NiCd batteries, separate battery pack with high temperature cells.
Volts:
240 v
Length:
123 mm
Width:
31 mm
Diameter:
31 mm
Bulb/Lamp Type:
Ballast
Height:
79 mm
Technology:
Compact Fluorescent
Electronic ballast with highest possible energy class CELMA EEI A2 BAT. It offers large temperature range, intelligent voltage guard, precise lamp operation using adjustment of lamp parameters, advanced SMART-Heating for minimum 50000 starts without replacement of lamps, constant luminous flux irrespective of fluctuations in mains voltage, designed for THD <10%, for luminaires of protection class I and protection class II. It features automatic start after replacement of defective lamps, safety shutdown of defective lamps and at end of lamp life (EOL 2), insulation displacement connection (IDC) terminal for rapid automatic or manual wiring and for emergency lighting systems as per EN 50172.
· Rated lifespan: 100,000 hours
· Flicker free warm start
· Min/Max ambient working temperature: -25°C to 70°C
· Degree of protection: IP20
· Operating voltage: 198-264V (AC), 176-280V (DC)
