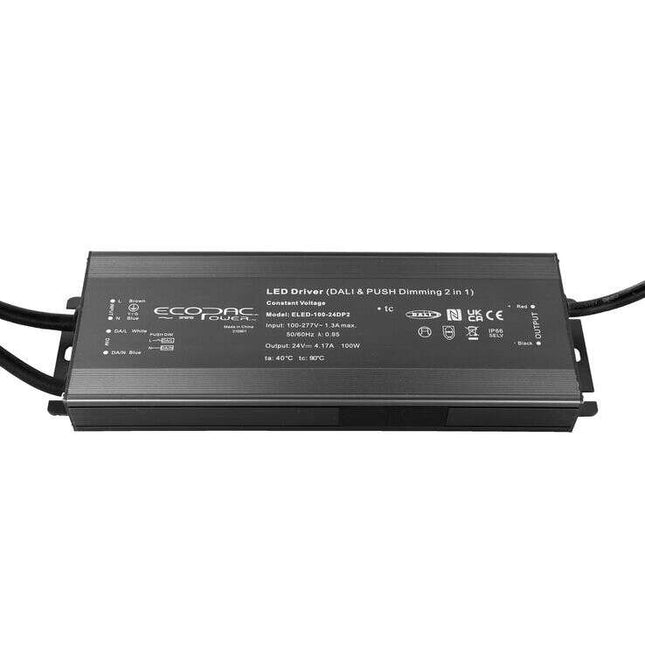

ELED-60-DP2 Series Features: Features: Constant voltage/ PWM Output (NFC regulation) DALI2 & Push dimming function (0-100%) Compatible with DALI and DALI2 dimming system AC input: 100~277VAC Built in active PFC function Efficiency up to 88% Protections: Short circuit/ Over load/Over temperature Cooling by free air convection IP20 design for indoor installation. Suitable for intelligent LED lighting Suitable replacement for the Ansell ADDIM60/24V/DD

Read more less

The Ecopac ECP15-24VF-1 is a 24V constant voltage output LED Driver which features a compact, low profile design. These high quality LED drivers are supplied with 3 years warranty.  Protections: Short circuit/ Overload/ Overheat Input Voltage: 200 – 240VAC Cooling by free air convection Low cost, high reliability Output Power: 15W Compact and light-weight plastic case Working Temperature: -20C to +45C 3 year warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 15 Output Voltage 24V Dimmable (Type) No Dimensions 103x 35.5x 16 EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61547 Input Voltage 200~240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet ECP15-VF-1.pdf

Read more less

Obsolete Alternative Up to 100W Alternative up to 60W   The Ecopac ELED-75-24D DALI Dimmable LED Driver is 75W 24VDC output.  Constant Voltage  / PWM Output Design Dali & Push Dimmable Protections: Short circuit/ Over Voltage/ Over Temperature Other features: Dimming range from 0.1% to 100% Input Range 200-265VAC Output 24VDC Built-in PFC function IP20design for indoor or outdoor installations 87% efficiency 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 75 Output Voltage 24V Dimmable (Type) DALI, Push Dimming DC Output Adjustment No Dimensions 355 x 215 x 215 mm EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (?60% load), EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60°C PDF Datasheet ELED-75-D.pdf

Read more less

ELED-40-C300/1400DP2 Features: 40W DALI 2 and Push Dimming Multiple-Stage Output Current LED Driver Features: • Constant Current mode output with multiple levels selectable by dip switch• DALI 2 dimming function (IEC62386)• AC input: 100-277VAC• Built-in active PFC function• Efficiency up to 86%• Protections: Short circuit/ Over load/Over temperature• Cooling by free air convection• Suitable for intelligent LED lighting ELED-C40-300/1400DP2(1400) ELED-C40-300/1400DP2(1300) ELED-C40-300/1400DP2(1200) ELED-C40-300/1400DP2(1100) ELED-C40-300/1400DP2(1000) ELED-C40-300/1400DP2(900) ELED-C40-300/1400DP2(800) ELED-C40-300/1400DP2(700) ELED-C40-300/1400DP2(650) ELED-C40-300/1400DP2(600) ELED-C40-300/1400DP2(550) ELED-C40-300/1400DP2(500) ELED-C40-300/1400DP2(450) ELED-C40-300/1400DP2(400) ELED-C40-300/1400DP2(350) ELED-C40-300/1400DP2(300) Wattage 40 40 40 40 40 40 40 40 40 39 35.8 32.5 29.3 26 22.8 19.5 Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 300mA Output Current 1400mA 1300mA 1200mA 1100Ma 1000mA 900mA 800mA 700mA 650mA 600mA 550mA 500mA 450mA 400mA 350mA 3~65 Output Voltage 3~29 3~31 3~34 3~37 3~40 3~45 3~50 3~57 3~62 3~65 3~65 3~65 3~65 3~65 3~65 Dimensions 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm Working Temperature -40~80°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

ELED-200-DP2 DT8 Series Features: Features: • DT8- warm white and cool white dimming• Constant voltage/ PWM Output (NFC regulation)• DALI & Push dimming function (0-100%)• AC input: 100-277VAC• Built-in active PFC function• Efficiency up to 91%• Protections: Short circuit/ Over load/Over temperature• Cooling by free air convection• IP66 design for indoor and outdoor installation.• Suitable for intelligent LED lighting   DALI DT8 (Digital Addressable Lighting Interface DT8) is an enhancement of the standard DALI protocol (Digital Addressable Lighting Interface), a widely adopted communication protocol in the lighting industry for controlling and dimming LED lights and other lighting fixtures. One of the major improvements with the DT8 Series  is the ability to control the colour of LED lights. It introduces colour control channels, allowing users to adjust the colour temperature or choose specific colours of light. This feature is particularly beneficial in applications where dynamic lighting scenes and ambiance are desired, such as in retail spaces, hospitality venues, and architectural lighting.The DT8 Series  supports tuneable white lighting, ranging from warm white to cool white, to suit different tasks, preferences, or time of day. Tuneable white lighting finds extensive use in applications like offices, healthcare facilities, and residential spaces.

Read more less

ELED-20P-C250-700T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch • Dimming function: Triac/phase cut dimming • Work with leading or trailing edge Triac dimmer • (ON key: leading edge; 1 key: trailing edge) • AC input: 200-240VAC • Built-in active PFC function • Efficiency up to 78% • IP20 design for indoor installation • Full protection plastic housing easy installation • Protections: Short circuit/ Over load • Cooling by free air convection • Suitable for LED lighting and moving sign applications • Strong compatibility, flicker-free dimming Spec ELED-20P-C250-700T(C700mA) ELED-20P-C250-700T(C600mA) ELED-20P-C250-700T(C550mA) ELED-20P-C250-700T(C500mA) ELED-20P-C250-700T(C450mA) ELED-20P-C250-700T(C400mA) ELED-20P-C250-700T(C350mA) ELED-20P-C250-700T(C250mA) Wattage 20.3 19.8 19.8 20 18.9 16.8 14.7 10.5 Input Voltage 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC Output Current 700 600 550 500 450 400 350 250 Output Voltage 3~29 3~33 3~36 3~40 3~42 3~42 3~42 3~42 Dimensions 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm Working Temperature -40~60°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
