Constant current designIP66 ratedProtections: Short circuit/ Overload/ Over temp.Input Voltage: 100 – 240VACCooling by free air convectionLow cost, high reliabilityOutput Power: 4WCompact and light-weight plastic caseWorking Temperature: 0°C to +45°C3 year warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 7 Dimmable (Type) No Dimensions 38x 30x 23.5 EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61547 Input Voltage 100~240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet ECP4-ILP.pdf

Read more less

LL1x110-E-DA   110 W DALI dimmable LED driver 350 mA – 700 mA adjustable current output Lifetime up to (h): 100000 Dimming range: 1% – 100% Product number: 5 532 004 More information: HYBRID, DALI, EFFICIENT Datasheet

Read more less

Driver LCBI 10W 180/350/500mA PHASE-CUT/1–10V lp advanced series Product description Dimmable built-in constant current LED driver Constant current LED driver Dimmable via leading edge and trailing edge phase dimmers Dimmable via 1 ... 10 V Output dimmed analogue (current amplitude) Dimming range typ. 10 to 100 % (depending on dimmer) For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e SELV Output current 180, 350 or 500 mA Output power 10 W Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Push-in terminals Functions Overload protection Short-circuit protection No-load protection No output current overshoot at mains on/off

Read more less

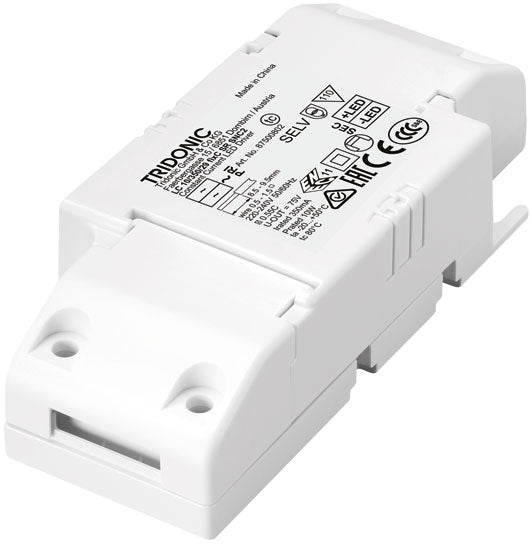

Product description Independent driver with strain-relief housing Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) Temperature protection as per EN 61347-2-13 C5e Output current 350 mA Max. output power 10 W BIS approval mark for art. no.: 87500802, 87500804. Nominal lifetime up to 50,000 h Replacement  for the 87500240 and 87500581

Read more less

Driver LC 38W 250-350mA flexC lp ADV advanced series non-SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 250 – 350 mA Max. output power 38 W Up to 88.5 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For linear/area lighting in office applications

Read more less

Constant CurrentFully isolated plastic caseProtections: Short circuit/ Overload/ Over voltageOther features: Universal AC input / Full RangeSmall and compact sizeWithstand 300VAC surge input for 5 secondsIsolation class II, no FGCooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 25 Output Current 350mA Dimmable (Type) No Output Voltage Range (V) 25~70 Dimensions 84x 57x 29.5 EMC Standards EN55022, EN61000-3-2 Class A, EN610003-3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; light industry level (surge 2KV), criteria A Input Voltage 90~264VAC, 127VDC~370VDC Safety Standards Design refer to EN60950-1, UL8750 Output Voltage Options Single Working Temperature -30°C~+70°C (Refer to "Derating Curve") PDF Datasheet APC-25-spec.pdf

Read more less

Driver LCA 100W 24V one4all SC PRE premium series 24 V – dimmable (IP20) With strain-relief Product description NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance) Dimmable 24 V constant voltage LED driver for flexible constant voltage strips Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards) One4all interface and ready2mains enable different dimming options Dimming range 1 to 100 % No additional external dimmer is needed Suitable for emergency escape lighting systems acc. to EN 50172 Nominal lifetime up to 50,000 h 5 years guarantee Typical applications Cove lighting, facade accent lighting, ceiling integration Technical details 24 V, 100 W Small design (295 x 43 x 30 mm) with stretched-compact strain relief Small cross section Push terminals for simple wiring Output terminals (+/–) equipped twice for more flexibility in the application Interfaces one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals System solution Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m In connection with Flex accessories wire to PCB plug Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly

Read more less

Obsolete , please order the successor below   Alternative  Driver LC 38W 700mA fixC lp SNC2 essence series SELV Product description Fixed output built-in LED driver Constant current LED driver For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current 700 mA Max. output power 37.8 W Up to 86 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: metal, white Type of protection IP20 Functions Overload protection Short-circuit protection No-load protection

Read more less

Driver LCA 75W 900–1800mA one4all lp PRE premium series SELV Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 900 – 1,800 mA Max. output power 75 W Up to 91 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 300mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year WarrantyMore Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 300mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf

Read more less

Driver LC 53W 250-350mA flexC lp ADV advanced series non-SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 250 – 350 mA Max. output power 53 W Up to 90.5 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For linear/area lighting in office applications

Read more less

Ecopac ELED-30-24DP2 DALI Dimmable, constant voltage LED driver. Built in short circuit, overload, over current and over temperature protection together with a 3 year warranty make the ELED-30-24DP2 highly reliable.  • Constant voltage/ PWM Output (NFC regulation)• DALI & Push dimming function (0-100%)• AC input: 100-277VAC• Built-in active PFC function• Efficiency up to 83%• Protections: Short circuit/ Over load/Over temperature• Cooling by free air convection• IP20 design for indoor installation.• Suitable for intelligent LED lighting More Information Brand Ecopac Power Output Wattage (W) 30 Output Voltage 24V IP Rating IP20 Non Waterproof Dimmable (Type) DALI, Push Dimming Dimensions 171.5 x 54 x 20 mm EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load) Input Voltage 100~277VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 , UL8750 (US) Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-30-DP2_2022-04-14-094641.pdf
